Description :
8 x NEMA 5-15R, 2 x USB, 120 V, 50 - 60 Hz, NEMA 5-15P, 1.83 m, 2630 J, 20 - 40 kA, 32 x 89 x 330 mm, 0.78 kg, blackAPC SurgeArrest. Surge energy rating: 2630 J, AC outlets quantity: 8 AC outlet(s), AC outlet types: NEMA 5–15R. Power plug: NEMA 5–15P. Product colour: Black. Cable length: 1.83 m, Weight: 780 g, Width: 89 mm. Certification: MET, REACH

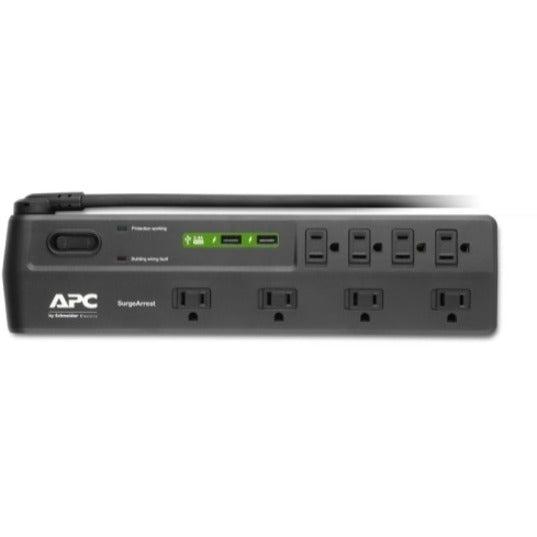

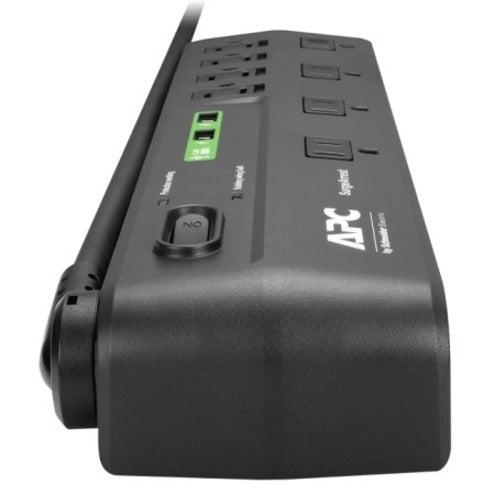

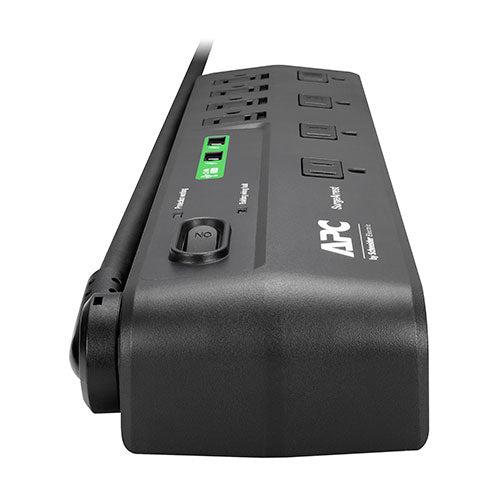

APC Home Office SurgeArrest 8 Outlets with 2 USB charging ports (5V, 2.4A in total), 120V

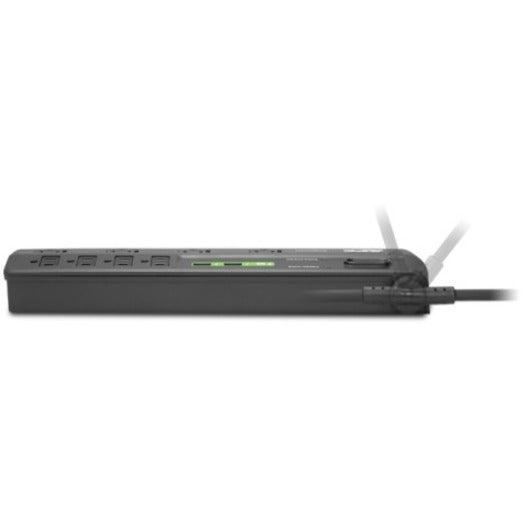

180 degree Rotating Cord Retainer
A 180-degree rotating cord with strain relief offers flexibility in positioning the SurgeArrest, and in routing the power cord.
Adjustable Cable Management
Keeps cords and cables neat and organized.
Building Wiring Fault Indicator
This LED informs users of potentially dangerous wiring problems in the wall circuit.
Catastrophic Event Protection
SurgeArrest components such as MOVs and Thermal fuse ensure instantaneous reaction to lightning strikes and wiring faults. If the surge components are damaged due to power spike or over voltage, excess power cannot reach your equipment. Unlike the APC SurgeArrest products, most surge suppressors continue to let power through even after circuits have been damaged, leaving your equipment exposed to other damaging surges.
Fail Safe Mode
Most other surge suppressors continue to let power through even after their circuits have been damaged, leaving your equipment exposed to future surges. APC's SurgeArrest fail safe, which means that once the circuit of an APC SurgeArrest has been compromised the unit disconnects equipment from the power supply ensuring that no damaging surges reach your equipment.
IEEE let-through ratings and regulatory agency compliance
APC surge protectors undergo stringent testing by IEEE, and are awarded "let-through ratings", which indicate the maximum voltage level that can possibly reach your equipment after a surge or voltage spike has passed through an electric surge protector. Lower IEEE let-through ratings indicate better protection and performance. The APC Essential SurgeArrest series offers optimal performance with a let-through rating of less than 330V for North American products, and a rating of less than 15% for products sold worldwide. All APC products comply with local agency safety requirements, including UL in North America and CE/Kema/Gost/C-tick/A-Tick/Telepermit in their respective regions.
Lightning and Surge Protection
To prevent damage to your equipment from electric power surges and spikes.
Noise Filtering
Attenuates EMI/RFI line noise that can cause data errors and keyboard lockups, ensuring better performance of protected equipment.
Overload Indicator
Indicator illuminates when connected equipment draws more power than unit’s capacity. To remedy the condition, unplug less vital equipment.
Protection Working Indicator
SurgeArrest will warn you if its circuitry has been damaged by heavy strike or power line surge and it is unable to provide 100% protection. If still under warranty, APC will then replace your damaged SurgeArrest free of charge.
Receptacle Shock Safety Shutters
Shutters protect users from accidental contact with unused outlets.
Resettable circuit breaker
Easy recovery from overloads; no need to replace a fuse.
Right Angle Plug
Plug angle allows for equipment and furniture to be placed closer to the wall than with a standard power cord. Reduces cord stress too.
Smart charging port
A 2.4 amp USB port integrates Smart Charging technology to maximize charging speeds according to the type of device detected.

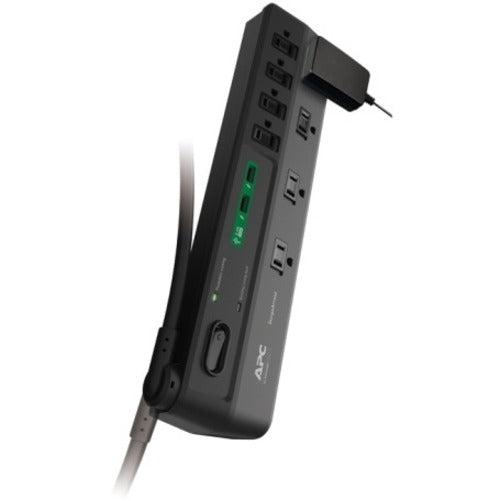

Transformer Block Spacing
Connect bulky transformer block plugs without covering up other outlets.
Specifications :
General Information
Manufacturer | Schneider Electric SA |
---|---|
Manufacturer Part Number | P8U2 |
Manufacturer Website Address | http://www.schneider-electric.com |
Brand Name | APC by Schneider Electric |
Product Line | SurgeArrest |
Product Name | SurgeArrest 8-Outlet PDU |
Product Type | Surge Suppressor/Protector |
UPC | 731304323006 |
Height | 1.3" |
---|---|
Width | 3.5" |
Depth | 13" |
Weight (Approximate) | 1.72 lb |
Package Contents | |
---|---|
Environmentally Friendly | Yes |
Environmental Certification | RoHS |
Limited Warranty | Lifetime |
---|---|
Additional Warranty Information | Limited Lifetime |
