Description
Specifications
Description :

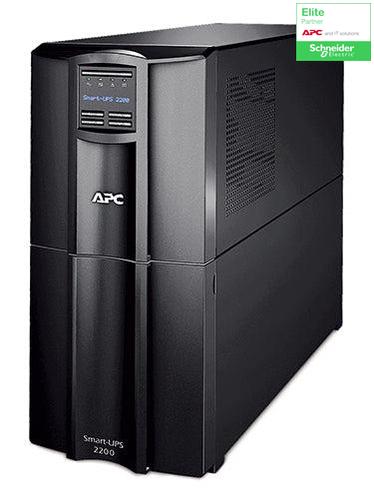

Smart-UPS, 2200VA, 1980 W, LCDAPC SMT2200J. Output power capacity: 2.2 kVA, Output power: 1980 W, Waveform: Sine. AC outlet types: NEMA 5–15R,NEMA 5–20R, AC outlets quantity: 10 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Typical backup time at full load: 6.7 min, Typical backup time at half load: 24.1 min. Form factor: Tower, Product colour: Black, Cable length: 1.83 m. Width: 197 mm, Depth: 544 mm, Height: 435 mm

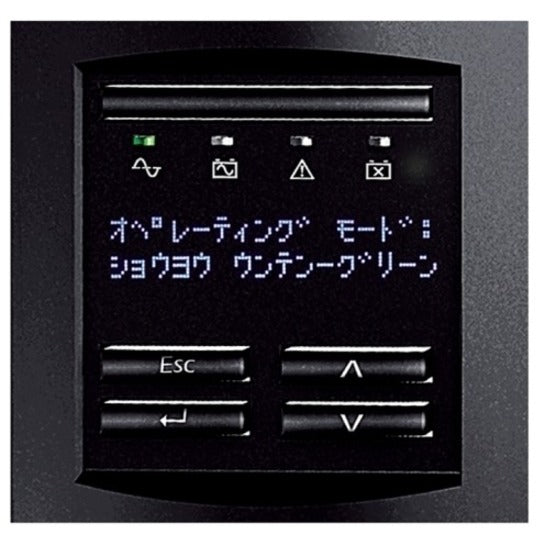

Intuitive LCD interface
Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
High frequency design
Reduces or eliminates bulky transformers resulting in lighter units for ease of handling.
Predictive replace battery date
Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
Energy meter
Provides actual kilowatt hours of usage for energy conscious users.
Single switched outlet group
Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
High online efficiency
Reduces utlility costs, generates less heat.
EPO
Attach the device to an Emergency Power Off (EPO) system so that power can be turned off in an emergency situation.
Pure sinewave battery backup
Prevents interruptions, lost pre-sets, missed DVR recordings, lost multimedia server data and premature projector bulb wear and tear when the power goes out.
SmartSlot
Customize UPS capabilities with management cards.
Field-replaceable power distribution panel
Ensures compatibility with equipment that has different plug types.
Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
Specifications :
General Information
Manufacturer | Schneider Electric SA |
---|---|
Manufacturer Part Number | SMT2200J |
Manufacturer Website Address | http://www.schneider-electric.com |
Brand Name | APC by Schneider Electric |
Product Name | Smart-UPS 2200 LCD 100V |
Product Type | Line-interactive UPS |
UPC | 731304291756 |
Battery Chemistry | Lead Acid |
---|
Product Color | Black |
---|---|
Height | 17.1" |
Width | 7.8" |
Depth | 21.4" |
Weight (Approximate) | 123.46 lb |
Package Contents | |
---|---|
Environmentally Friendly | Yes |
Environmental Certification | REACH |
Limited Warranty | 2 Year |
---|
