Description :
1.92kW, 1,92kVA, 120V, 50/60Hz, USB, LED, 530J, 480x683x86mm, 42.31kg, BlackAPC Smart-UPS. UPS topology: Line-Interactive, Output power capacity: 1.92 kVA, Output power: 1920 W. AC outlet types: NEMA 5–15R,NEMA 5–20R, Power plug: NEMA L5-20P, AC outlets quantity: 8 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 494 VAh, Battery life (max): 5 year(s). Form factor: Rackmount, Product colour: Black, Rack capacity: 2U. Width: 480 mm, Depth: 683 mm, Height: 86 mm

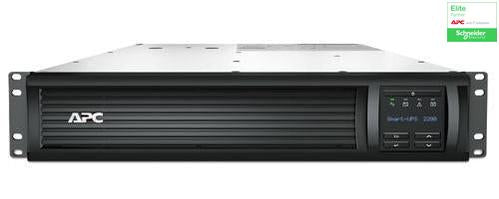

APC Smart-UPS 2200VA LCD RM 2U 120V with L5-20P
Reliable network power protection designed for deployment in retail and open access environments.
Includes : CD with software , Documentation CD , Rack Mounting brackets , Rack Mounting support rails , Smart UPS signalling RS-232 cable , USB cable
- Cold-start capable
Provides temporary battery power when the utility power is out.
- Energy meter
Provides actual kilowatt hours of usage for energy conscious users.
- Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
- High online efficiency
Reduces utlility costs, generates less heat.
- Intuitive LCD interface
Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
- Predictive replace battery date
Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
- Pure sine wave output on battery
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
- Sequenced network shutdown and reboot
Customize network shutdown and reboot sequence of connected servers and UPSs.
- Single switched outlet group
Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
- SmartSlot
Customize UPS capabilities with management cards.
- StruxureWare Data Center Expert compatible
Enables centralized management via StruxureWare Data Center Expert.
- Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
Specifications :
General Information
Manufacturer | Schneider Electric SA |
---|---|
Manufacturer Part Number | SMT2200R2X106 |
Manufacturer Website Address | http://www.schneider-electric.com |
Brand Name | APC by Schneider Electric |
Product Line | Smart-UPS |
Product Name | Smart-UPS 2200VA LCD RM 2U 120V with L5-20P |
Product Type | Line-interactive UPS |
UPC | 731304294085 |
Battery Chemistry | Lead Acid |
---|
Product Color | Black |
---|---|
Height | 3.4" |
Width | 18.9" |
Depth | 26.9" |
Weight (Approximate) | 93.28 lb |
Package Contents | |
---|---|
Environmentally Friendly | Yes |
Environmental Certification | RoHS |
Limited Warranty | 3 Year |
---|---|
Additional Warranty Information | 3 years repair or replace (excluding battery) and 2 years for battery |
