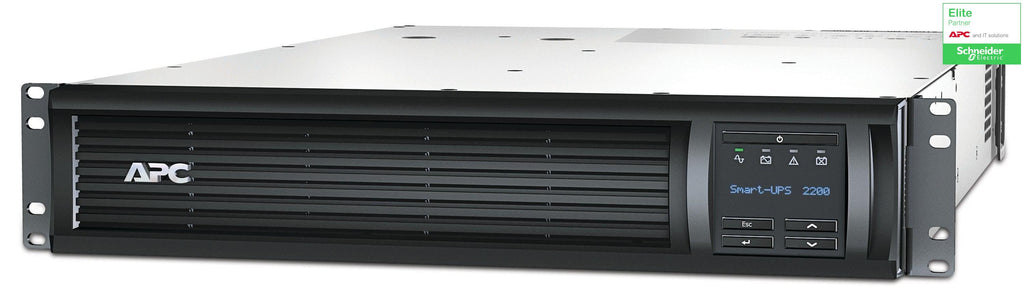

Apc Smart-Ups 2200Va Line-Interactive 9 Ac Outlet(S)

Apc Smart-Ups 2200Va Line-Interactive 9 Ac Outlet(S)


Regular price $3,089.50
Regular price Sale price $3,089.50
Sale Sold out
Shipping calculated at checkout.
          View full details
          Reviews, Que. & Ans.

          Description :

          230 V, 1.98 KW / 2.2 kVA, 50/60 Hz, RJ-45, SmartSlot, USB, 480 x 683 x 86 mm, 42.22 kg

          APC Smart-UPS 2200VA. UPS topology: Line-Interactive, Waveform: Sine, Input operation voltage (min): 151 V. AC outlet types: C20 coupler, Power plug: C20 coupler, AC outlets quantity: 9 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 509 Ah, Battery recharge time: 5 h. Form factor: Rackmount, Product colour: Black, Rack capacity: 2U. Width: 480 mm, Depth: 683 mm, Height: 86 mm

          Cold-start capable
          Provides temporary battery power when the utility power is out.

          Energy meter
          Provides actual kilowatt hours of usage for energy conscious users.

          Green mode
          Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.

          High online efficiency
          Reduces utlility costs, generates less heat.

          Intuitive LCD interface
          Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.

          Predictive replace battery date
          Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.

          Single switched outlet group
          Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.

          Customize UPS capabilities with management cards.

          Temperature-compensated battery charging
          Prolongs battery life by regulating the charge voltage according to battery temperature.


          Disconnected battery notification
          Warns when a battery is not available to provide backup power.

          Automatic restart of loads after UPS shutdown
          Automatically starts up the connected equipment upon the return of utility power.

          Automatic self-test
          Periodic battery self-test ensures early detection of a battery that needs to be replaced.

          Intelligent battery management
          Maximizes battery performance, life, and reliability through intelligent, precision charging.

          Temperature-compensated battery charging
          Prolongs battery life by regulating the charge voltage according to battery temperature.

          Boost and Trim Automatic Voltage Regulation (AVR)
          Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).

          Power conditioning
          Protects connected loads from surges, spikes, lightning, and other power disturbances.


          Network manageable
          Provides remote power management of the UPS over the network.

          Serial connectivity
          Provides management of the UPS via a serial port.

          Audible alarms
          Actively let you know if the unit is on battery, if the battery is low or if there is an overload condition.

          Disconnected battery notification
          Warns when a battery is not available to provide backup power.

          LED status indicators
          Quickly understand unit and power status with visual indicators.

          USB connectivity
          Provides management of the UPS via a USB port (not available on all models).


          Safety-agency approved
          Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

          Marketing Features

          Low operating and maintenance costs with high efficiency, proven reliability and intelligent battery management
          Patented green operating mode achieves efficiencies over 97%. Smart-ups was the first network UPS to be Energy Star certified. Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging.
          Dynamic battery replacement date indicator and automatic self tests insure battery reliability and warn in advance of needing replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down. Designed and manufactured by APC for over 23 years, Smart-UPS is the world’s most trusted network UPS with over 25 million units sold.

          Save time with easy and convenient remote accessibility
          Network manageable via serial, USB or optional ethernet. Includes Powerchute® Business Edition Software for convenient monitoring and control, safe operating system shutdown and innovative energy management capabilities.

          Smarter productivity with ability to tailor to your specific application needs
          Intuitive LCD interface provides clear information with the ability to configure the UPS locally with easy to use navigation keys. Over 15 different programmable settings including switched outlet group control allow for application specific settings, thresholds and notifications.

          Peace of mind that comes with full equipment compatibility and reliability of a leader
          Provides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry’s most rigorous standards.

          Avoids costly power problems by keeping your IT equipment and data safe and available
          Network grade power conditioning protects from damaging surges and disruptive noise. Solid state automatic voltage regulation boosts low input voltage up to 30% and trims high voltage up to 12% without battery operation. Reliable battery back-up capacity to power through outages or gracefully shutdown systems


          Resettable circuit breakers
          Enables a quick recovery from overload events.

          Hot-swappable batteries
          Ensures clean, uninterrupted power to protected equipment while batteries are being replaced

          Predictive failure notification
          Provides early-warning fault analysis ensuring proactive component replacement.

          User-replaceable batteries
          Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)

          Battery failure notification
          Provides early-warning fault analysis on batteries enabling timely preventive maintenance


          Adjustable voltage-transfer points
          Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.

          Adjustable voltage sensitivity
          Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.

          Specifications :

          General Information

          Manufacturer Schneider Electric SA
          Manufacturer Part Number SMT2200RMI2U
          Manufacturer Website Address
          Brand Name APC by Schneider Electric
          Product Line Smart-UPS
          Product Model SMT2200RMI2U
          Product Name Smart-UPS 2200VA Rack-mountable UPS
          Product Type Line-interactive UPS
          UPC 731304284635

          Battery Information

          Battery ChemistryLead Acid
          Weight (Approximate)93.28 lb


          Package Contents
        • Smart-UPS 2200VA Rack-mountable UPS
        • CD with software
        • Documentation CD
        • Installation guide
        • Rack mounting hardware
        • Rack mounting support rails
        • Smart UPS signalling RS-232 cable
        • USB cable
        • Environmentally FriendlyYes
          Environmental CertificationRoHS


          Limited Warranty3 Year
          Additional Warranty Information3 years repair or replace (excluding battery) and 2 years for battery
