1920W, 1920VA, 120V, SmartSlot, 8 x NEMA 5-15R & 2 x NEMA 5-20R Out, NEMA 5-20P In, LCD
APC Smart-UPS. Output power capacity: 1.92 kVA, Output power: 1920 W, Waveform: Sine. AC outlet types: NEMA 5–15R,NEMA 5–20R, Power plug: NEMA 5-20P, AC outlets quantity: 10 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Typical backup time at full load: 7.5 min, Typical backup time at half load: 22.5 min. Form factor: Tower, Product colour: Black, Cable length: 1.83 m. Width: 196 mm, Depth: 544 mm, Height: 432 mm
Intuitive LCD interface
Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
Predictive replace battery date
Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
Energy meter
Provides actual kilowatt hours of usage for energy conscious users.
Sequenced shutdown and restart
Configure select outlet groups to shut down and turn on in a pre-determined order (for UPSs with switched outlet groups).
Pure sine wave output on battery
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
Single switched outlet group
Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
StruxureWare Central compatible
Enables centralized management via StruxureWare Central.
High online efficiency
Reduces utlility costs, generates less heat.
SmartSlot
Customize UPS capabilities with management cards.
Cold-start capable
Provides temporary battery power when the utility power is out.
Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
General Information
Manufacturer
Schneider Electric SA
Manufacturer Part Number
SMT2200US
Manufacturer Website Address
http://www.schneider-electric.com
Brand Name
APC by Schneider Electric
Product Line
Smart-UPS
Product Name

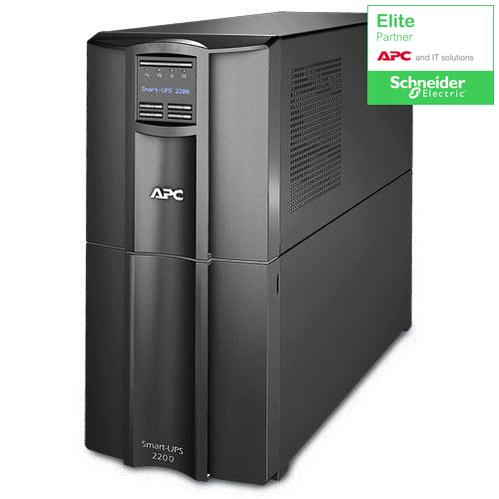

Smart-UPS 2200VA LCD 120V US
Product Type
Line-interactive UPS
UPC
731304305620
Battery Information
Battery Chemistry
Lead Acid
Product Color
Black
Height
17"
Width
7.7"
Depth
21.4"
Weight (Approximate)
112.24 lb
Miscellaneous
Package Contents
Smart-UPS 2200VA LCD 120V US
CD with software
Documentation CD
Smart UPS signalling RS-232 cable
USB cable
Energy Star
Yes
Environmentally Friendly
Yes
Environmental Certification
RoHS
Warranty
Limited Warranty
3 Year
Additional Warranty Information
3 years repair or replace (excluding battery) and 2 years for battery, optional on-site warranties available, optional extended warranties available
