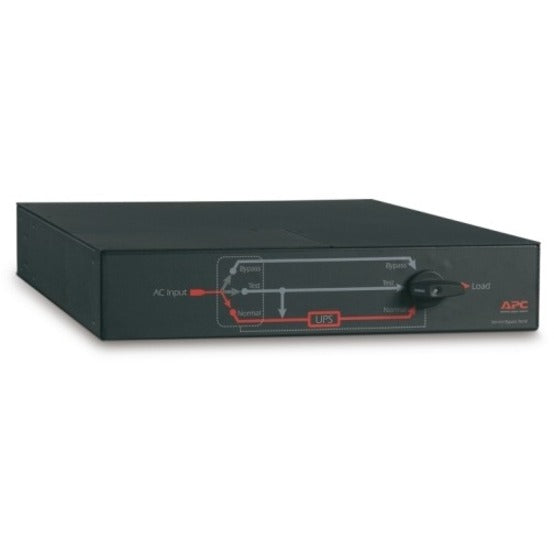

Apc Service Bypass Panel - 200/208/240V Power Distribution Unit (Pdu) Black

Description :

Service Bypass Panel - 200/208/240V; 30A; BBM; L6-30P input; (2) L6-30R (2) L6-20R output

APC Service Bypass Panel - 200/208/240V. Product colour: Black. Input connection type: NEMA L6-30P, Output connections: 2x NEMA L6-20R 2x NEMA L6-30R. Cable length: 3.05 m, Certification: CSA,EN 60950,GOST,IEC 60950,IEC 60950,UL 1778. AC input frequency: 50 - 60 Hz, Load capacity: 5000 VA, Maximum input current per phase: 24 A. Dimensions (WxDxH): 432 x 660 x 89 mm, Weight: 13.6 kg

19 inch Rack-Mountable
Supplies redundant AC power to connected equipment. Two AC lines power the unit and if the primary AC power fails, the unit will automatically switch to the alternate power source.

Quick Transfer Rate
Transfer rate is within the industry standard and within the time power supplies will typically drop loads. The transfer of one power source to another is seamless to the connected equipment avoiding disruption of equipment performance.

Wrap Around System Bypass
(3) Breaker maintenance bypass panel to isolate the UPS from the critical load

Meets UL Requirements
