APC

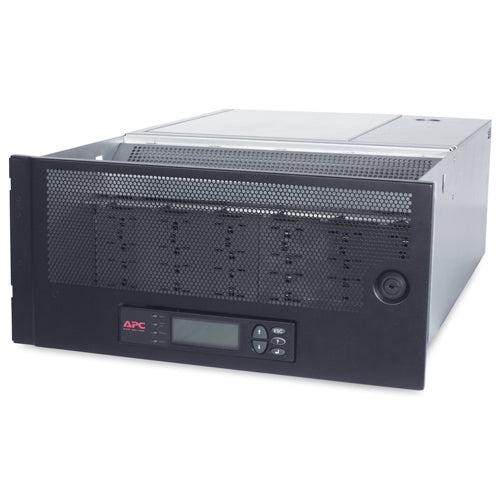

Apc Modular Rackmounted It 138Kw Power Distribution Unit (Pdu) 5U

Apc Modular Rackmounted It 138Kw Power Distribution Unit (Pdu) 5U

SKU:PDPM138H-5U

Regular price $2,652.28
Regular price Sale price $2,652.28
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Specifications
          Reviews, Que. & Ans.

          Description :

          Modular Rackmounted IT Power Distribution Unit 138KW 200A 400V 18 Pole 5U

          APC Modular Rackmounted IT 138kW. Rack capacity: 5U. Nominal input voltage: 400 V, Nominal output voltage: 400 V, Maximum total current draw per phase: 200 A. Dimensions (WxDxH): 483 x 711 x 229 mm, Weight: 30.1 kg. Package dimensions (WxDxH): 610 x 889 x 406 mm, Package weight: 34 kg

          System mobility
          PDU equipment can easily be relocated to accommodate a changing data center environment.

          Multiple distribution options
          Superior design flexibility enables a wide range of customer requirements to be addressed.

          Meets UL Requirements
          High Power Density

          Protection
          UL-listed Touch-safe backplane
          Adding Power Distribution Modules requires no hot work; one trained user can safely add new modules without removing power to the existing PDU load

          Multiple distribution options
          Superior design flexibility enables a wide range of customer requirements to be addressed.

          Toolless installation of breakers
          Install factory-assembled Power Distribution Modules in under ten minutes - no tools are required

          Safety
          Enhance user safety with isolation at all touch points and with positive locking mechanisms that reduce the risk of accidental disconnection

          Specifications :

          General Information

          Manufacturer Schneider Electric SA
          Manufacturer Part Number PDPM138H-5U
          Manufacturer Website Address http://www.schneider-electric.com
          Brand Name APC by Schneider Electric
          Product Line InfraStruXure
          Product Name InfraStruXure Modular 138kW PDU
          Product Type PDU
          UPC 731304257950
          Height9"
          Width19"
          Depth28"
          Weight (Approximate)66.30 lb
