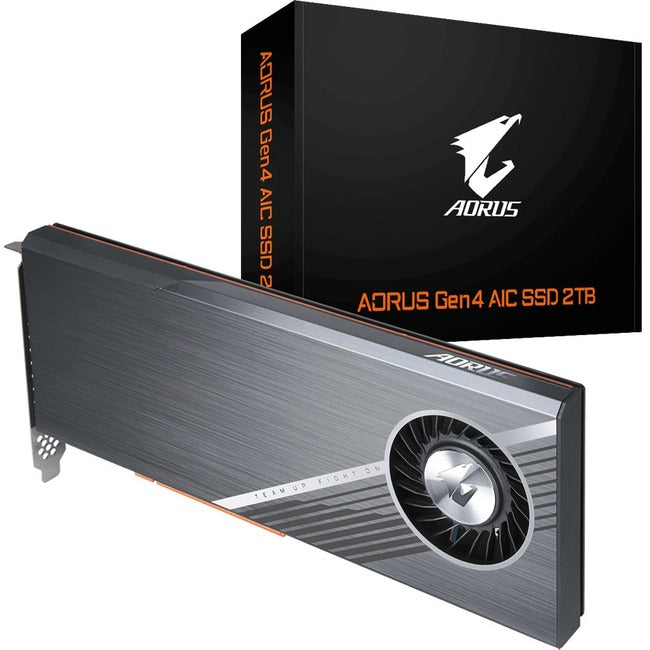

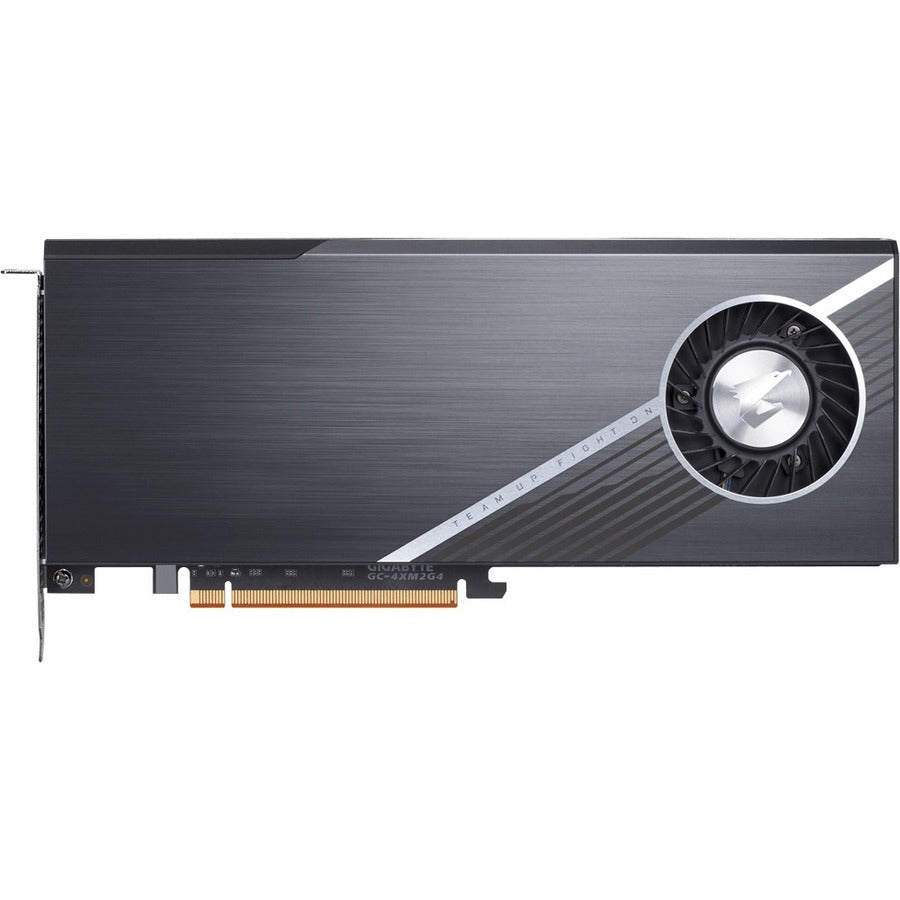

Aorus 500 GB Solid State Drive - Plug-in Card Internal - PCI Express NVMe (PCI Express NVMe 4.0 x16) GP-ASACNE6200TTTDA

Description :

Aorus 500 GB Solid State Drive - Plug-in Card Internal - PCI Express NVMe (PCI Express NVMe 4.0 x16)

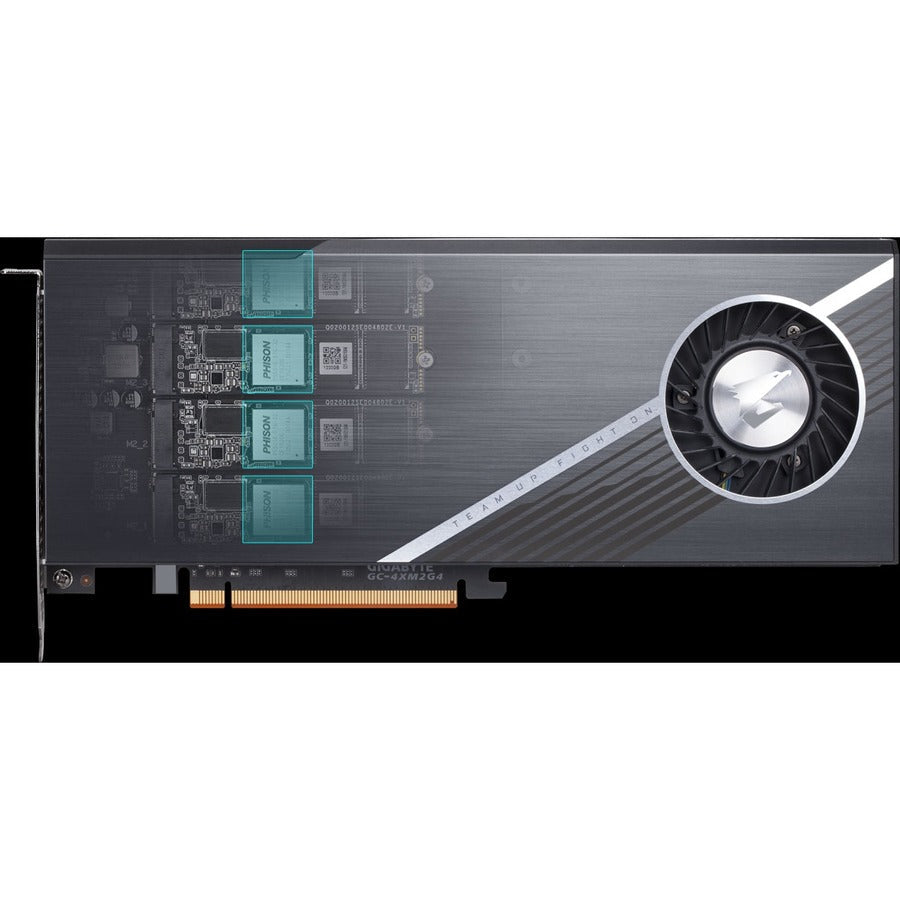

AORUS Gen4 AIC Adaptor built in with 4 x PCIe 4.0 500GB SSD, Full PCIe 4.0 Design, Advanced Thermal Solution for PCIe 4.0 SSD, Supports AORUS Storage Manager and SSD Tool Box

• Form Factor: PCl Express Card
• Interface: PCI-Express 4.0 x16, NVMe 1.3
• Total Capacity: 2,000GB
• Seq. Read Speed: up to 15,000 MB/s
• Seq. Write Speed: up to 9,500 MB/s
• Wear Leveling, Over-Provision Technologies
• TRIM & S.M.A.R.T Supported
• Advanced Thermal Solution with Copper Heatsink
• Warranty: Limited 5-years

Xtreme Storage Performance

With the world's first Gen4 controller and selected memory, AORUS Gen4 AIC 2TB SSD delivers blazing speeds: up to 15,000MB/s for sequential read, and up to 9,500MB/s for sequential write. The storage performance of AORUS Gen4 AIC 2TB SSDs is up to 3x faster than regular Gen4 SSDs in RAID. Furthermore, the advanced thermal design keeps the controller and memory at low temperatures, ensuring that Gen4 SSD performance won't be compromised. Always keep performance at the highest levels. Get ready to enter the next generation of computing and enjoy faster and smoother graphics-intensive rendering and game streaming.

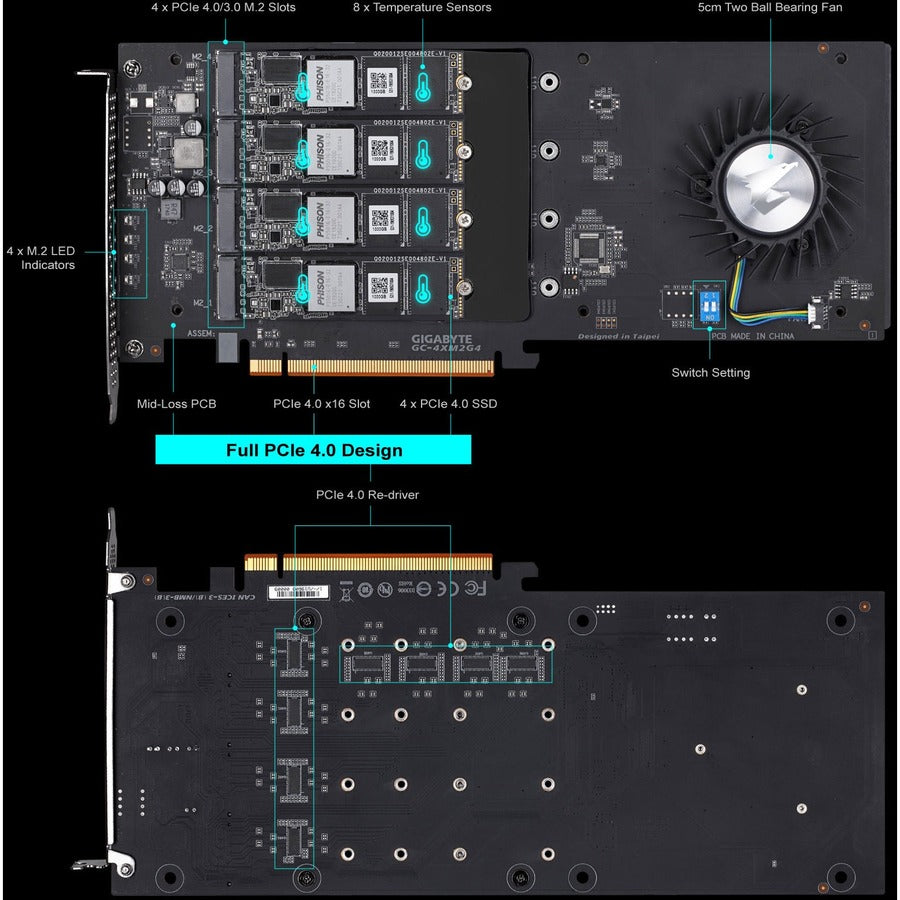

World First PCIe 4.0x4 Controller

The World's First PCIe 4.0x4 Controller, PHISON PS5016-E16 controller, made by 28nm manufacturing technology. The advanced fabrication process ensures PS5016-E16 has enough compute power for ECC processing when adopting the latest 3D TLC NAND flash. PS5016-E16 also features eight NAND channels with 32 CE targets, DDR4 DRAM caching, and a PCIe 4.0x4 interface. As for features, the chip supports the NVMe 1.3 protocol, LDPC error correction, Wear Leveling, and Over-Provision technologies to improve reliability and durability of SSDs.

NAND Flash Selected for High Quality and Performance

Selected 96 Layers 3D TLC NAND Flash (800MT/s)

Selected NAND Flash optimizes circuitry and architecture by increasing to 96 layers for higher storage space per unit area. 800MT/s throughput on the AORUS NVMe Gen 4 SSD far exceeds that of PCIe 3.0x4 devices for superior storage performance.

Advanced Thermal Solution for Gen4 SSD

The thermal design is exclusively for high end Gen4 SSDs with its smart active and passive cooling. It prevents SSDs from thermal throttling and ensures stable operating. The working temperature is 30% lower with the armor, copper heatsink and reactive fan.

Thermal Solution Designed for Gen4 SSD

Conducted Airflow and Pure Copper Heatsink

A large all copper heatsink touches the SSD's hottest controller and transfers heat to the multi-cut copper heatsink. The blower fan helps to draw heat away more quickly, preventing thermal throttling on the SSD to maintain amazing speeds at all times.

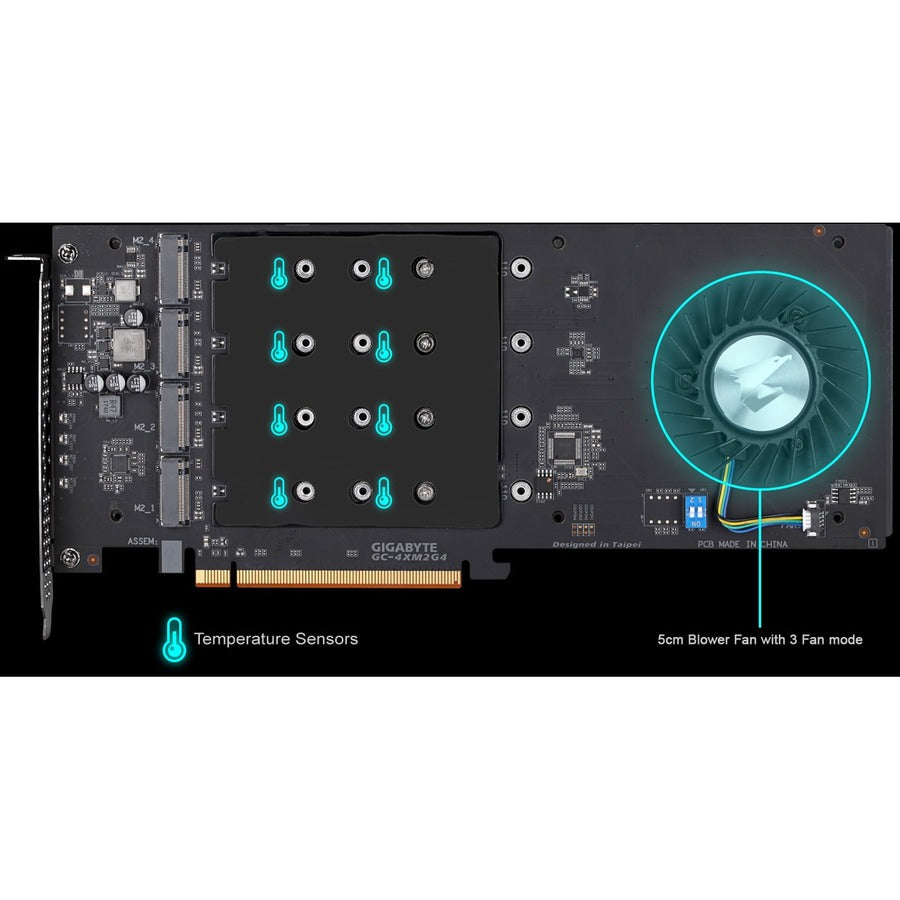

Temperature Sensor and Fan Profile

• Built in with 8 temperature sensors to real time monitor AORUS Gen4 AIC 2TB SSD working temperature.
• In AORUS Storage Manager, it provides 3 fan operating modes for user to choose base on hardware configuration and workload. In the meantime, minimize fan noise and extend the fan's longevity. Silent, the quiet one, Balanced and full speed Performance modes.

Why is keeping an SSDs at lower temperatures so important?

• Higher working temperature may cause data loss. The degradation factor of data loss could be a hundred times higher.
• With Full Body Copper Heat Spreaders, the AORUS NVMe Gen4 SSD can operate at lower working temperatures to improve data storage reliability. Furthermore, SSDs can deliver extreme performance for longer periods.

• Provides sufficient storage capacity of 500 GB for your computer


• With the stunning reading speed of 15000 MB/s, get faster boot times and improved overall computing performance


• Write speed of 9500 MB/s enables you to perform write-related tasks in seconds rather than minutes


• Experience rapid processing speed with 512 MB cache buffer


• With PCI Express NVMe 4.0 x16 interface get superb reliability and high-speed data transfer

Product Type: Solid State Drive
Environmentally Friendly: Yes
Operating System Compatibility: Windows 10
Brand Name: Aorus
Drive Type: Internal
Form Factor: Plug-in Card
Manufacturer: GIGABYTE Technology, Inc
Product Name: Gen4 AIC SSD 2TB
Manufacturer Part Number: GP-ASACNE6200TTTDA
Manufacturer Website Address: http://www.gigabyte.us
Packaged Quantity: 4
Limited Warranty: 5 Year
