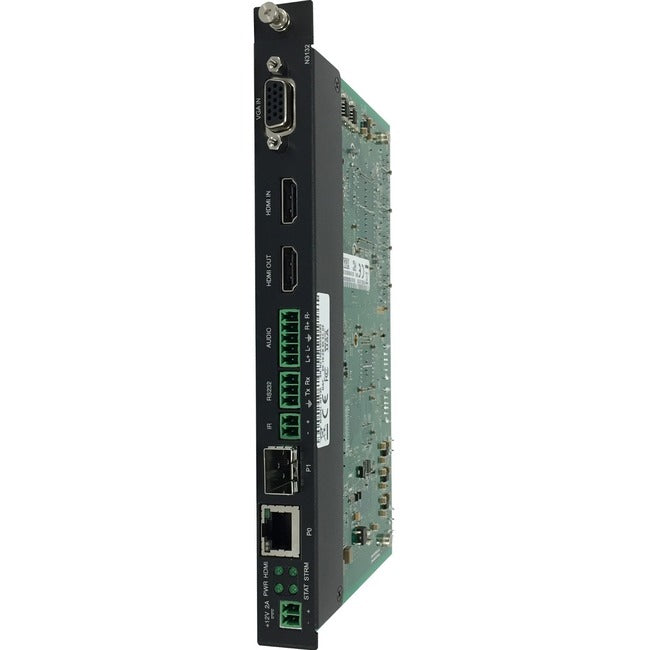

Amx Nmx-Enc-N3132-C Svsi H.264,Encoder Card With Usb

Description :

AMX H.264 Compressed Video over IP Encoder, PoE, SFP, HDMI, USB for Record, Card

The N3000 Video over IP Series extends the reach of SVSI's Networked AV solutions to the WAN for streaming, video to desktop, digital signage, set-top boxes, or mobile devices applications. Fully integrated with existing Networked AV control options, the N3000 Series delivers the highest quality HD video content at the lowest bandwidth for the most demanding applications. Moving video to or from the Cloud just became a lot easier with the N3000.

The N3000 Series' H.264 compression engine delivers low-latency 1080p60 video at half the bandwidth of comparable encoders. High profile H.264 encoders output unicast or multicast to one or more N3000 Series decoders. Multiple selectable streaming protocols (RTP, RTSP, and more) allow for software endpoints during video to the desktop applications or third-party hardware endpoints like Roku, Amino, or Google TV. Adjustable bit-rates from 32-Kbps to 10-Mbps give the highest video fidelity at the lowest bandwidths on the market in keeping with SVSI's commitment to provide unsurpassed Networked AV quality.

H.264 encoder includes IR, serial, balanced audio, RJ45 and 1GB SFP (fiber or copper) network connections, digital HDMI and analog VGA video input. H.264 encoder card requires NMXACC-N9206 cage.

Common Applications

The NMX-ENC-N3132 is the perfect solution for quality streaming over low bit rate WAN. Common applications include distance education, Multi-Site Enterprise, and IPTV Streaming.

• Stand Alone or Card - Available as a stand alone device, or card for use with NMX-ACC-N9206


• Pass-Through HDMI - HDMI interface allows easy installation with local display such as desktop PC applications


• Unlimited Scalability


• Onboard Control - All N-Series encoders and decoders have on-board, built-in control capability via events that can trigger any number of TCP/UDP commands to other IP controllable devices


• Infrared (IR) - Infrared emitter connection allows control of low-cost, IR-only display devices


• Power Over Ethernet (PoE) - Eliminates requirement for local power supply and speeds installation. Units can still be powered locally from 12VDC allowing for easy rack-mountable, high-density installations

Product Type: Video Encoder
Country Of Origin: United States
Product Series: N3000
Brand Name: AMX
Form Factor: Rack-mountable
Manufacturer: Harman International Industries, Inc
Product Model: NMX-ENC-N3132-C
Product Name: H.264 Compressed Video over IP Encoder, PoE, SFP, HDMI, USB for Record, Card
Manufacturer Part Number: FGN3132-CD
Manufacturer Website Address: http://www.harman.com
