Description
- FirePro W7000
- 4GB GDDR5
- PCI Express 3.0 x16
- Drive up to four displays with AMD Eyefinity technology, and up to six utilizing DisplayPort 1.2 multistreaming technology, enabling users to multitask across multiple applications with ease
- It's more than five times faster than competing solutions in a single precision compute performance - due in part to AMD's all-new Graphics Core Next (GCN) architecture
- One of the industry's first and only high-end workstation graphics cards to support DisplayPort 1.2, enabling display resolutions well beyond what competing solutions offer
- Optimizations and certifications for many major CAD/CAE and media & entertainment applications
- Intelligent power saving and monitoring technologies for higher performance
Overview
AMD FirePro W7000 workstation graphics delivers incredible performance, superb visual quality and outstanding multidisplay design experiences to CAD/CAE professionals - all from a single-slot solution. It has a triangle rate of 1.85 billion triangles per second which is up to 2.1 times faster than the competing solution Nvidia Quadro 4000 with only 0.89 billion triangles per second, giving designers smoother interactivity when working with complex 3D models and allows them to quickly visualize and render designs.
AMD FirePro W7000 also offers 2GB of GDDR5 memory and 153.6GBps of memory bandwidth (1.7 times more memory bandwidth than Nvidia Quadro 4000), bringing the unmatched application responsiveness that professionals working with advanced visualization, complex models, large data sets and video footage need.
AMD FirePro W7000 also offers 2GB of GDDR5 memory and 153.6GBps of memory bandwidth (1.7 times more memory bandwidth than Nvidia Quadro 4000), bringing the unmatched application responsiveness that professionals working with advanced visualization, complex models, large data sets and video footage need.
Features
Specifications
Memory
- Size/Type: 4GB GDDR5
- Interface: 256-bit
- Bandwidth: 154GB
Compute Performance
- 2.4 TFLOPs single precision and 152 GFLOPs double precision floating point performance

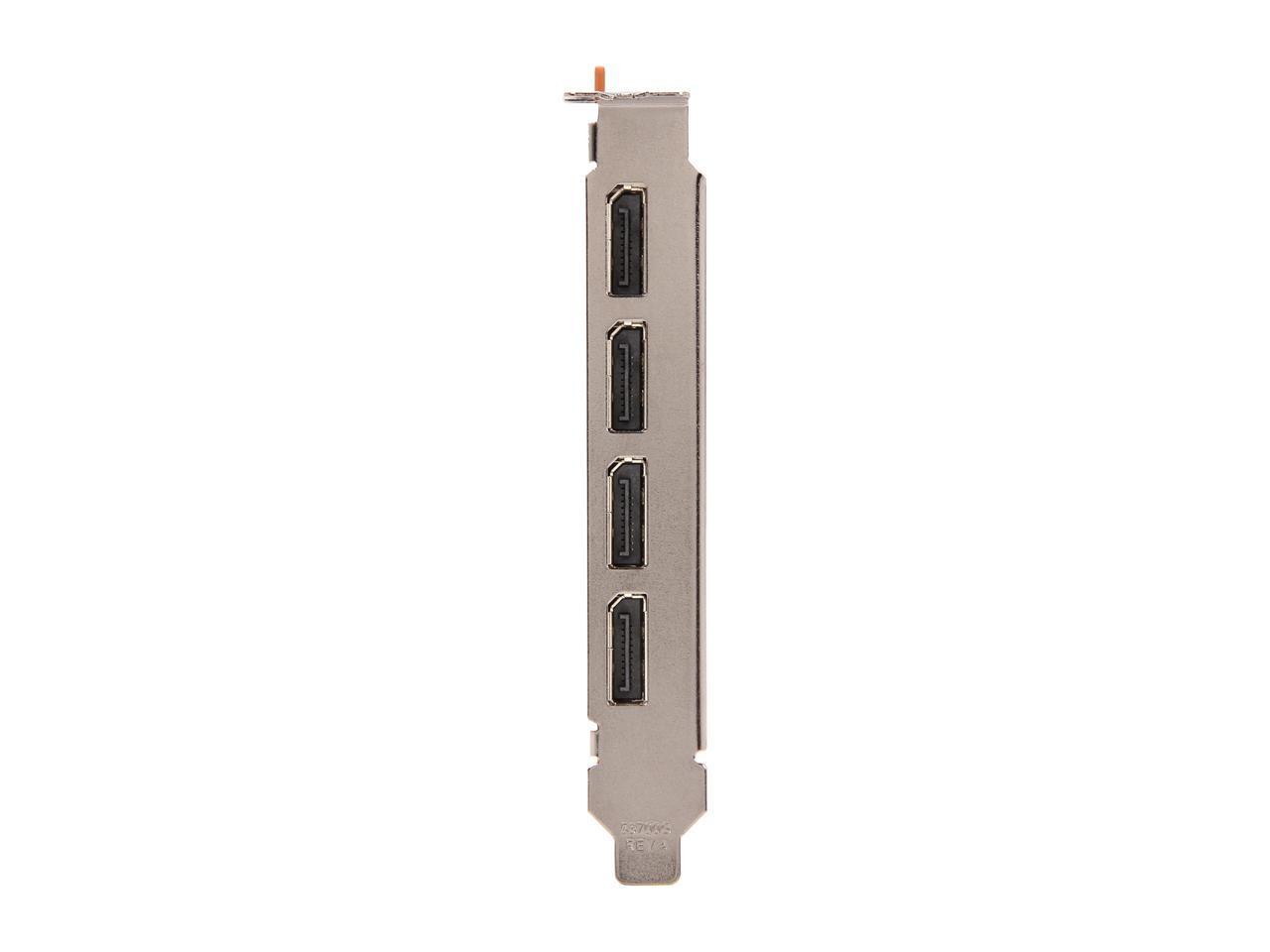

Display Outputs
- DisplayPort: Four standard
- Max DisplayPort 1.2 Resolution: 4096 x 2160
- Max DisplayPort 1.1 Resolution: 2560 x 1600
API/Features/OS Support
- DirectX® 11.1
- OpenGL 4.2
- OpenCL™ 1.2
- Shader Model: 5.0
- AMD Eyefinity Technology Support: Yes
- AMD CrossFire™ Pro Support: Yes
- AMD HD3D Pro Support: Yes (via stereoscopic 3-pin mini DIN)
- OS Support: Microsoft® Windows® 8, Windows® 7, Windows® XP, Windows Vista® and Linux® (32- or 64-bit)
Cooling / Power / Form Factor
- Max Power: <150W
- Slots: One
- Form Factor: Full height / Full length
- Bus Interface: PCIe® x16, 3.0 for optimal performance
- Cooling: Active fan
System Requirements
- Available PCI® Express x16 (dual slot), 3.0 for optimal performance
- A power supply and two PCIe® AUX power connector (6-pin)
- 2GB system memory
- Microsoft® Windows® 8, Windows® 7, Windows® XP, Windows Vista® and Linux® (32- or 64-bit)
- Internet connection for driver installation

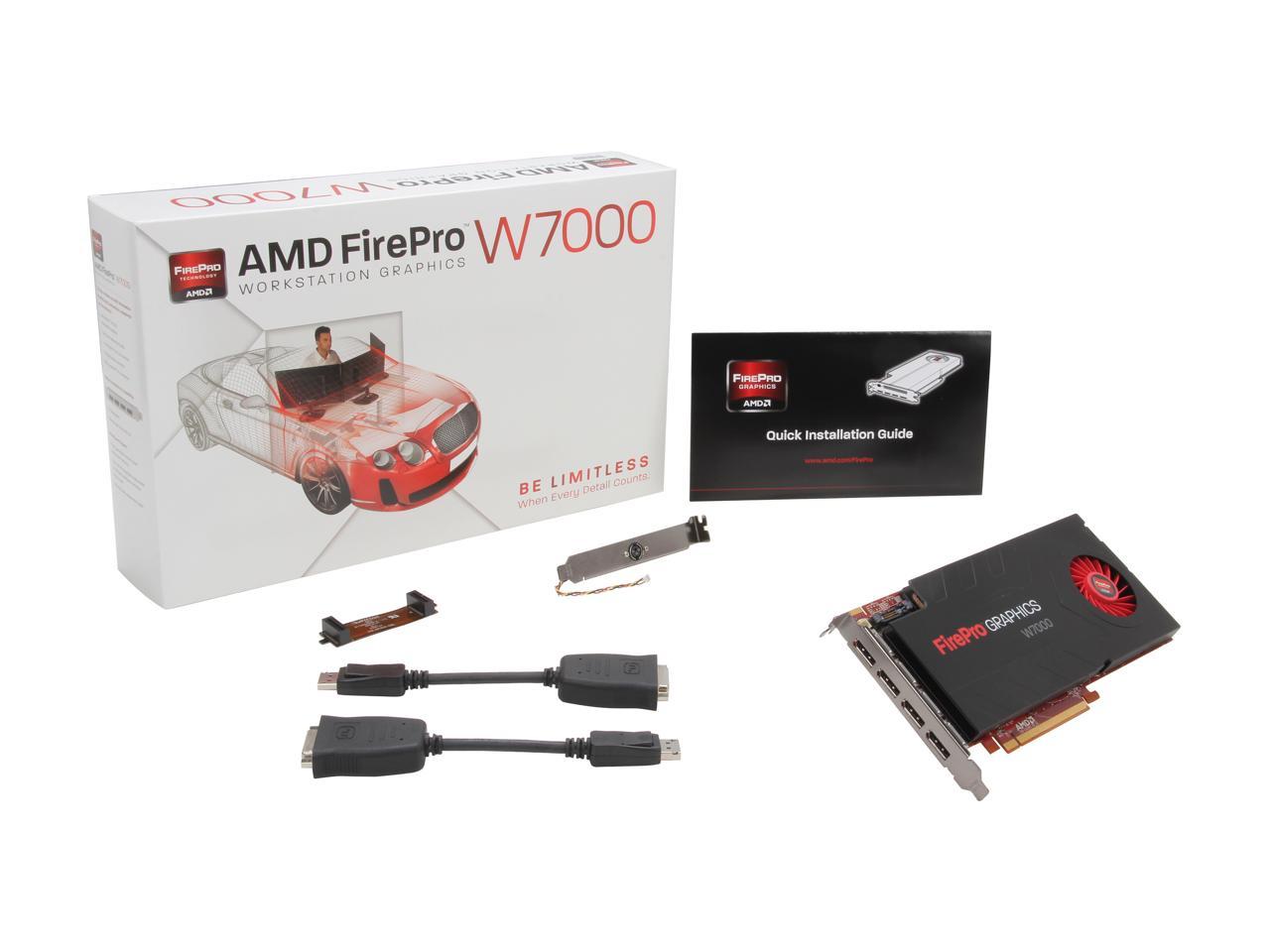

Retail Package Contents
- AMD FirePro™ W7000 workstation graphics card
- Quick Start Reference Guide
- AMD CrossFire® Pro connector
- Two DisplayPort to single-link -DVI (active) adapters
Warranty and Support
- Three year limited product repair / replacement warranty
- Direct toll free phone and email access to dedicated workstation technical support team
- Advanced parts replacement option
Applications
What's in the Box
General Information
| Manufacturer | Sapphire, Inc |
|---|---|
| Manufacturer Part Number | 100-505848 |
| Manufacturer Website Address | http://www.sapphiretech.com |
| Brand Name | Sapphire |
| Product Name | FirePro W7000 Graphic Card |
| Product Type | Graphic Card |
| UPC | 840777063552 |
| Chipset Manufacturer | AMD |
|---|
| Package Contents |
|
|---|---|
| Environmentally Friendly | Yes |
| Limited Warranty | 3 Year |
|---|
