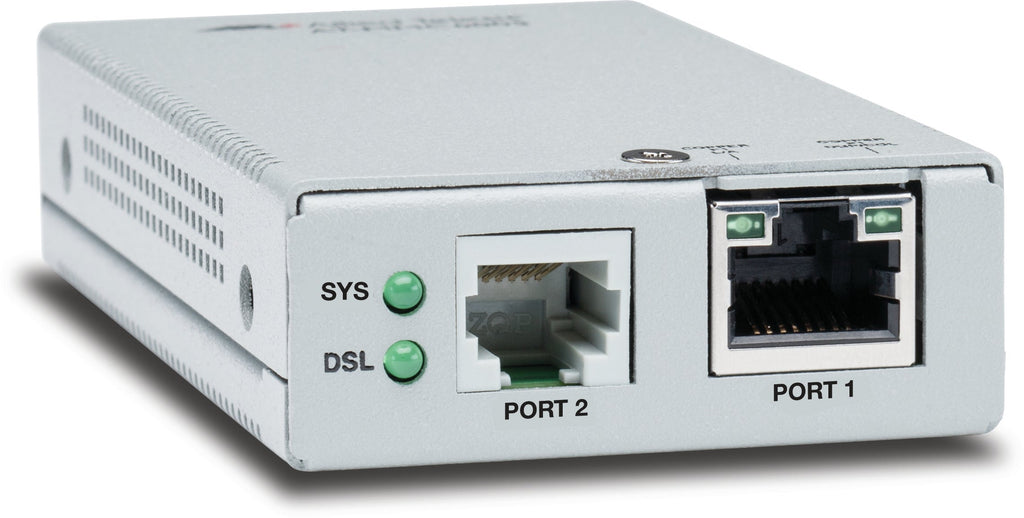

Allied Telesis At-Mmc6005-60 Network Transmitter & Receiver Silver 10, 100, 1000 Mbit/S

Description :

VDSL2 (RJ11) to 10/100/1000T Mini Media Converter

Allied Telesis AT-MMC6005-60. Type: Network transmitter & receiver, Maximum transfer distance: 3000 m, Data transfer rate: 150 Mbit/s. Cabling technology: 10/100/1000Base-T(X). Product colour: Silver. AC input voltage: 120-240 V, AC input frequency: 50 - 60 Hz, Power consumption (typical): 2 W. Width: 50.8 mm, Depth: 99.1 mm, Height: 20.3 mm

Extended Ethernet Operation

Used as a pair, the Allied Telesis AT- MMC6005 provides up to 150Mpbs of bidirectional data transfer, while supporting POTS service over phone- grade, twisted-pair wiring (CAT1, 2, 3) at distances up to 3 km or 10,000 feet. These units are the ideal solution for providing data on “last-mile” twisted- pair circuits or existing in-building wiring. Standard Ethernet operation is preserved end-to-end, retaining VLAN tags, and Ethernet MAC information across the link, while higher layer protocols are passed transparently. 10/100Mbps Ethernet operation is supported simultaneously with POTS, ISDN or PBX signaling, without disruption.

MTU and MDU Applications

Multi-Tenant Units (MTU) such as offices and campuses, and Multiple Dwelling Units (MDU) such as hotels and apartments are an ideal environment for AT-MMC6005 network extenders, where private phone-grade wiring can be used to provide broadband access to Internet services including video streaming, World Wide Web, gaming and e-mail. There is no need to re-wire premises with expensive CAT5 or fiber to provide broadband Ethernet services.

Standalone and Rack-mount

The Allied Telesis AT-MMC6005 provider unit is available as a compact standalone unit for installation at the central office, or alternatively, it can be rack-mounted in a standard Allied Telesis AT-MMCR-18 chassis. Capable of housing up to eighteen units in one compact chassis, it features a redundant power supply, simplifying wiring and minimizing space requirements.

Plug and Play Operation

Simply connect to the RJ-45 Ethernet port and the unit will automatically auto-sense and configure for 10/100/1000T, as well as full- or half- duplex Ethernet operation.
