Advantech Co., Ltd

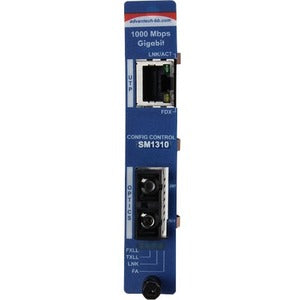

Advantech Slide-In Modular Media Converter 10/100/1000Mbps to Fiber Series IMC-771-MM

Advantech Slide-In Modular Media Converter 10/100/1000Mbps to Fiber Series IMC-771-MM

SKU:IMC-771-MM

Regular price $344.27
Regular price Sale price $344.27
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Specifications
          Reviews, Que. & Ans.

          Description :

          Advantech Slide-In Modular Media Converter 10/100/1000Mbps to Fiber Series
          The IMC-771/771 series are slide-in module Ethernet-to-fiber media converters for the IMC-7xx chassis which support hot-swappable and easy installation. They allow network operators to incorporate multiple fiber types and wavelengths within a network. The IMC-770/771 can be monitored and controlled via a central site with IMC-710 SNMP management module by iView, Telnet, or CLI while installed in a IMC-71x series chassis.

          The IMC-771/771 offers a range of speeds up to Gigabit Ethernet and is available with SFP or build-in fiber connector. Multi-mode, single-mode fiber or double fiber capacity with single-strand which supports the transmission distance from 550m to 70km. The IMC-770/771 series feature in the Link Fault Pass Through (LFPT), a diagnostic feature that can enable or disable links to assist the end user in troubleshooting a failed segment and configuration control to retain the latest configuration regardless of how the initial configuration was setup.

          The IMC-770I-2SFP converter is protocol-independent with dial SFP ports which can provide a single conversion between different wavelengths or single-mode and multi-mode fiber, single-mode to single-mode fiber, or multi-mode to single-strand fiber. Its SFP port must use an SFP of the same speed while allowing different fiber types. Additionally, the IMC-770I-2SFP and IMC-771I-SFP are industrial equipment devices. The unit operates in environments that demand extended operating temperatures.


          • Variety of choices: multi-mode, single-mode or single-strand including SFP form factor

          • The modular, hot-swappable architecture reduces operational costs associated with product installation, upgrades, and maintenance

          • SNMP manageable

          • Supports configuration control

          • Supports Link Fault Pass Through (LFPT)

          Product Type: Transceiver/Media Converter
          Environmentally Friendly: Yes
          Environmental Certification: RoHS
          Country Of Origin: Taiwan
          Product Series: IMC-771
          Brand Name: Advantech
          Form Factor: Hot-swappable
          Manufacturer: Advantech Co., Ltd
          Product Name: Slide-In Modular Media Converter 10/100/1000Mbps to Fiber Series
          Manufacturer Part Number: IMC-771-MM
          Manufacturer Website Address: http://www.advantech.com
          Weight (Approximate): 3.88 oz

          Specifications :

          General Information

          Manufacturer Advantech Co., Ltd
          Manufacturer Part Number IMC-771-MM
          Manufacturer Website Address http://www.advantech.com
          Brand Name Advantech
          Product Series IMC-771
          Product Name Slide-In Modular Media Converter 10/100/1000Mbps to Fiber Series
          Product Type Transceiver/Media Converter
          Ethernet TechnologyGigabit Ethernet
          Network (RJ-45)Yes
          Height4.2"
          Width0.8"
          Depth2.8"
          Weight (Approximate)3.88 oz
          Environmentally FriendlyYes
