Advantech

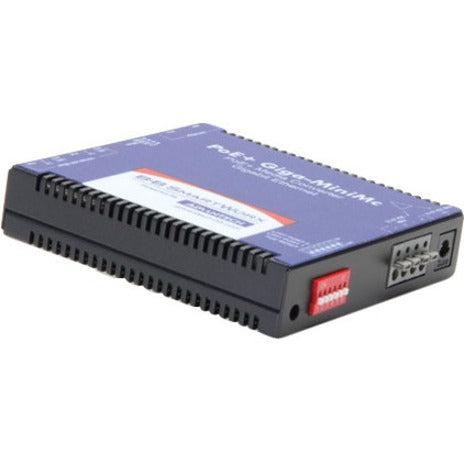

Advantech Imc-390-M1-Us Network Media Converter 1000 Mbit/S 1300 Nm Multi-Mode Black

Advantech Imc-390-M1-Us Network Media Converter 1000 Mbit/S 1300 Nm Multi-Mode Black

SKU:IMC-390-M1-US

Regular price $358.21
Regular price Sale price $358.21
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Specifications
          Reviews, Que. & Ans.

          Description :

          Mini PoE+ Media Converter, 1000Mbps, Multimode 1300nm, 2km, SC, AC adapter

          Advantech IMC-390-M1-US. Maximum data transfer rate: 1000 Mbit/s, Converter input interface: 10Base-T,100Base-T,1000Base-T, Networking standards: IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u,IEEE 802.3z. Fiber optic connector: SC, Connectivity technology: Wired. Maximum transfer distance: 2000 m, Wavelength: 1300 nm, Fiber mode structure: Multi-mode. Product colour: Black, Certification: CE, FCC Class A, UL/cUL, CSA. Input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz, Total Power over Ethernet (PoE) budget: 25.5 W

          The IMC-380 and IMC-390 series are compact, multi-port media converters that support both IEEE802.3at and IEEE802.3af PoE standards. These unmanaged, plug-n-play media converters with PoE capability are thus ideal solutions for Ethernet networks. Designed with two 10/100/1000Base-T copper UTP ports and SFP or a fixed fiber transceiver, 1x9 uplink port for the network connection, the IMC-380 series can power one PD device through a standard CAT5 (or higher version) cable via one copper port while delivering data over the other port. The IMC-390 series is capable of powering up to two PD devices with a power budget of 60W. The IMC-380 and IMC-390 series support Link Fault Pass Through (LFPT) functionality. LFPT is a troubleshooting feature that combines TX LinkLoss (Twisted Pair, copper interface) and FX LinkLoss (Fiber, fiber interface) from both local and remote IMC network media converters, when used in pairs. This feature, when enabled, will pass a link fault through the device at each segment. If a link fails on one interface of the media converter, the media converter will force the link down on its link partner and then forward it to the next interface.

          Specifications :

          General Information

          Manufacturer Advantech Co., Ltd
          Manufacturer Part Number IMC-390-M1-US
          Manufacturer Website Address http://www.advantech.com
          Brand Name Advantech
          Product Series IMC-390
          Product Name IMC-390 Transceiver/Media Converter
          Product Type Transceiver/Media Converter
          Ethernet TechnologyGigabit Ethernet
          Network (RJ-45)Yes
          Height0.8"
          Width3.6"
          Depth3.8"
          Weight (Approximate)15.87 oz

          Miscellaneous

          Package Contents
          • IMC-390 Transceiver/Media Converter
          • Power Adapter
          • US Power Cord
          Environmentally FriendlyYes
