AddOn Networks

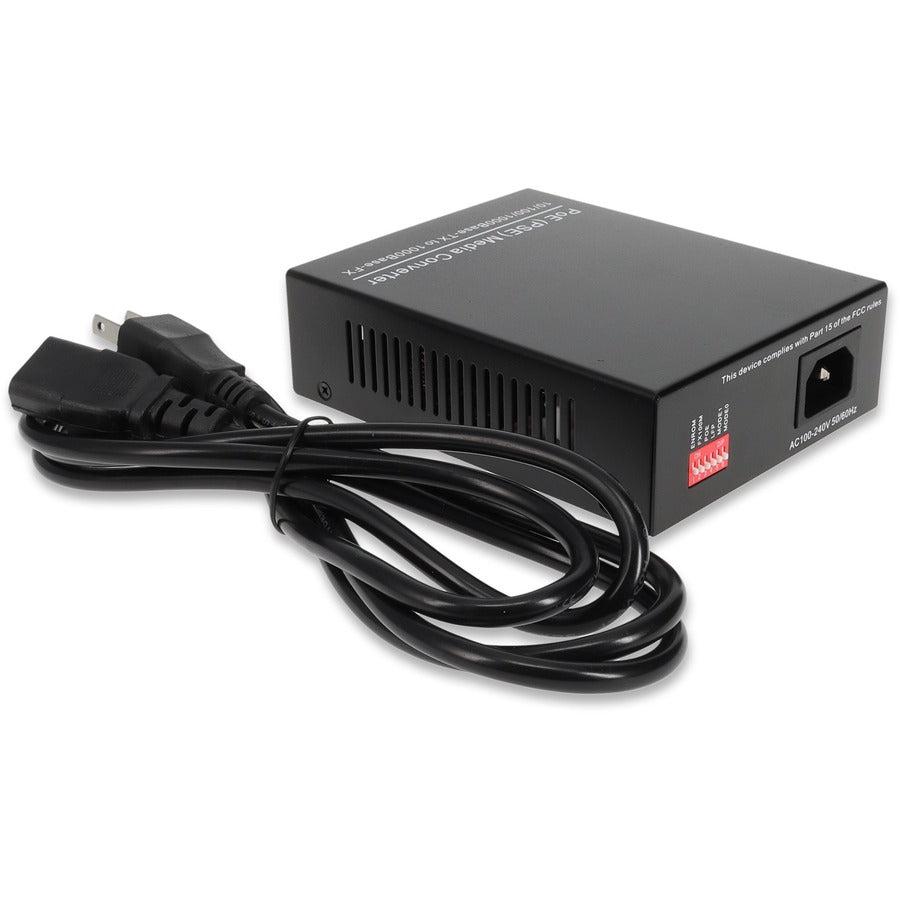

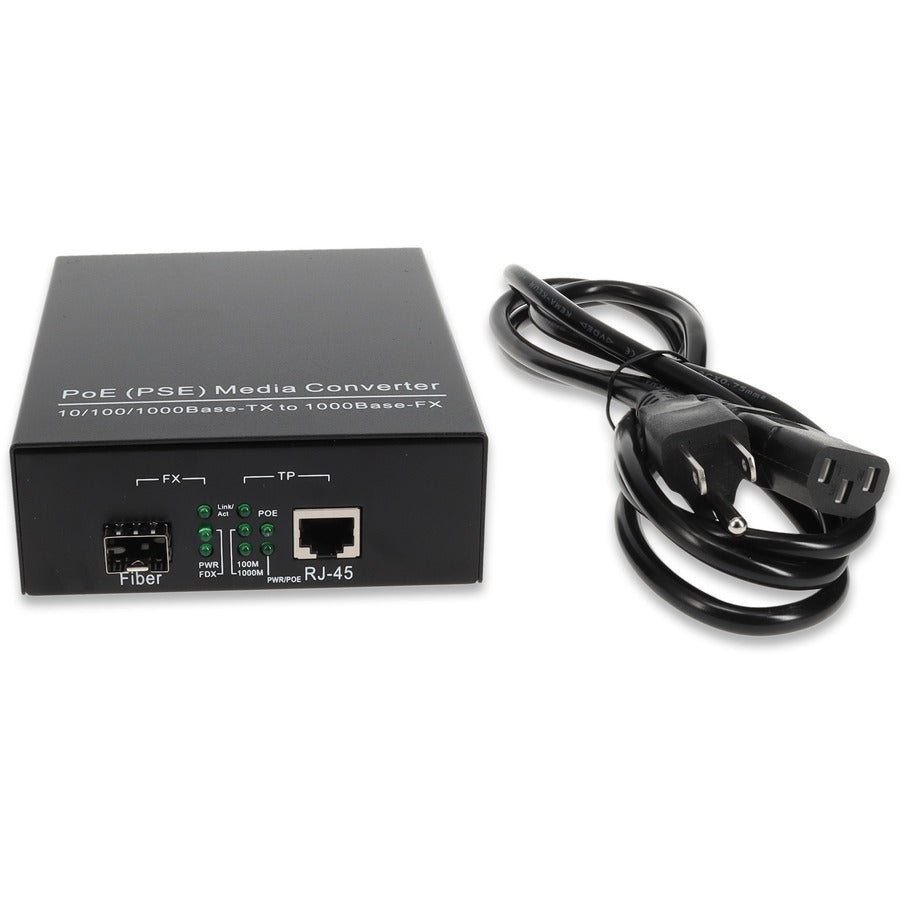

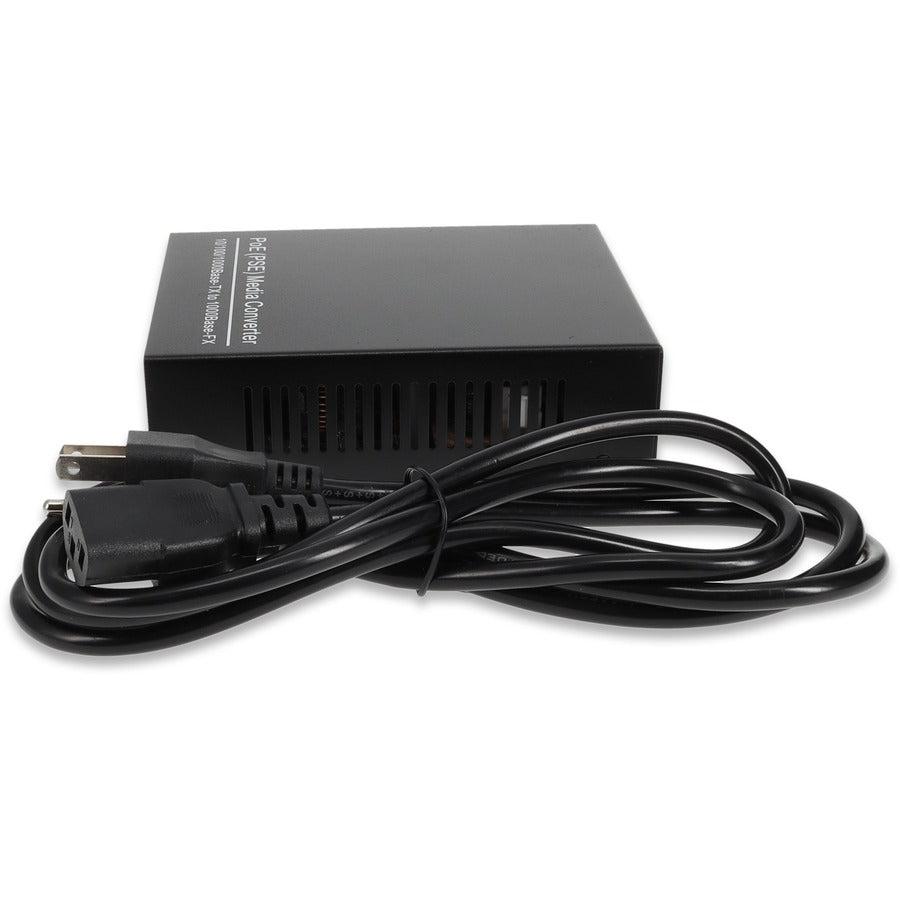

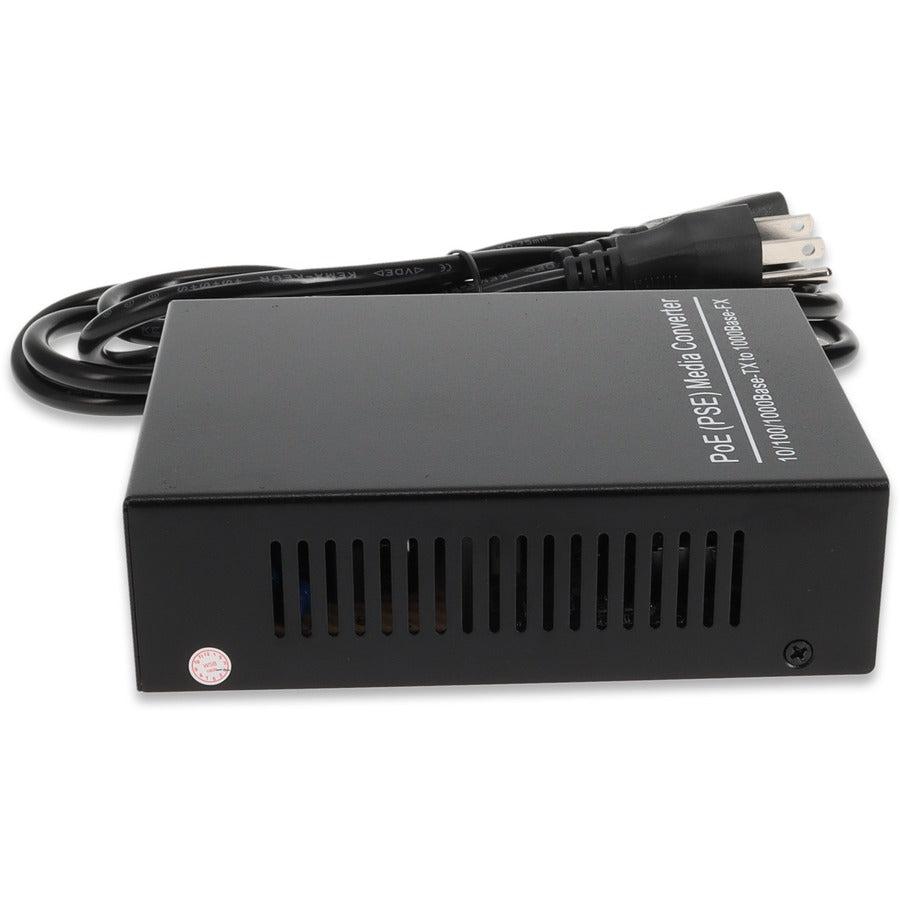

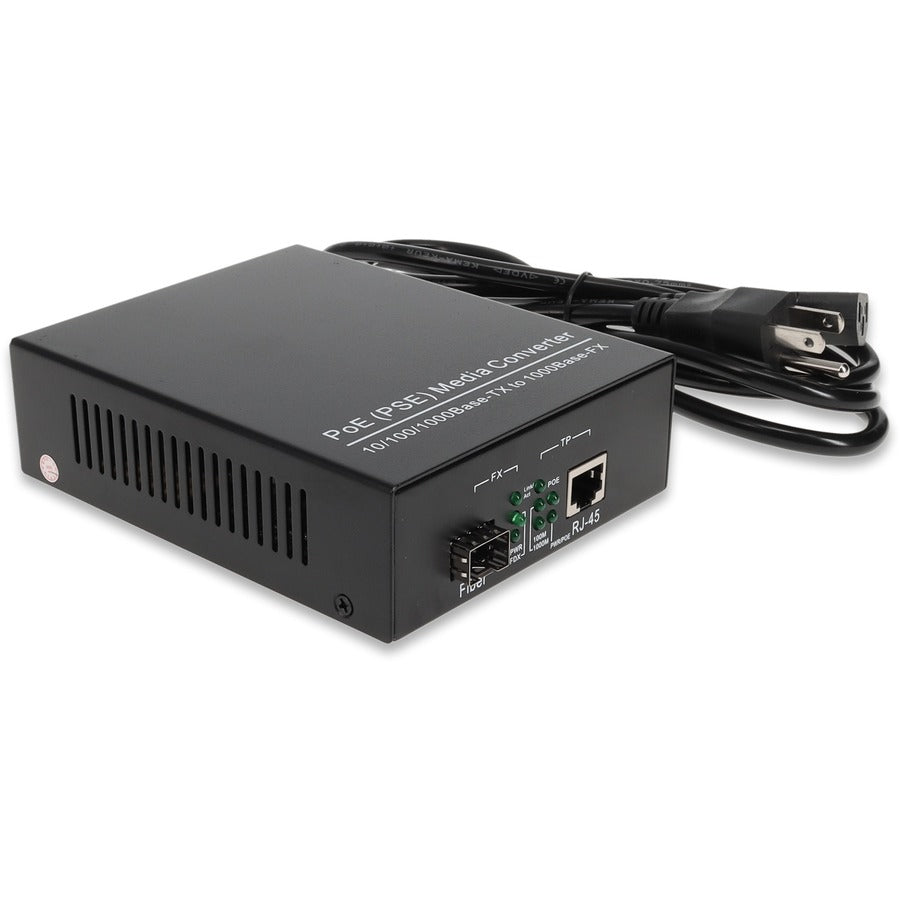

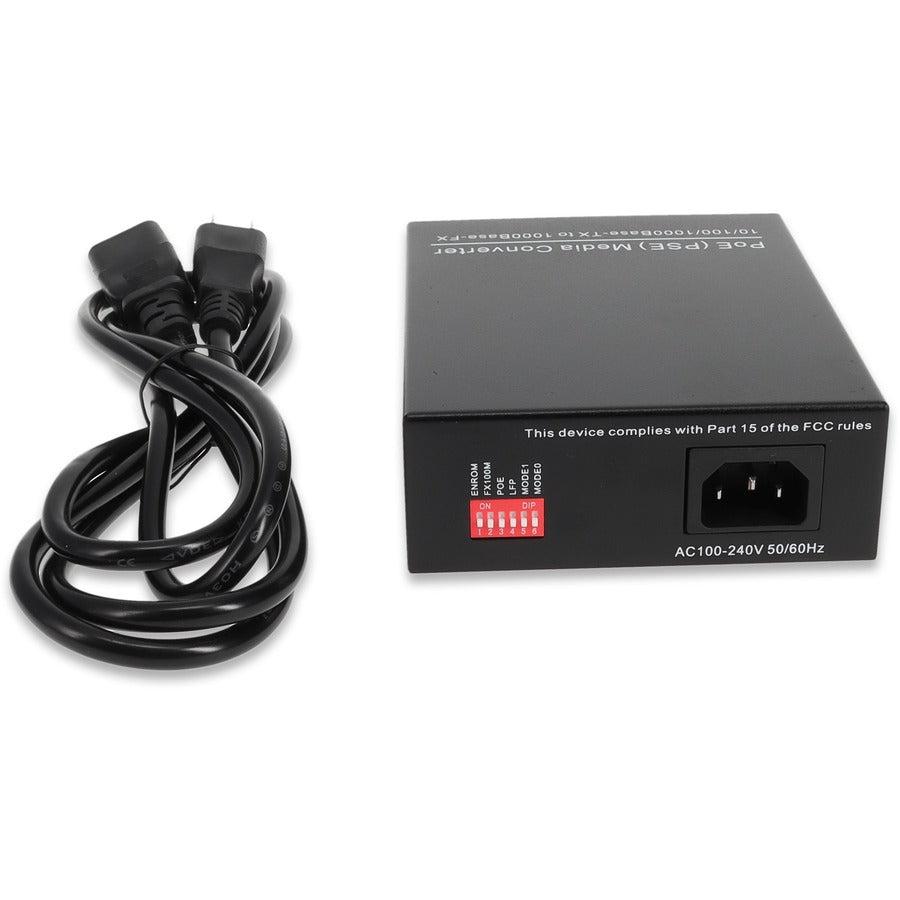

Addon Networks Add-Gmcp-Sx-5Sc-Et Network Media Converter 1000 Mbit/S 850 Nm Black

Addon Networks Add-Gmcp-Sx-5Sc-Et Network Media Converter 1000 Mbit/S 850 Nm Black

SKU:ADD-GMCP-SX-5SC-ET

Regular price $180.59
Regular price Sale price $180.59
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Specifications
          Reviews, Que. & Ans.

          Description :

          Copper to MMF, 1Gbs, Unmanaged

          AddOn Networks ADD-GMCP-SX-5SC-ET. Maximum data transfer rate: 1000 Mbit/s, Converter input interface: 1000Base-TX,100Base-TX,10Base-T, Converter output interface: 1000Base-SX. Fiber optic connector: SX, Connectivity technology: Wired. Maximum transfer distance: 550 m, Wavelength: 850 nm. Product colour: Black. Output voltage: 48 V

          This is a media converter that converts a 10/100/1000Base-TX(RJ-45) to 1000Base-SX(SC) via a 850nm multi-mode fiber (MMF) SC connector, which allows distance reach up to 550m. This provides a cost effective conversion from 10/100/1000Base-TX(RJ-45) to 1000Base-SX fiber, while extending the network reach beyond the 100m reach limitation of copper. This AC/DC powered PoE media converter is a power sourcing equipment (PSE), which combines data transferred over a fiber optic link with 48V (or other voltage) power supply, providing power to IEEE802.3af powered device (PD) over CAT5 and up UTP cable (cable length up to 100 meters / 330 feet). It complies with the IEEE802.3af standard. The converter includes a single port PSE controller, which offers PD signature sensing and power monitoring features. Other features include over-current protection and LFP function. The LFP (Link Fault Pass-through) allows the media converter to monitor both the fiber and copper RX port for loss of signal. In case of a loss of RX signal on one media port, the converter will automatically disable the TX signal to the other media port, thus passing through the link fault. Our media converters are 100% compliant for all of our networking needs. Now you have a cost effective solution to your network upgrade needs. This converter has a European plug.

          Specifications :

          General Information

          Manufacturer AddOn
          Manufacturer Part Number ADD-GMCP-SX-5SC-ET
          Manufacturer Website Address http://www.addoncomputer.com
          Brand Name AddOn
          Product Name 10/100/1000Base-TX(RJ45) to 1000Base-SX(SC) MMF 850nm 550m POE Media Converter
          Product Type Transceiver/Media Converter
          UPC 821455156100
          Ethernet TechnologyGigabit Ethernet
          Network (RJ-45)Yes
          Height2"
          Width5"
          Depth6"
          Weight (Approximate)1 lb

          Warranty

          Limited WarrantyLifetime
