AddOn Networks

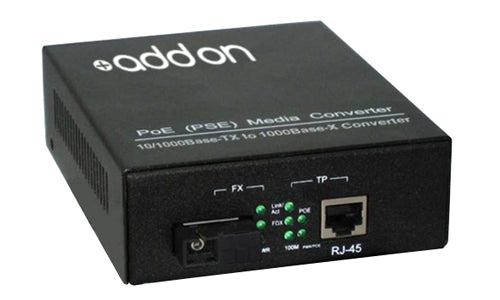

AddOn Networks 1000BTX-1000BXD network media converter 1000 Mbit/s 1310 nm Black


Regular price $305.61
Regular price Sale price $305.61
Sale Sold out
Shipping calculated at checkout.
          Que. & Ans.

          Description :

          1000BTX-1000BXD, POE, 1550/1310nm, BiDi, SMF, SC, 20km

          AddOn Networks 1000BTX-1000BXD. Maximum data transfer rate: 1000 Mbit/s, Converter input interface: 1000Base-T, Networking standards: IEEE 802.3af. Fiber optic connector: SC, Connectivity technology: Wired. Maximum transfer distance: 20000 m, Wavelength: 1310 nm, Fiber cable diameters supported (core/cladding): 9/125 µm. LED indicators: Link, Power, Status, Product colour: Black. Input voltage: 120 V, Input current: 1 A, Output voltage: 48 V

          ADD-GMCP-BX-DSC is a 10/100/1000Base-TX to 1000Base-BX media converter, which converts 1000Base Copper to 1000Base-BX via a 1550/1310nm single-mode fiber (SMF) SC Connector, which allows reach distance up to 20km. Complied with IEEE802.3af standard, the AC/DC powered PoE media converter is a Power Sourcing Equipment (PSE) which combines data transferred over a fiber optic link with 48V (or other voltage) power supply, providing power to IEEE802.3af powered device (PD) over CAT5 UTP cable (cable length up to 100meters /330feets). The converter includes a single port PSE controller, which offers PD signature sensing and power monitoring features. Other features include over-current protection, LFP function. The LFP (Link Fault Pass-through) allows the media converter to monitor both the fiber and copper RX port for loss of signal. In case of a loss of RX signal on one media port, the converter will automatically disable the TX signal to the other media port, thus passing through the link fault.

          AddOn - Network Upgrade Media Converters and Network Interface Cards are 100% compliant for all of our networking needs. ADD-GMCP-BX-DSC provides a cost effective conversion from 1000Base Copper to 1000Base-XD fiber, while extending your network reach beyond the 100m reach limitation of copper.
