Dataram Corporation

960G Ec500 Ssd Pcie M.2 2280,Enterprise Class 500 Series

SKU: EC500S8NP/960G

Regular price $334.75
Regular price Sale price $334.75
Sale Sold out
Shipping calculated at checkout.
          Description
          Que. & Ans.
          Reviews

          Description :

          Dataram EC500 EC500S8NP 960 GB Rugged Solid State Drive - 2.5" Internal - PCI Express NVMe (PCI Express NVMe 3.0 x4) - Mixed Use

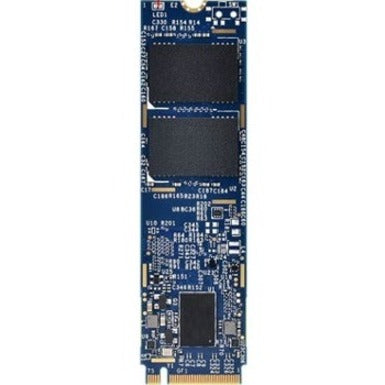

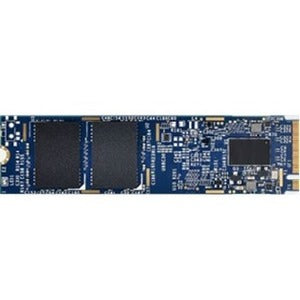

          The Dataram EC500S8NP is a PCIe NVMe SSD (Solid State Disk) in a M.2 2280 form factor. Designed in full compliance with the PCIe Gen3 x4 interface and NVMe 1.3 specifications for guaranteed compatibility and built with TLC NAND Flash Memory , the drive provides high reliability and performance for a storage medium.

          Built with a powerful PCIe controller, the Dataram EC500S8NP delivers outstanding performance in data transfer, reaching up to 125,000/132,000 and 1,645/1,035 MB/s in IOPS and sequential read/write speeds. The extreme thin and light weight form factor makes the Dataram EC500S8NP the ideal choice for mobile computing systems, the IT trend of the near
          future.

          In terms of security, Advanced Encryption Standard (AES) ensure data security and provide users with a peace of mind knowing their data is safeguarded against unauthorized use at all times. Data integrity can be assured at multiple points in the path to enable reliable delivery of data transfers with End-to-End Data Protection. Regarding reliability, the Dataram EC500S8NP is built with a powerful PCIe controller that supports on-the-module ECC as well as an efficient wear leveling scheme. When it comes to power efficiency, the Dataram EC500S8NP is compliant with the PCIe Gen3 x4 interface standard so that it can operate on power management modes, greatly saving on power consumption


          • Advanced LDPC ECC engine

          • 3D NAND flash memory

          • Global Wear Leveling

          • Flash Translation Layer: Page Mapping

          • Flash bad-block management

          • Power Failure Management

          • S.M.A.R.T. Hyper

          • Cache Technology

          • TRIM support

          • DataRAID™

          • Over-Provisioning

          • NVMe Secure Erase

          Product Type: Solid State Drive
          Environmentally Friendly: Yes
          Environmental Certification: RoHS
          Rugged: Yes
          Product Series: EC500
          Brand Name: Dataram
          Drive Type: Internal
          Compatibility: Mobile Computing Systems
          Form Factor: 2.5"
          Manufacturer: Dataram Corporation
          Product Model: EC500S8NP
          Product Name: EC500S8NP M.2 PCIe NVMe SSD
          Manufacturer Part Number: EC500S8NP/960G
          Manufacturer Website Address: http://www.dataram.com
          Limited Warranty: 5 Year
          Weight (Approximate): 0.23 oz
