OREI

8K HDMI 4x1 Switcher (BK-401)

8K HDMI 4x1 Switcher (BK-401)

SKU:BK-401

$59.99
$79.99 $59.99
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Specifications
          Reviews, Que. & Ans.

          Description :

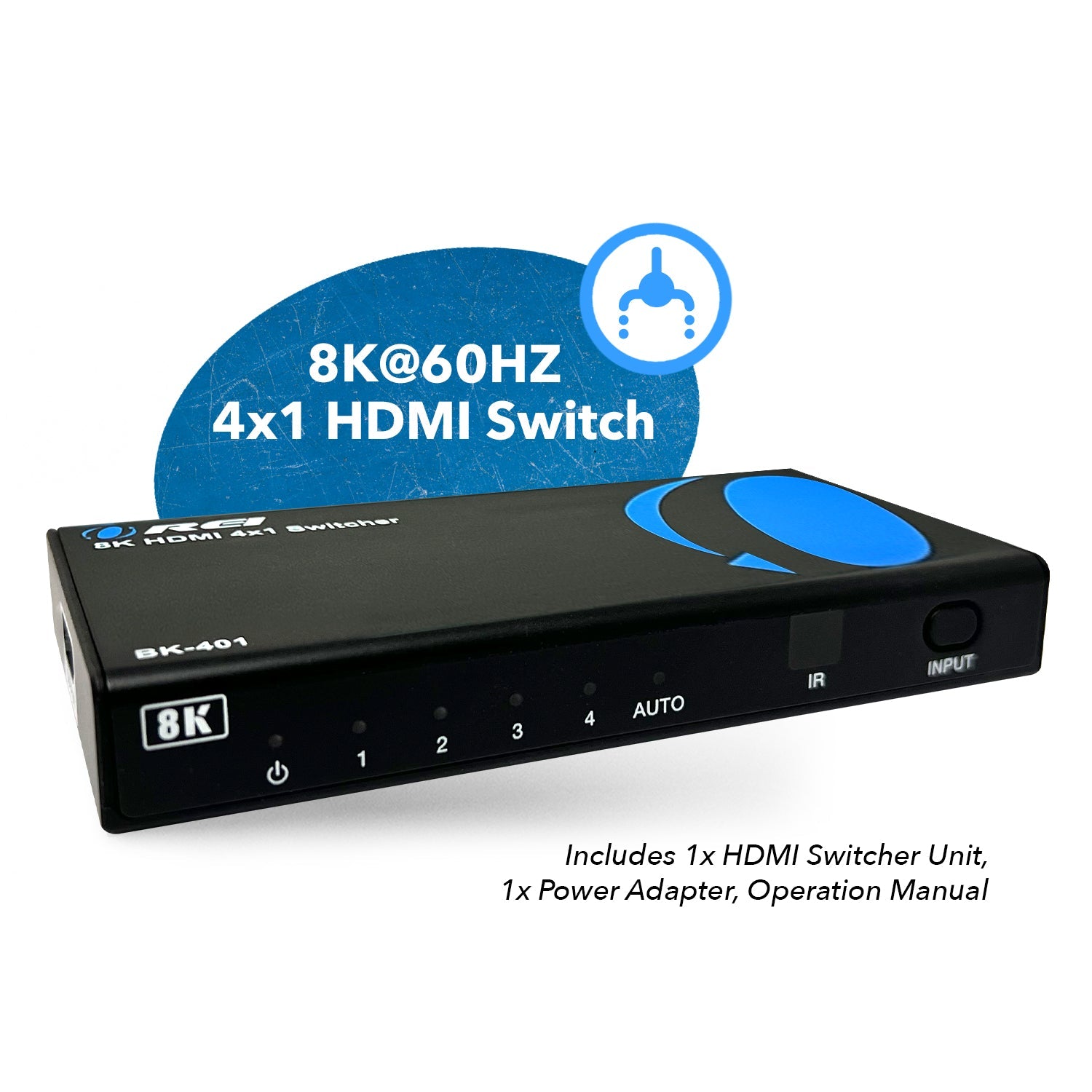

          BK-401: 8K 4 Input 1 Output HDMI Switch

          Key Features:

          • HDMI 2.1 and HDCP 2.3 compliant
          • 48Gbps video bandwidth

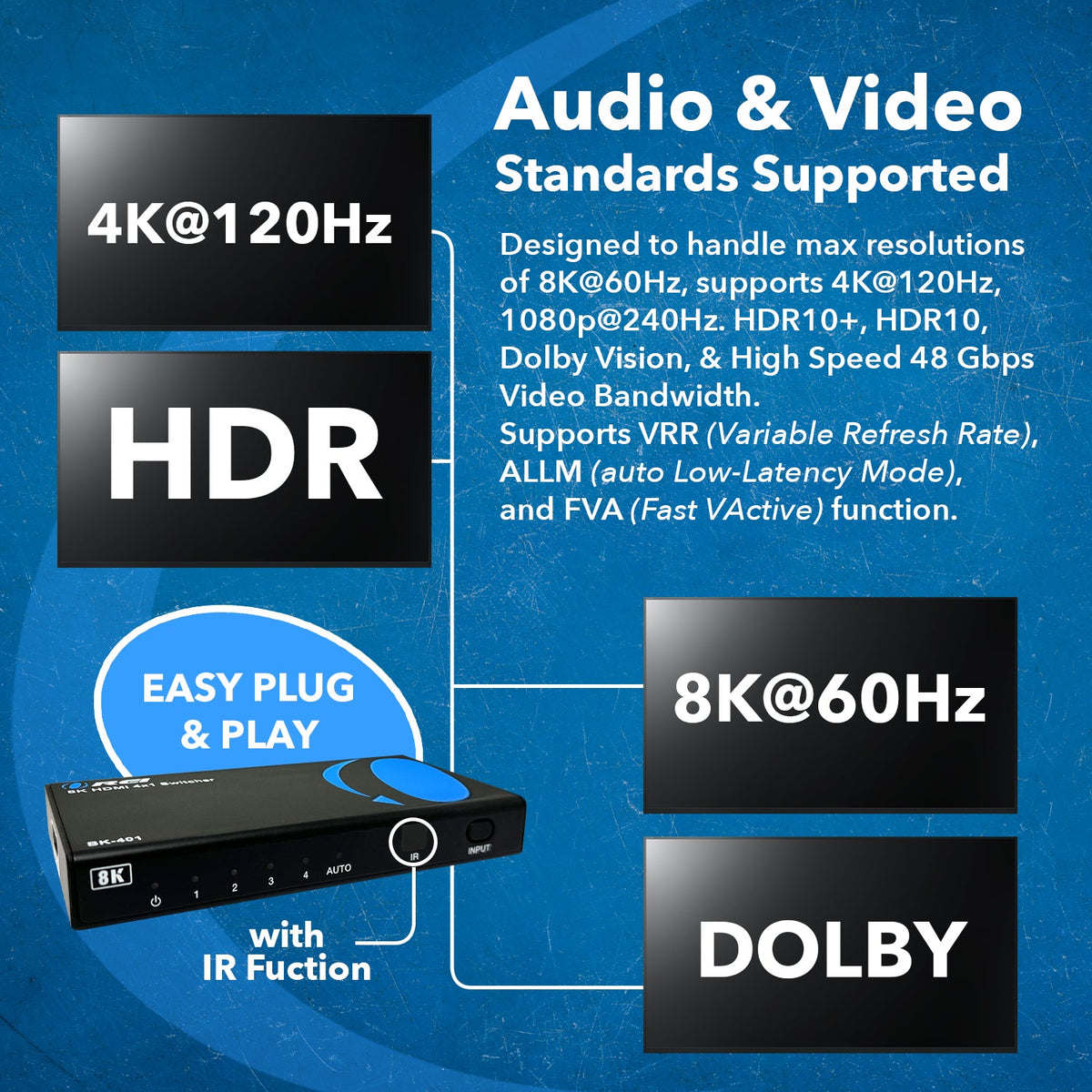

          • Video resolutions up to 8K@60Hz, 4K@120Hz
          • HDR/10+, Dolby Vision, HLG pass through
          • VRR (Variable Refresh Rate), FVA(Fast VActive), ALLM (Auto Low Latency Mode) support
          • Audio support: LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio

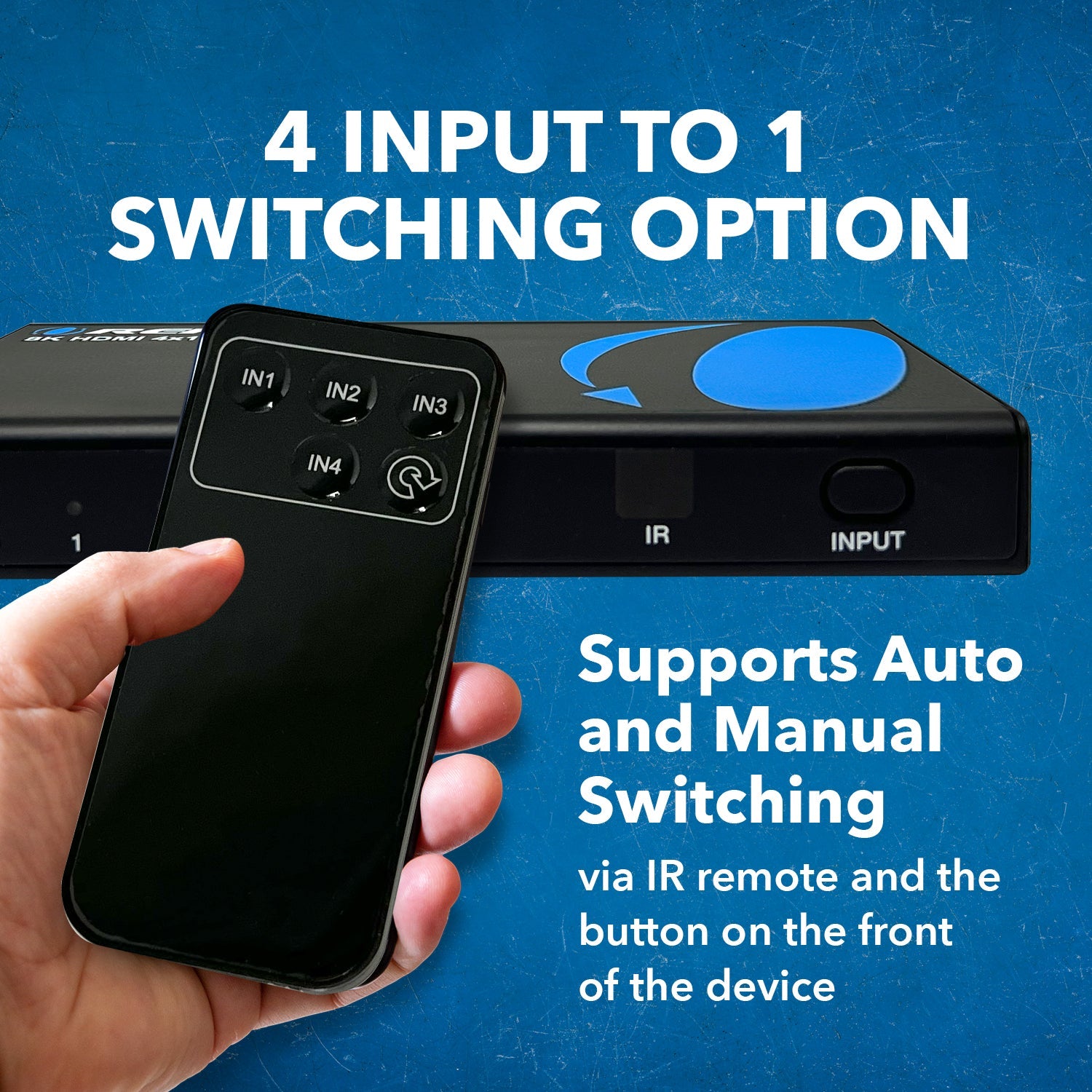

          • Supports automatic switching
          • Compact design

          The BK-401 8K HDMI Switch is an impressive solution for connecting multiple media sources to a single display and switch between them as needed. This device accepts media signals from 4 sources and outputs it on a single display. It supports resolutions up to 8K@60Hz and 4K@120Hz with a video bandwidth of 48Gbps. It supports HDR10+ and Dolby Vision along with Variable Refresh Rate, Fast VActive and Auto Low Latency Mode. The device also features automatic switching which automatically switches to the next active input.

          [shortdes]

          • 4 In 1 8K Switcher
          • Video Resolutions up to 8K@60Hz
          • Automatic switching

          [/shortdes]

          [tab]

          CONNECTIVITY

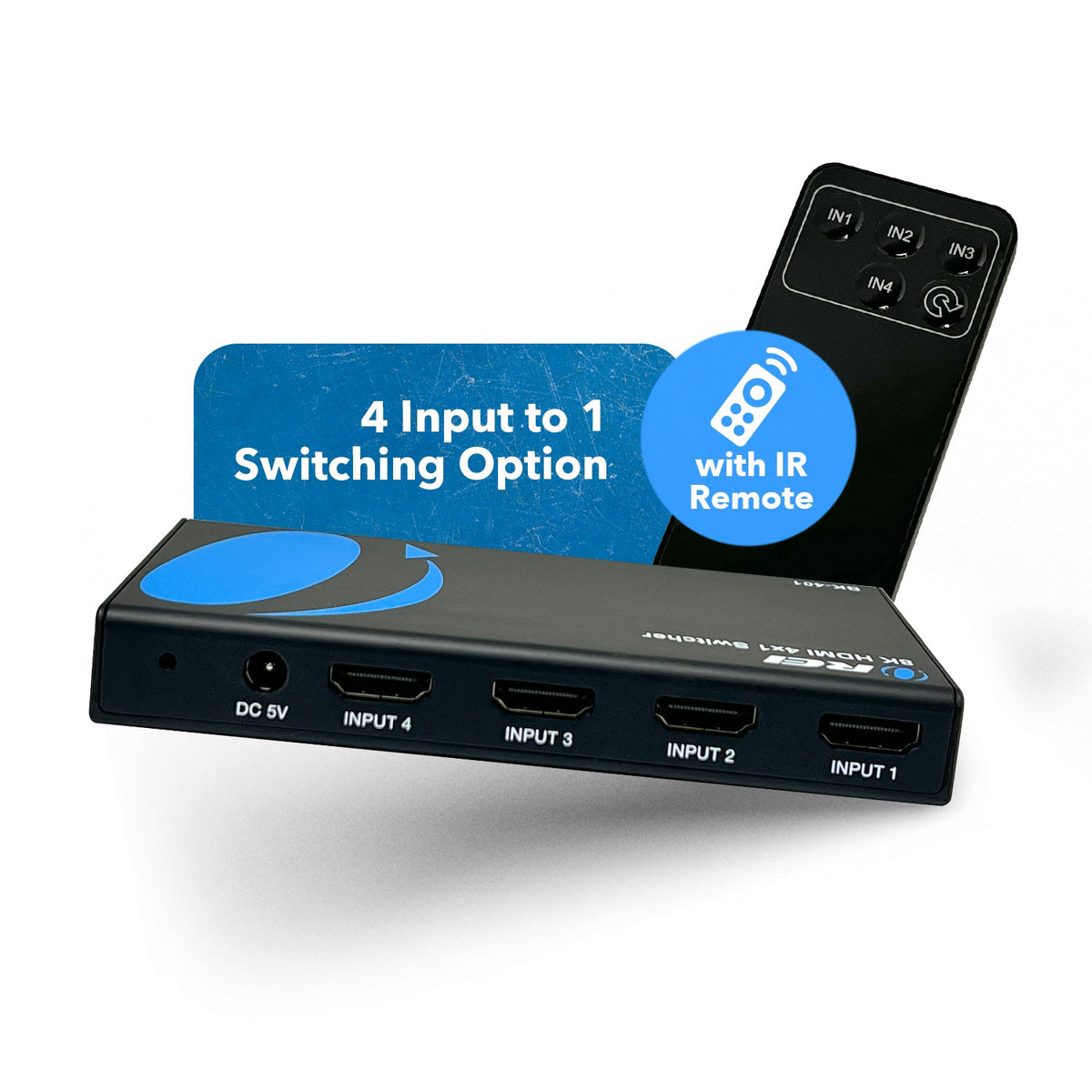

          INPUT: 4 × HDMI [Type A, 19-pin female]
          OUTPUT: 1 × HDMI [Type A, 19-pin female]

          PACKAGE CONTENTS

          1x BK-401
          1x Remote Control
          1x Power Adapter
          User Manual

          SUPPORTED HDMI CABLES

          HDMI 2.1 We recommend using high-quality HDMI 2.1 cables under 30 feet for optimum performance

          EXTENDING DISTANCE

          8K@60Hz: 6 Feet
          4K@120Hz: 6 Feet
          1080p@240Hz: 16 Feet

          VIDEO OUTPUT

          Video Bandwidth: 48 Gbps
          Video Resolutions: Up to 8K@60Hz

          ADDITIONAL FEATURES

          CEC: No
          ARC: No
          USB KVM: No
          PoC/PoE: No
          IR Control: Yes
          Downmix: No
          Downscale: No
          Over IP: No
          HDBaseT: No
          RS-232: No

          AUDIO SUPPORT

          HDMI Audio Formats:
          LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD

          COMPLIANCES

          HDMI Compliance HDMI 2.1
          HDCP Compliance HDCP 2.3

          POWER

          Power Consumption: 3.4W (Max)
          Power Supply: Input: AC 100-240V 50/60Hz
          Output: DC 5V/1A

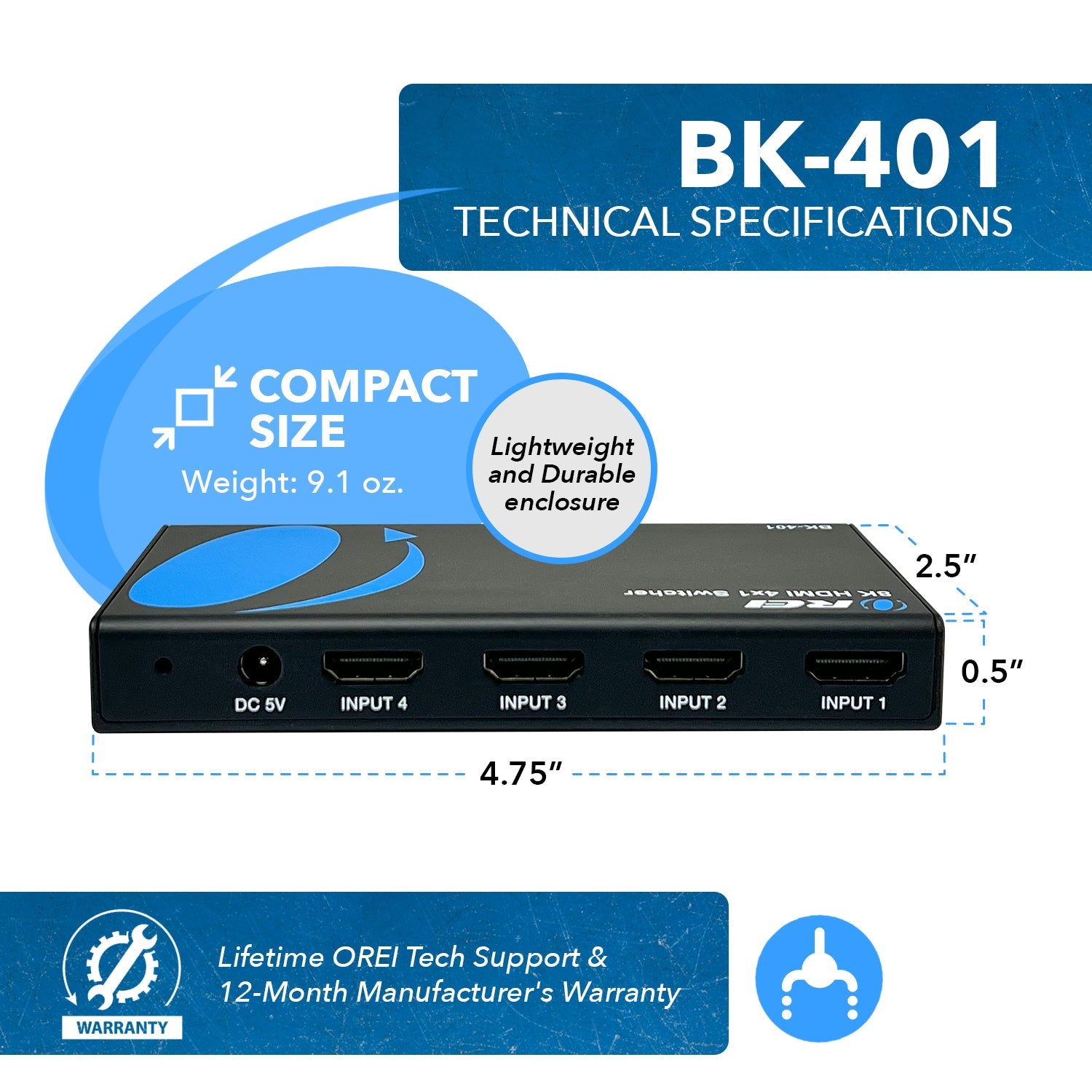

          DIMENSIONS & WEIGHT

          Length: 122mm / 4.8in
          Width: 65mm / 2.56in
          Height: 19mm / 0.75in
          Weight: 88g / 3.10oz

          PROPERTIES

          Color: Black
          Housing: Plastic Enclosure

          WARRANTY

          1-Year Manufacturer's Warranty

          [/tab]

          Specifications :

          General Information

          UPC 850031132467
