OREI
8K 4x1 HDMI Switcher with Audio Extraction (BK-401A)
8K 4x1 HDMI Switcher with Audio Extraction (BK-401A)
SKU:BK-401A
Couldn't load pickup availability
Description :

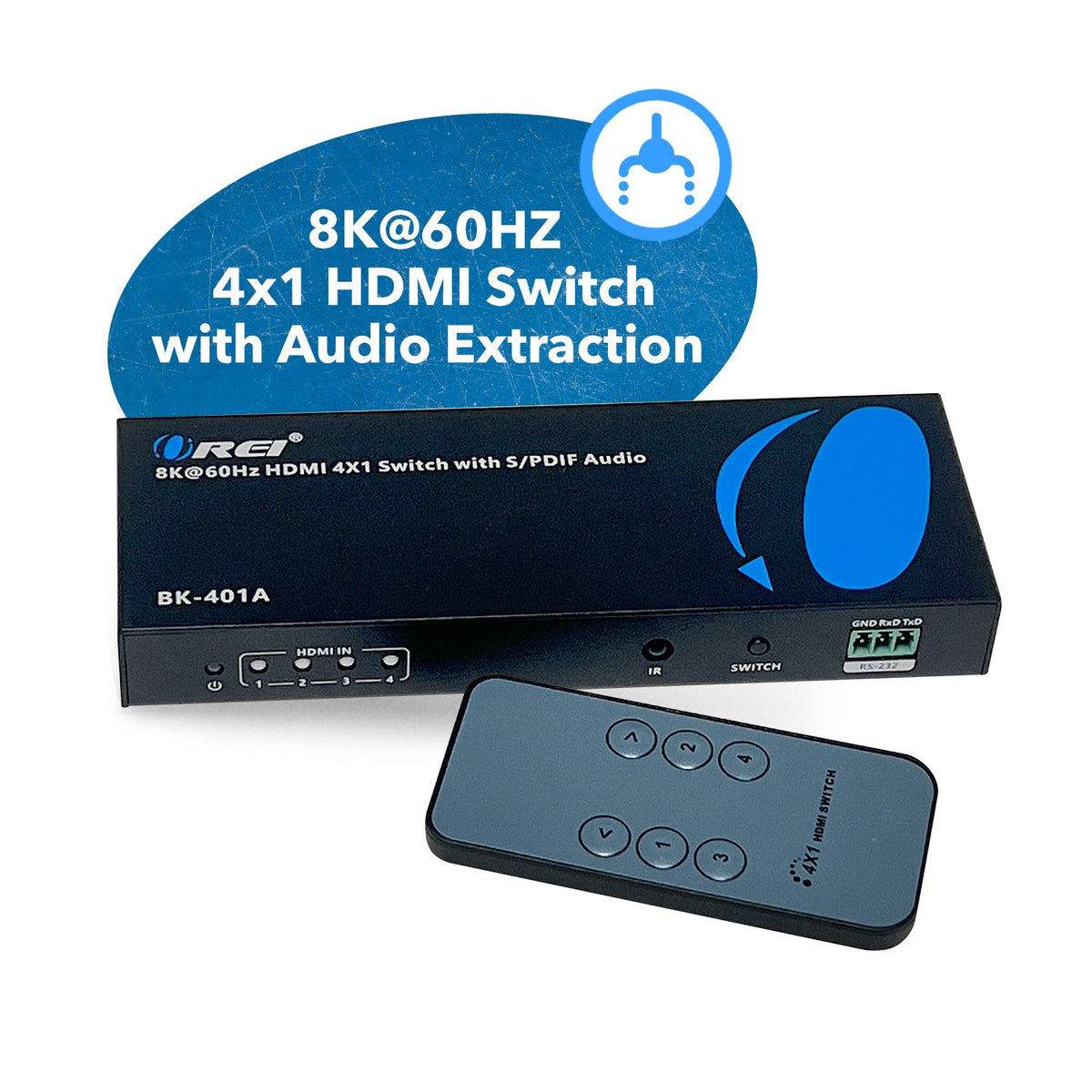

OREI BK-401A: 8K 4x1 HDMI Switcher with Audio Extraction

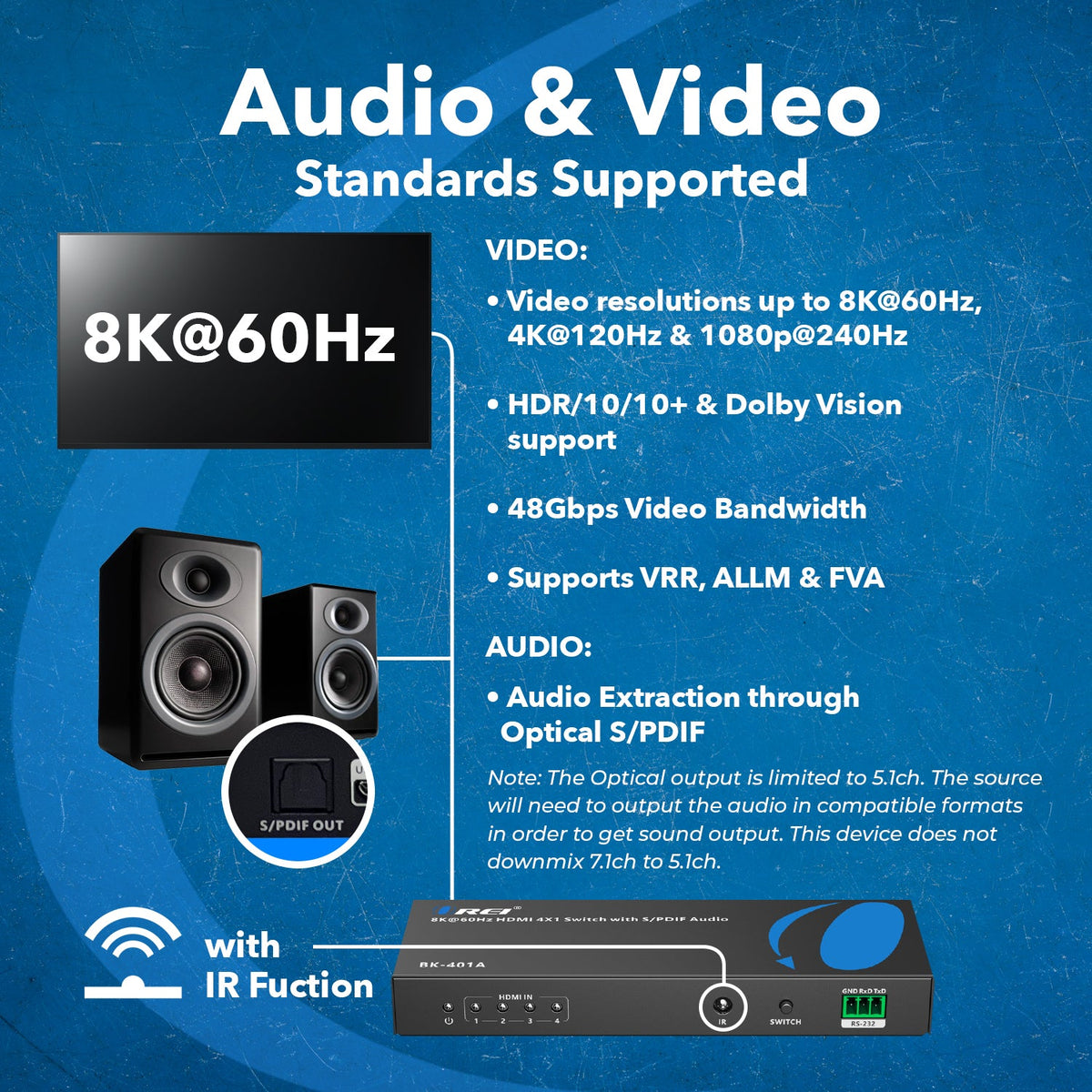

- HDMI 2.1 & HDCP 2.3 Compliant
- 48Gbps FRL & 18Gbps TMDS video Bandwidth
- Video resolution up to 8K@60Hz 4:2:0 12bit and 4K@120hz 4:4:4 12bit
- HDR/10/10+, Dolby Vision and HLG pass-through
- VRR, ALLM, QMS, QFT, and SBTM support
- CEC: Control the soundbar and input devices through the TV remote.
- Advanced EDID Management
- Plug-and-play setup

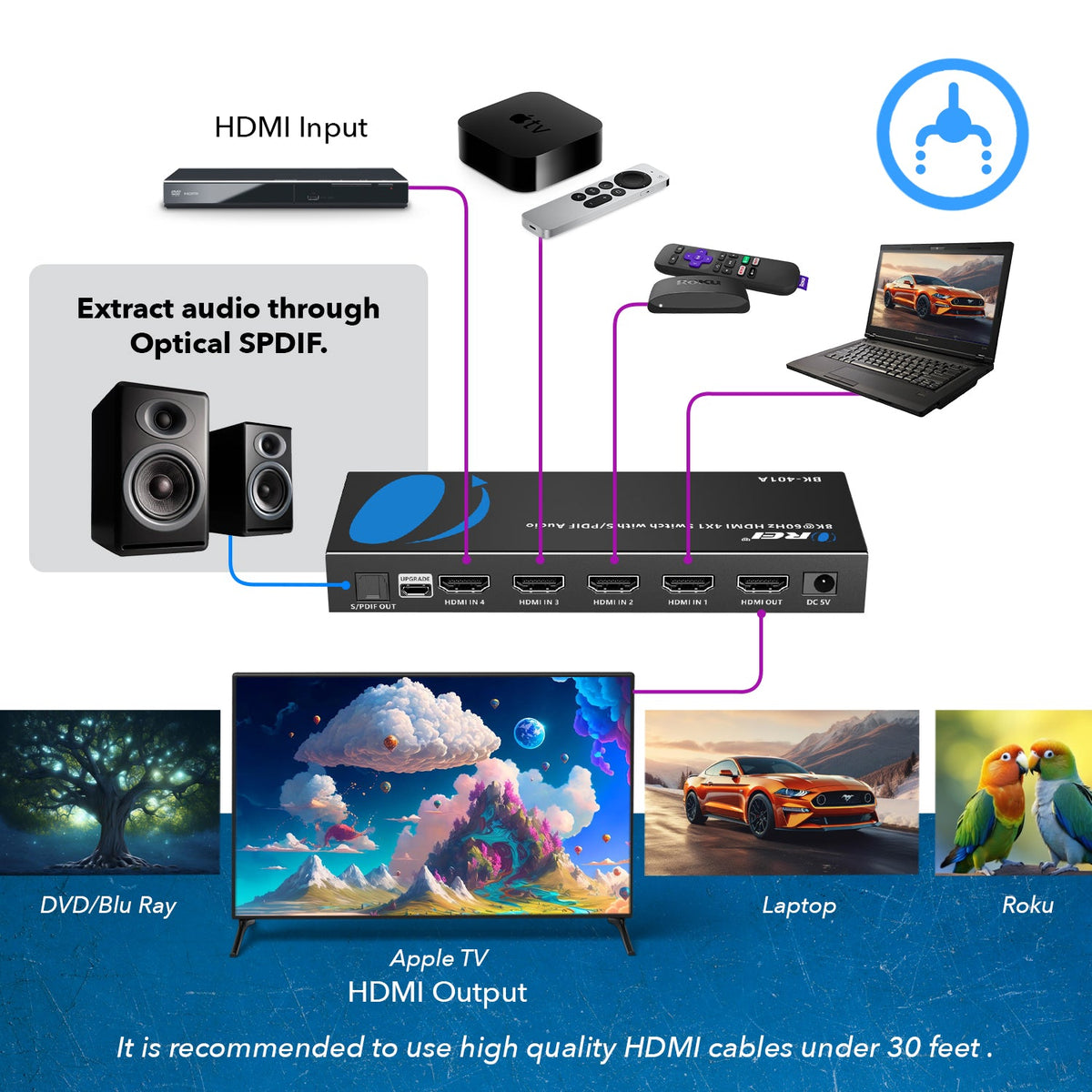

The BK-401A is an 8K HDMI switch featuring 4 HDMI inputs and 1 HDMI output, allowing you to connect multiple devices to your TV. It can also extract audio from your sources and output it via S/PDIF and L/R ports. Compliant with HDMI 2.1 and HDCP 2.3, it supports video resolutions up to 8K@60Hz 4:2:0 or 4K@120Hz 4:4:4. With a video bandwidth of up to 48Gbps FRL and 18Gbps TMDS, it supports HDR10+, HLG, and Dolby Vision pass-through. CEC enables control of the soundbar's volume through your TV remote. It offers advanced EDID management, a compact design, and easy plug-and-play installation, making it perfect for personal or commercial setups.
[shortdes]
-
4x1 Switch with Audio Extraction
- Resolutions up to 8K@60Hz 4:2:0
- CEC pass-through and EDID management
[/shortdes]
[tab1]
FAQs
Our splitters will not work with capture cards due to the HDCP encryption on the output
Our HDMI splitter will duplicate or "mirror" a single HDMI source on two HDMI displays. Both displays will show the same video and audio simultaneously
Our splitter does not support extend mode. It only supports mirror/duplicate screen function, each screen will show the same picture
Yes, the power adapter does support 220V
You can use standard HDMI cables up to 15 feet and high quality cables up to 30 feet.
However, you can use fiber optic active HDMI cables up to 200 feet. If it's not a high-quality cable then you may lose the signal in some instances.
No, the HDMI splitters do not support CEC because most customers do not want all the TV's to turn ON as soon as the source is turned on.
Specifications :
General Information
| UPC | 850031132696 |
|---|
