Dataram 8GB DDR3 SDRAM Memory Module DTI16S2L8W/8G

Description :

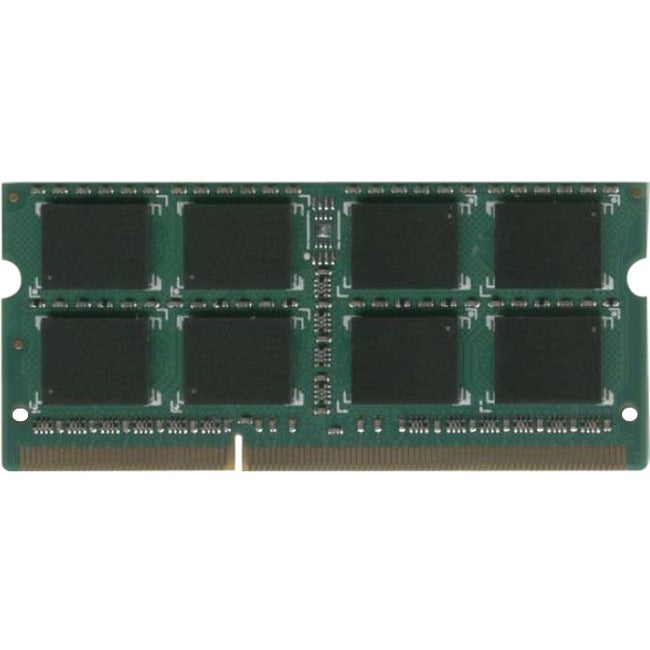

Dataram 8GB DDR3 SDRAM Memory Module
DTI16S2L8W/8G is an Unbuffered DDR3 1Gx64 small-outline memory module, which conforms to JEDEC's DDR3L, PC3L-12800 standard. The assembly is dual- rank, each rank comprised of eight 512Mx8 DDR3 Industrial Temp SDRAMs.

One EEPROM is used for Serial Presence Detect.

Both output driver strength and input termination impedance are programmable to maintain signal integrity on the I/O signals in a Fly-by topology.

• 8 GB of memory makes a perfect symmetry with your latest model processor and boosts up your computer's performance


• 240-pin-pin DDR3 SDRAM interface multiplexes 2-bit data from memory cell and I/O buses to minimize processor idle time and enhance your computer's performance


• Up to 1600 MHz speed with CL11 latency for smooth computer performance

Product Type: RAM Module
Environmentally Friendly: Yes
Environmental Certification: RoHS
Brand Name: Dataram
Form Factor: SoDIMM
Length: 2.7"
Manufacturer: Dataram Corporation
Product Name: 8GB DDR3 SDRAM Memory Module
Manufacturer Part Number: DTI16S2L8W/8G
Manufacturer Website Address: http://www.dataram.com
Number Of Pins: 240-pin
Limited Warranty: Lifetime
Thickness: 149.6 mil
