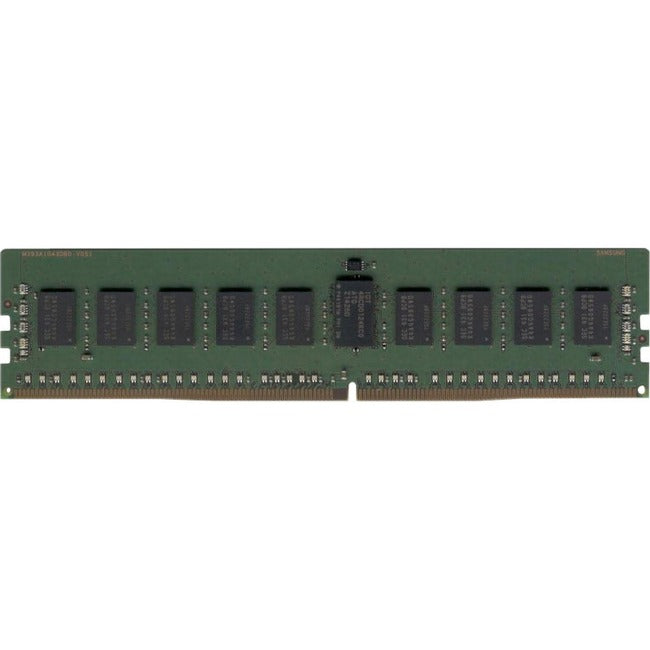

Dataram 8GB DDR4 SDRAM Memory Module DTM68147-S

Description :

Dataram 8GB DDR4 SDRAM Memory Module
DTM68147-S is a registered 1Gx72 memory module, which conforms to JEDEC's PC4-2933Y standard. The assembly is Single-Rank with a rank containing: nine Samsung 1Gbx8 DDR4- 2933Y SDRAMs. One 4K-bit EEPROM is used for Serial Presence Detect and a combination register/PLL, with Address and Command Parity is also used. Both output driver strength and input termination impedance are programmable to maintain signal integrity on the I/O signals in a Fly-by topology. A thermal sensor accurately monitors the DIMM module and can prevent exceeding the maximum operating temperature of 95C.

• DIMM 8 GB memory allows you to have more programs open at a time


• 288-pin-pin DDR4-2933/PC4-23466 interface synchronizes electrical and clock signals for an efficient data transfer rate


• No matter how heavy and numerous the applications that you are using, 2933 MHz memory speed with CL21 latency will run them smoothly

Product Type: RAM Module
Environmentally Friendly: Yes
Environmental Certification: WEEE
Brand Name: Dataram
Form Factor: DIMM
Length: 5.3"
Manufacturer: Dataram Corporation
Product Name: 8GB DDR4 SDRAM Memory Module
Manufacturer Part Number: DTM68147-S
Manufacturer Website Address: http://www.dataram.com
Number Of Pins: 288-pin
Limited Warranty: Lifetime
Thickness: 156.7 mil
