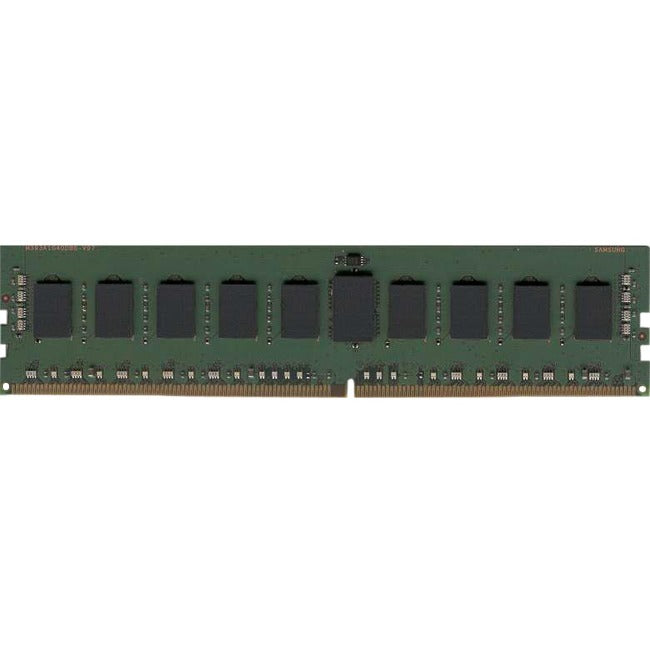

Dataram 8GB DDR4 SDRAM Memory Module DTI24R1T8W/8G

Description :

Dataram 8GB DDR4 SDRAM Memory Module
DTI24R1T8W/8G is a registered 1Gx72 memory module, which conforms to JEDEC's DDR4-2400T, PC4-2400 standard. The assembly is Single-Rank, comprised of eighteen 1Gbx8 DDR4-2400T Industrial Temp SDRAMs.

One EEPROM is used for Serial Presence Detect and a combination register/PLL, with Address and Command Parity, is also used.

Both output driver strength and input termination impedance are programmable to maintain signal integrity on the I/O signals in a Fly-by topology.

A thermal sensor accurately monitors the DIMM module and can prevent exceeding the maximum operating temperature of 95C.

• 8 GB of memory makes a perfect symmetry with your latest model processor and boosts up your computer's performance


• DDR4-2400/PC4-2400 operates at an effective bus speed with minimal power consumption and as a result, you get optimal computer performance with an improved memory heat dissipation


• Up to 2400 MHz speed for smooth computer performance

Product Type: RAM Module
Environmentally Friendly: Yes
Environmental Certification: RoHS
Brand Name: Dataram
Form Factor: DIMM
Length: 5.3"
Manufacturer: Dataram Corporation
Product Name: 8GB DDR4 SDRAM Memory Module
Manufacturer Part Number: DTI24R1T8W/8G
Manufacturer Website Address: http://www.dataram.com
Number Of Pins: 288-pin
