SYBA Multimedia 4 Port USB 3.0 PCI-e x1 Card SD-PEX20133

Description :

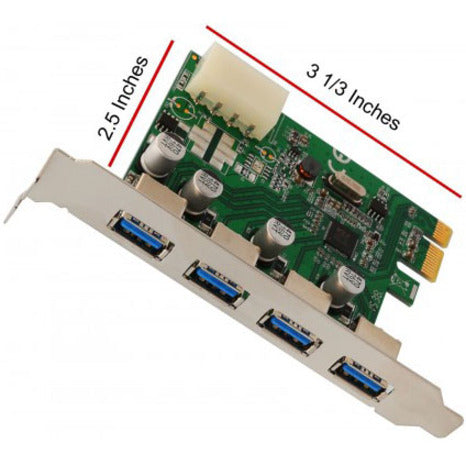

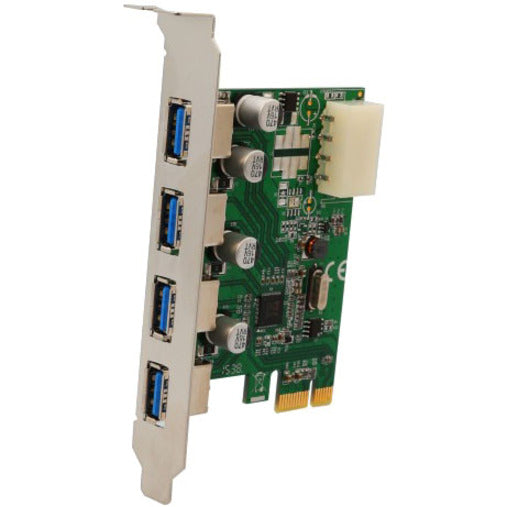

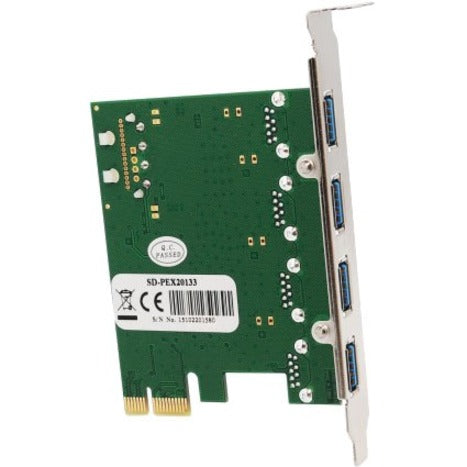

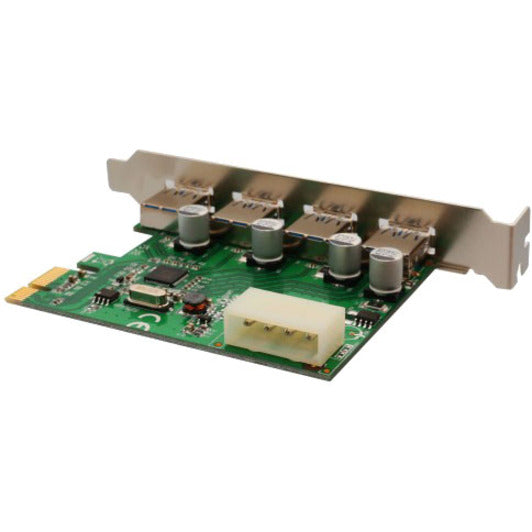

SYBA Multimedia 4 Port USB 3.0 PCI-e x1 Card

Small form factor with explosive speed! Faster and more efficient specification. Now, you can transfer large files, and video in 1/10th of the time.

• USB Specification: ?Compliant with Universal Serial Bus 3.0 Specification Revision 1.0 ?Provide USB 3.0 Super-speed (5Gbps) Host Port, Backward Compatible with USB 2.0 High-speed (480Mbps), Full-speed (12Mbps) and Low-speed (1.5Mbps) Interface


• Compliant with PCI Express Base Specification 2.0


• PCI-e Specification:PCI-Express 2.0 1-Lane (x1) Interface with Data Transfer Rate up to 5Gbps ?Backwards Compatible to PCI-Express 1.0a with Data Transfer Rate up to 2.5Gbps ?Internal HDD Power Connector for Supplying Extra +5V Power to the USB Ports ?Int


• Compliant with Intel's Extensible Host Controller Interface (xHCI) Specification Revision 0.96


• Real Connector:Molex (IDE 4-pin) Power Connector


• Based on VLI VL80x (VL800-Q8) USB 3.0 Host Controller IC

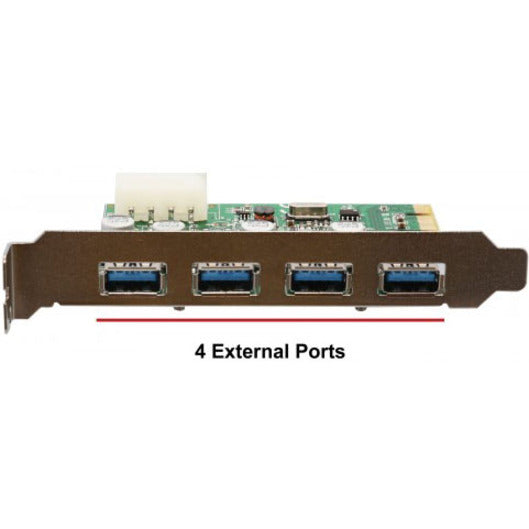

• Ports:4 External USB 3.0 Ports with 5Gbps (Gigabits per Second) Data Transfer Rate

Product Type: USB Adapter
Environmentally Friendly: Yes
Environmental Certification: WEEE
Brand Name: SYBA Multimedia
Form Factor: Plug-in Card
Manufacturer: SYBA Multimedia, Inc
Product Name: 4 Port USB 3.0 PCI-e x1 Card
Manufacturer Part Number: SD-PEX20133
Manufacturer Website Address: http://www.syba.com
Platform Supported: PC

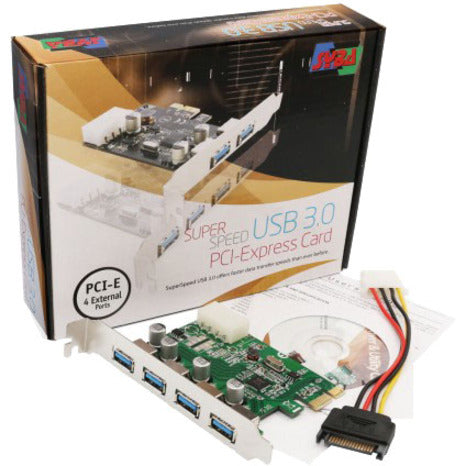

Package Contents:

• USB 3.0 4-port PCI-e Controller Card


• User Manual


• Driver CD
