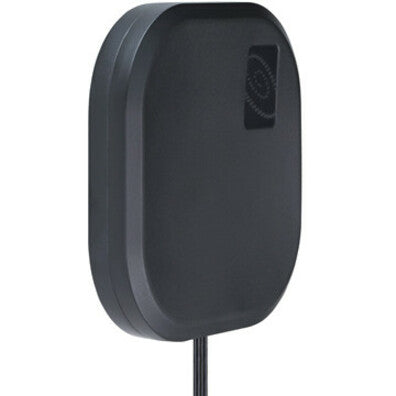

Taoglas Gemini LTE 4G MIMO 2x2 Antenna for Routers and Access Points LMA100.A.BI.001

Description :

Taoglas Gemini LTE 4G MIMO 2x2 Antenna for Routers and Access Points
The Gemini LTE 4G MIMO 2X2 is a robust external antenna that is fully IP67 waterproof for use with all 4G/3G/2G MIMO cellular routers and Access points worldwide. It includes two embedded high efficiency LTE MIMO antennas. The antenna elements operate at all common and 4G LTE bands worldwide; 698-960MHz, 1710-2170MHz, 2490-2690MHz, which also include the 3G and 2G bands, meaning the antenna can also be used as fallback on 3G or 2G applications. High isolation and low ECC between the two embedded MIMO antennas prevents self-interference. Low loss cables are used to keep efficiency high over long cable lengths up to 5 meters.

This unique antenna offers two methods for easy installation, both indoors and outdoors. A bracket on the back of the antenna enables easy wall installation, keeping your work area clean and spacious. The antenna can also be placed on a flat surface using the stand holder for easy and quick installation.

Typical Applications:

• -HD Real-time Streaming Video over LTE
• -Intelligent Transport Systems
• -Internet of Things (IoT market)
• -Digital Signage
• -HD Broadcast Systems
• -Wireless 4G LTE MIMO M2M devices with legacy 3G Functionality

• Best solution for 4G 2x2 Worldwide LTE MIMO applications


• Covers fallback 3G/2G frequencies too


• (HSPA/UMTS/WCDMA/GSM/GPRS)


• 698-960MHz,1710-2170MHz,2490-2690MHz


• High Efficiency Indoor and Outdoor Antenna


• Waterproof IP67


• Wall Mount or Desktop Mount


• Dimension: 164mm*164mm*36.5mm


• 2* Low Loss 1M CFD-200 Cables - SMA(M)


• Cable and connector customizable

Product Type: Antenna
Environmentally Friendly: Yes
Environmental Certification: RoHS
Product Color: Black
Country Of Origin: Taiwan
Brand Name: Taoglas
Form Factor: Desktop/Wall
Manufacturer: Taoglas
Product Name: Gemini LTE 4G MIMO 2x2 Antenna for Routers and Access Points
Package Type: Bulk
Product Line: Gemini
Application/Usage: Outdoor
Manufacturer Part Number: LMA100.A.BI.001
Manufacturer Website Address: http://www.taoglas.com
Packaged Quantity: 1
Weight (Approximate): 1.43 lb
