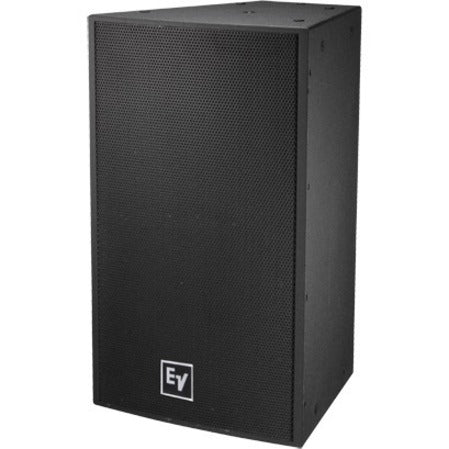

Electro-Voice 2-way Speaker - 500 W RMS - Black Finish EVF-1152S/66-FGB

Description :

Electro-Voice 2-way Speaker - 500 W RMS - Black Finish
Key Features:

• ND2B 2" (51mm) Diaphragm, 1.4" (36mm) Exit Pure Titanium Compression Driver
• SMX2151 15" (381mm) LF Transducer with Fully Symmetric Drive
• Advanced 4th Order Crossover Network with HF Protection
• Coverage Pattern: 60° x 60° Constant Directivity™ 12" Rotatable Waveguide
• 101 dB Sensitivity, 134 dB Maximum SPL
• System Rating: 500W Continuous, (2000W Peak)
• Active Rating: LF400W/HF40W Continuous (1600W/160W Peak)
• (22) M10 Threaded Suspension Points
• PI Version Available with Gland Nut and Stainless Steel Grille

General Description:

The Electro-Voice® EVF-1152S/66 is a high power, 2-way loudspeaker system that can be used in a variety of applications where high quality sound reinforcement is required in a compact, lightweight package.

The EVF-1152S/66 utilizes the ND2B, a high output 2" titanium compression driver, coupled to a Constant Directivity™ 60° x 60° waveguide. The SMX2151 15" woofer used FEA optimization for motor, suspension, and electrical design for very low distortion, high efficiency, and maximum intelligibility at high SPL levels. The crossover uses steep 24 dB/octave slopes with equalization for very smooth response in vocal range, linear off-axis response, and a protection circuit for long term reliability.

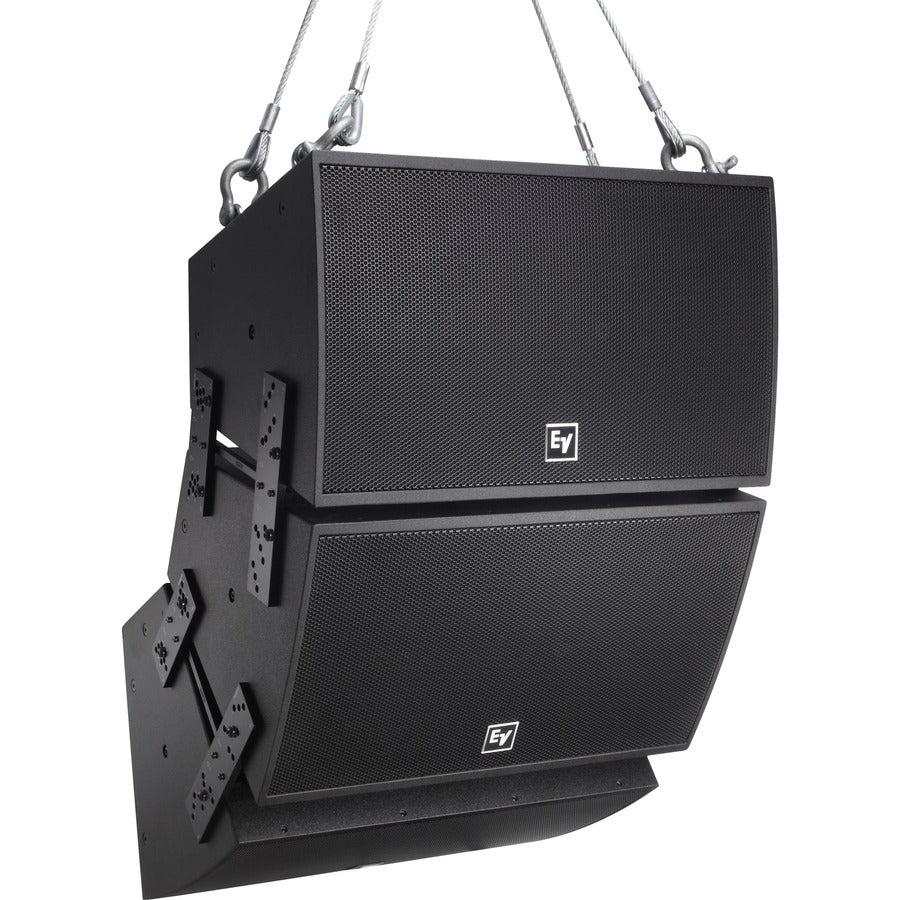

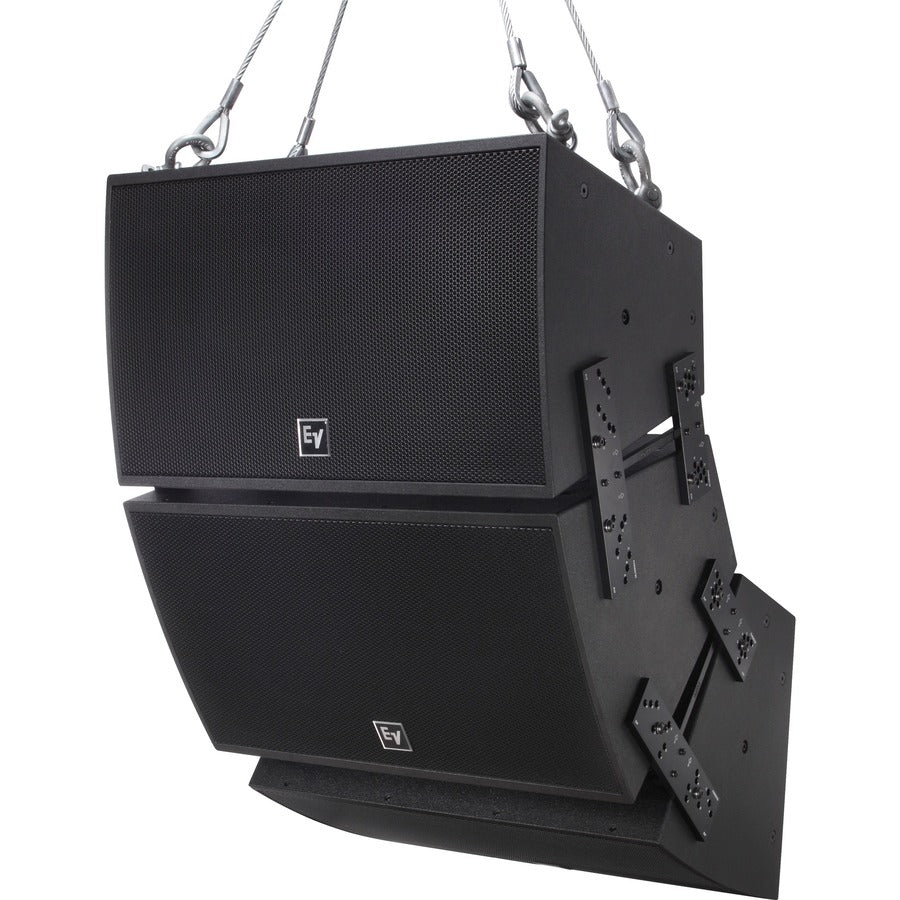

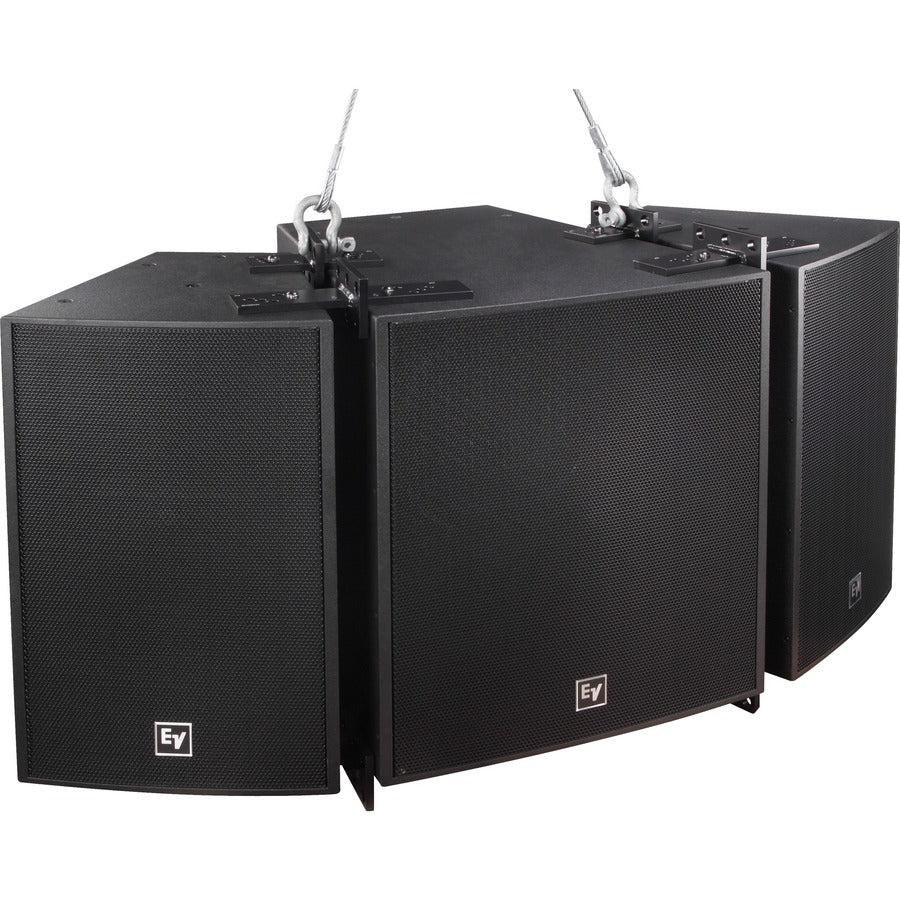

The EVF-1152S/66 features make it ideal for many fixed install applications. The trapezoidal enclosure is constructed out of weather resistant birch, and coated with EVCoat™ for maximum protection from the elements. The unique acoustic and rigging design allows for vertical and horizontal clusters to be built using any combination of loudspeakers from the entire EVF & EVH Series, with 7 horn patterns to choose from and an assortment of Low Frequency and subwoofer loudspeakers, it gives you the tools to maximize flexibility of system design, no matter what the application and budget. The innovative input panel provides choice of phoenix style connector (included in all standard models) or the ability to add; a dual NL4 type connector cover plate or gland nut cover plate (for weatherizing applications). An externally accessible jumper selects passive or active operation. An available 70.7/100 Volt transformer kit simply mounts to the input panel for use in distributed systems. All these features give you the flexibility to do a large range of venues with fewer items in inventory and quickly support your customer's requirements.

• The 2-way speakers give smooth and precise production of sound to deliver an ultimate audio experience


• Experience body-shaking levels without any room-vibrating reverb or excessive heat output with 500 W RMS power


• Hear low subs and soaring vocals with a frequency range of sound from 41 Hz-18 kHz


• 8 Ohm impedance extracts maximum power so you will get more output from your speakers

Product Type: Speaker
Woofer Diameter: 15"
Product Color: Black Finish
Product Series: EVF
Brand Name: Electro-Voice
Manufacturer: The Bosch Group
Product Name: EVF-1152S/66 Single 15" Two-Way 60° x 60° Full-Range Loudspeaker System
Manufacturer Part Number: EVF-1152S/66-FGB
Manufacturer Website Address: http://www.bosch.com
Weight (Approximate): 70.77 lb
