5-Port Gbe Unmanaged Ethernet Switch, -4

Description :

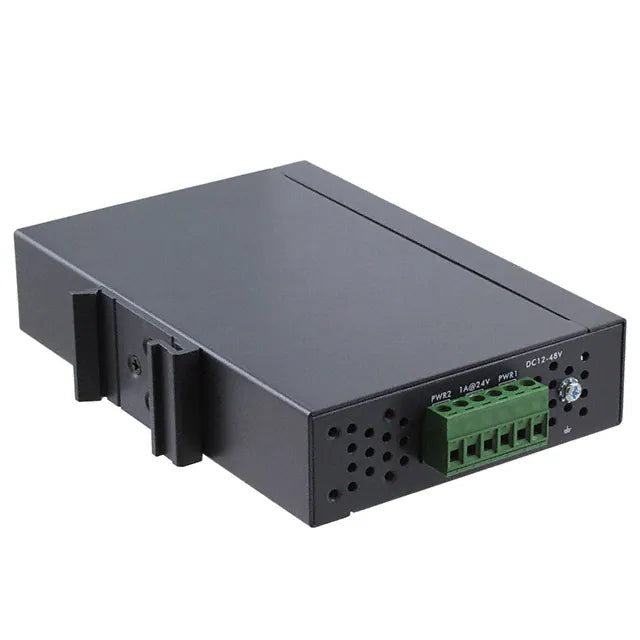

Advantech Ethernet Device, 5-port Ind. Unmanaged GbE Switch W/T
The EKI-2725 supports Gigabit Ethernet. The power is a +12 ~ 48 V DC redundant input design, and is secured with a double protection mechanism: Power Polarity Reverse Protect and an Overload Current Fuse. The former tolerates reverse power wiring while the later secures the system from overload currents. Each port of EKI-2725 has 2 LED's to show the link status transmission speed and collision status. It also provides a relay output for an event alarm. In the event of a power failure, the built-in LED will activate the alarm to notify administrators. Engineers can simply verify the hardware status by checking the LED, and have troubleshooting easy and quick. EKI-2725 comes with compact metal housing that rates IP30 to help against from dusty industrial environments.

• Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 5 ports

• Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters

• Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks

• Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree

• The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed

Product Type: Ethernet Switch
Product Series: EKI-2000
Brand Name: Advantech
Form Factor: Wall Mountable
Manufacturer: Advantech Co., Ltd
Product Model: EKI-2725I
Product Name: Ethernet Device, 5-port Ind. Unmanaged GbE Switch W/T
Manufacturer Part Number: EKI-2725I-CE
Manufacturer Website Address: http://www.advantech.com
Packaged Quantity: 1
