ATEN VM8584K1 Audio/Video Switchbox

Description :

ATEN VM8584K1 Audio/Video Switchbox

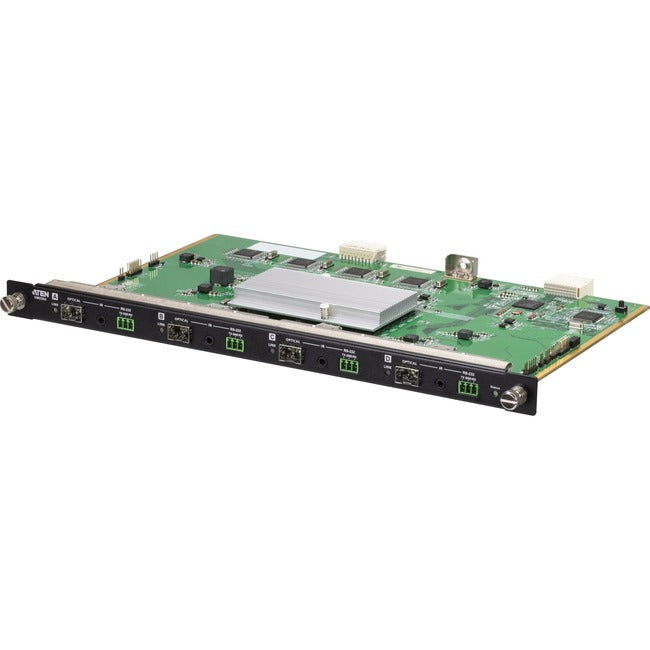

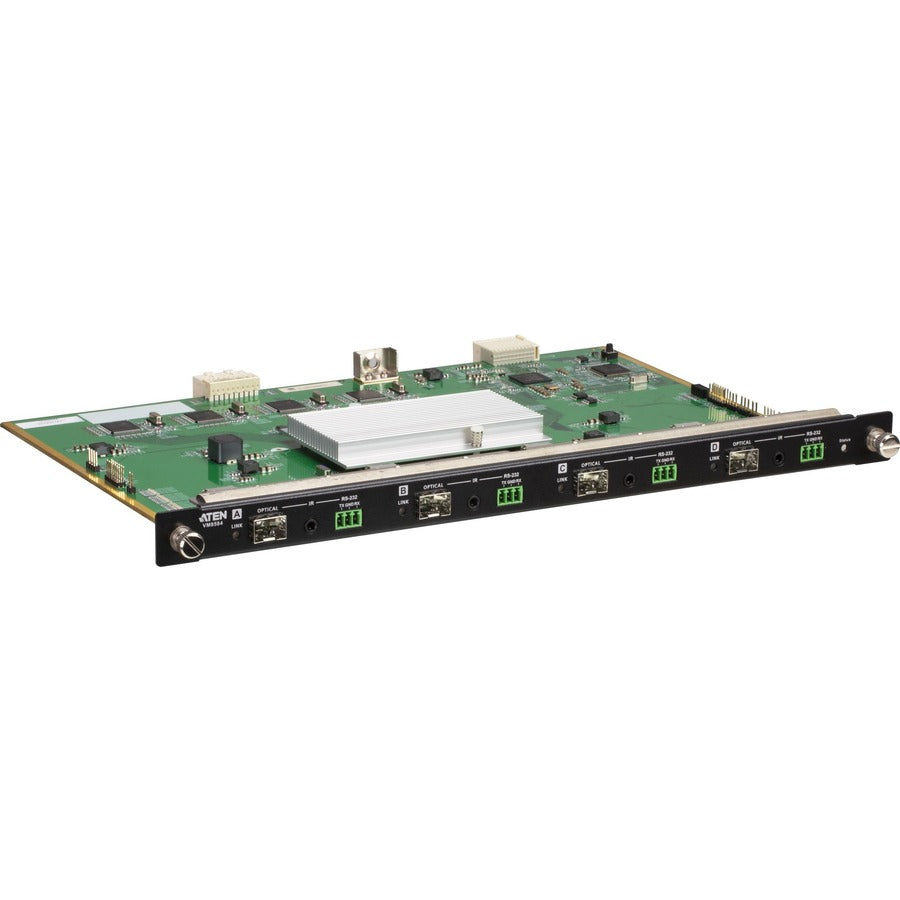

The VM8584 4-Port 10G Optical Output Board offers an easy way to route 4 HDMI sources to HDMI displays through optical extenders, and up to 16/32 input and 16/32 output connections on an ATEN Modular Matrix Switch through various AV interfaces. Designed with fiber optics technology for long-distance transmission, the VM8584 along with its SFP+ module extends uncompressed 4K signal up to 300 m (using VM8584K1) or 10 km (using VM8584K2) over duplex fiber optic cables. The optical fiber simplifies cabling by guaranteeing an interference-free long-haul transmission of audio, video, IR, and RS-232 control signals over one single set of duplex cables that easily connects to the SFP+ slot. Moreover, the VM8584 supports a high data rate of 10.2 Gbps and meets HDMI Specifications that include 3D, Deep Color, and 4K to ensure superior video quality.

The ATEN VM input/output boards are hot-swappable which gives system integrators great flexibility and efficiency for installation and maintenance. The ATEN VM input/output boards along with ATEN Modular Matrix Switches offer ideal solutions that perfectly meet your demands for scalable video-critical applications.

• Compatible with the VM3250/VM3200/VM1600A; mix and match with modular I/O boards of any type for optimum flexibility


• Extends audio/video, IR, and RS-232 control signals over long distances via duplex fiber optic cables


• Superior video quality over long-distance transmission - up to 4096 x 2160@60Hz (4:2:0), 300m with VM8584K1 over multimode cables or 10km with VM8584K2 over single-mode cables


• Scaler - features a 4K video scaling function to convert input resolutions to the optimum display resolutions


• Seamless Switch ™ - features close-to-zero second switching that provides continuous video streams, real-time switching, and stable signal transmissions


• Video Wall - allows you to create custom video wall layouts via intuitive web GUI*


• HDMI (3D, Deep Color, 4K); HDCP 2.2 compatible


• Consumer Electronics Control (CEC) support


• Bi-directional RS-232 channel - allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners


• Bi-directional IR channel - IR transmission is processed one direction at a time, ranging from 30 kHz to 60 kHz

Product Type: Audio/Video Switchbox
Environmentally Friendly: Yes
Environmental Certification: RoHS
Brand Name: ATEN
Manufacturer: ATEN Technology, Inc
Product Model: VM8584K1
Product Name: VM8584K1 Audio/Video Switchbox
Manufacturer Part Number: VM8584K1
Manufacturer Website Address: http://www.aten.com/us/en/
Package Contents:

• VM8584K1 Audio/Video Switchbox
• 4 x SFP+ Modules
• 4 x 3-Pole Terminal Blocks
• 1 x IR Receiver
• 1 x IR Emitter
• 1 x User Instructions
