4K HDMI/USB-C Extender Over Single CAT6/7 with 4K@60Hz Wall Plate Transmitter, HDR & IR Control Upto 165ft (UHD-WPE165-K)
4K HDMI/USB-C Extender Over Single CAT6/7 with 4K@60Hz Wall Plate Transmitter, HDR & IR Control Upto 165ft (UHD-WPE165-K)
SKU:UHD-WPE165-K
Regular price
$124.99
Regular price
$149.99
Sale price
$124.99
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Specifications
Description :
UHD-WPE165-K: 4K HDMI Extender Over CAT 6 with wall plate transmitter USB C input with charging up to 165 feet
Key Features:
- HDMI 2.0, HDCP 2.2 compliant
- Video resolutions up to 4K@60Hz and 2K@60Hz
- 18Gbps video bandwidth
- Signal transmission up to 165 feet over a CAT 6/6 cable
- HDMI and USB C inputs
- Automatic switching or manual switching through the button on the wall plate

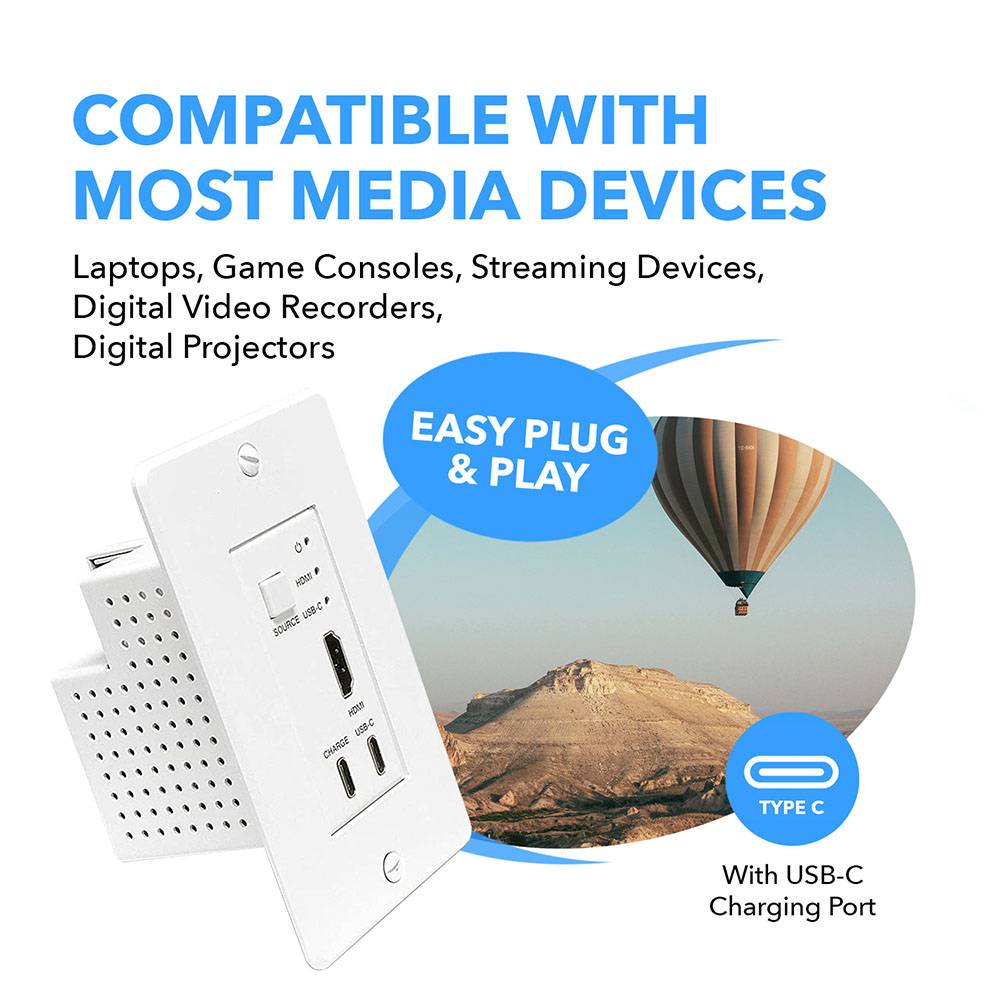

- USB C charge port to charge your laptop

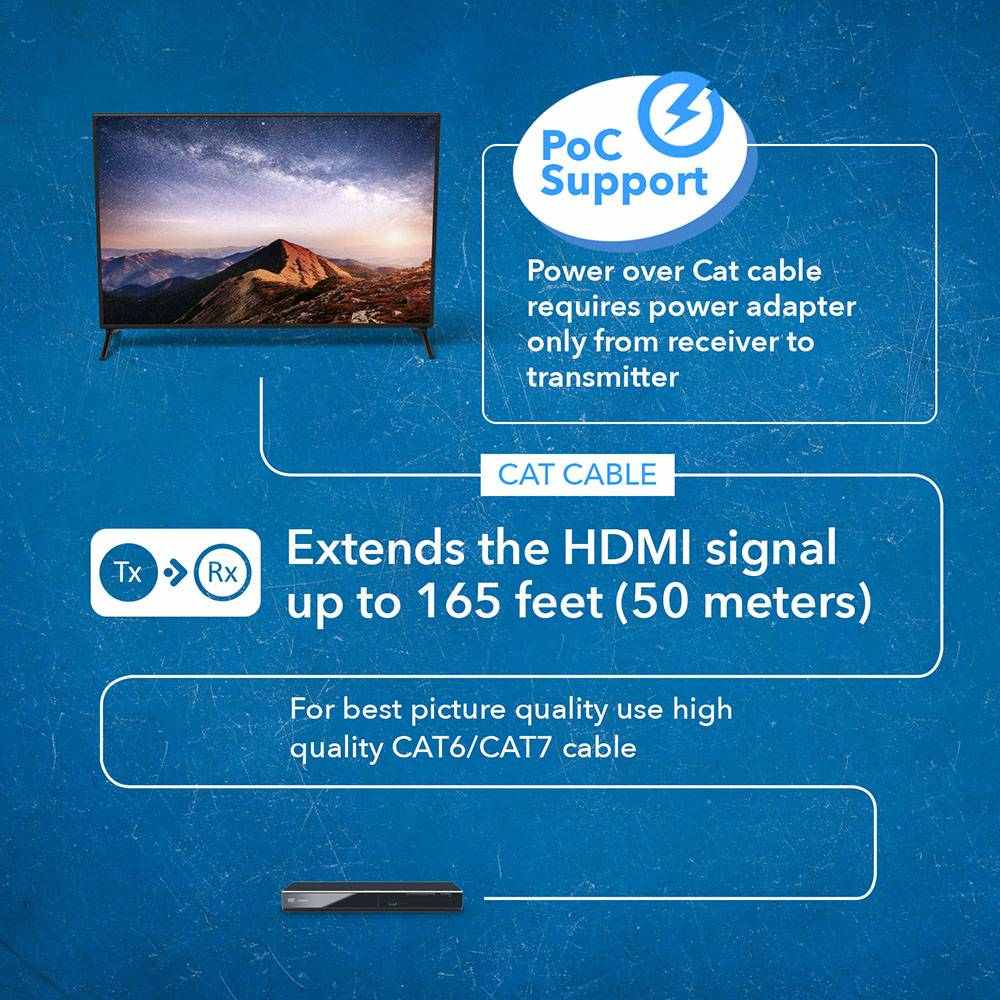

- Power over Cable technology only requiring power adapter at the Receiver end
- US decora wall plate for easy integration in your home

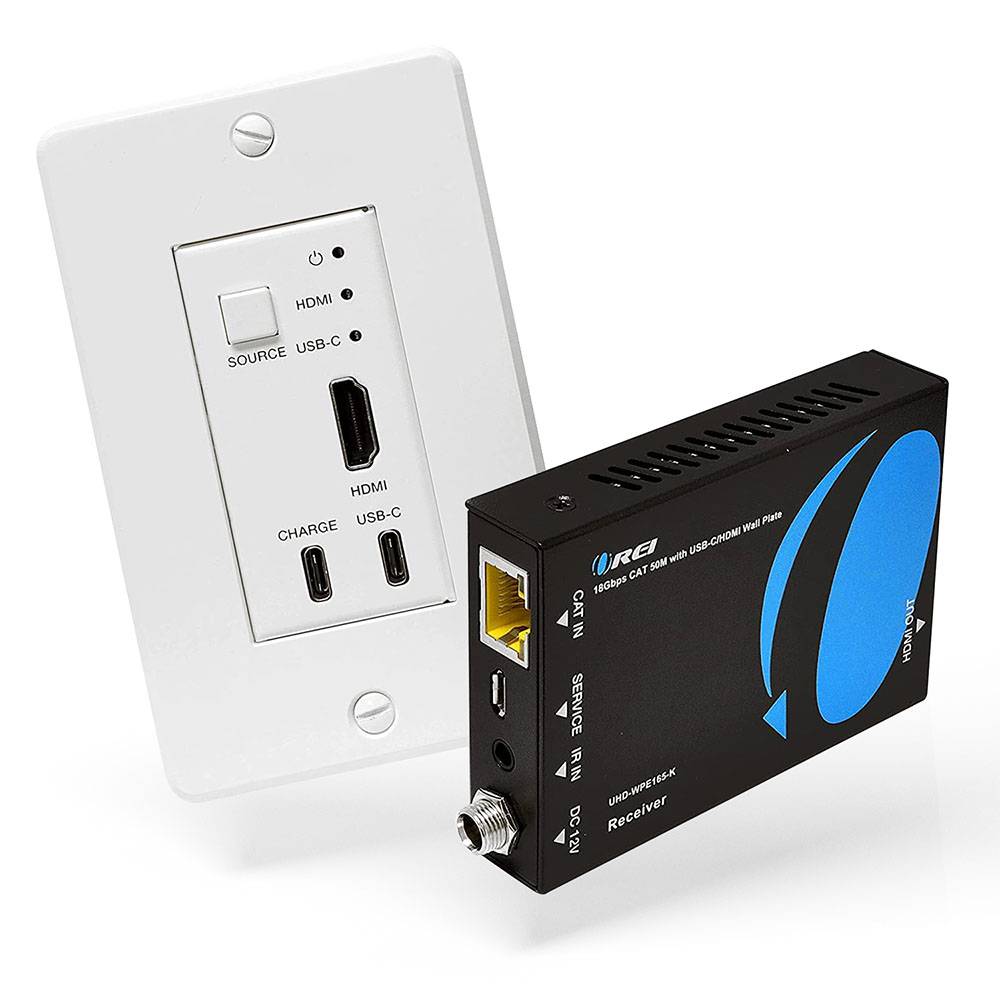

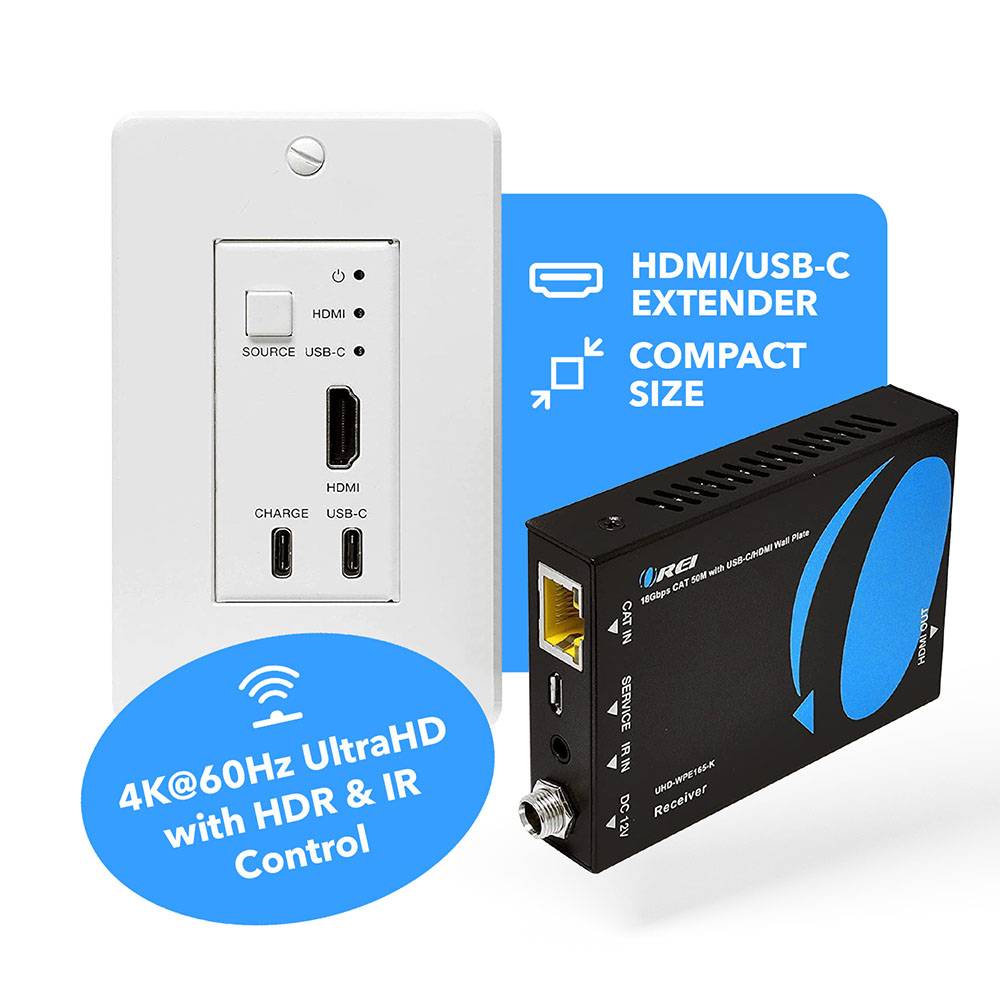

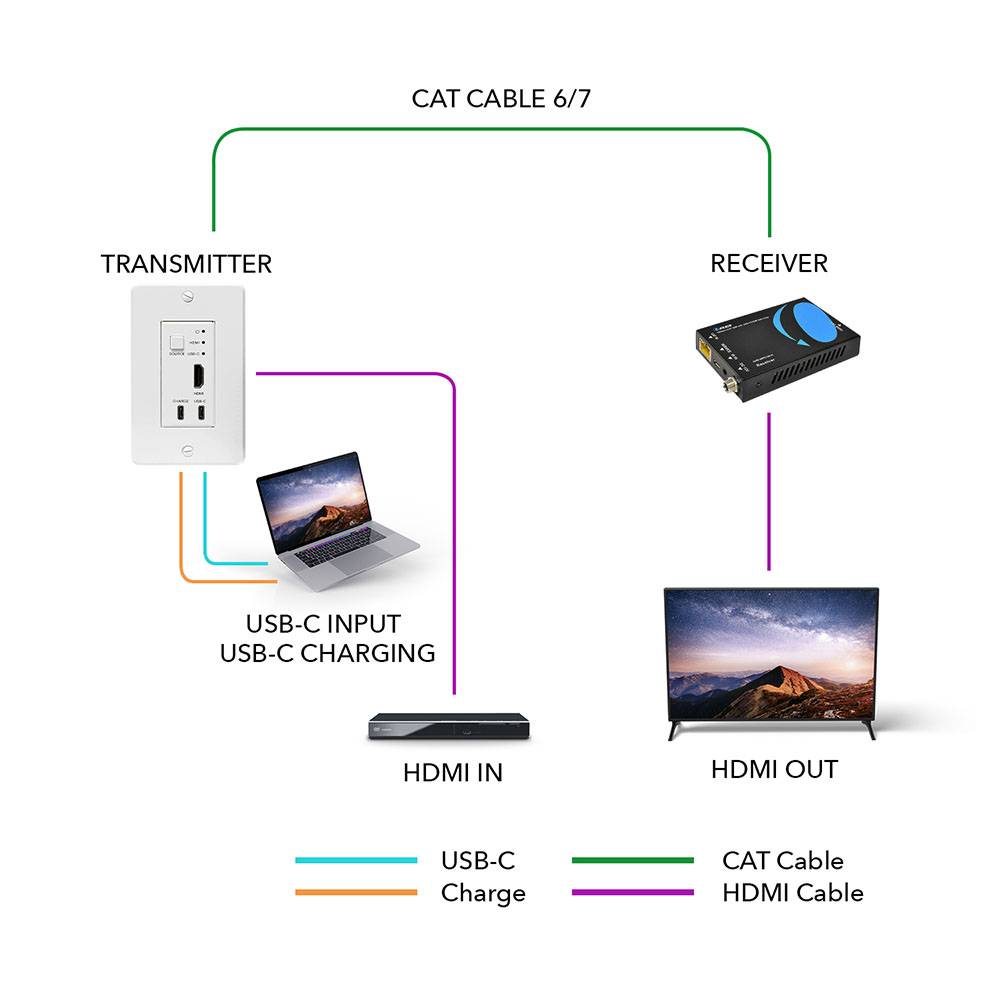

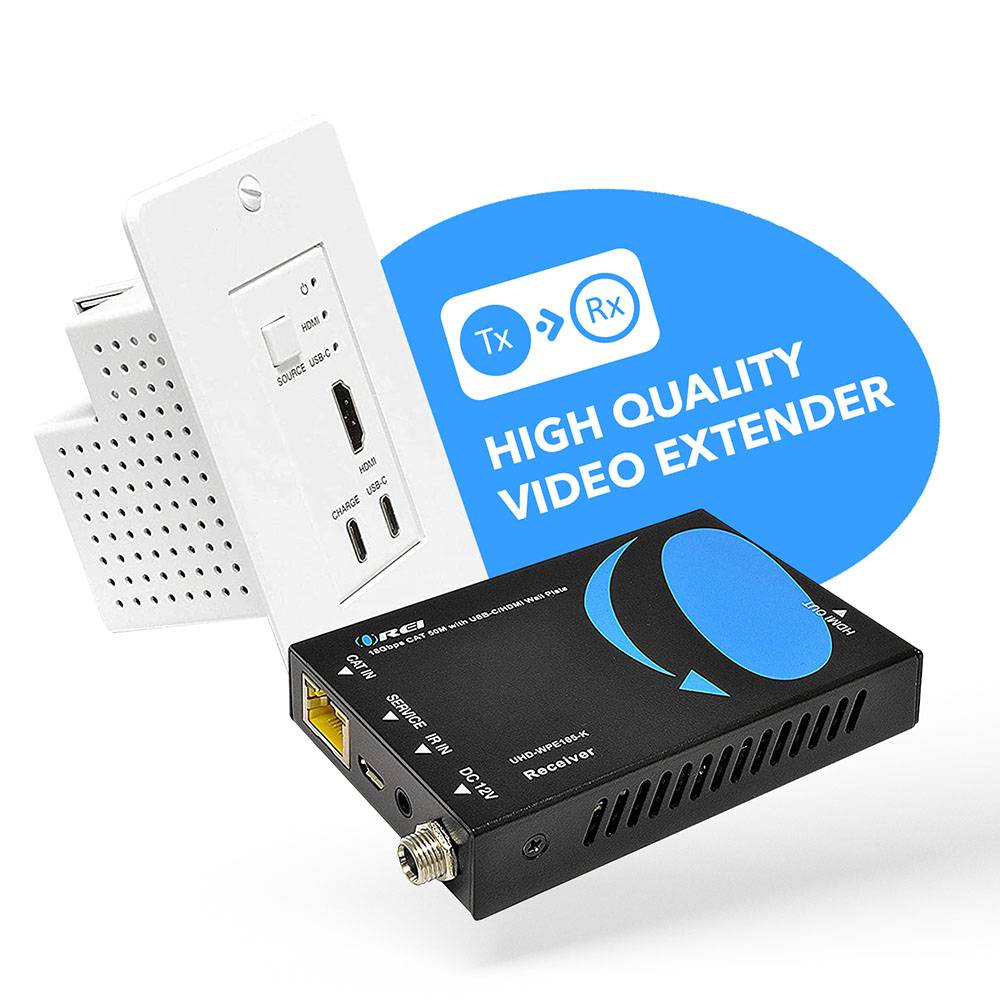

The UHD-WPE165-K HDMI Extender features a wall plate transmitter for seamless home integration. It supports video resolutions up to 4K@60Hz and 2K@60Hz and is HDMI 2.0 and HDCP 2.2 compliant. With an HDMI input and a USB C input, it also includes a USB C charge port on the left for laptop charging via a power adapter. Boasting an 18Gbps video bandwidth, it can switch between HDMI and USB C inputs automatically or manually using the wall plate button. Power over Cable technology requires just one power adapter at the Receiver end to power both units. Perfect for home setups.
[tab]
CONNECTIVITY
| Transmitter: | INPUT: | 1 × HDMI [Type A, 19-pin female] |
|
1 × USB Type C [Female] |
||
| OUTPUT: | 1 × LAN [RJ45, 8-pin female] | |
| CONTROL: | 1 × SERVICE [Micro USB, Update port] | |
| Receiver: | INPUT: | 1 × LAN [RJ45, 8-pin female] |
| OUTPUT: | 1 × HDMI [Type A, 19-pin female] | |
| CONTROL: | 1 × IR IN [3.5mm Stereo Mini-jack] | |
| 1 × SERVICE [Micro USB, Update port] |
PACKAGE CONTENTS
| 1x Transmitter |
| 1x Receiver |
| 1x Wall plate for Transmitter |
| 1x Power Adapter |
| User Manual |
SUPPORTED CAT CABLES
| CAT5e/6/7 cables: | We recommend you use CAT6/7 cables for optimum performance. |
EXTENDING DISTANCE
| 4K@24Hz: | 164 Feet |
| 4K@60Hz : | 115 Feet |
ADDITIONAL FEATURES
| CEC: | No |
| ARC: | No |
| USB KVM: | No |
| PoC/PoE: | Yes |
| IR Control: | Yes |
| Downmix: | No |
| Downscale: | No |
| Over IP: | No |
| HDBaseT: | No |
| RS-232: | No |
AUDIO SUPPORT
| HDMI Audio Formats: | LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD |
COMPLIANCES
| HDMI Compliance: | HDMI 2.0b |
| HDCP Compliance: | HDCP 2.2 |
| USB Type-C | Displayport 1.2a |
POWER
| Power Consumption: | Wall plate: 3W (Max) & Receiver: 3.72W (Max) | |
| Power Supply: | Input: AC 100-240V 50/60Hz | |
| Output: DC 12V/1A |

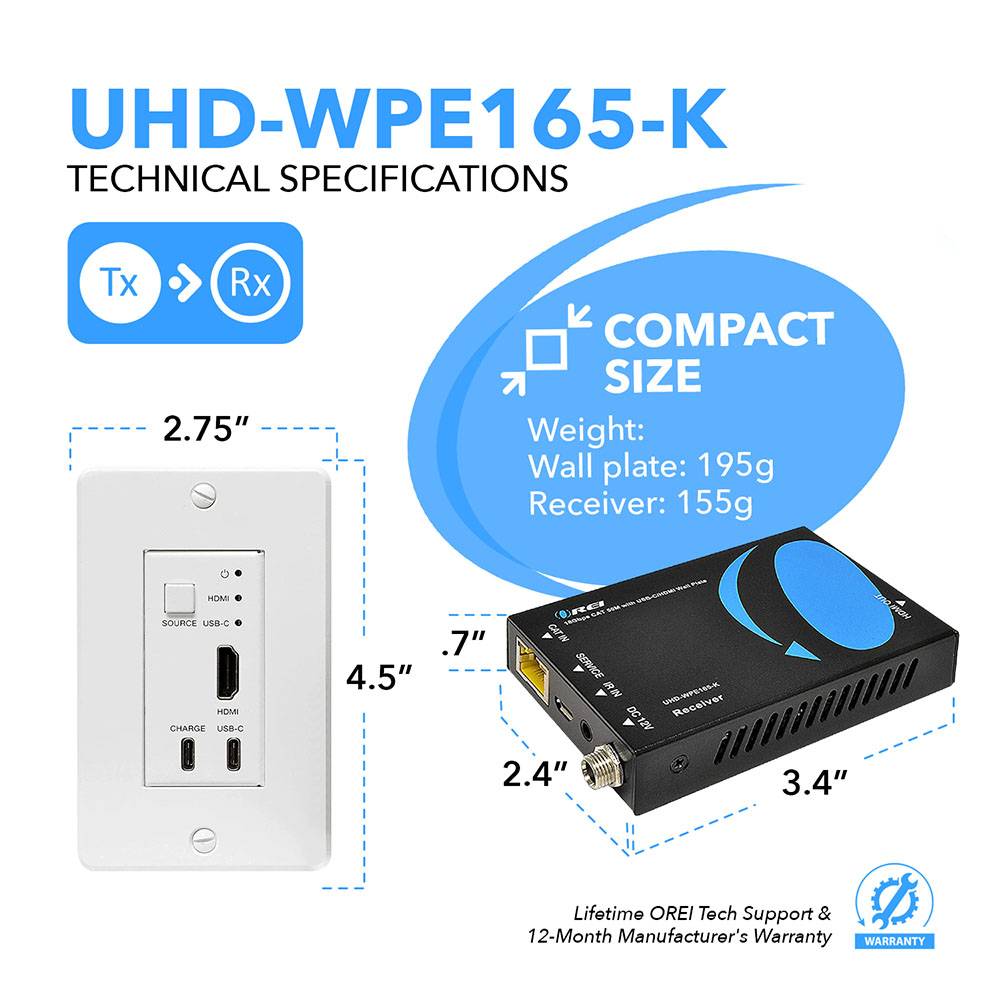

DIMENSIONS & WEIGHT
| Transmitter: | Length: | 33.3mm / 1.31in |
| Width: | 65.7mm / 2.59in | |
| Height: | 68.7mm / 2.71in | |
| Weight: | 195g / 6.89oz | |
| Faceplate: | Length: | 69.9mm / 2.75in |
| Width: | 3mm / 0.12in | |
| Height: | 114.3mm / 4.5in | |
| Receiver: | Length: | 88mm / 3.47in |
| Width: | 61mm / 2.4in | |
| Height: | 18mm / 0.71in | |
| Weight: | 155g / 5.47oz |
PROPERTIES
| Color: | Black (Receiver), White (Transmitter) |
| Housing: | Metal Enclosure |
WARRANTY
| 1-Year Manufacturer's Warranty |
[/tab]
[shortdes]
- Video resolution up to 4K@60Hz and 2K@60Hz
- HDMI and USB C input
- Automatic switching
- iPhone 15 with a USB C 3.1 cable can be used to send video output through the USB C port on the Transmitter
[/shortdes]
Specifications :
General Information
| UPC | 850008956997 |
|---|
