4K HDMI Bi-direction 1x2 Splitter, 2x1 Switch v2.0 4Kx2K@60Hz (UHDS-212)
4K HDMI Bi-direction 1x2 Splitter, 2x1 Switch v2.0 4Kx2K@60Hz (UHDS-212)
SKU:UHDS-212
Couldn't load pickup availability
Description :

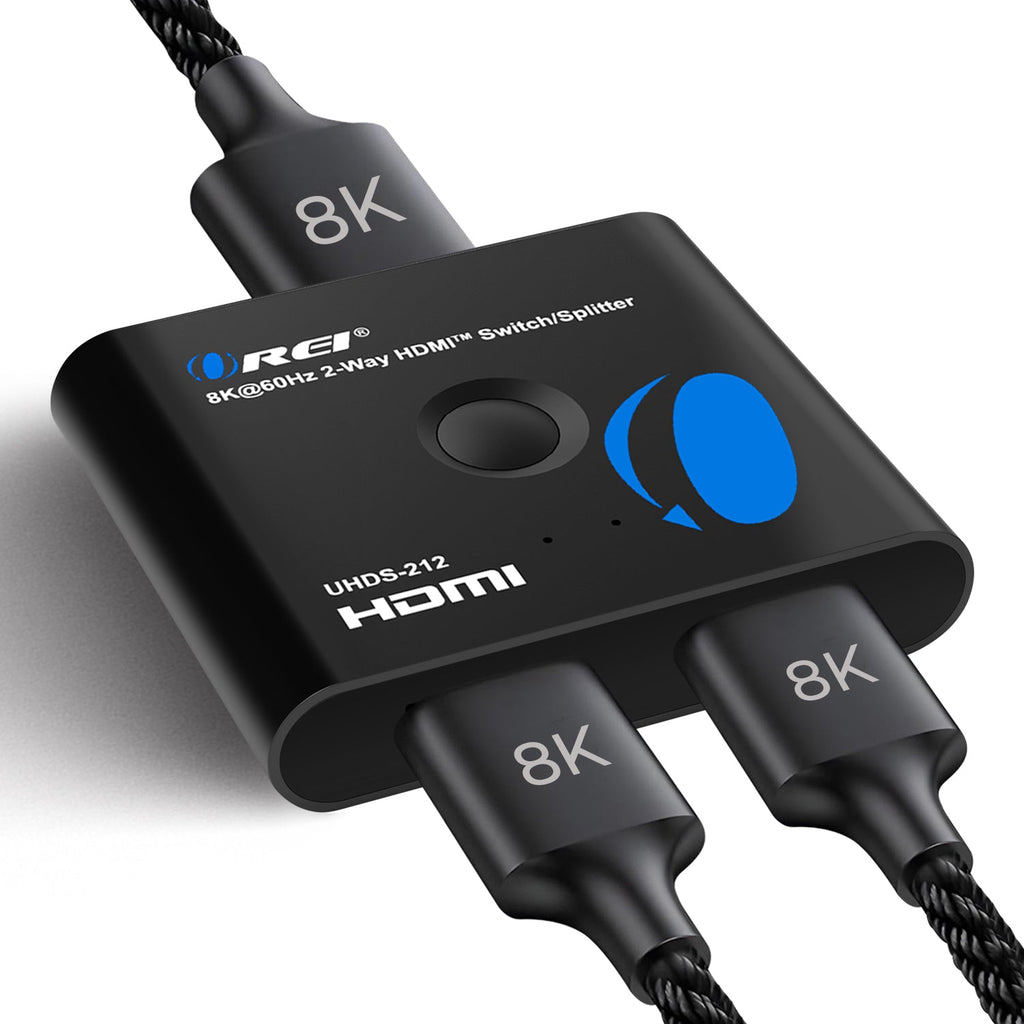

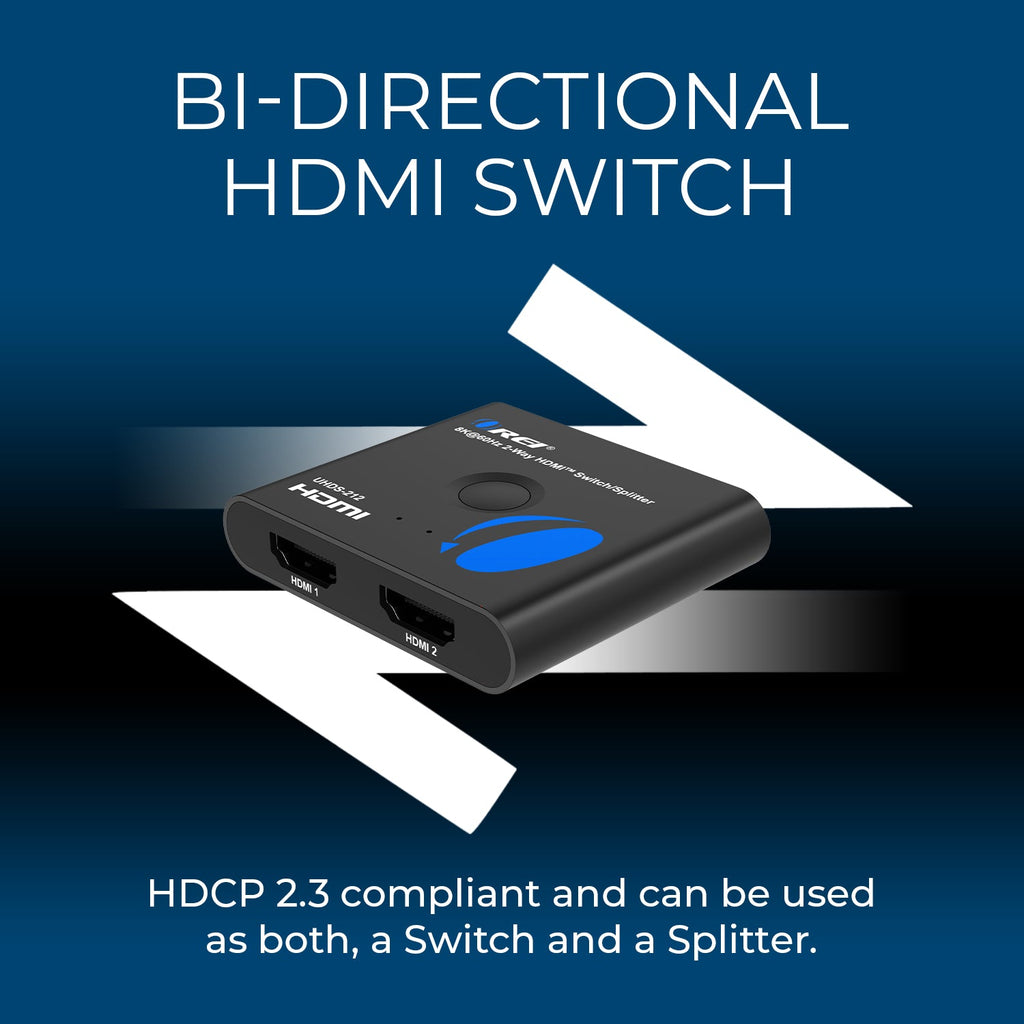

OREI 4K HDMI Bi-direction 1x2 Splitter, 2x1 Switch

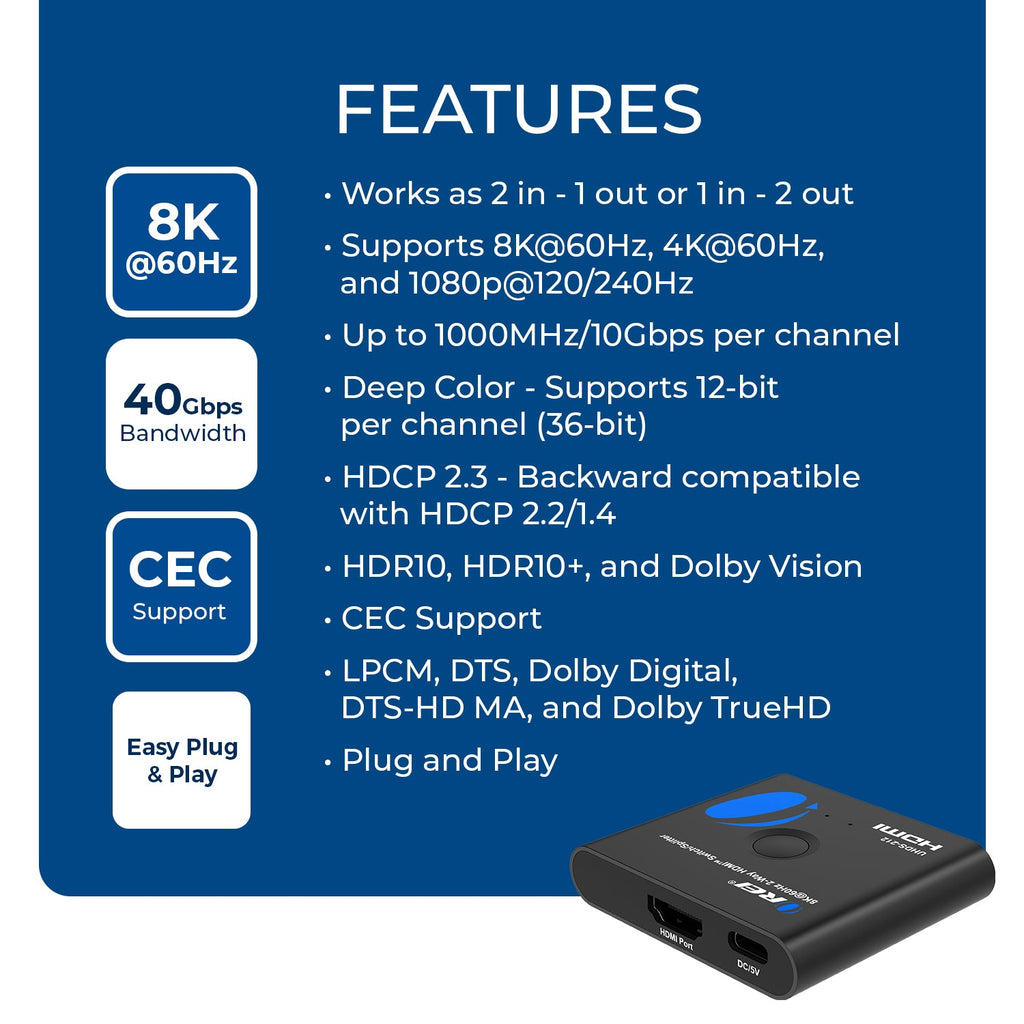

Key Features:

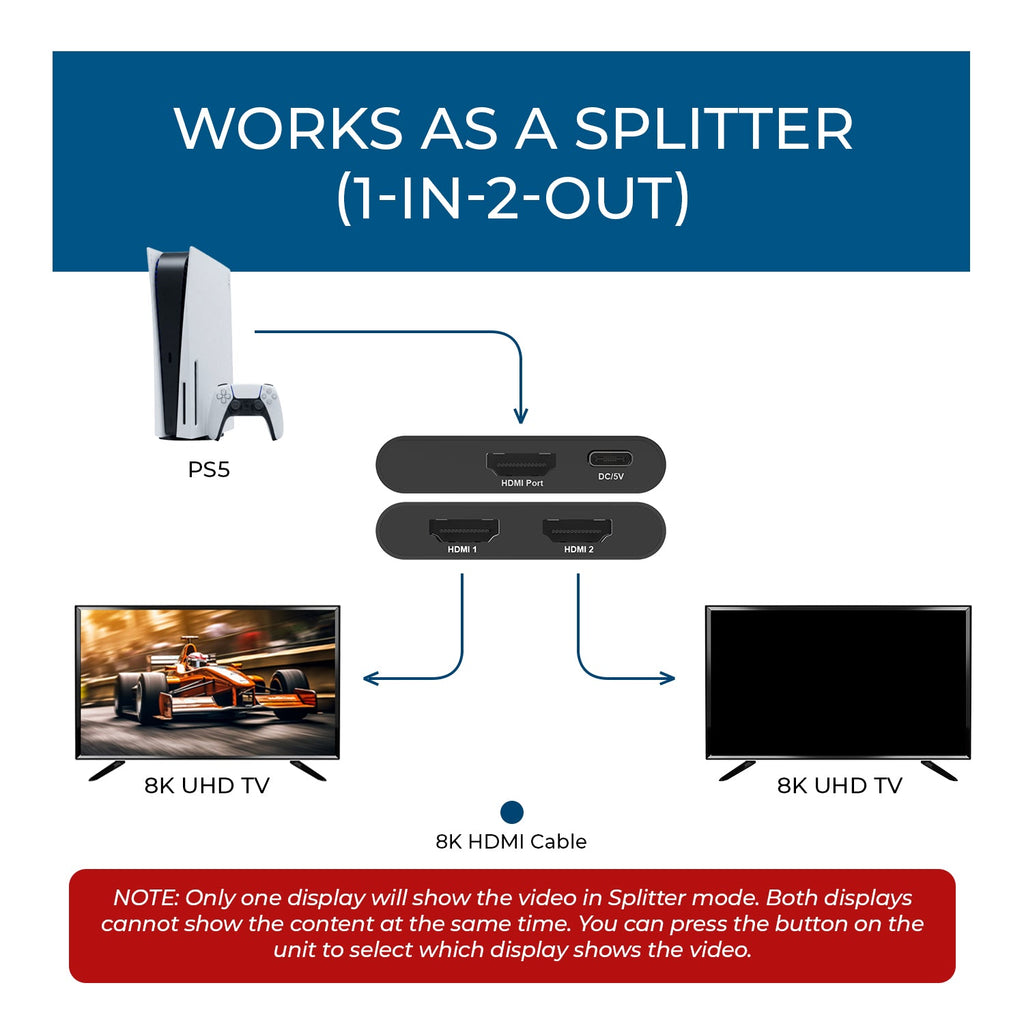

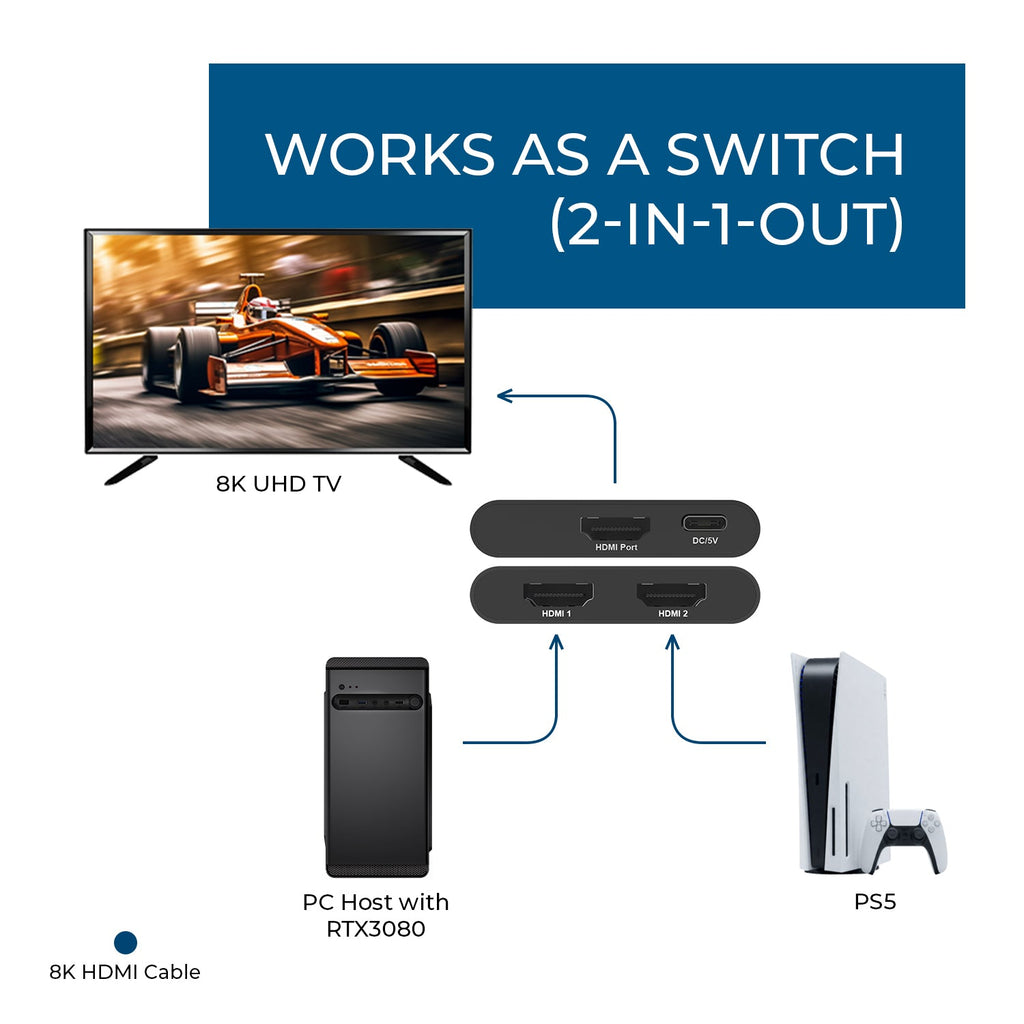

- 2 HDMI-Host to 1 HDMI monitor, 1 HDMI-Host to 2 HDMI monitors
- Backward compatible with the HDMI earlier versions
- Supports DTS-HD Master Audio, Dolby TrueHD Dolby Digital, DTS, DVD-Audio, LPCM, SACD, MPCM
- Supports high definition resolution up to 4Kx2K@60Hz YUV 4:4:4 and Full 3D
- Supports High Dynamic Range (HDR) video
- HDMI 2.0 and HDCP 2.2/1.4 compliant
- Supports 600MHz/6.0 Gbps per channel bandwidth (18 Gbps all channels)
- Compatible with HDMI units such Roku 4, 4K TV, Amazon Fire TV, Ultra Projector, PS4 ,Xbox, Apple TV, HDMI LCD, Gaming, Cable box, Blu-ray player, DVD player, PC, STB and more
- Supports Consumer Electronics Control
- Manual port selection: Enables you to manually select your HDMI source with easy-to-use panel buttons
- Support HDMI signal retiming, no loss of quality
ULTRA HD 2 in 1 HDMI Switcher : Perfect for 2 HDMI Input Signal to 1 Monitor or TV 4K Display Screens, Also Allows you to use a HDMI Splitter 1 in 2 out, This Device Will Not Extend Monitor for PC or Laptops, Does not extract Audio This HDMI splitter will not extend monitors. Compatible Devices - HDMI source device, such as computer PCs, Blu-ray players, media players, and game consoles - HDMI displays, monitors, and HDTVs - Xbox One S/X - PS4 Pro Specifications - HDMI 2.0a, HDCP 2.2/1.4 compliant - Supports 4K @60Hz (4:4:4 8-bit) and HDR 4K @60Hz (4:2:0 10-bit) with xvYCC, x.v.Color & Deep Color - Supports DTS-HD Master Audio, Dolby TrueHD Dolby Digital, DTS, DVD-Audio, LPCM, SACD, MPCM - Wide frequency range: 25MHz - 600MHz and Video bandwidth: 18Gbps (Single-link 600MHz) - HDMI Cable upto 10 Ft - For longer length use OREI Fiber optic HDMI cables Pre-programmed settings - · Support HDMI signal retiming, no loss of quality
[shortdes]
- 2 Inputs - 1 Output HDMI switch, 1 Input - 2 Outputs HDMI splitter
- Video resolution up to 4Kx2K@60Hz
- Supports HDMI signal retiming
- Compliance: HDMI 1.4 - HDCP 2.0/1.4
[tab1]
FAQs
You can use standard HDMI cables up to 10 feet and high quality cables up to 30 feet.
However, you can use fiber optic active HDMI cables up to 200 feet. If its not a high quality cable then you may lose the signal in some instances.
If its not a high quality cable then you may lose the signal in some instances.
No, our switchers aren't compatible with capture cards
AUDIO AND VIDEO

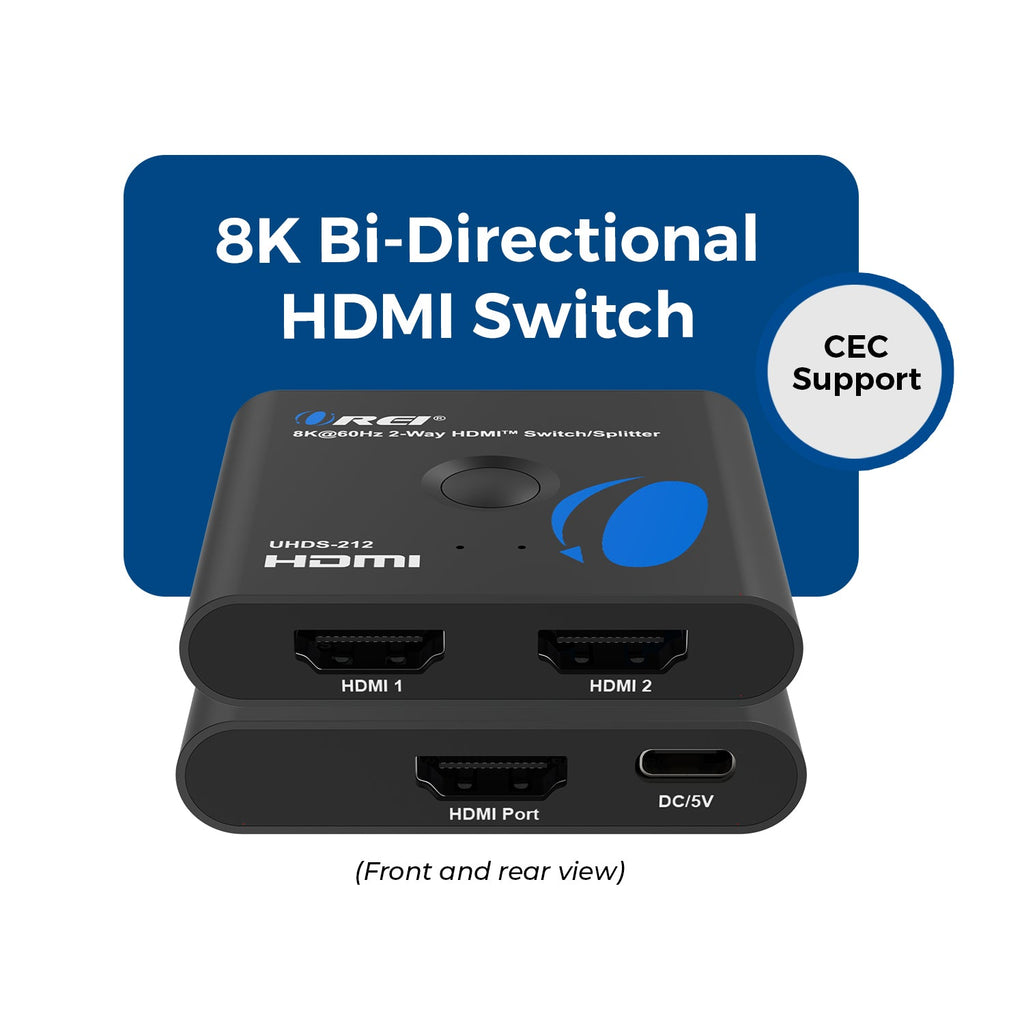

| Input Ports: | HDMI x 1 (1 in 2 out) / HDMI x 2 (2 in 1 out)(Female type) |
| Output Ports: | HDMI x 2 (1 in 2 out)/ HDMI x 1 (2 in 1 out)(Female type) |
| Video Bandwidth: | 6.0 Gbps/600MHz per channel (18Gbps all channels) |
| Video Resolution: | Interlaced(50 & 60Hz): 480i, 576i, 1080i; Progressive(50 & 60Hz): 480p, 576p, 720p, 1080p, 4K@24/30Hz, 4K@50/60Hz |
| Color Space: | YUV 4:4:4 |
| Vertical Frequency Range: | 50/60Hz |
| Digital Audio Formats: | DTS-HD Master Audio, Dolby TrueHD Dolby Digital, DTS, DVD-Audio, LPCM, SACD, MPCM |
COMMUNICATION AND CONTROL
| HDMI Compliance | HDMI 2.0 |
| HDCP Compliance | HDCP 2.2/1.4 |
POWER
| Power Consumption: | 5W |
CONTROL
| CEC: | Pass through |
ENVIRONMENTAL
| Operating Temperature: | 0 °C to 70 °C |
| Relative Humidity: | 5% to 90% RH non-condensation |

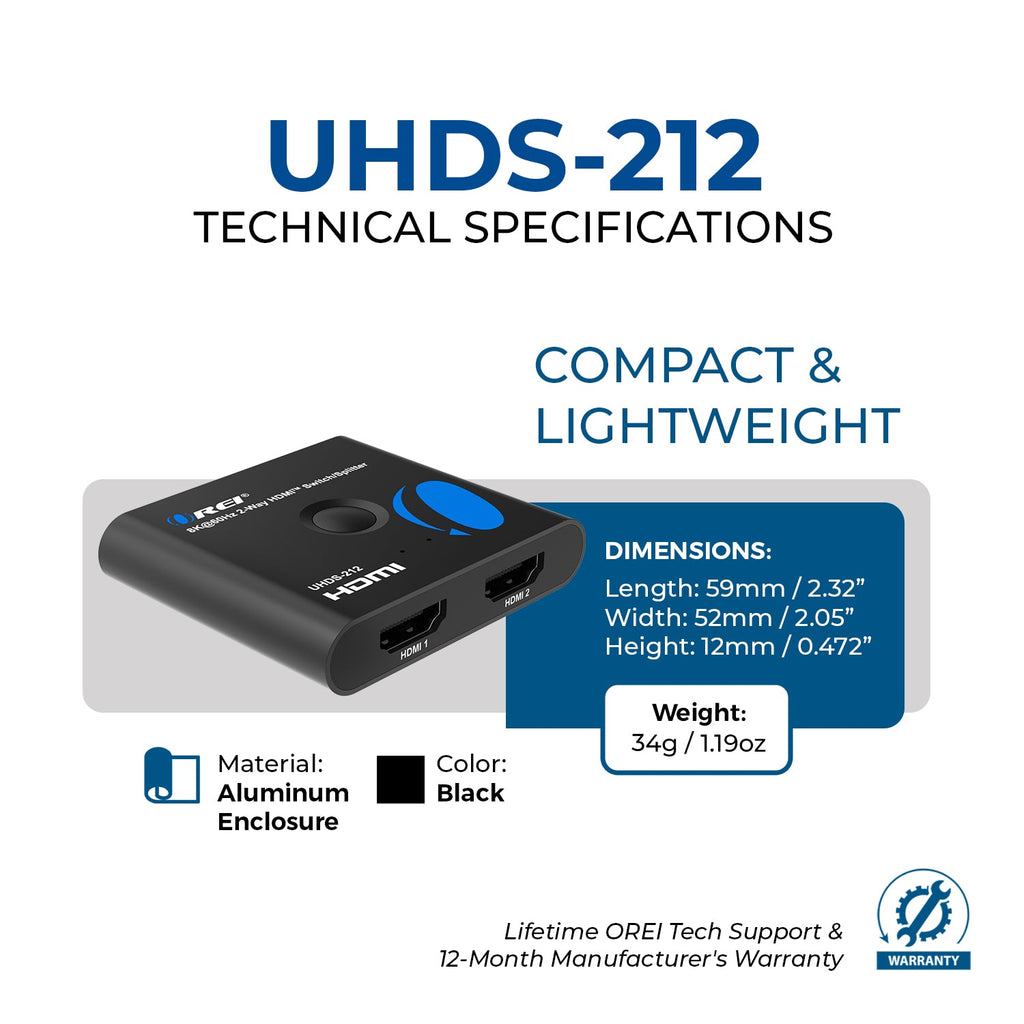

DIMENSIONS & WEIGHT
| Height: | 14 mm |
| Width: | 51.6 mm |
| Depth: | 52 mm |
| Weight: | 30g |
REGULATORY
| Safety and Emission: | CE | FCC | RoHS |

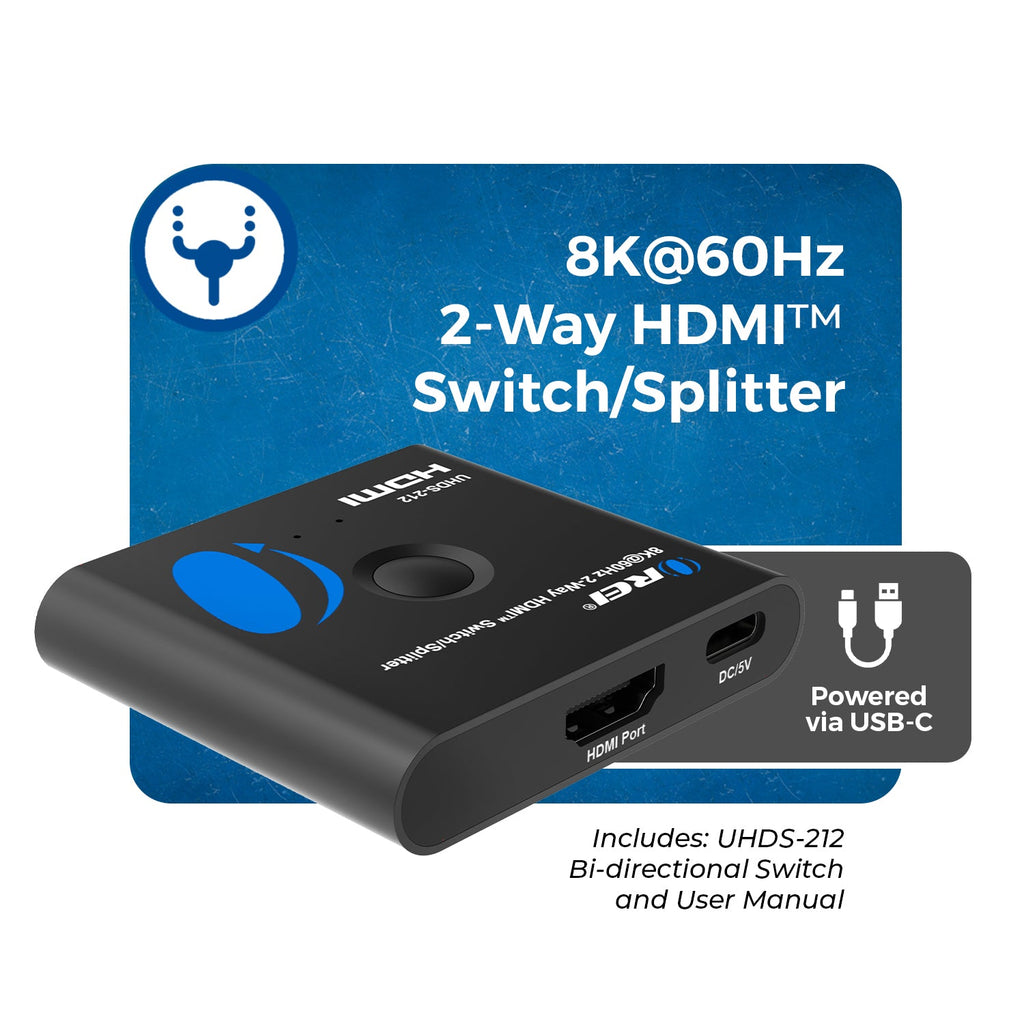

PACKAGE CONTENTS
| 1 × UHDS-212 Bi-directional switch |
| 1 × User Manual |
Warranty
| 1 - Year Manufacturer's Warranty |
Specifications :
General Information
| UPC | 850031132184 |
|---|
