4K HDBaseT HDMI Extender Over CAT5e/6/7 with ARC/eARC & KVM Control up to 330 Ft (UHD-EXB330AUR-K)
4K HDBaseT HDMI Extender Over CAT5e/6/7 with ARC/eARC & KVM Control up to 330 Ft (UHD-EXB330AUR-K)
SKU:UHD-EXB330AUR-K
Couldn't load pickup availability
Description :
OREI 4K KVM Extender over Cat6/7 up to 330 feet - With Audio Extraction, Bi-directional IR, RS-232, & PoC
- HDMI 2.0 and HDCP 2.2 compliant
- Video resolutions up to 4K@60Hz 4:4:4
- 18 Gbps Video Bandwidth
- HDR10+, Dolby Vision, and HLG pass-through
- Extend HDMI signals to up to 328 Feet or 100 meters
- Audio Extraction through Optical and L/R outputs
- USB KVM function allows you to control a PC remotely using a keyboard and mouse
- ARC/eARC support allows you to extract audio from the TV and send it back to an AVR/Soundbar
- Bi-directional IR, RS-232 and CEC support

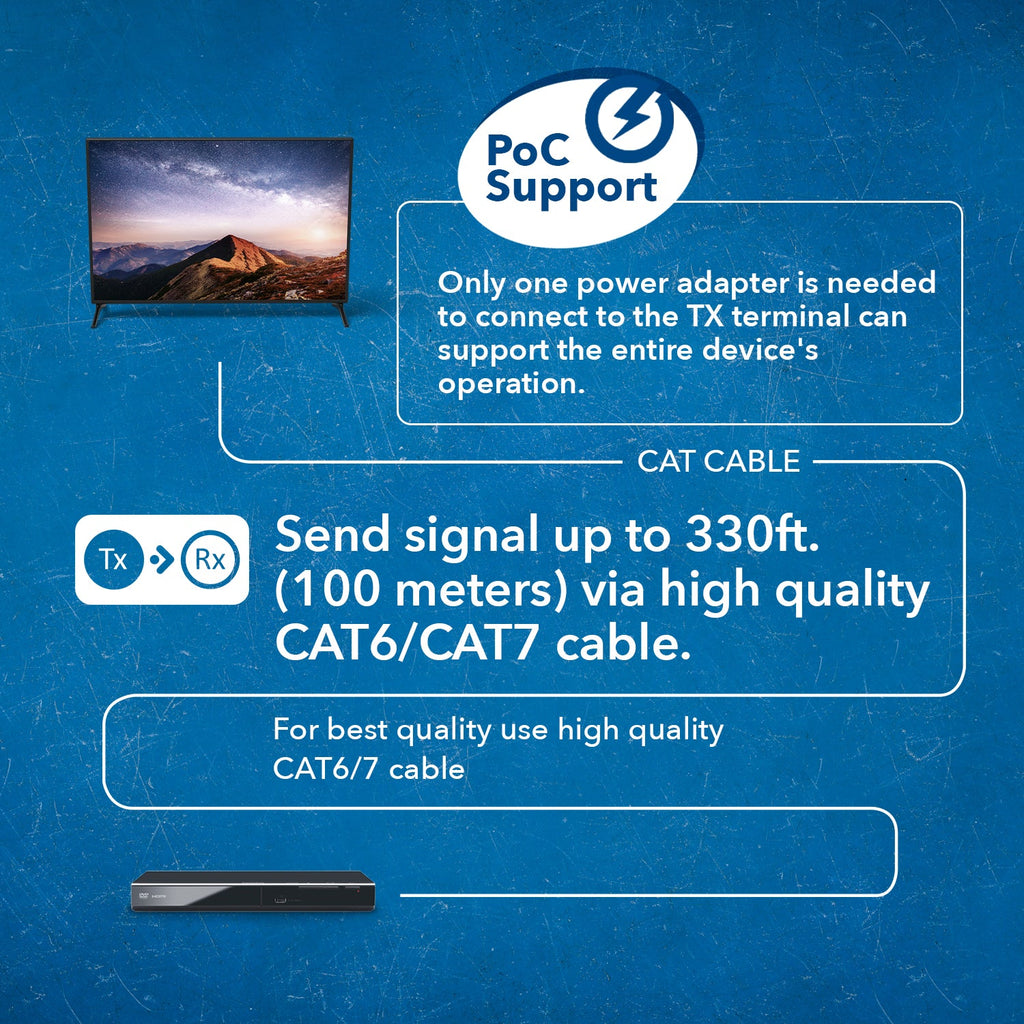

- Power over cable technology; requires one power adapter that can be connected on either end
- Durable build and flexible installation

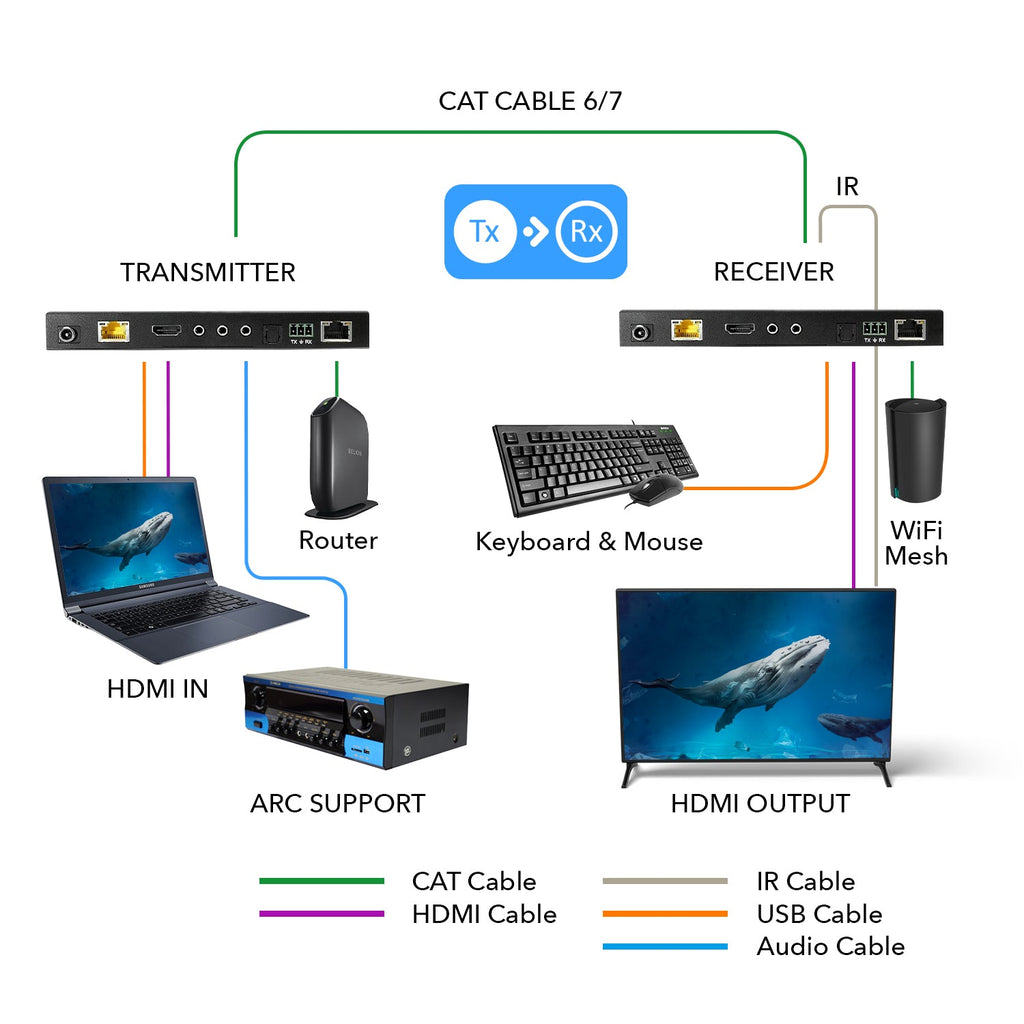

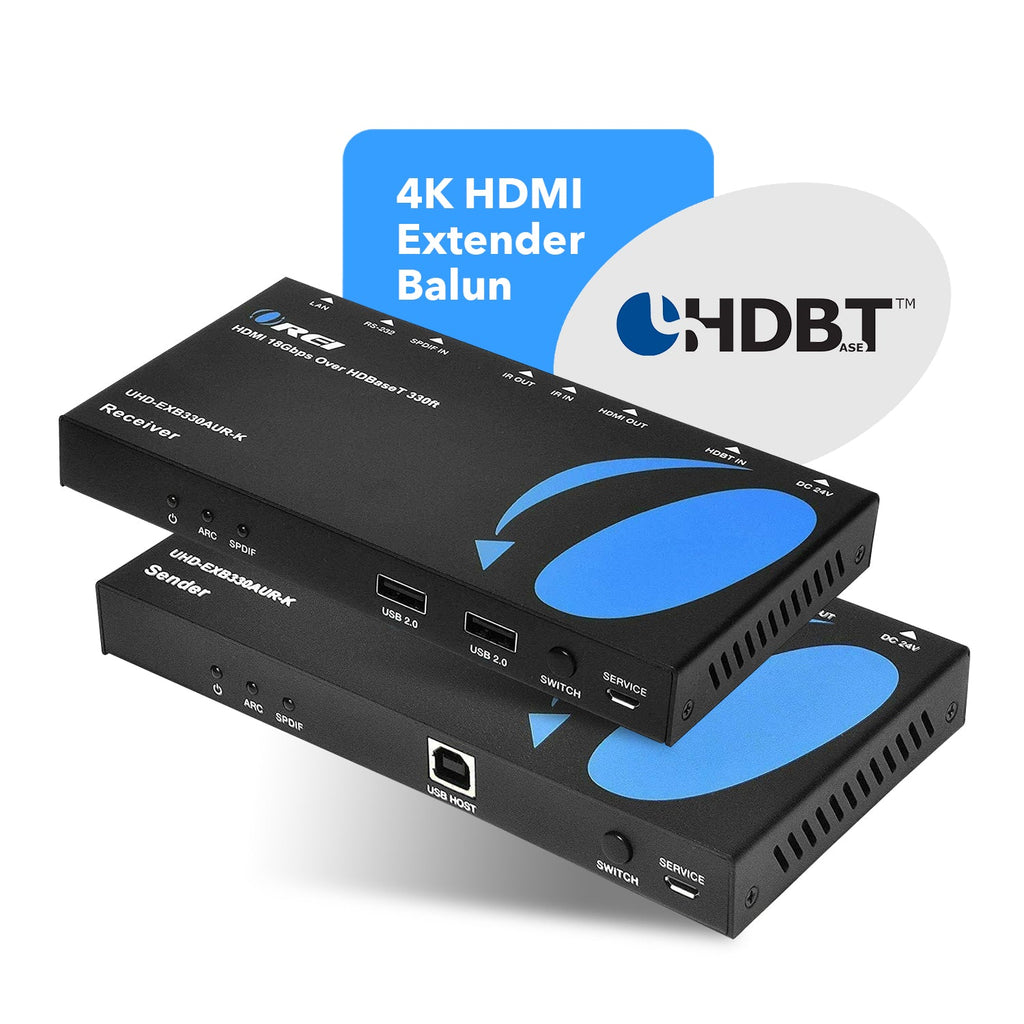

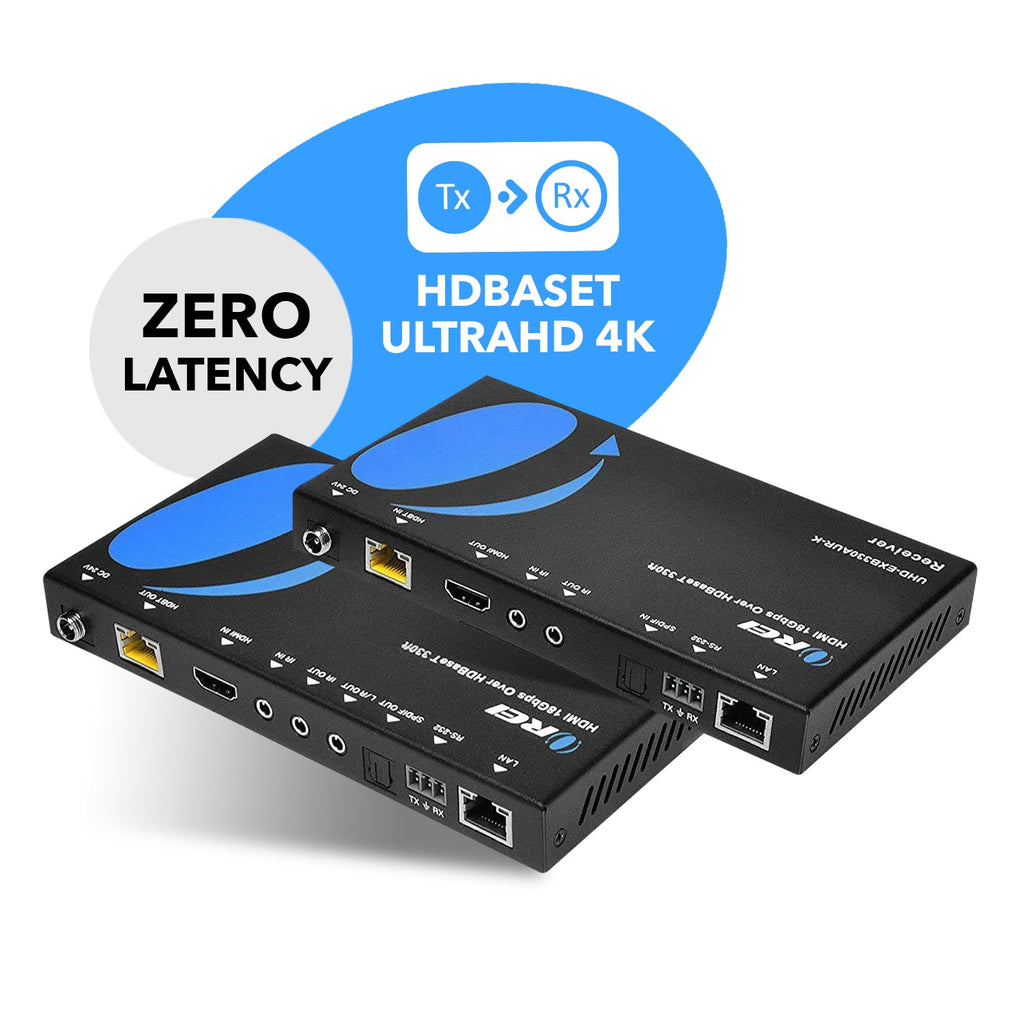

The UHD-EXB330AUR-K is a USB KVM extender that can extend USB & HDMI signals up to 330 feet (100 meters). It is HDMI 2.0 and HDCP 2.2 compliant, supporting video resolutions up to 4K@60Hz 4:4:4 with an 18Gbps video bandwidth, and pass-through for Dolby Vision, HDR10+, and HLG. It can also extract audio from the HDMI source or an ARC TV, providing audio output through optical and L/R (aux) ports. The transmitter features a USB-B port to connect the host, while the receiver has 2 USB 2.0 ports for USB devices. Bi-directional IR, Power over Cable (PoC), and RS-232 pass-through enhance control and simplify setup, requiring only a single power adapter to power up both units. Compact design with plug-and-play installation. Ideal for both personal and commercial use.
[tab]

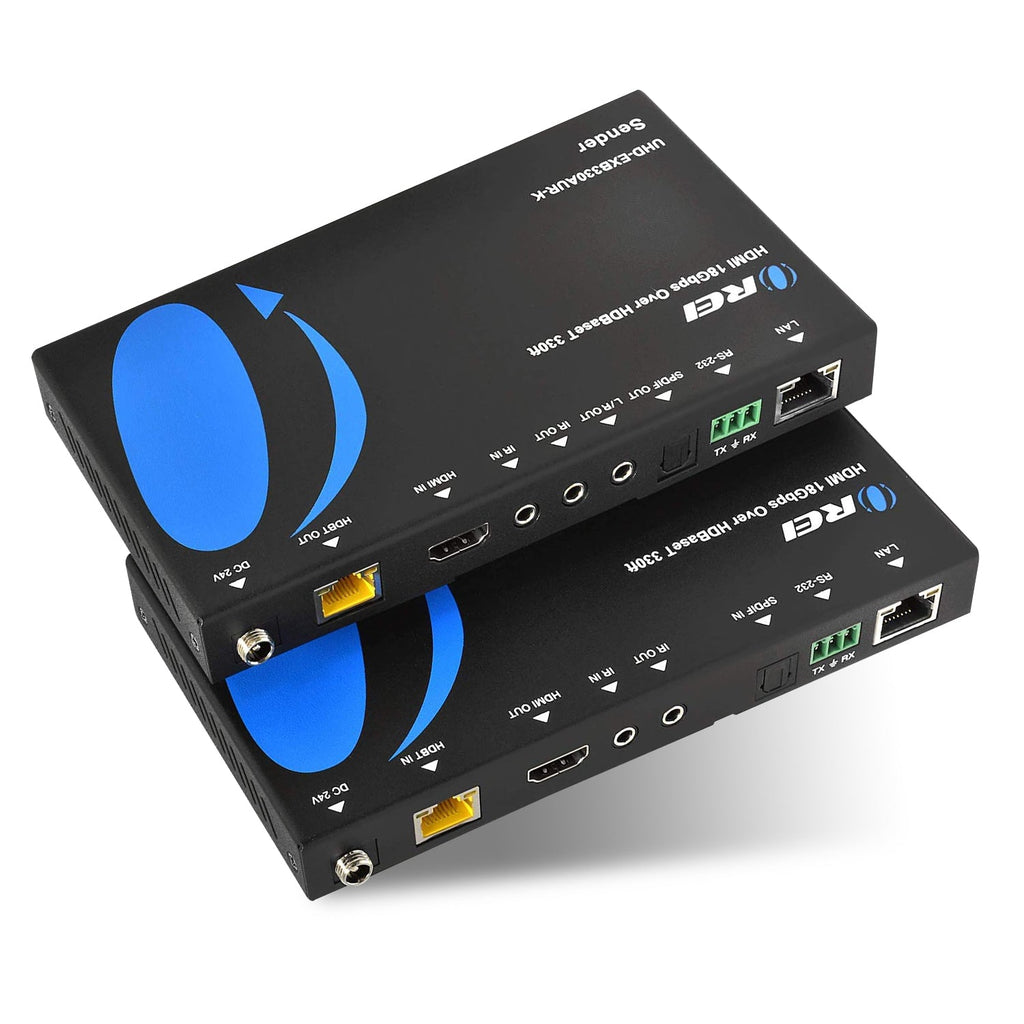

CONNECTIVITY
| Transmitter: | INPUT: | 1 × HDMI [Type A, 19-pin female] |
| OUTPUT: | 1 × HDBaseT [RJ45, 8-pin female] | |
| 1 × L/R [3.5mm Stereo Mini-jack] | ||
| 1 × Optical [S/PDIF] | ||
| CONTROL: | 1 × LAN [RJ45, 8-pin female] | |
| 1 × IR IN [3.5mm Stereo Mini-jack] | ||
| 1 × IR OUT [3.5mm Stereo Mini-jack] | ||
| 1 × RS-232 [3-pin Phoenix connector] | ||
| 1 × USB HOST [USB Type B] | ||
| 1 × SERVICE [Micro USB, Update port] | ||
| Receiver: | INPUT: | 1 × HDBaseT [RJ45, 8-pin female] |
| 1 × Optical [S/PDIF] | ||
| OUTPUT: | 1 × HDMI [Type A, 19-pin female] | |
| CONTROL: | 1 × LAN [RJ45, 8-pin female] | |
| 1 × IR IN [3.5mm Stereo Mini-jack] | ||
| 1 × IR OUT [3.5mm Stereo Mini-jack] | ||
| 1 × RS-232 [3-pin Phoenix connector] | ||
| 2×USB 2.0 [USB Type A] | ||
| 1 × SERVICE [Micro USB, Update port] |
PACKAGE CONTENTS
| 1x Transmitter |
| 1x Receiver |
| 1x IR Blaster cable |
| 1x IR Receiver cable |
| 4x Mounting Ears |
| 2x 3-pin Phoenix Connectors |
| 1x Power Adapter |
| User Manual |
SUPPORTED CAT CABLES
| CAT5e, CAT6, CAT7: | We recommend you use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance |
EXTENDING DISTANCE
| 4K@60Hz: | 330 Feet |
VIDEO OUTPUT
| Video Bandwidth: | 18Gbps |
| Video Resolutions: | Up to 4K@60Hz |
ADDITIONAL FEATURES
| CEC: | Yes |
| ARC: | Yes |
| USB KVM: | Yes |
| PoC/PoE: | Yes |
| IR Control: | Yes |
| Downmix: | No |
| Downscale: | No |
| Over IP: | No |
| HDBaseT: | Yes |
| RS-232: | Yes |
LOOP-OUT/LOCAL PORT
| Has loop out port: | No |
| Number of Loop out ports: | 0 |

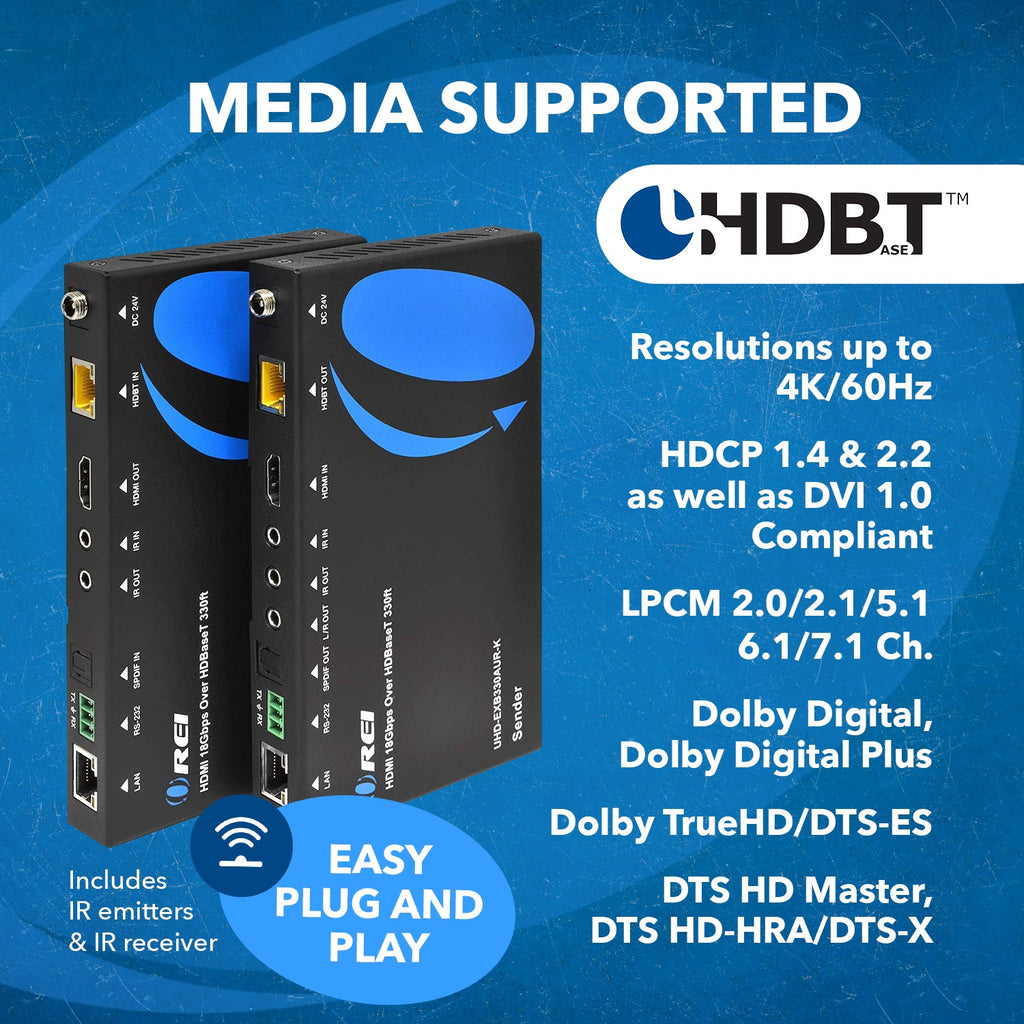

AUDIO SUPPORT
| HDMI Audio Formats: | LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus (DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X |
| Optical Audio Formats: | LPCM2.0, Dolby Digital, Dolby Digital Plus, DTS |
| 3.5mm Analog: | LPCM2.0, Dolby Digital, Dolby Digital Plus, DTS |
COMPLIANCES
| HDMI Compliance | HDMI 2.0 |
| HDCP Compliance | HDCP 2.2 |
POWER
| Power Consumption: | 13W (Max) | |
| Power Supply: | Input: AC 100-240V 50/60Hz | |
| Output: DC 24V/1A |

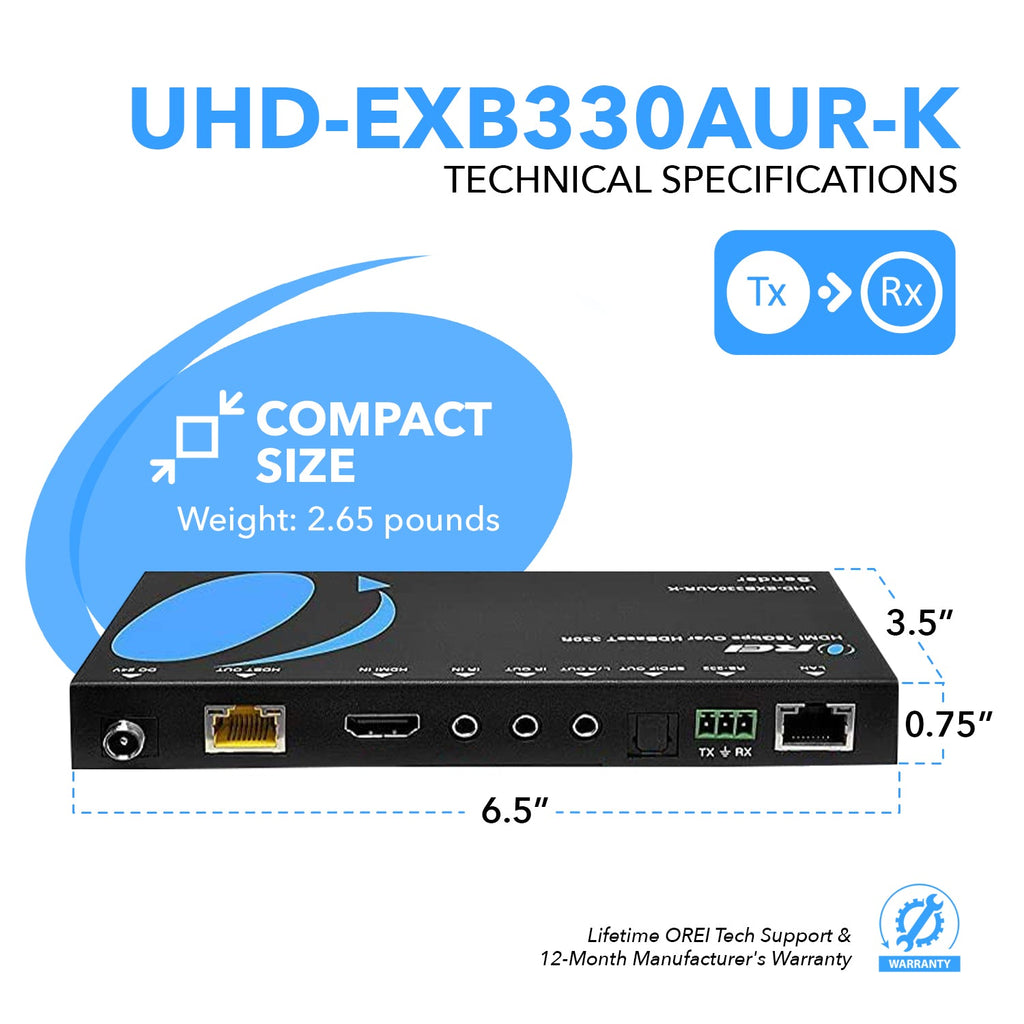

DIMENSIONS & WEIGHT
| Transmitter: | Length: | 165mm / 6.5in |
| Width: | 88mm / 3.47in | |
| Height: | 18mm / 0.71in | |
| Weight: | 170g / 6oz | |
| Receiver: | Length: | 165mm / 6.5in |
| Width: | 88mm / 3.47in | |
| Height: | 18mm / 0.71in | |
| Weight: | 165g / 5.82oz |
PROPERTIES
| Color: | Black |
| Housing: | Metal Enclosure |
WARRANTY
| 1-Year Manufacturer's Warranty |
[/tab]
[tab1]
FAQs
Yes, you can purchase these things directly from us. Please contact us & we will assist you further.
No, this product doesn not extend multiple screens. It will duplicate the input sources to multple outputs.
Yes, you will be able to get a signal beyond the mentioned distance but the quality of the video decreases with increase in the distance and that too when using with shielded CAT6 cable.
Yes, you can implement the daisy chain method.
Both the ends of the CAT cable should be termed as EIA-568B & the cable should be straight & not crossed.
We recommend you to use High-Quality HDMI cables & shielded CAT6 cables.
Yes, you can purchase the additional transmitter from us. Please contact us & we will let you know the price.
Yes, you can purchase the additional receiver from us. Please contact us & we will let you know the price.
No, this product doesn't upscale/downscale the video resolutions.
You can extend the display devices up to 400 Feet when using with a shielded CAT6 cable.
The issue might be with the CAT cable. This might be due to the external interference of the signals & CAT5e has low bandwidth as compared to the CAT6. We recommend you using shielded CAT6 cable.
If the power and link led lights does not illuminate on the RJ45 port of the transmitter and the receiver, then the transmitter & receiver might be dead.
Please contact us so that we can troubleshoot the issue.
You can upgrade the firmware by connecting the PC & this device via RS-232 cable.
Please note that this product only supports the CEC function between HDMI input & HDMI output 1.
No, optical output doesn't supports CEC due to its limitations. CEC will work only with HDMI devices.
HDBaseT is the technology used for long distance transmission of lossless signals, resulting extremely low latency & giving the best picture quality.
In normal extenders, if you extend your signals up to some extend, the quality of the signals will degrade & you may find some latency issues. HDBaseT is the lastest standard which provides extending your signals to the longer distance without degrading the quality of the signals & with 0 latency.
We recommend you using a shielded CAT6 cables for optimum performance.
Our all the extenders supports IR Frequency & the devices using RF frequency will not be compatible with our products.
The IR Blaster/Emitter should be connected to the IR out port on the Transmitter and the IR Receiver should be connected to the IR in on the Receiver.
Here's a quick overview of the IR connection on our extenders: IR Blaster Explained | Use IR with HDMI Extender Kit - Remote Control
[/tab1]
[shortdes]
-
KVM and HDMI extender
-
Video resolutions up to 4K@60Hz
-
Audio Extraction, Bi-directional IR, PoC & RS-232
[/shortdes]
Specifications :
General Information
| UPC | 850008956294 |
|---|
