4K 1x8 HDMI Extender Splitter over CAT 6 up to 400 feet with PoC, one-way IR control, EDID management (UHD18-EXB400-K)
4K 1x8 HDMI Extender Splitter over CAT 6 up to 400 feet with PoC, one-way IR control, EDID management (UHD18-EXB400-K)
SKU:UHD18-EXB400-K
Couldn't load pickup availability
Description :

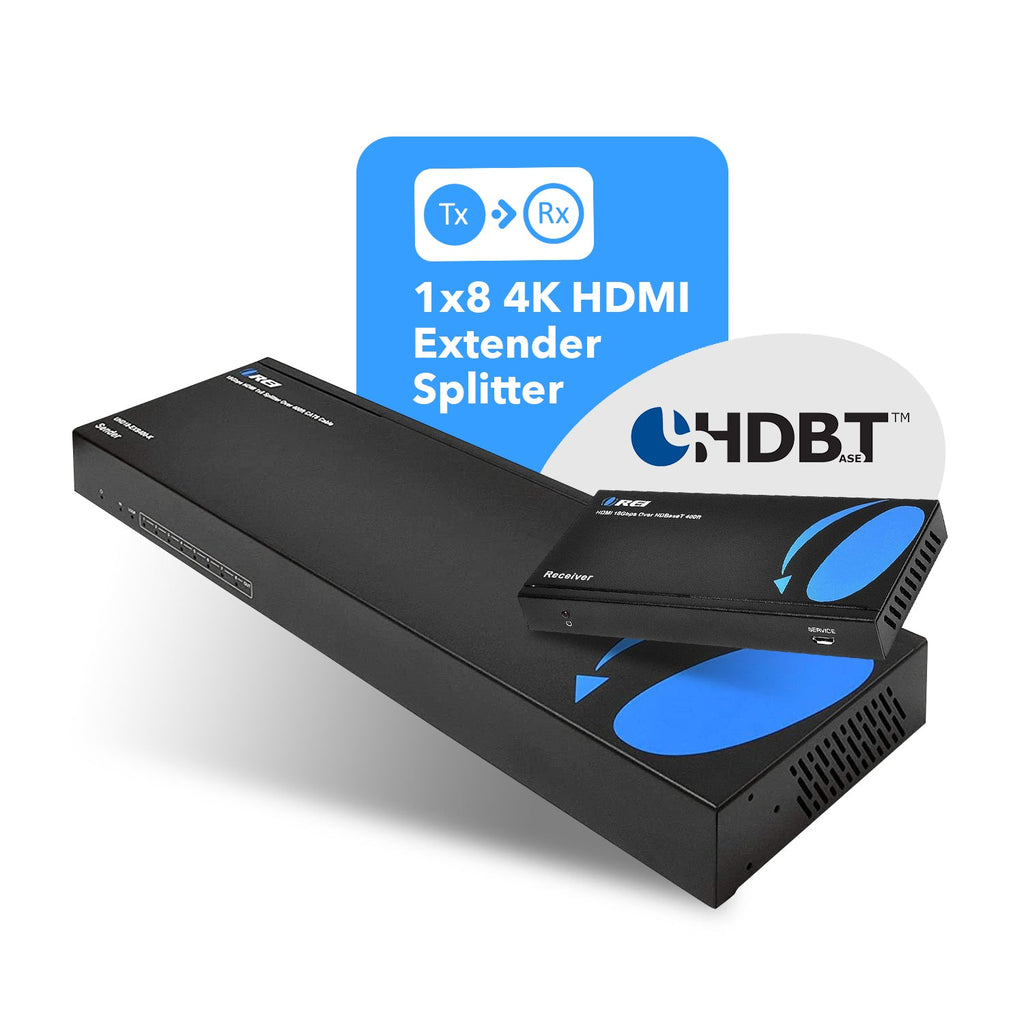

UHD18-EXB400-K: 18Gbps HDMI 1×8 HDBaseT Splitter
- HDMI 2.0b & HDCP 2.2 compliant.
- Video resolutions up to 4K@60Hz
- 18Gbps video bandwidth
- Signal transmission up to 394 feet at 4K@60Hz, and 492 feet at 1080P@60Hz via a CAT6/6a/7 cable.
- HDR10+ and Dolby Vision support
- Audio extraction through Coaxial and balanced analog outputs
- Features HDBaseT technology
- Bi-directional IR control

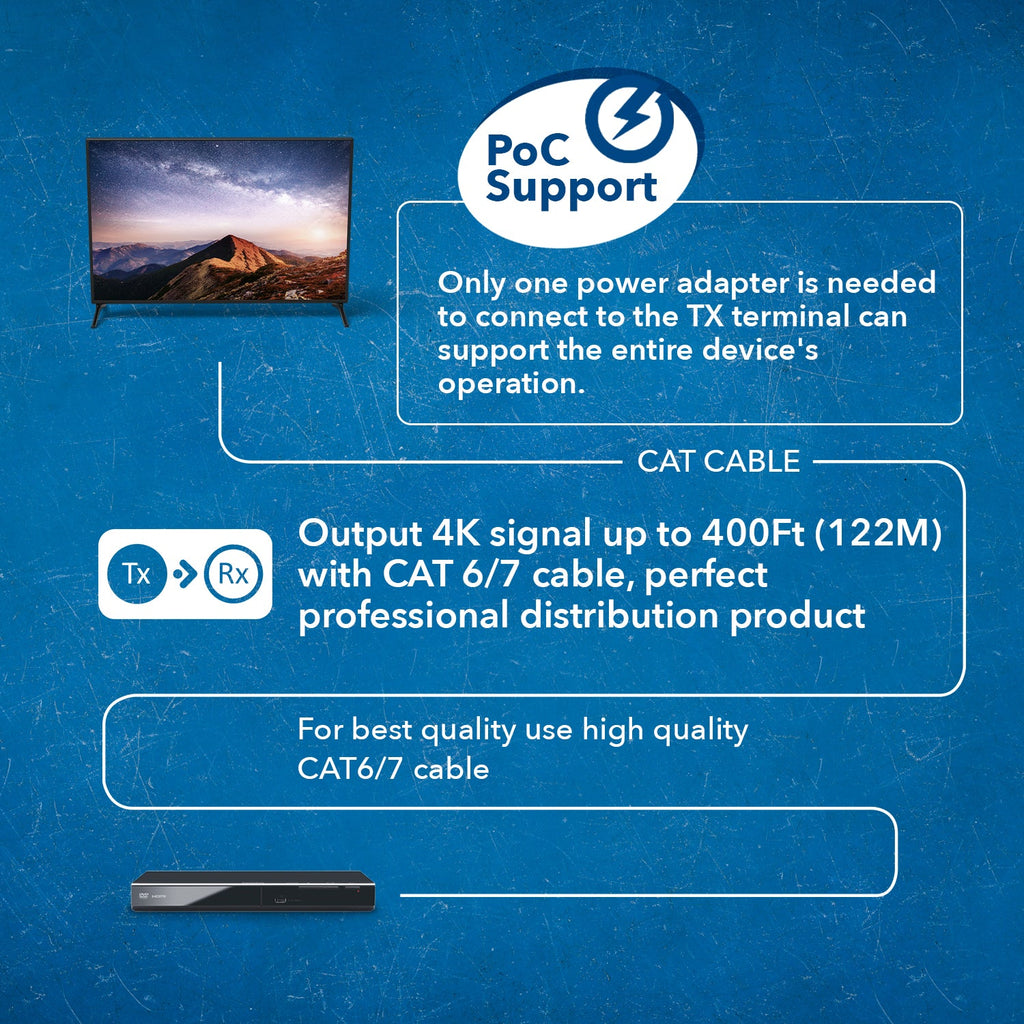

- Power over Cable technology, only requires a power adapter at the Transmitter end
- RS-232 control
- Easy installation and strong build

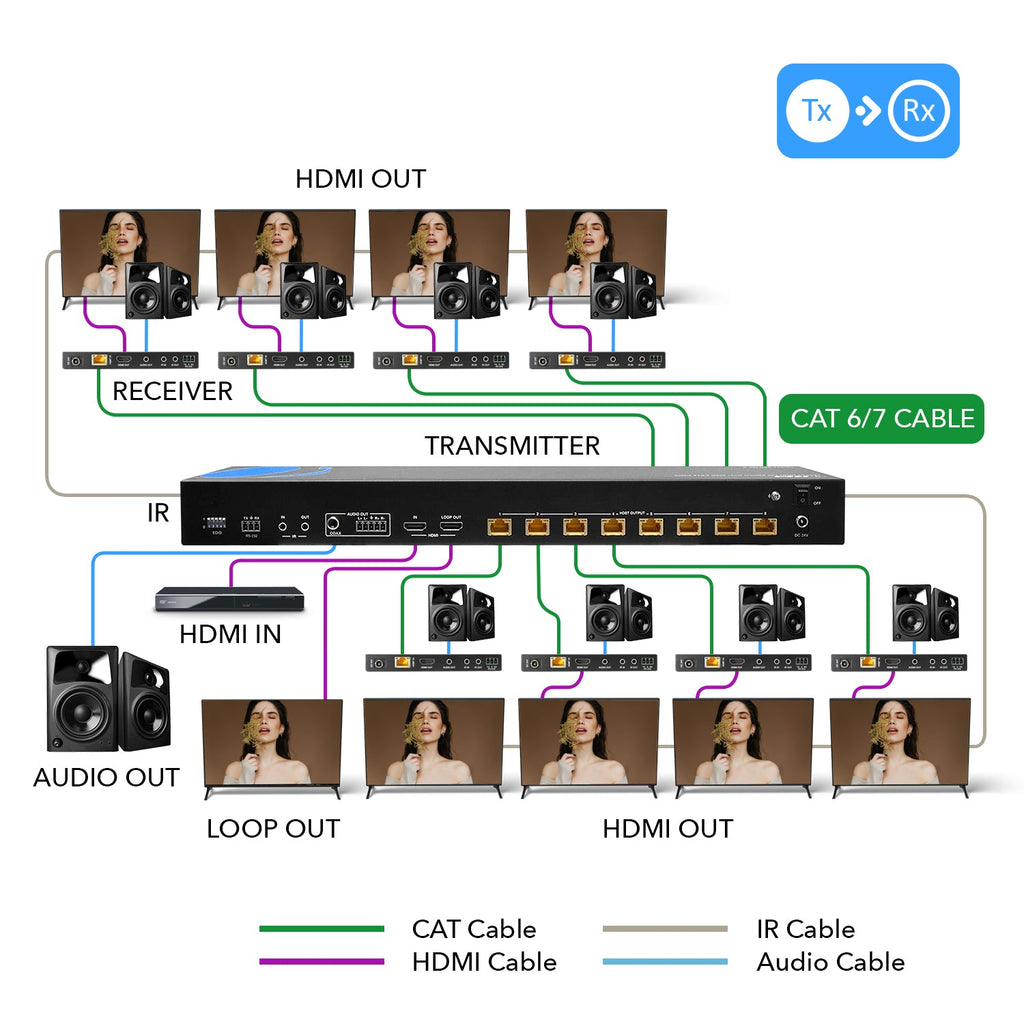

The UHD18-EXB400-K is an HDMI extender splitter designed to distribute a media signal to eight distant displays. Supporting video resolutions up to 4K@60Hz, it adheres to HDMI 2.0b and HDCP 2.2 standards. With an 18Gbps video bandwidth, it also accommodates HDR10+ and Dolby Vision. This extender can transmit media up to 400 feet away over CAT 6/7 cables. The Transmitter boasts an HDMI loop output for connecting a display near the source. Moreover, the device boasts advanced EDID management and two-way IR control, enabling control of the source from the receiver location and vice versa. Supporting Power over Cable technology, it requires only one power adapter at the Transmitter end to power the Receivers. Ideal for both residential and commercial setups, this HDMI extender splitter offers a robust solution for extending media signals over considerable distances.
[shortdes]
- HDR10+ and Dolby Vision support
- Audio extraction through Coax and balanced Analog
- Bi-directional IR control
[/shortdes]
[tab]
CONNECTIVITY

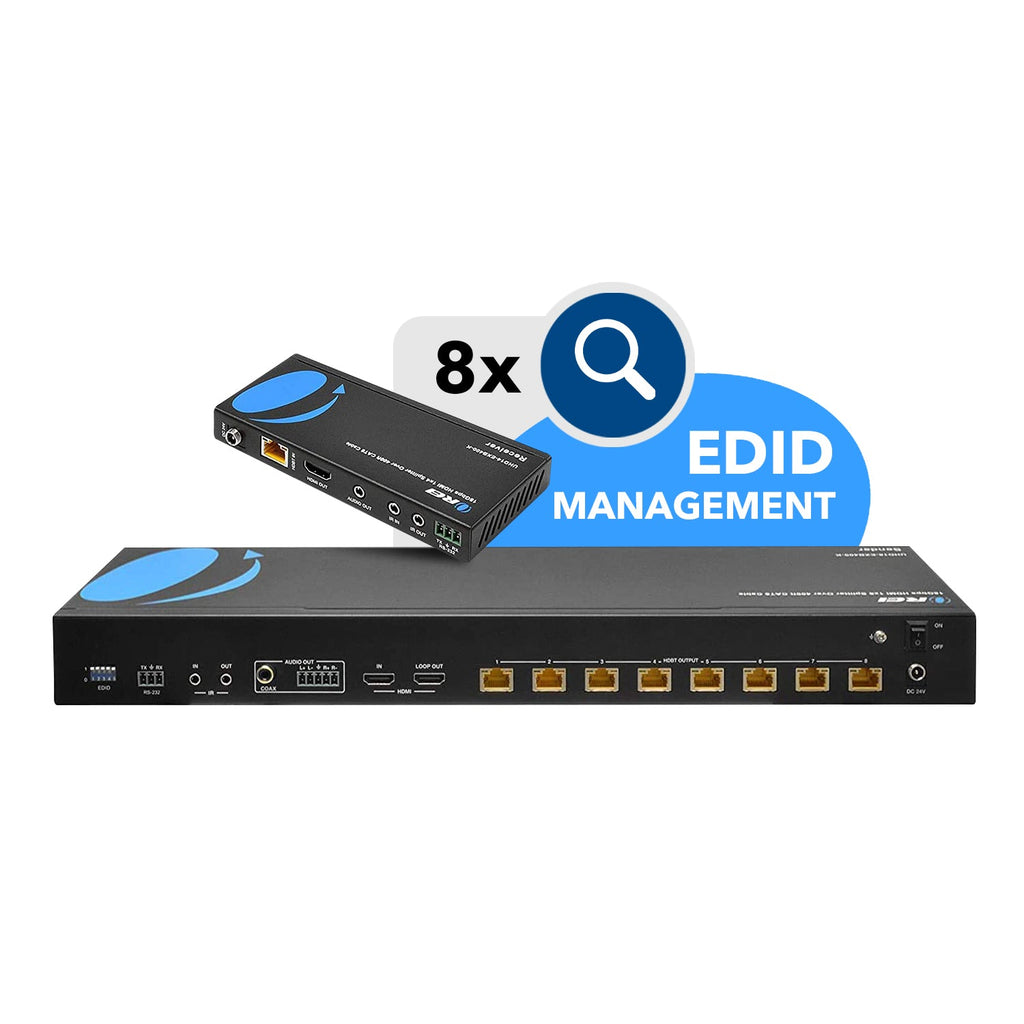

| Transmitter: | INPUT: | 1 × HDMI [Type A, 19-pin female] |
| OUTPUT: | 1 × HDMI [Type A, 19-pin female] | |
| 8 × HDBaseT [RJ45, 8-pin female] | ||
| 1 × Coaxial [RCA] | ||
| 1 × L/R [5-pin, phoenix] | ||
| CONTROL: | 1 × RS-232 [3-pin Phoenix connector] | |
| 1 × IR IN [3.5mm Stereo Mini-jack] | ||
| 1 × IR OUT [3.5mm Stereo Mini-jack] | ||
| Receiver: | INPUT: | 1 × HDBaseT [RJ45, 8-pin female] |
| OUTPUT: | 1 × HDMI [Type A , 19-pin female] | |
| 1 × L/R [3.5mm Stereo Mini-jack] | ||
| CONTROL: | 1 × RS-232 [3-pin Phoenix connector] | |
| 1 × IR IN [3.5mm Stereo Mini-jack] | ||
| 1 × IR OUT [3.5mm Stereo Mini-jack] | ||
| 1 × SERVICE [Micro USB, Update port] |
PACKAGE CONTENTS

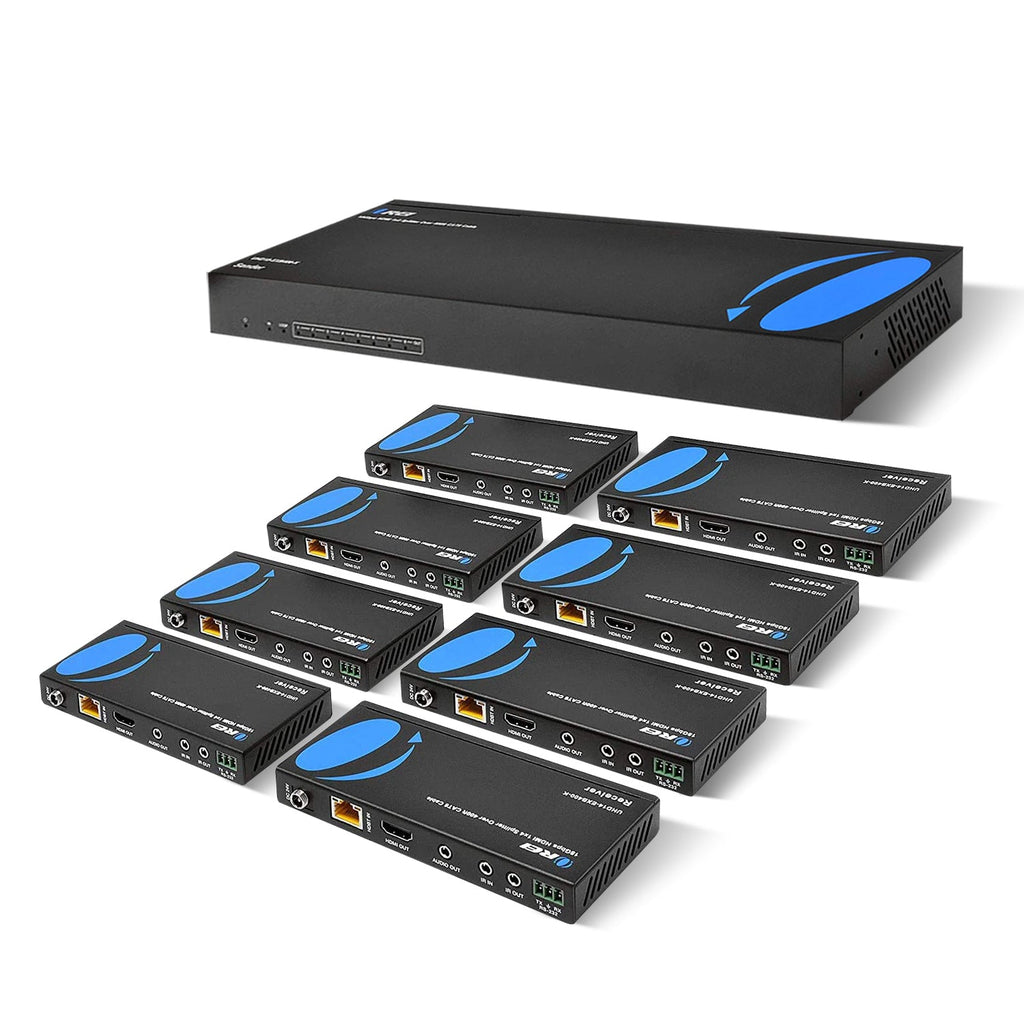

| 1x Transmitter |
| 8x Receiver |
| 9x IR Blaster cable |
| 9x IR Receiver cable |
| 9x 3-Pin Phoenix Connector |
| 1x 5-Pin Phoenix Connector |
| 18x Mounting ear |
| 1x Power Adapter |
| User Manual |
SUPPORTED CAT CABLES
| CAT5e, CAT6, CAT7: | We recommend you use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance |
EXTENDING DISTANCE
| 4K@30HZ: | 393 Feet |
| 1080P@60Hz: | 492 Feet |
VIDEO OUTPUT
| Video Bandwidth: | 18Gbps |
| Video Resolutions: | Up to 4K@60Hz |
ADDITIONAL FEATURES
| CEC: | No |
| ARC: | No |
| USB KVM: | No |
| PoC/PoE: | Yes |
| IR Control: | Yes |
| Downmix: | No |
| Downscale: | No |
| Over IP: | No |
| HDBaseT: | Yes |
| RS-232: | Yes |
LOOP-OUT/LOCAL PORT
| Has loop out port: | Yes |
| Number of Loop out ports: | 1 |
AUDIO SUPPORT
| HDMI Audio Formats: | LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X |
| Coaxial Audio Formats: | PCM2.0, Dolby Digital / Plus, DTS 2.0/5.1 |
| L/R Audio Formats: | PCM 2.0CH |
COMPLIANCES
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 |
POWER
| Power Consumption: | 72W (Max) | |
| Power Supply: | Input: AC 100-240V 50/60Hz | |
| Output: DC 24V/3.75A |
DIMENSIONS & WEIGHT

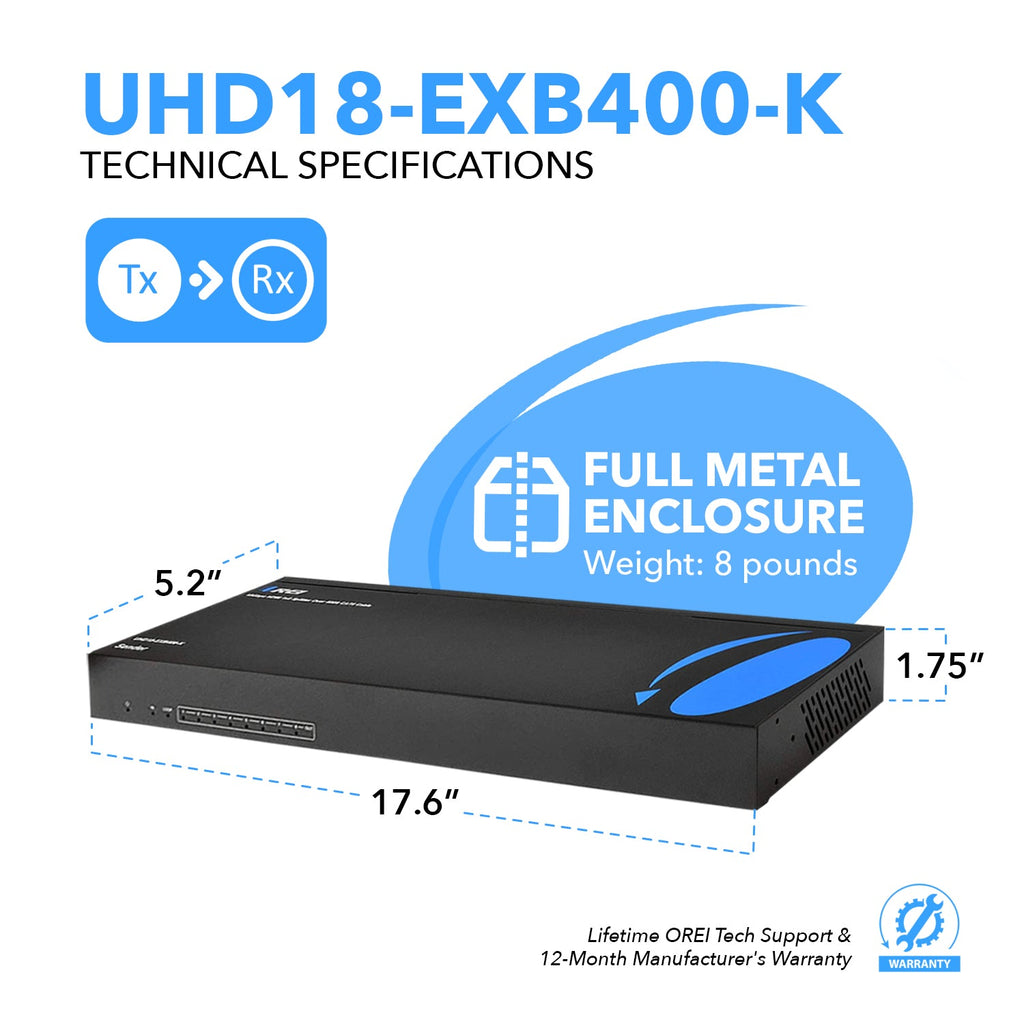

| Transmitter: | Length: | 440mm / 17.32in |
| Width: | 130mm / 5.12in | |
| Height: | 44mm / 1.73in | |
| Weight: | 1.62kg / 3.57lbs | |
| Receiver: | Length: | 140mm / 5.51in |
| Width: | 65mm / 2.56in | |
| Height: | 18mm / 0.71in | |
| Weight: | 246g / 8.68oz |
PROPERTIES
| Color: | Black |
| Housing: | Metal Enclosure |
WARRANTY
| 1-Year Manufacturer's Warranty |
[/tab]
[tab1]
FAQs
Yes, you can purchase these things directly from us. Please contact us & we will assist you further.
No, this product doesn not extend multiple screens. It will duplicate the input sources to multple outputs.
Yes, you will be able to get a signal beyond the mentioned distance but the quality of the video decreases with increase in the distance and that too when using with shielded CAT6 cable.
Yes, you can implement the daisy chain method.
Both the ends of the CAT cable should be termed as EIA-568B & the cable should be straight & not crossed.
We recommend you to use High-Quality HDMI cables & shielded CAT6 cables.
Yes, you can purchase the additional transmitter from us. Please contact us & we will let you know the price.
Yes, you can purchase the additional receiver from us. Please contact us & we will let you know the price.
No, this product doesn't upscale/downscale the video resolutions.
You can extend the display devices up to 400 Feet when using with a shielded CAT6 cable.
The issue might be with the CAT cable. This might be due to the external interference of the signals & CAT5e has low bandwidth as compared to the CAT6. We recommend you using shielded CAT6 cable.
If the power and link led lights does not illuminate on the RJ45 port of the transmitter and the receiver, then the transmitter & receiver might be dead.
Please contact us so that we can troubleshoot the issue.
You can upgrade the firmware by connecting the PC & this device via RS-232 cable.
Please note that this product only supports the CEC function between HDMI input & HDMI output 1.
No, optical output doesn't supports CEC due to its limitations. CEC will work only with HDMI devices.
HDBaseT is the technology used for long distance transmission of lossless signals, resulting extremely low latency & giving the best picture quality.
In normal extenders, if you extend your signals up to some extend, the quality of the signals will degrade & you may find some latency issues. HDBaseT is the lastest standard which provides extending your signals to the longer distance without degrading the quality of the signals & with 0 latency.
We recommend you using a shielded CAT6 cables for optimum performance.
Our all the extenders supports IR Frequency & the devices using RF frequency will not be compatible with our products.
The IR Blaster/Emitter should be connected to the IR out port on the Transmitter and the IR Receiver should be connected to the IR in on the Receiver.
Here's a quick overview of the IR connection on our extenders: IR Blaster Explained | Use IR with HDMI Extender Kit - Remote Control
[/tab1]
Specifications :
General Information
| UPC | 850008956577 |
|---|
