Dataram EC500 EC500S8NP 480 GB Rugged Solid State Drive - 2.5 Internal - PCI Express NVMe (PCI Express NVMe 3.0 x4) - Mixed Use" EC500S8NP/480G

Description :

Dataram EC500 EC500S8NP 480 GB Rugged Solid State Drive - 2.5" Internal - PCI Express NVMe (PCI Express NVMe 3.0 x4) - Mixed Use

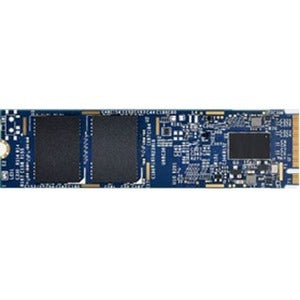

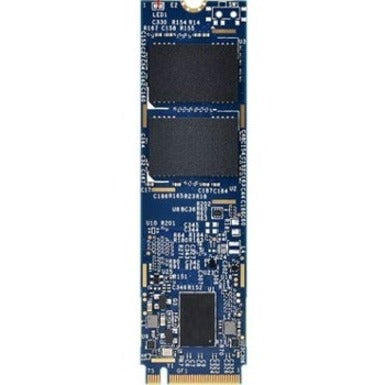

The Dataram EC500S8NP is a PCIe NVMe SSD (Solid State Disk) in a M.2 2280 form factor. Designed in full compliance with the PCIe Gen3 x4 interface and NVMe 1.3 specifications for guaranteed compatibility and built with TLC NAND Flash Memory , the drive provides high reliability and performance for a storage medium.

Built with a powerful PCIe controller, the Dataram EC500S8NP delivers outstanding performance in data transfer, reaching up to 125,000/132,000 and 1,645/1,035 MB/s in IOPS and sequential read/write speeds. The extreme thin and light weight form factor makes the Dataram EC500S8NP the ideal choice for mobile computing systems, the IT trend of the near
future.

In terms of security, Advanced Encryption Standard (AES) ensure data security and provide users with a peace of mind knowing their data is safeguarded against unauthorized use at all times. Data integrity can be assured at multiple points in the path to enable reliable delivery of data transfers with End-to-End Data Protection. Regarding reliability, the Dataram EC500S8NP is built with a powerful PCIe controller that supports on-the-module ECC as well as an efficient wear leveling scheme. When it comes to power efficiency, the Dataram EC500S8NP is compliant with the PCIe Gen3 x4 interface standard so that it can operate on power management modes, greatly saving on power consumption

• Advanced LDPC ECC engine


• 3D NAND flash memory


• Global Wear Leveling


• Flash Translation Layer: Page Mapping


• Flash bad-block management


• Power Failure Management


• S.M.A.R.T. Hyper


• Cache Technology


• TRIM support


• DataRAID™


• Over-Provisioning


• NVMe Secure Erase

Product Type: Solid State Drive
Environmentally Friendly: Yes
Environmental Certification: RoHS
Rugged: Yes
Product Series: EC500
Brand Name: Dataram
Drive Type: Internal
Compatibility: Mobile Computing Systems
Form Factor: 2.5"
Manufacturer: Dataram Corporation
Product Model: EC500S8NP
Product Name: EC500S8NP M.2 PCIe NVMe SSD
Manufacturer Part Number: EC500S8NP/480G
Manufacturer Website Address: http://www.dataram.com
Limited Warranty: 5 Year
Weight (Approximate): 0.23 oz
