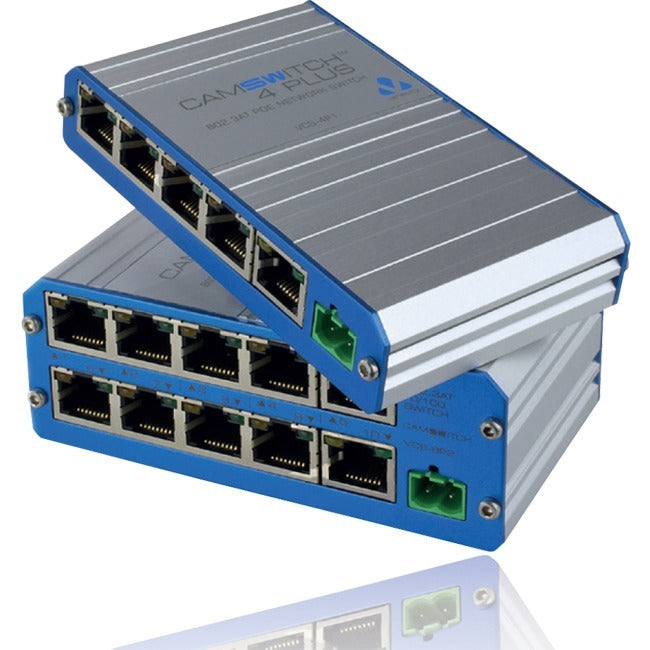

Veracity CAMSWITCH Plus VCS-4P1 Ethernet Switch

Description :

Veracity CAMSWITCH Plus VCS-4P1 Ethernet Switch
Compact and versatile 802.3at POE switches

CAMSWITCH 4 PLUS REPLACES CAMSWITCH QUAD.

CAMSWITCH Plus network switches are 803.af/at Power over Ethernet (POE) 10/100 switches designed especially to meet the challenges of IP video installation. An optional POE input enables remote positioning and range extension, or a local power supply can be specified for maximum power budget.

CAMSWITCH 4 Plus features 4 802.3at POE ports, and a 5th port for downlink.

CAMSWITCH 8 Plus features 8 802.3at POE ports, as well as 2 further network ports, and is compatible with Veracity's rack-mounting system.

802.3at POE Power

CAMSWITCH Plus can deliver up to the full 25.5 watts required by IEEE 802.3at POE Plus devices such as outdoor or PTZ cameras. A selection of power supply options are available to suit the total power requirements and placement considerations of the installation.

40 watt and 78 watt camera/device power budgets are available from standard power supplies, or the full 200 watts for 8 POE Plus ports can be delivered using Veracity's forthcoming rackmount power solutions.

CAMSWITCH Plus can be powered by POE, doubling the distance to connected devices or enabling network connections to be easily added to existing installations. Up to 25 watts budget at 200 metres is available using Veracity's OUTSOURCE Plus injector.

When a 57V power supply is used, CAMSWITCH Plus can deliver enhanced POE to Veracity OUTREACH Max, HIGHWIRE PowerStar and LONGSPAN products for maximum range.

Designed for installers

Camswitch Plus's network ports configure automatically for speed, duplex and crossover, and deliver 802.3af/at POE to compliant devices with no user setup required.

Snap-on clips are provided for secure wall mounting, and up to 4 units can be mounted in an optional 1U rack bracket.

• Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 5 ports


• Twisted Pair media support ensures maximum convenience and great usability


• Featuring Fast Ethernet ports to speed up the transfer rate up to 100mb/sec of large files and digital assets across your network


• With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience


• PoE power source for dependable power supply

Product Type: Ethernet Switch
Environmentally Friendly: Yes
Environmental Certification: RoHS
Brand Name: Veracity
Manufacturer: Veracity USA, Inc
Product Model: VCS-4P1
Product Name: CAMSWITCH Plus VCS-4P1 Ethernet Switch
Product Line: CAMSWITCH Plus
Manufacturer Part Number: VCS-4P1
Manufacturer Website Address: http://www.veracityusa.com
Weight (Approximate): 4.76 oz
