3.84Tb En Sas Ssd 2.5In Pm1643A,

Description :

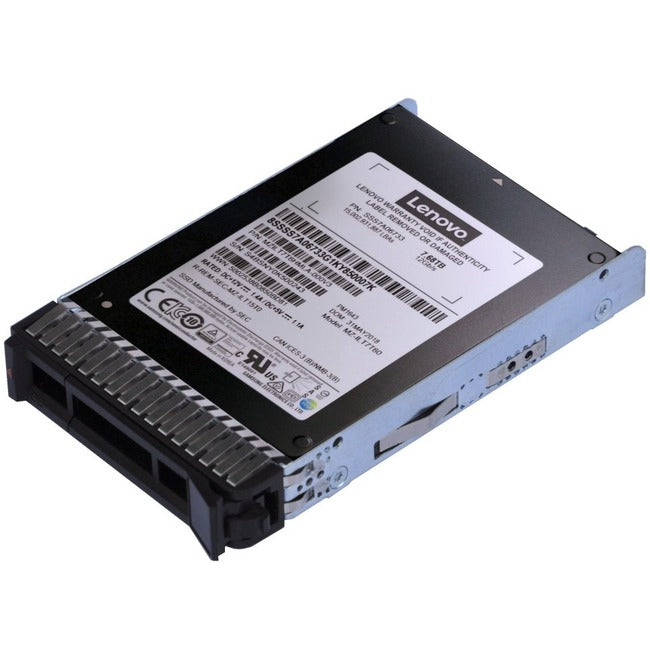

Lenovo PM1643a 3.84 TB Solid State Drive - 2.5" Internal - SAS (12Gb/s SAS) - Read Intensive

Introduction

The ThinkSystem PM1643a Entry SAS 12Gb solid-state drives (SSDs) are next-generation SSDs suitable for a wide range of applications. The PM1643a SAS SSDs are designed for dense storage and with a 12 Gb SAS interface, these drives feature all the capacity and performance that is needed to replace large numbers of 15K rpm and 10K rpm spinning disks, and consolidate storage into tightly packed server configurations.

The PM1643a SSDs are the follow-on to the PM1643 SSDs and offer improved random write performance.

Did you know?

Unlike SATA drives, the 12 Gb/s SAS interface on PM1643a drives supports full duplex data transfer for higher performance, as well as enterprise-level error recovery for better availability.

Rigorous testing of PM1643a Entry SATA SSDs by Lenovo through the ServerProven program assures a high degree of storage subsystem compatibility and reliability. Providing additional peace of mind, these drives are covered under Lenovo warranty.

• Enterprise-grade SSD suitable for read-intensive workloads


• Based on Samsung 64-layer V-NAND technology and TLC flash memory


• Endurance of 1 drive-write per day (DWPD) over 5 years


• 2.5-inch or 3.5-inch industry standard form factor with hot-swap tray


• SAS 12 Gbps interface


• Single port host interface


• Protect data integrity from unexpected power loss with Samsung's advanced power-loss protection architecture


• Supports Self-Monitoring, Analysis and Reporting Technology (S.M.A.R.T) End-to-end data protection


• Compliant with SCSI Specification (SAS-3 / SPL-3 / SBC-4 / SPC-4 / SAM-5)


• RoHS Compliant

Product Type: Solid State Drive
Environmentally Friendly: Yes
Environmental Certification: RoHS
Product Series: PM1643a
Brand Name: Lenovo
Drive Type: Internal
Compatibility: ThinkSystem server:

• ST550 (7X09/7X10)
• SR530 (7X07/7X08)
• SR550 (7X03/7X04)
• SR570 (7Y02/7Y03)
• SR590 (7X9 8/7X99)
• SR630 (7X01/7X02)
• SR650 (7X05/7X06)
• SR635 (7Y98/7Y99)
• SR655 (7Y00/7Z01)
• SR850 (7X18/7X19)
• SR860 (7X 6 9/7X70)
• SR950 (7X11/12/13)
• SD530 (7X 21)
• SN550 (7X16)
• SN850 (7X15)

Form Factor: 2.5"
Manufacturer: Lenovo Group Limited
Product Name: ThinkSystem 2.5" PM1643a 3.84TB Entry SAS 12Gb Hot Swap SSD
Device Supported: Server
Hot Swappable: Yes
Manufacturer Part Number: 4XB7A17054
Manufacturer Website Address: http://www.lenovo.com/us/en/
Limited Warranty: 1 Year
Weight (Approximate): 5.57 oz
