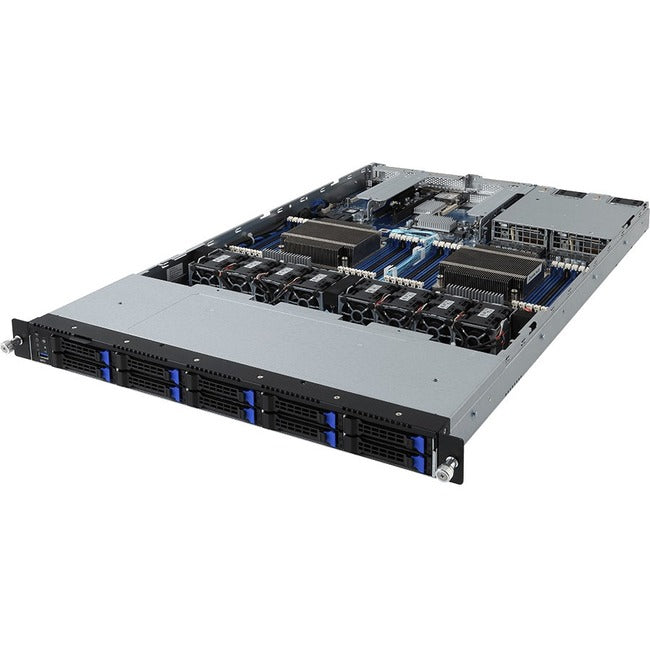

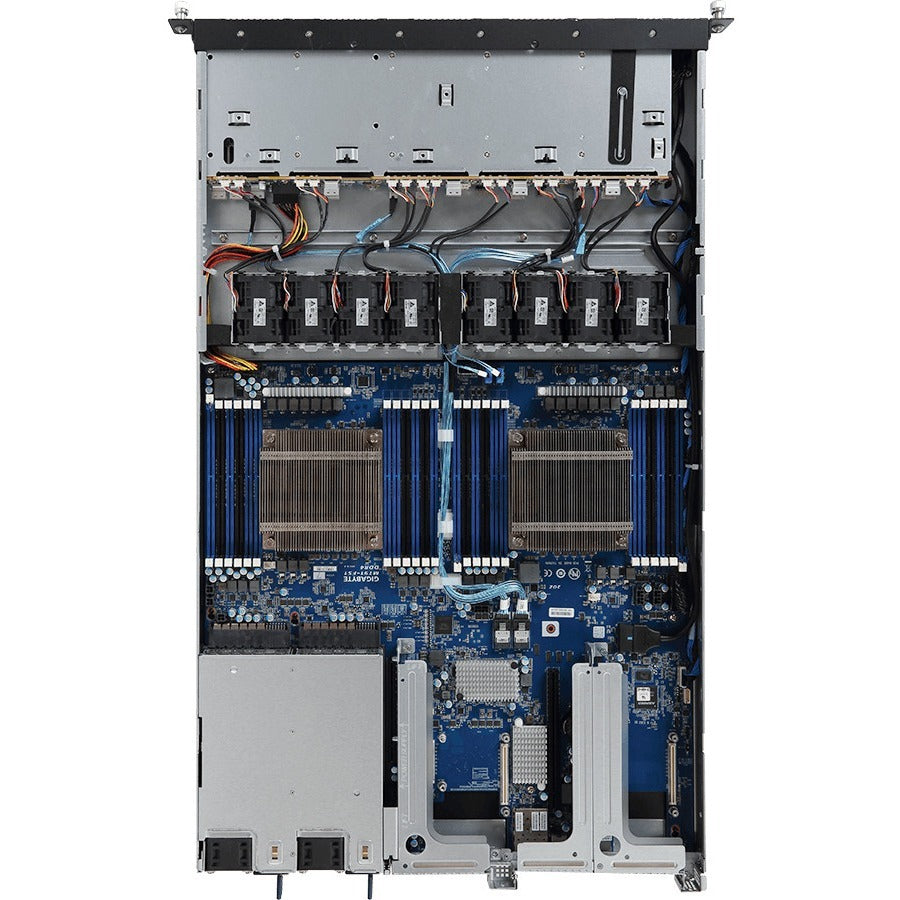

Gigabyte R181-T90 1U Rack Server - 2 x Cavium ThunderX2 CN9975 2 GHz - Serial ATA/600, 12Gb/s SAS Controller

Gigabyte R181-T90 1U Rack Server - 2 x Cavium ThunderX2 CN9975 2 GHz - Serial ATA/600, 12Gb/s SAS Controller

SKU:R181-T90

Regular price $9,002.70
Regular price Sale price $9,002.70
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Specifications
          Reviews, Que. & Ans.

          Description :

          Gigabyte R181-T90 1U Rack Server - 2 x Cavium ThunderX2 CN9975 2 GHz - Serial ATA/600, 12Gb/s SAS Controller

          Bringing ARM into the Server World

          Presenting a genuine alternative to x86 for your next server deployment. The ThunderX2® is the 64-bit ARMv8 SoC that offers an unprecedented level of integration and industry leading performance, with custom fully out-of-order cores, single and dual socket configurations, very high memory bandwidth, large memory capacity, integrated I/O, server class virtualization and RAS features, and extensive power management. The ThunderX2® further accelerates adoption of ARM servers for mainstream cloud and HPC applications by providing the next level of computing performance and ecosystem readiness.

          ThunderX2® CPU Key Features

          CPU Cores

          • Fully out of order, 1 / 2 / 4 threads per core
          • Up to 2.5 GHz in normal mode, up to 3 GHz in turbo mode
          • 3X single thread performance compared to ThunderX®

          Memory Optimization

          • Memory speed up to 2666MHz
          • Up to 16 DIMMS per socket, up to 4 TB of memory per system in dual socket configuration

          Advanced Power Management

          • On-chip management engine for dynamic voltage and frequency scaling across the chip
          • Full turbo mode support

          Flexible IO

          • Integrated 56 lanes of PCIe Gen3 interfaces, x1, x4, x8 and x16 support, 14 integrated PCIe controllers
          • Integrated SATA v3, GPIOs, USB interfaces

          Advanced Server Class RAS Features

          • Covering memory, CPU, cache, CCPI2 and PCIe interfaces

          A Real x86 Alternative

          • Performance of ThunderX2 is on par with x86 for many general purpose data center applications, excellent price / performance ratio
          • A wide ARM server ecosystem now exists including many of the most popular platforms for HPC, cloud & telecommunications applications.
          • Allows for a seamless front end / back end connection using the same system architecture to millions of ARM handheld and IoT devices

          • Optimize the performance of business networks with 10 Gigabit Ethernet connectivity

          • RAID provides data reliability, fault tolerance and improves overall performance through RAID levels (0, 1, 10, 1E)

          • 2 x 1200 W power supply unit (PSU) included

          Product Type: Server
          Environmentally Friendly: Yes
          Environmental Certification: RoHS
          Rack Height: 1U
          Brand Name: Gigabyte
          Form Factor: Rack
          Manufacturer: GIGABYTE Technology, Inc
          Product Model: R181-T90
          Product Name: R181-T90 (rev. 100) 1U 10-Bay ARM Server System
          Manufacturer Part Number: R181-T90
          Manufacturer Website Address: http://www.gigabyte.us
          Packaged Quantity: 1
          Package Contents:

          • R181-T90 (rev. 100) 1U 10-Bay ARM Server System
          • 1 x Tool-less Rail kit

          Weight (Approximate): 30.42 lb

          Specifications :

          General Information

          Manufacturer GIGABYTE Technology, Inc
          Manufacturer Part Number R181-T90
          Manufacturer Website Address http://www.gigabyte.us
          Brand Name Gigabyte
          Product Model R181-T90
          Product Name R181-T90 (rev. 100) 1U 10-Bay ARM Server System
          Product Type Server
          UPC 0889523014691

          Processor

          Processor ManufacturerCavium
          Processor TypeThunderX2
          Processor Generation2nd Gen
          Processor ModelCN9975
          Processor CoreOctacosa-core (28 Core)
          Processor Speed2 GHz
          Graphics Controller ManufacturerASPEED
          Graphics Controller ModelAST2500
          Ethernet Technology10 Gigabit Ethernet

          Power Description

          Maximum Power Supply Wattage1200 W
          Height1.7"
          Width17.2"
          Depth28.7"
          Weight (Approximate)30.42 lb

          Miscellaneous

          Package Contents
          • R181-T90 (rev. 100) 1U 10-Bay ARM Server System
          • 1 x Tool-less Rail kit
          Environmentally FriendlyYes
