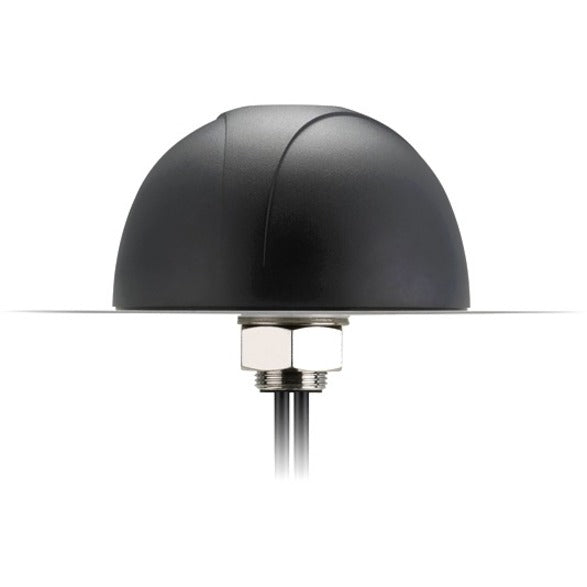

Taoglas Pantheon MA741 2in1 Permanent Mount 4G/3G/2G 2xMIMO, 3M CFD-200 SMA(M) MA741.B.BI.001

Description :

Taoglas Pantheon MA741 2in1 Permanent Mount 4G/3G/2G 2xMIMO, 3M CFD-200 SMA(M)
The MA.741 Pantheon LTE MIMO 2*2 antenna is an omnidirectional heavy-duty, fully IP67 waterproof external M2M antenna for use in telematics, transportation, and remote monitoring applications. It includes two LTE MIMO antennas with the highest efficiency and peak gain possible. This is necessary for today's high speed data uplink and downlink systems in applications such as real time video, for maximum throughput and highest signal-to-noise ratio.

The antenna elements operate at all common 4G LTE, 3G, and 2G bands worldwide 698-960MHz, 1710-2170MHz, 2300~2700MHz, 2900-3500MHz.

The housing is an extremely robust IP67 direct mount antenna package with excellent isolation (20dB+). The antenna has its own ground-plane and can radiate on any mounting environment like metal or plastic without affecting performance.

The connectors and cable length are customizable. The enclosure is also available in White.

• 2 x LTE Cellular (4G/3G/2G) Antennas (MIMO)


• Works for LTE/GSM/GPRS/CDMA/UMTS/HSPA


• 698~960MHz, 1710~2170MHz, 2300~2700MHz,


• 2900-3500MHz


• IP67 Waterproof


• High Efficiency / Peak Gain Outdoor Antenna


• 300mm CFD-200 SMA(M)


• RoHS Compliant

Product Type: Antenna
Environmentally Friendly: Yes
Environmental Certification: RoHS
Product Color: Black
Diameter: 5.73"
Country Of Origin: Taiwan
Product Series: MA741
Brand Name: Taoglas
Form Factor: Screw Mount
Manufacturer: Taoglas
Product Name: Pantheon MA741 2in1 Permanent Mount 4G/3G/2G 2xMIMO, 3M CFD-200 SMA(M)
Package Type: Bulk
Product Line: Pantheon
Application/Usage: Cellular Network
Manufacturer Part Number: MA741.B.BI.001
Manufacturer Website Address: http://www.taoglas.com
Weight (Approximate): 2.88 lb
