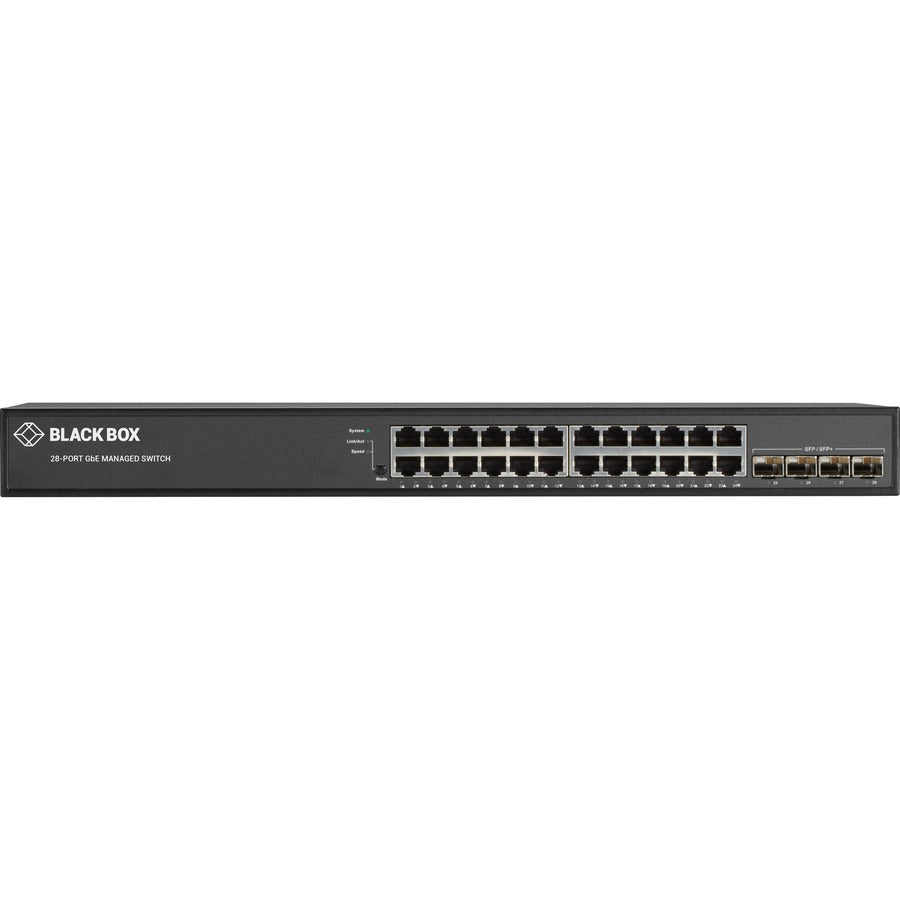

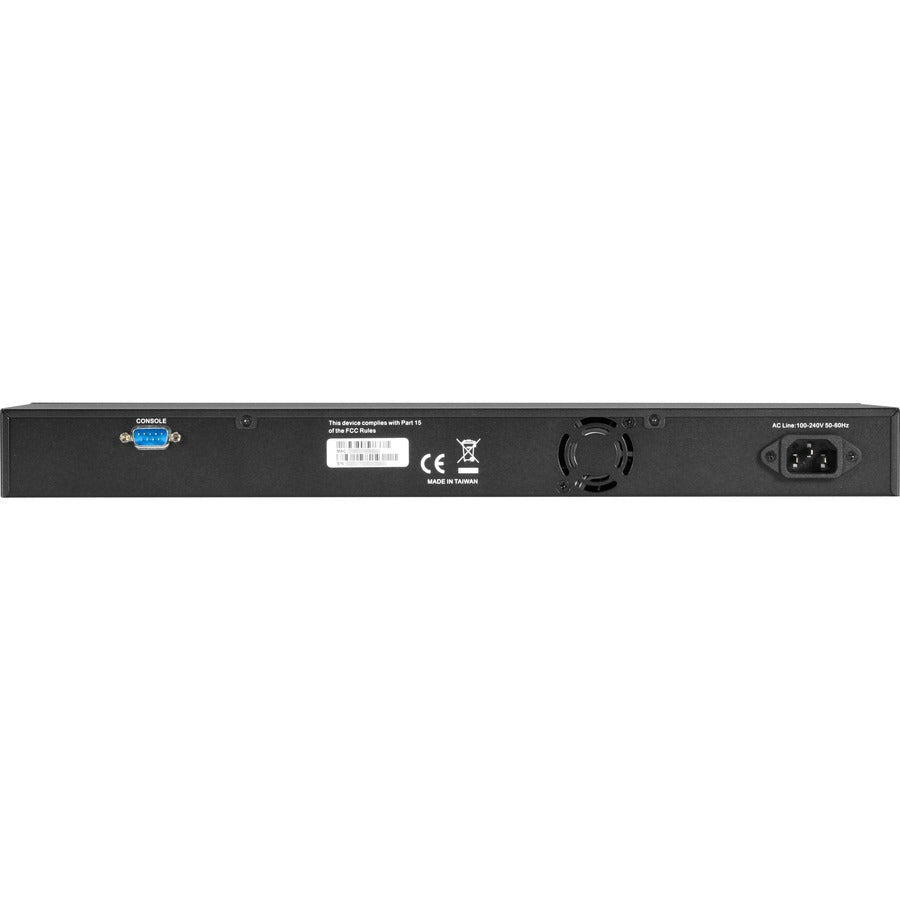

Black Box LGB5000 Ethernet Switch LGB5028A-R2

Description :

Black Box Ethernet Managed Switch - (24) RJ-45, (4) SFP+ 1-/10-GbE

Fully manageable

The switch is fully managed, supporting SNMP version 1, 2c, and 3. The embedded RMON software agents support RMON groups 1 (history), 2 (statistics), 3 (alarms), and 9 (events). The integral Web server enables Web-based management via a Web browser. This GUI interface enables switch configuration, system dashboard, maintenance, and monitoring. The wide range of management and support features also includes dual image, port mirroring, LLDP, sFlow, UPnP, IPv6, SSH, RADIUS, DHCP Client/DHCPv6 Client, SNTP, cable diagnostics, ping, Syslog, and Telnet client with SSH security.

Support for VLAN and QoS

Support for up to four simultaneous VLANs enables you to segment traffic with port-based, 802.1Q tag-based, or MAC-based VLANs. 802.1p Layer 2 quality of service (QoS) enables prioritization of time-sensitive applications such as VoIP and video.

Secure

You get enterprise-class security features, too. 802.1X port-based network access control authenticates devices connecting to your network. The switch also supports SNMPv3 cryptographic security, SSH, and SSL. Plus, you can set up a guest VLAN that enables visitors to access the Internet without also giving them access to the corporate network.

Green

The Gigabit Ethernet Managed Switch features IEEE 802.3az energy-efficient Ethernet, which scales down power consumption during periods of low data activity. This feature adds up to energy savings of up to 50%. Cable length detection adjusts signal strength to the cable length, reducing power consumption on shorter cable runs.

• LGB5028A-R2 provides (24) 10/100/1000BASE-T UTP ports, and (4) SFP+ ports that support speeds of 1/10 Gbps.


• LGB5052A provides (44) 10/100/1000BASE-T UTP ports, (4) dual-media UTP/SFP ports, and (4) SFP+ ports that support 1/10 Gbps


• Full SNMP management plus Web-based management and console port


• Support for VLAN and QoS


• Supports IEEE 802.1x port-based network access control


• 802.3az Energy-Efficient Ethernet saves on power costs

Product Type: Ethernet Switch
Environmentally Friendly: Yes
Environmental Certification: WEEE
Compatible Rack Unit: 1U
Taa Compliant: Yes
Country Of Origin: Taiwan
Product Series: LGB5000
Brand Name: Black Box
Form Factor: Desktop
Manufacturer: Black Box Corporation
Product Model: LGB5028A-R2
Product Name: Ethernet Managed Switch - (24) RJ-45, (4) SFP+ 1-/10-GbE
Manufacturer Part Number: LGB5028A-R2
Manufacturer Website Address: http://www.blackbox.com
Package Contents:

• Managed 10Gigabit Switch
• (4) adhesive rubber feet
• Mounting accessory (for 19" rack shelf, optional)
• (1) RS-232 to RJ-45 Console Cable
• (1) AC power cord
• (1) installation guide
• User manual in PDF format on CD-ROM
