2 in 1 out 8K HDMI Switch with Audio Extraction, EDID management, HDR10+ & Dolby Vision (BK-21)
2 in 1 out 8K HDMI Switch with Audio Extraction, EDID management, HDR10+ & Dolby Vision (BK-21)
SKU:BK-21
Couldn't load pickup availability
Description :

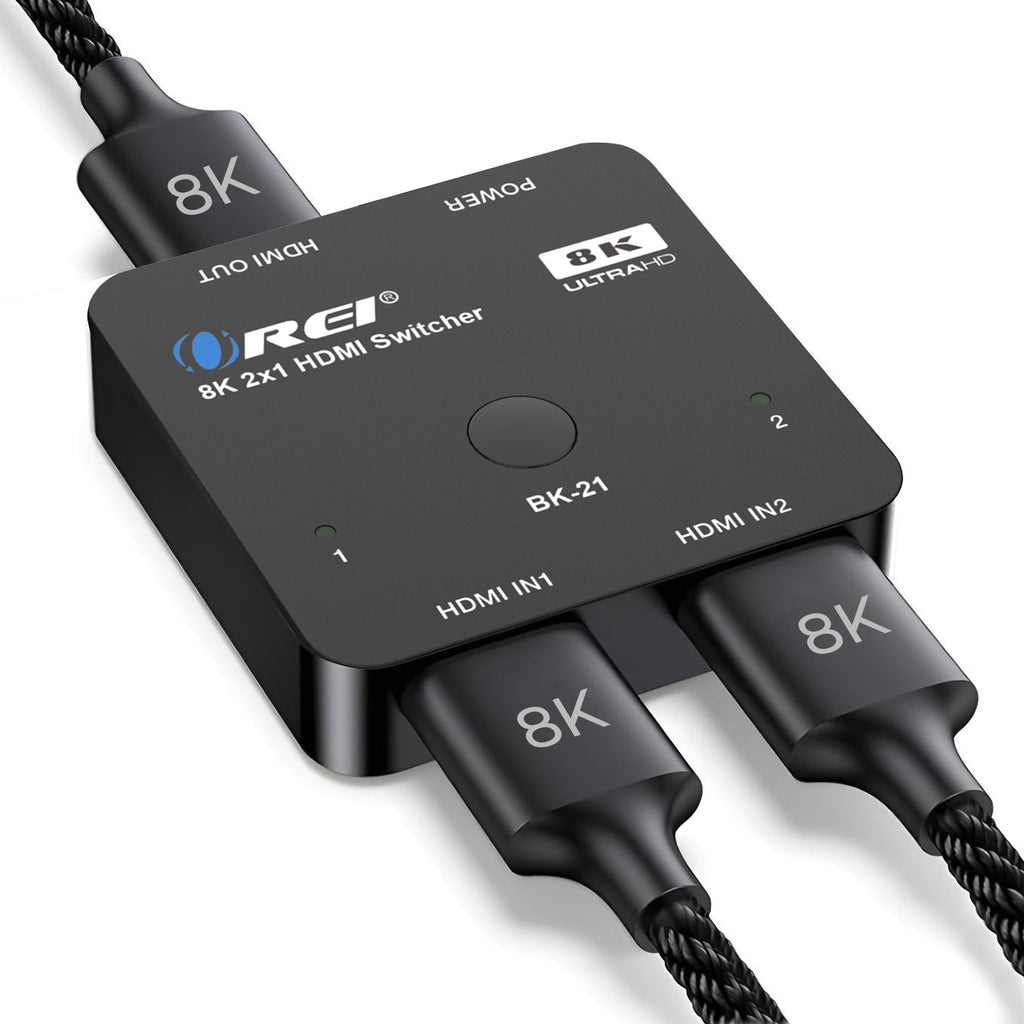

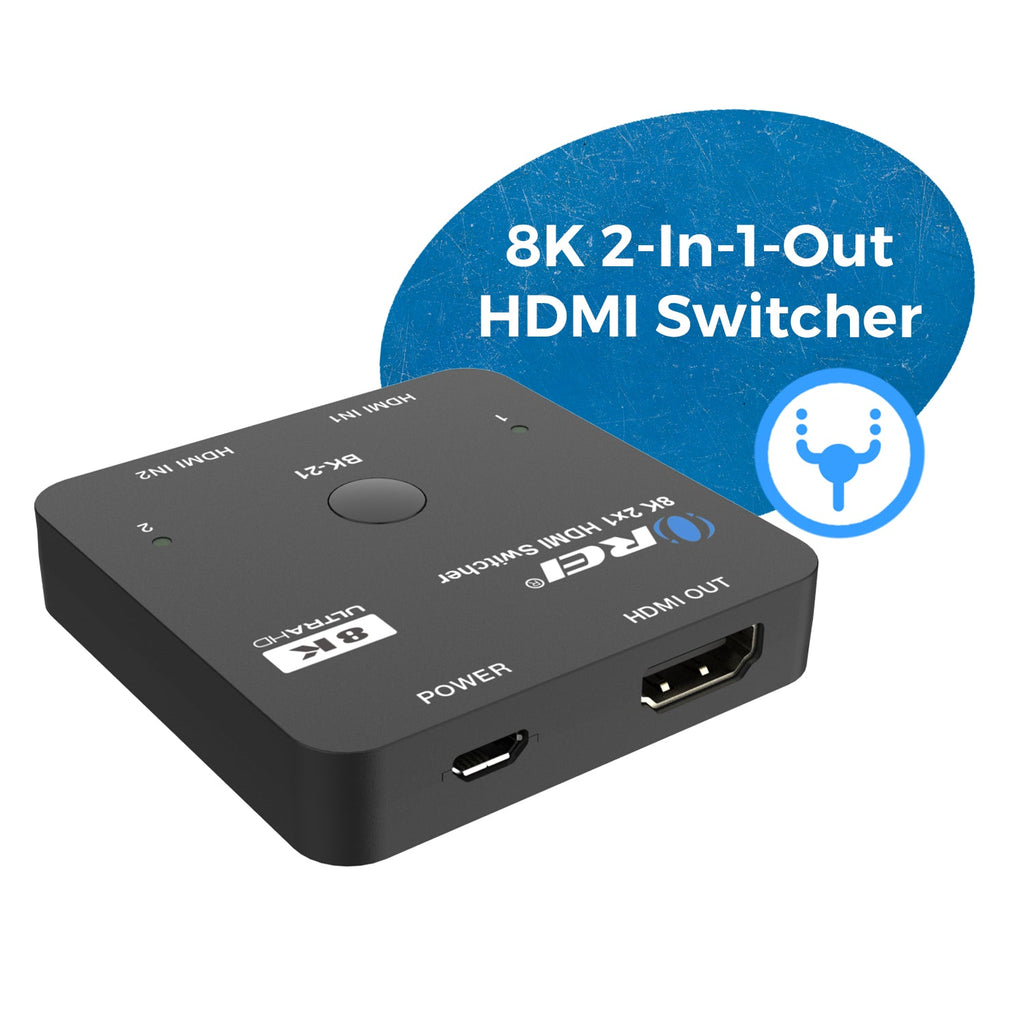

OREI BK-21: 2x1 8K HDMI Switcher with Audio Extraction
Key Features:
- HDMI 2.1 and HDCP 2.3 compliant
- Support 48Gbps video bandwidth

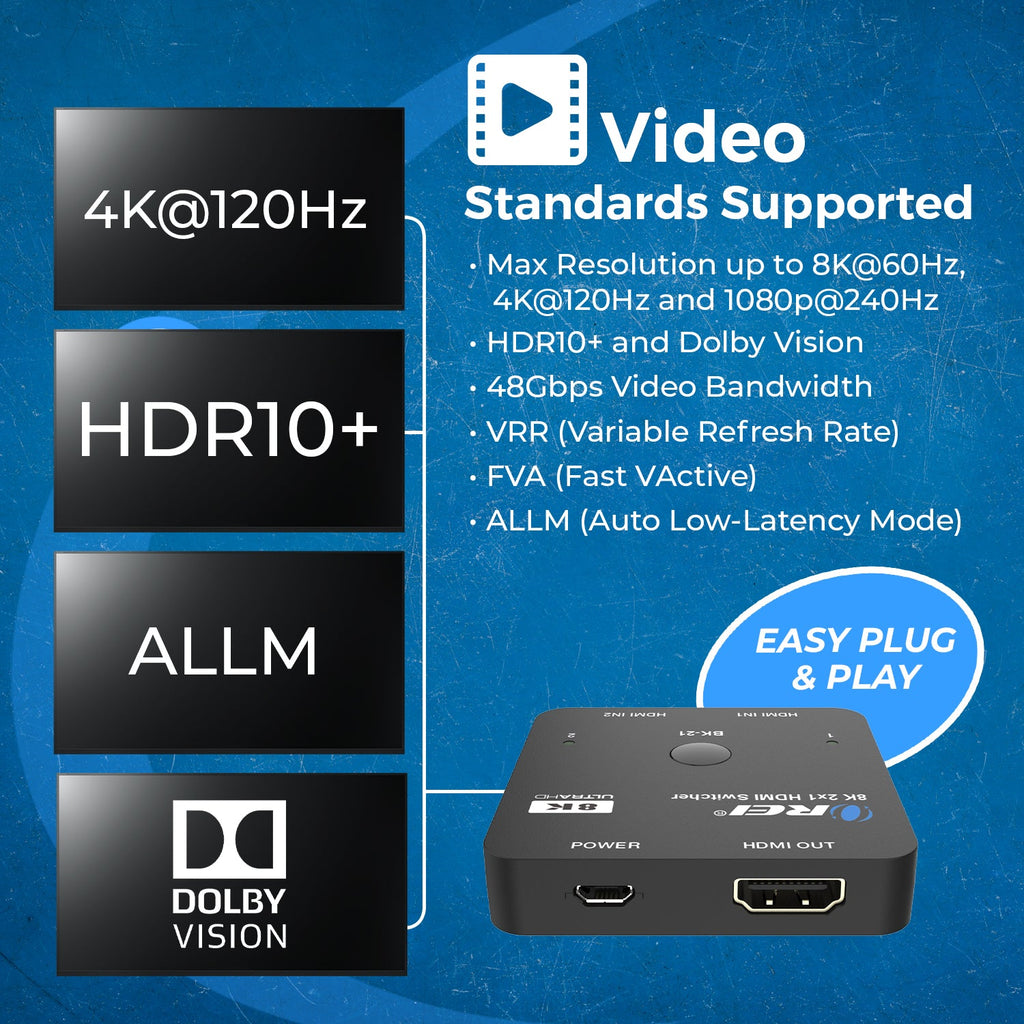

- 8K@60Hz 4:4:4 8/10/12bit, 8K@60Hz 4:2:0 12-bit, 8K@30Hz 4:4:4 10-bit, 4K@120Hz 4:4:4 10-bit video support
- Support HDR, HDR10, HDR10+, Dolby Vision, HLG pass through
- VRR, FVA, ALLM support
- Support HDMI audio formats: LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio
- 2x1 switch output, auto switch supported
- Built-in Equalizer and Driver
- Auto EDID management
- Compact design for easy and flexible installation

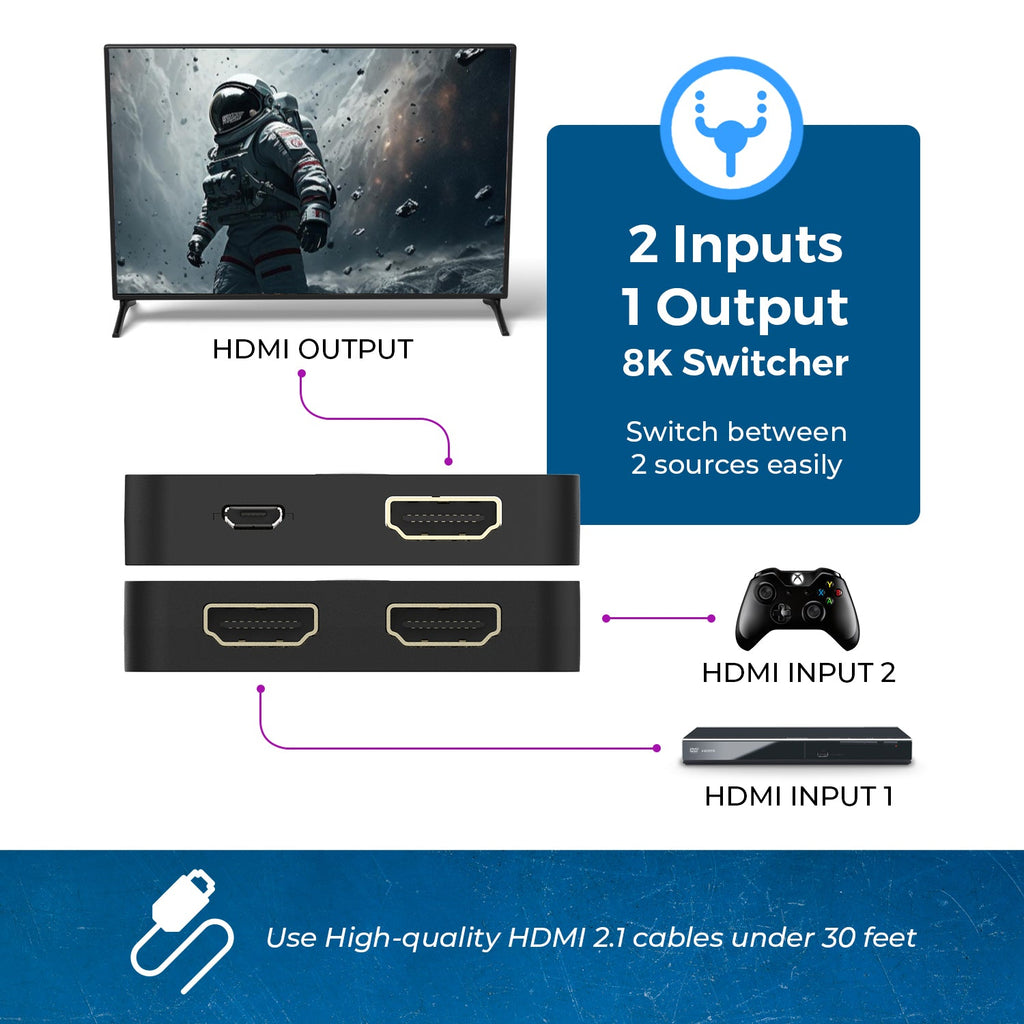

The BK-21 HDMI switch allows you to connect and switch between 2 media sources on a single display. It is HDMI 2.1 and HDCP 2.3 compliant, supporting resolutions up to 8K@60Hz and 4K@120Hz with a 48Gbps video bandwidth. It offers automatic switching and manual switching via the button on top. It supports HDR10+ and Dolby Vision. With support for Variable Refresh Rate (VRR), Auto-Low Latency Mode (ALLM), and Fast VActive (FVA), this product is ideal for gamers.
[shortdes]
- 2 in 1 out HDMI switch 8K
- Video resolutions up to 8K@60 or 4K@120Hz
- Support for EDID, HDR10+, Dolby Vision & more
[/shortdes]
[tab]
CONNECTIVITY
| INPUT: | 2 × HDMI [Type A, 19-pin female] | |
| 1 × HDMI [Type A, 19-pin female] |

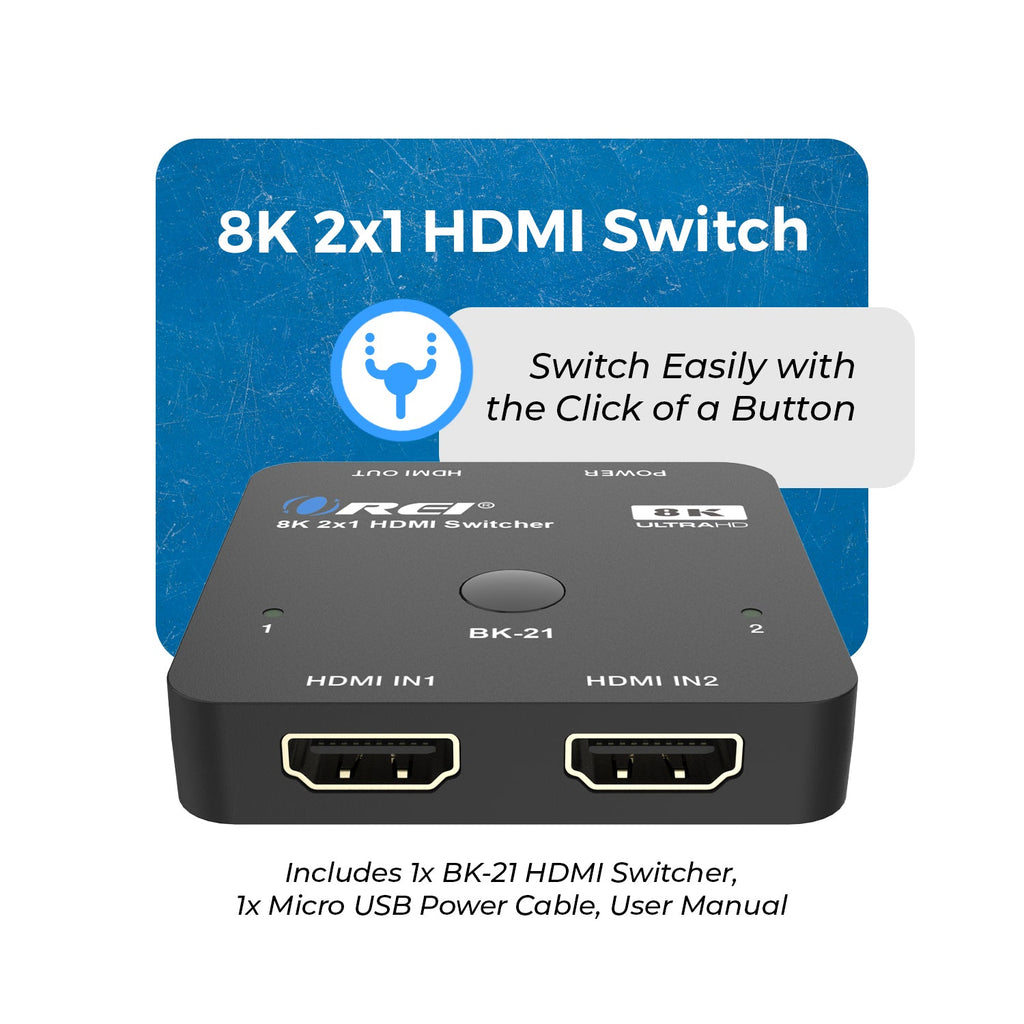

PACKAGE CONTENTS
| 1x BK-21 HDMI Splitter |
| 1x Micro-USB power cable |
| User Manual |
SUPPORTED HDMI CABLES
| HDMI 2.1 | We recommend using high quality HDMI 2.1 cables under 30 feet for optimum performance |
EXTENDING DISTANCE
| 8K@60Hz: | 6.6 Feet |
VIDEO OUTPUT
| Video Bandwidth: | 48Gbps FRL & 18 Gbps TMDS |
| Video Resolutions: | Up to 8K@60Hz 4:4:4 or 4K@120Hz 4:4:4 |
ADDITIONAL FEATURES
| CEC: | No |
| ARC: | No |
| USB KVM: | No |
| PoC/PoE: | No |
| IR Control: | No |
| Downmix: | No |
| Downscale: | No |
| Over IP: | No |
| HDBaseT: | No |
| RS-232: | No |
AUDIO SUPPORT
| HDMI Audio Formats: | LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD |
COMPLIANCES
| HDMI Compliance | HDMI 2.1 |
| HDCP Compliance | HDCP 2.3 |
POWER
| Power Consumption: | 1.25W (Max) | |
| Power Supply: | Output: USB DC 5V |

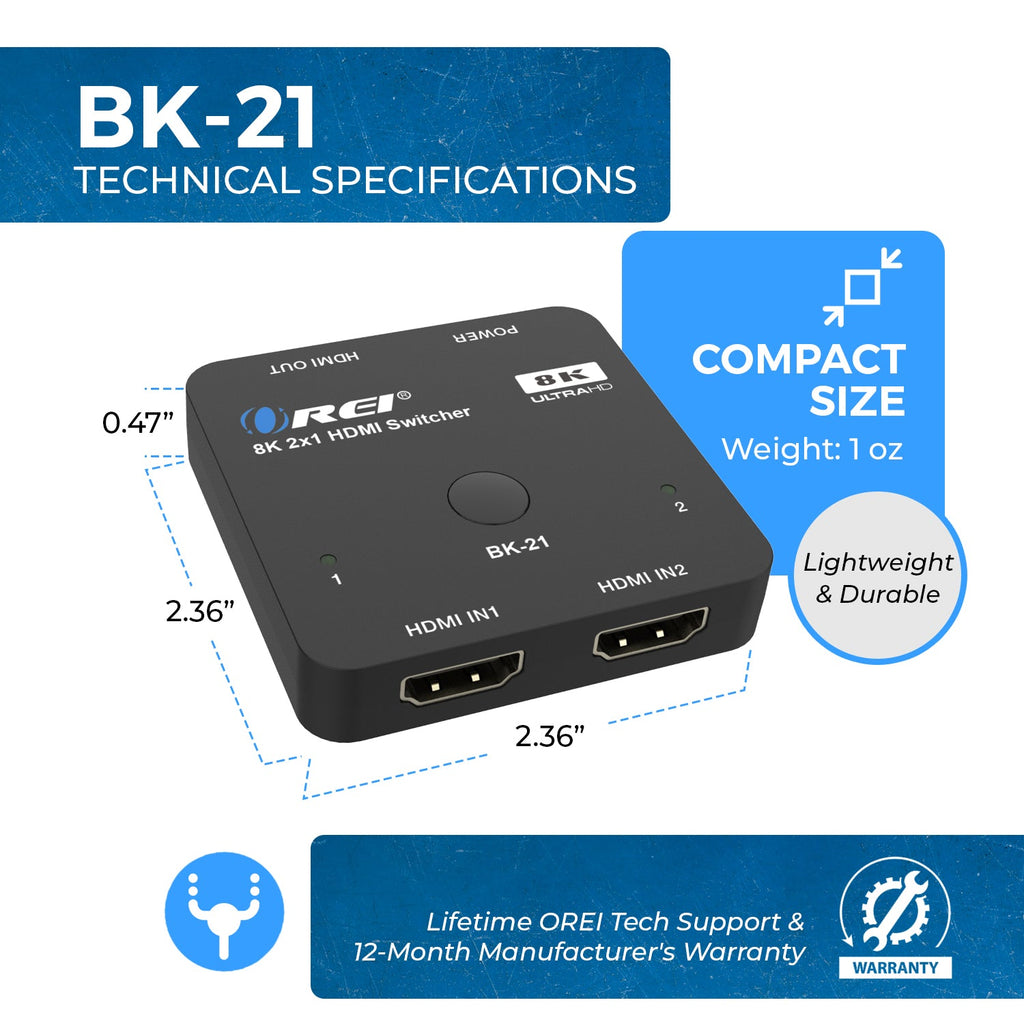

DIMENSIONS & WEIGHT
| Length: | 60mm / 2.36in | |
| Width: | 60mm / 2.36in | |
| Height: | 12mm / 0.47in | |
| Weight: | 31g / 1.09oz |
PROPERTIES
| Color: | Black |
| Housing: | Metal Enclosure |
WARRANTY
| 1-Year Manufacturer's Warranty |
[/tab]
[tab1]
FAQs
Our splitters will not work with capture cards due to the HDCP encryption on the output
Our HDMI splitter will duplicate or "mirror" a single HDMI source on two HDMI displays. Both displays will show the same video and audio simultaneously
Our splitter does not support extend mode. It only supports mirror/duplicate screen function, each screen will show the same picture
Yes, the power adapter does support 220V
You can use standard HDMI cables up to 15 feet and high quality cables up to 30 feet.
However, you can use fiber optic active HDMI cables up to 200 feet. If it's not a high-quality cable then you may lose the signal in some instances.
No, the HDMI splitters do not support CEC because most customers do not want all the TV's to turn ON as soon as the source is turned on.
[/tab1]
