1x4 HDMI Splitter with Power Adapter : 1-in 4-out, EDID (HDS-104)
1x4 HDMI Splitter with Power Adapter : 1-in 4-out, EDID (HDS-104)
SKU:HDS-104
Couldn't load pickup availability
Description :

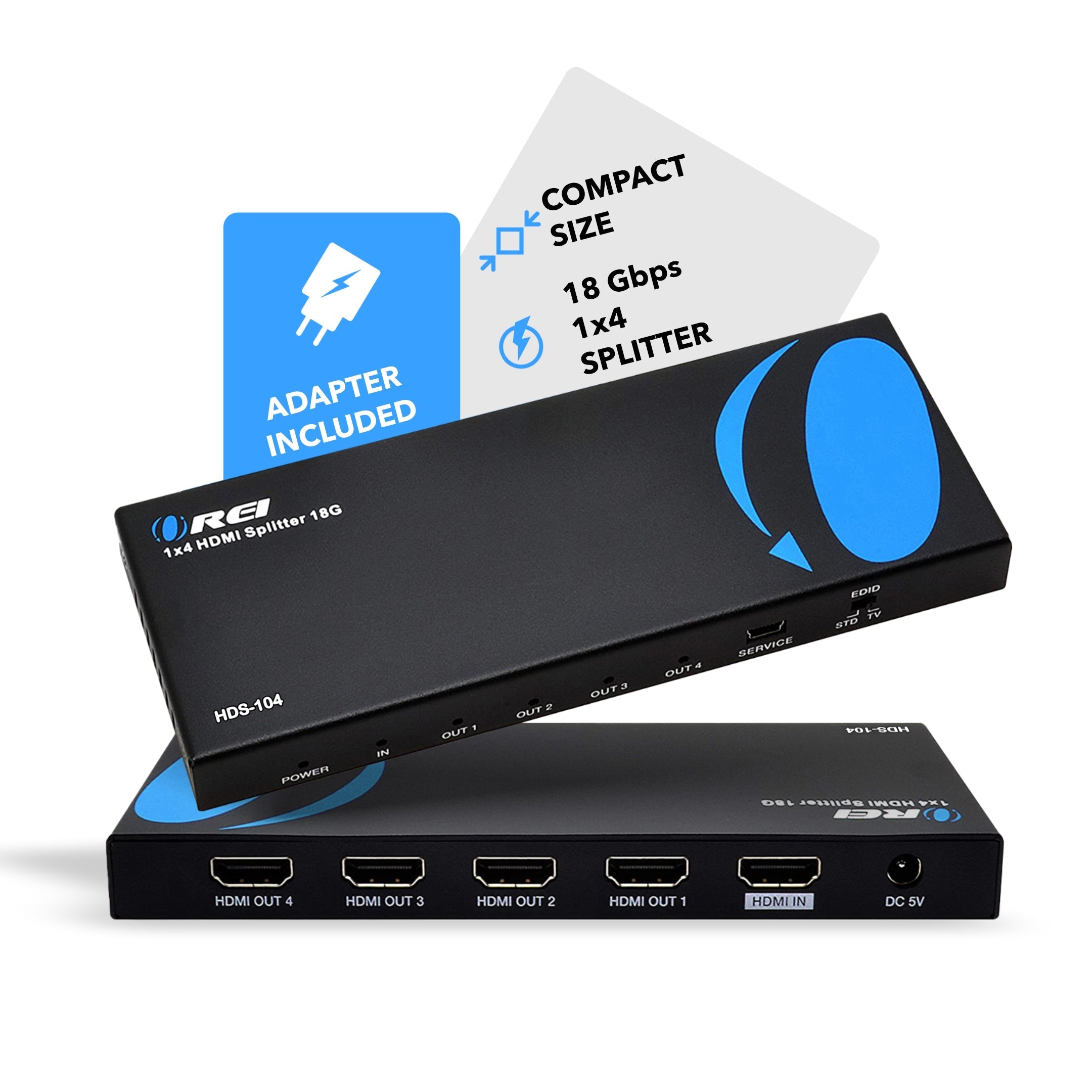

OREI HDS -104: 1 Input 4 Output HDMI Splitter
- HDMI 1.4 and HDCP 1.4 compliant
- Video resolution up to 4K@30Hz
- 2.97Gbps video bandwidth

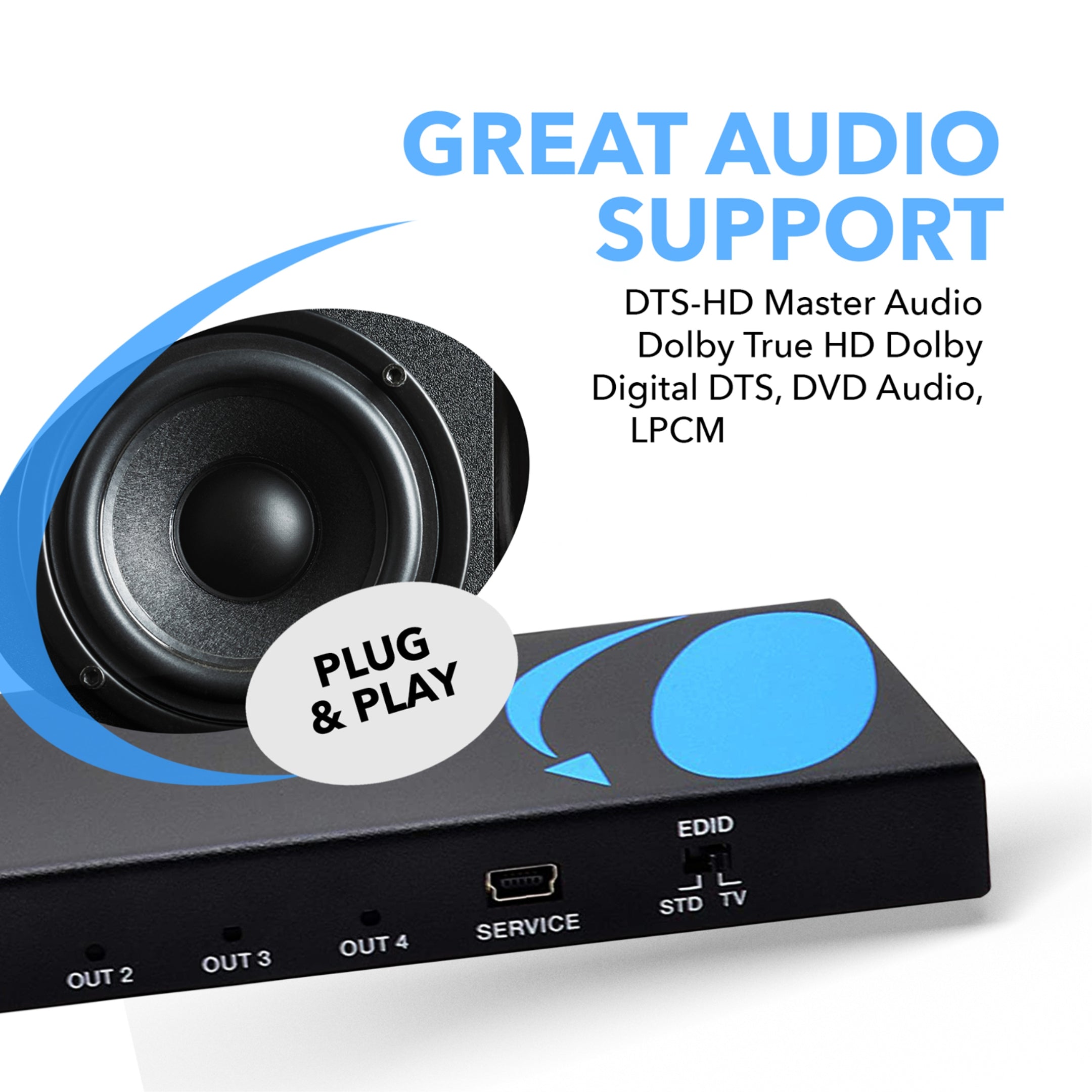

- Audio formats - LPCM 7.1, Dolby TrueHD, DTS-HD and DSD
- 3D video support at 1080p@60Hz

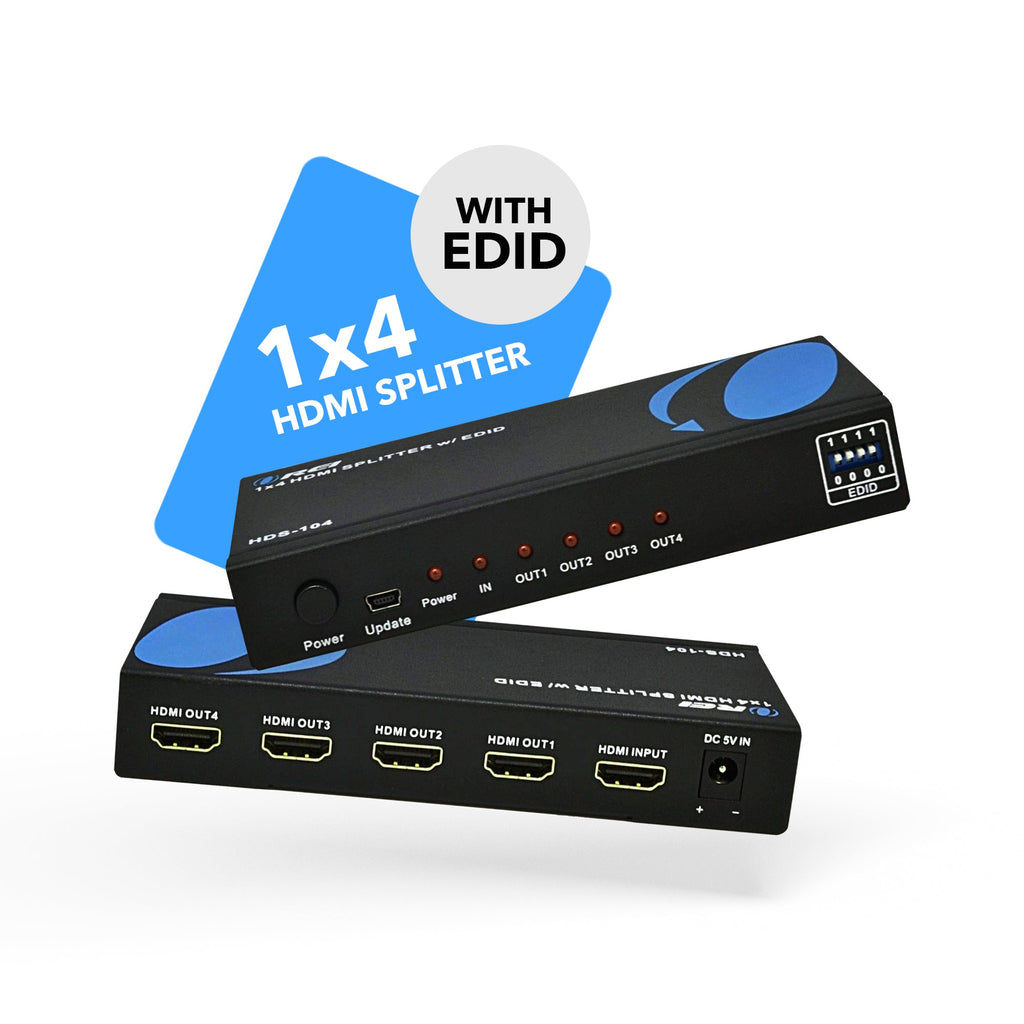

- EDID management
- Small size and plug-and-play setup

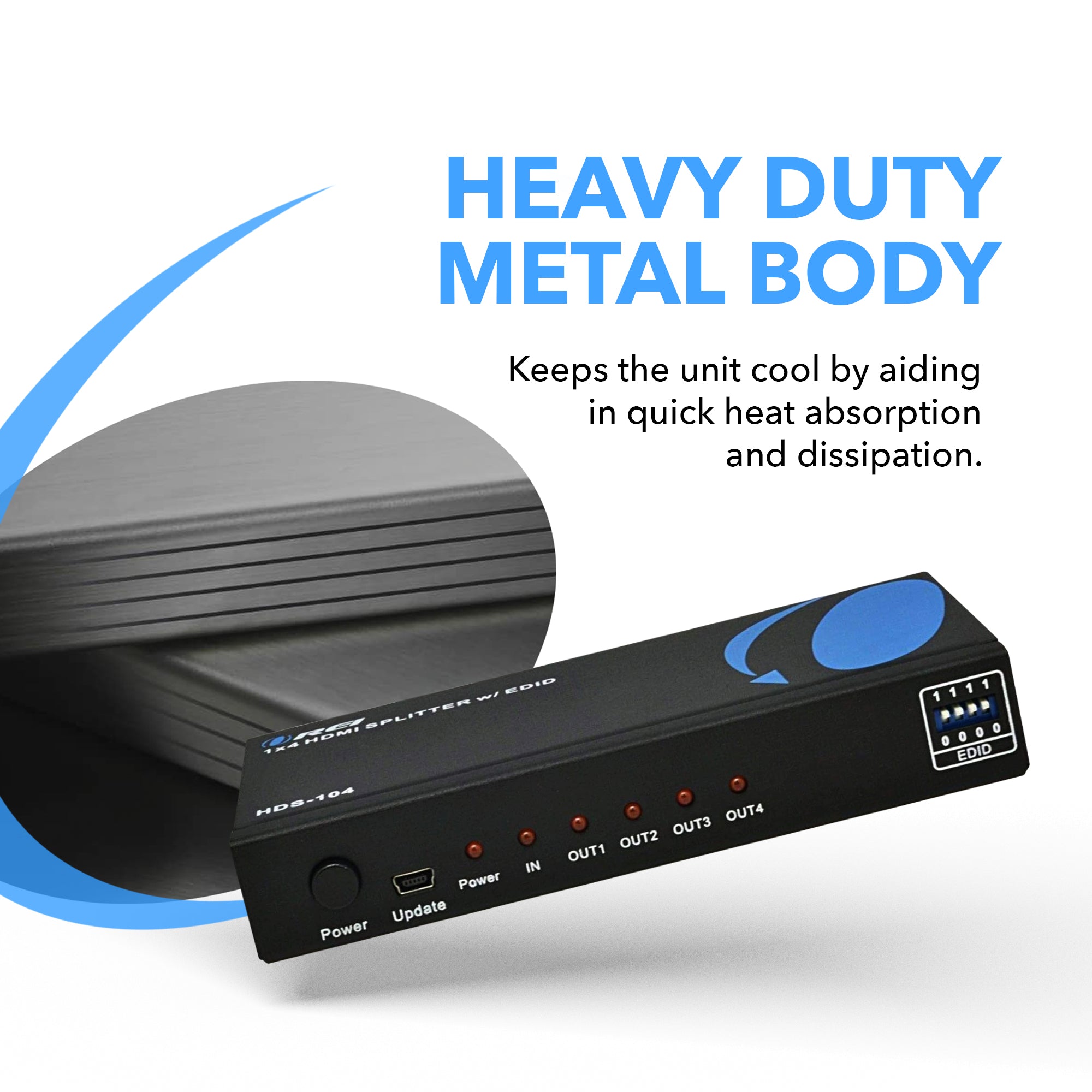

The OREI HDS-104 HDMI splitter is a reliable device for splitting an audio/video signal to 4 outputs. It supports video resolutions up to 4K@30Hz while being HDMI 1.4 and HDCP 1.4 compliant. It also supports 2.97Gbps video bandwidth while also supporting audio formats such as DTS-HD/Dolby-true-HD/LPCM 7.1/DTS/Dolby-AC3/DSD. It features dip switches for EDID management. The device is perfect for a commercial or residential setup requiring the duplication of content onto 4 screens.

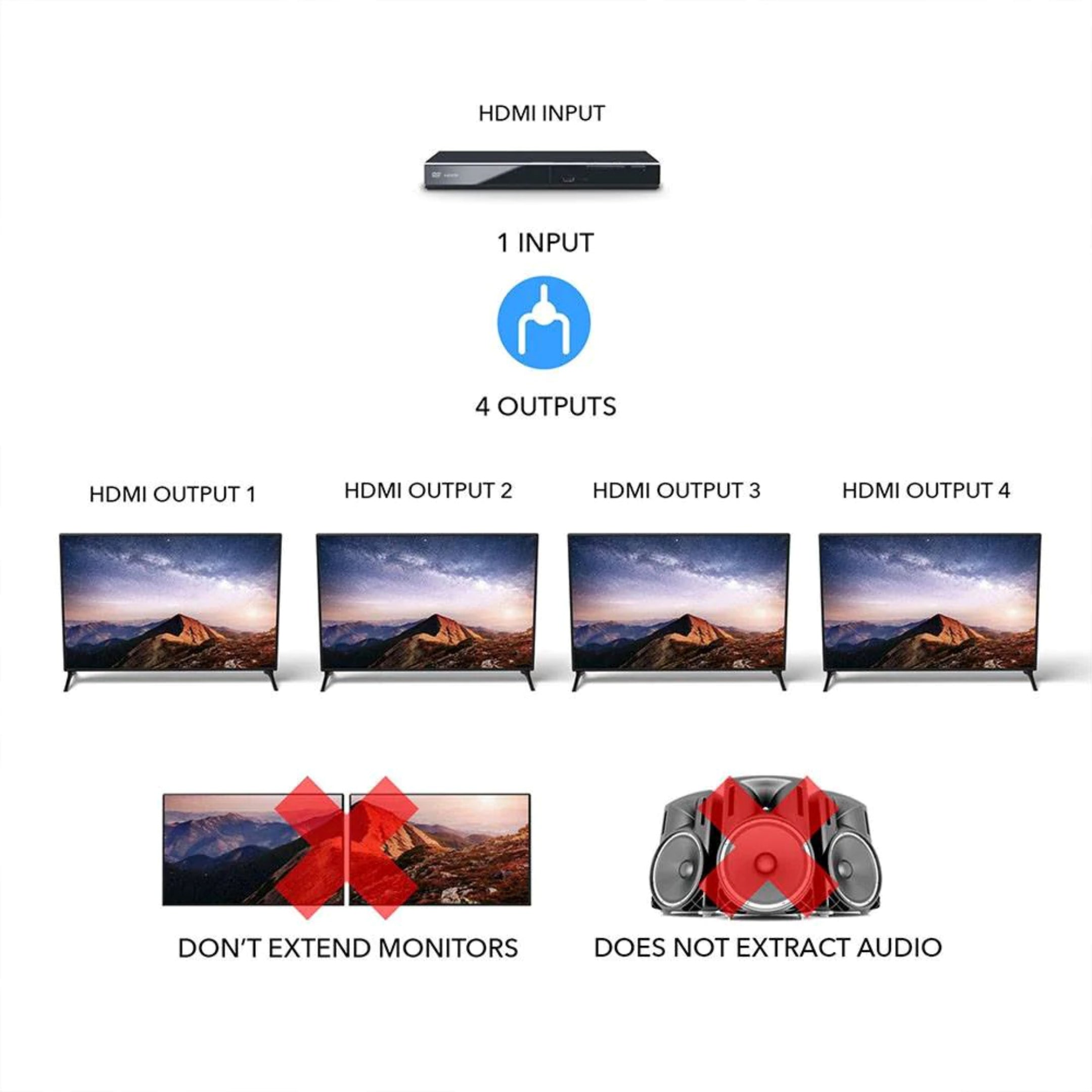

Please note that this HDMI splitter will duplicate the source to the four output displays. It can’t be used to extend a desktop for PC or a laptop. If the connected displays do not support the same resolution then the HDMI splitter will lower the output resolution to the next best resolution supported by both displays. We recommend using this HDMI splitter with high quality HDMI cables 30 feet or less.
[tab]
AUDIO AND VIDEO
| Input: | 1 × HDMI Type A (19-pin female) |
| Output: | 4 × HDMI Type A (19-pin female) |
| Video Bandwidth: | 2.97 Gbps |
| Video Resolution: | 4K x 2K@30Hz, 1080P@120Hz, 1080P 3D@60Hz |
| Color Space: | YUV 4:2:2, YUV 4:4:4, YUV 4:2:0, RGB |
| HDMI Audio Formats: | DTS-HD, Dolby-true-HD, LPCM 7.1, DTS, Dolby-AC3, DSD |
COMMUNICATION AND CONTROL
| HDMI Compliance | HDMI 1.4a |
| HDCP Compliance | HDCP 1.4 |
POWER
| Power Supply: | DC 5V |
| Power Consumption: | 5W |
ENVIRONMENTAL
| Operating Temperature: | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature: | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity: | 20 ~ 90% RH (Non-condensing) |

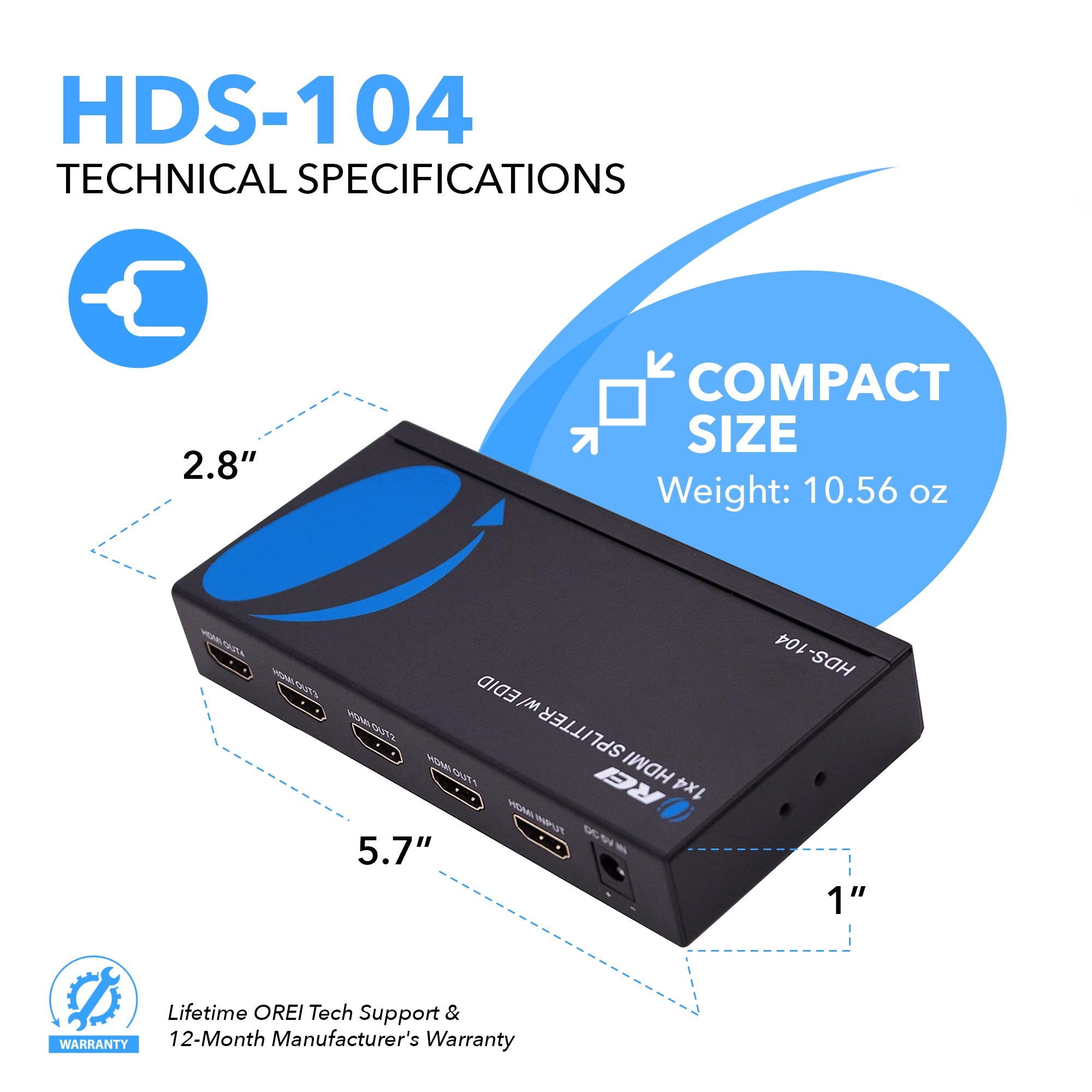

DIMENSIONS & WEIGHT
| Height: | 25 mm |
| Width: | 70 mm |
| Depth: | 145 mm |
| Weight: | 300 g |
REGULATORY
| REGULATORY: | CE | FCC | RoHS |
PACKAGE CONTENTS
| 1 × HDS-104 1×4 HDMI Splitter |
| 1 × Power Adapter |
| 1 × User Manual |
Warranty
| 1 - Year Manufacturer's Warranty |
[/tab]
[tab1]
FAQs
Our splitters will not work with capture cards due to the HDCP encryption on the output
Our HDMI splitter will duplicate or "mirror" a single HDMI source on two HDMI displays. Both displays will show the same video and audio simultaneously
Our splitter does not support extend mode. It only supports mirror/duplicate screen function, each screen will show the same picture
Yes, the power adapter does support 220V
You can use standard HDMI cables up to 15 feet and high quality cables up to 30 feet.
However, you can use fiber optic active HDMI cables up to 200 feet. If its not a high quality cable then you may lose the signal in some instances.
No, the HDMI splitters do not support CEC because most customers do not want all the TV's to turn ON as soon as the source is turned ON.
The output resolution support up to 4K x 2K@30Hz,1080P@120Hz,and 1080P 3D@60Hz.
DTS-HD/Dolby-true-HD/LPCM 7.1/DTS/Dolby-AC3/DSD
It supports HDMI 1.4A
[/tab1]
[shortdes]
- Split 1 HDMI Source to 4 identical displays - 3D Support
- Video resolutions up to 4Kx2K@30Hz, 1080P@120Hz - Multiple EDID Control
- Compliance: HDMI 1.4a - HDCP 1.4
[/shortdes]
Specifications :
General Information
| UPC | 820103569507 |
|---|
