Description :

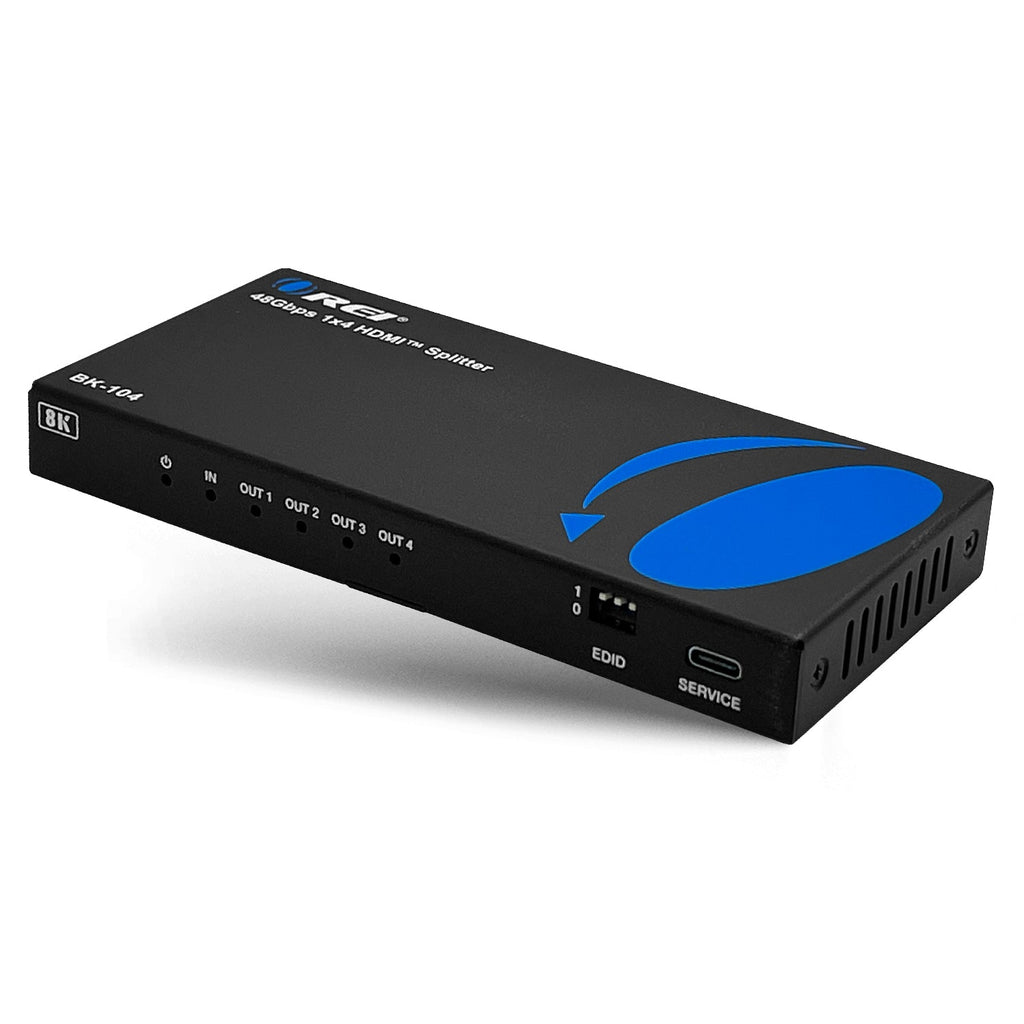

OREI BK-104 :8K 1x4 HDMI Splitter With Downscaling & EDID management, HDR, HLG & Dolby Vision Support
- HDMI 2.1 and HDCP 2.3 compliant
- 48Gbps FRL and 18Gbps TMDS video bandwidth
- Video resolutions up to 8K@60Hz 4:2:0 12bit, 4K@120Hz
- 4:4:4 12bit
- VRR, ALLM, QMS, QFT, SBTM support
- HDR/10/10+, Dolby Vision, and HLG pass-through
- LPCM 7.1CH, Dolby TrueHD, Atmos and DTS-HD Master, DTS:X
- Audio pass-through from HDMI
- 8K to 4K or 8K/4K to 1080P auto downscaling on all outputs
- Automatic HDR to SDR Conversion on all outputs
- Advanced EDID management
- Compact design for easy and flexible installation

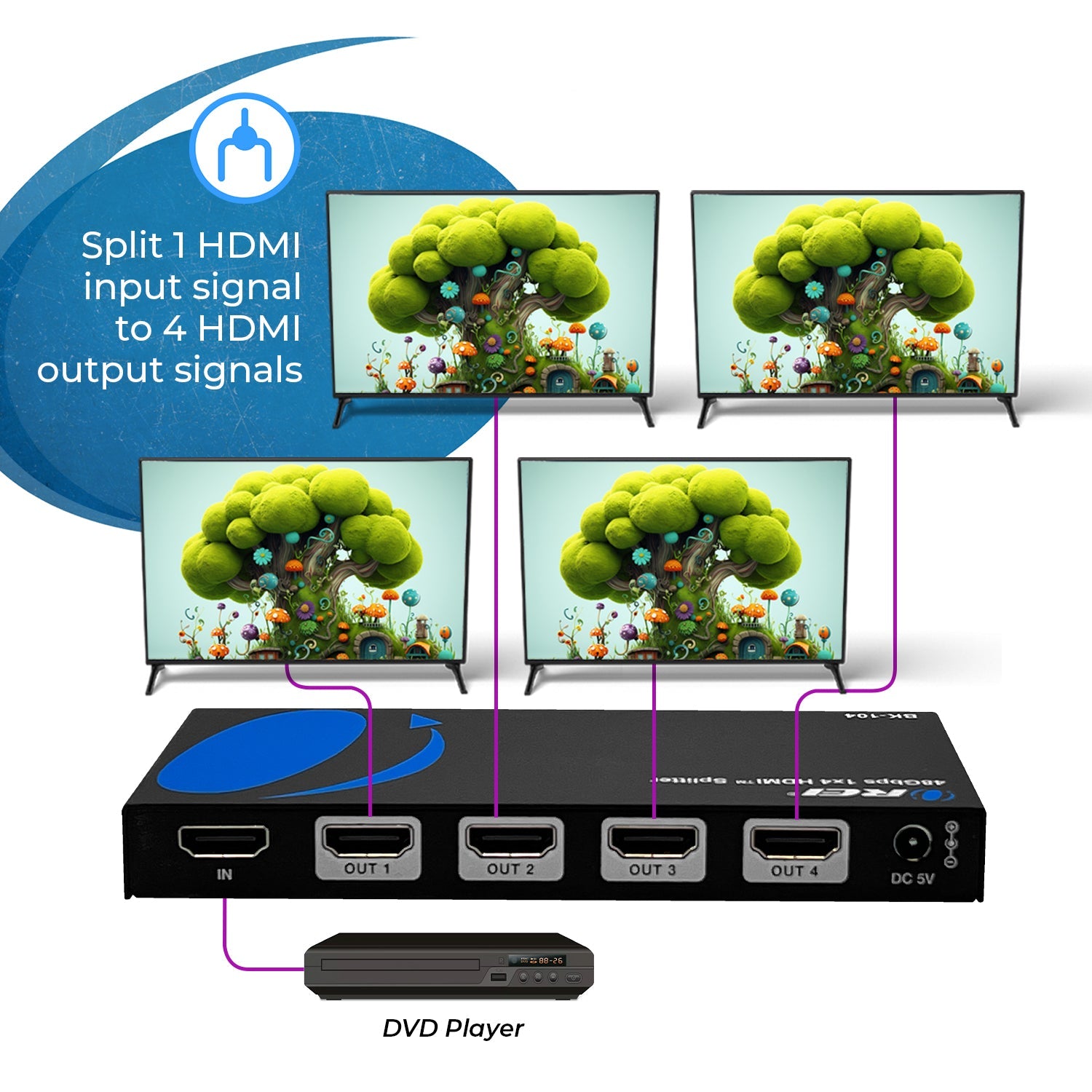

The BK-104 Splitter is a powerful device designed to split a single HDMI signal into four separate HDMI outputs simultaneously, with video resolutions up to 8K@60Hz 4:2:0 and 4K@120Hz 4:4:4. It features video bandwidth up to 48Gbps and complies with HDMI 2.1 and HDCP 2.3. HDR/10/10+, Dolby Vision, and HLG pass through. The device features advanced EDID management and can also downscale from 8K to 4K and from 8K/4K to 1080p. Moreover, it also features automatic HDR to SDR conversion for all outputs. Compact design and plug & play setup.
[shortdes]
- 1 in 4 out 8K HDMI splitter With Downscaling
- Resolutions up to 8K@60Hz 4:2:0 or 4K@120Hz 4:4:4
- 8K to 4K and 8K/4K to 1080p Downscale
[/shortdes]
[tab]
CONNECTIVITY
INPUT: | 1 × HDMI [Type A, 19-pin female] | |
OUTPUT: | 4 × HDMI [Type A, 19-pin female] | |
CONTROL: | 1× SERVICE [USB-C, Update port] |

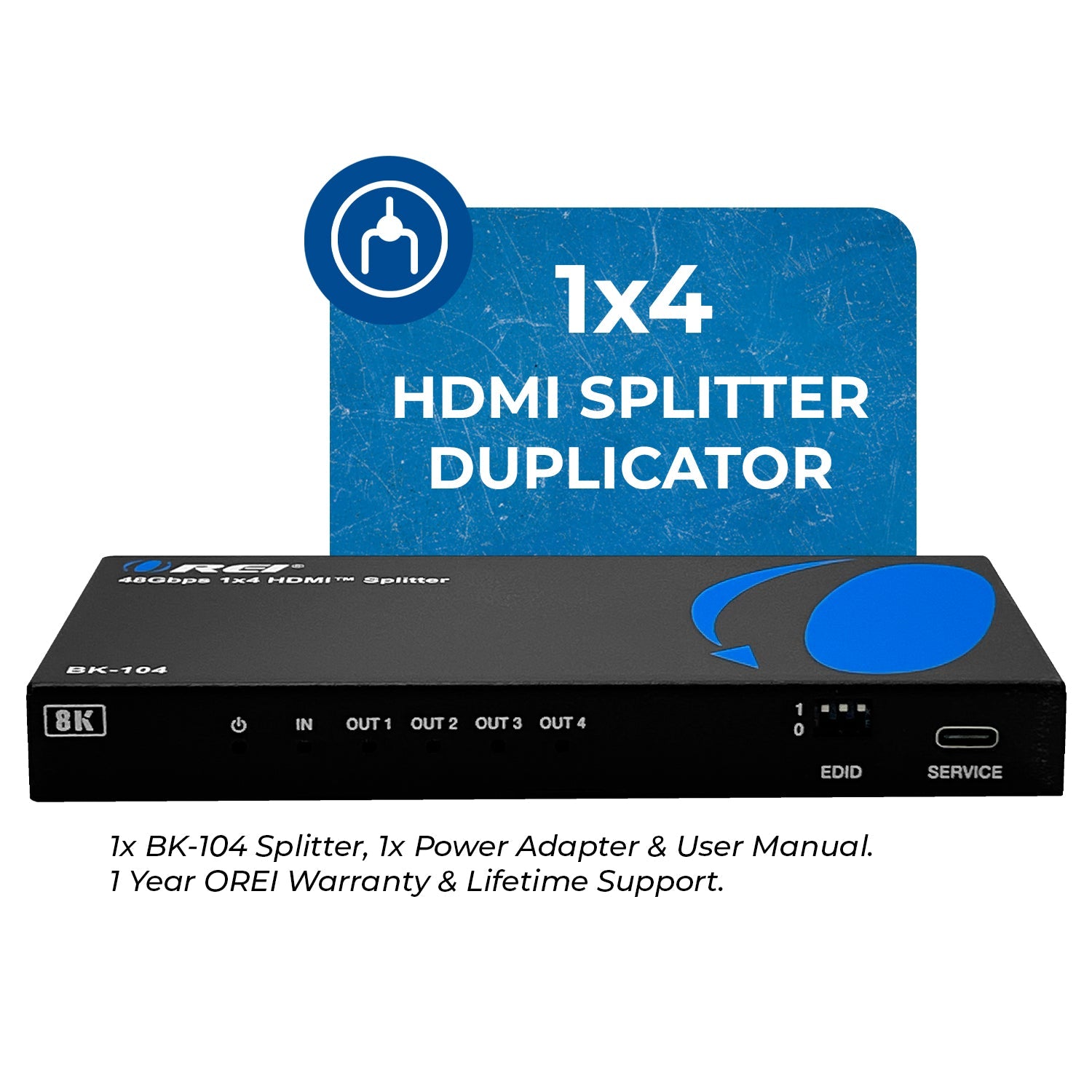

PACKAGE CONTENTS
1x BK-104 HDMI Splitter |
1x Power Adapter |
User Manual |
SUPPORTED HDMI CABLES
HDMI 2.1: | We recommend using high quality HDMI 2.1 cables under 30 feet for optimum performance |
EXTENDING DISTANCE
8K@60Hz: | 6.6 Feet |
4K@60Hz: | 26 Feet |
VIDEO OUTPUT
Video Bandwidth: | 48Gbps |
Video Resolutions: | Up to 8K@60Hz 4:2:0 or 4K@120Hz 4:4:4 |
ADDITIONAL FEATURES
CEC: | No |
ARC: | No |
USB KVM: | No |
PoC/PoE: | No |
IR Control: | No |
Downmix: | No |
Downscale: | Yes |
Over IP: | No |
HDBaseT: | No |
RS-232: | No |
AUDIO SUPPORT
HDMI Audio Formats: | LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD |
COMPLIANCES
HDMI Compliance | HDMI 2.1 |
HDCP Compliance | HDCP 2.3 |
POWER
Power Consumption: | 5.5W (Max) | |
Power Supply: | Input: AC 100-240V 50/60Hz | |
Output: DC 5V/2A |

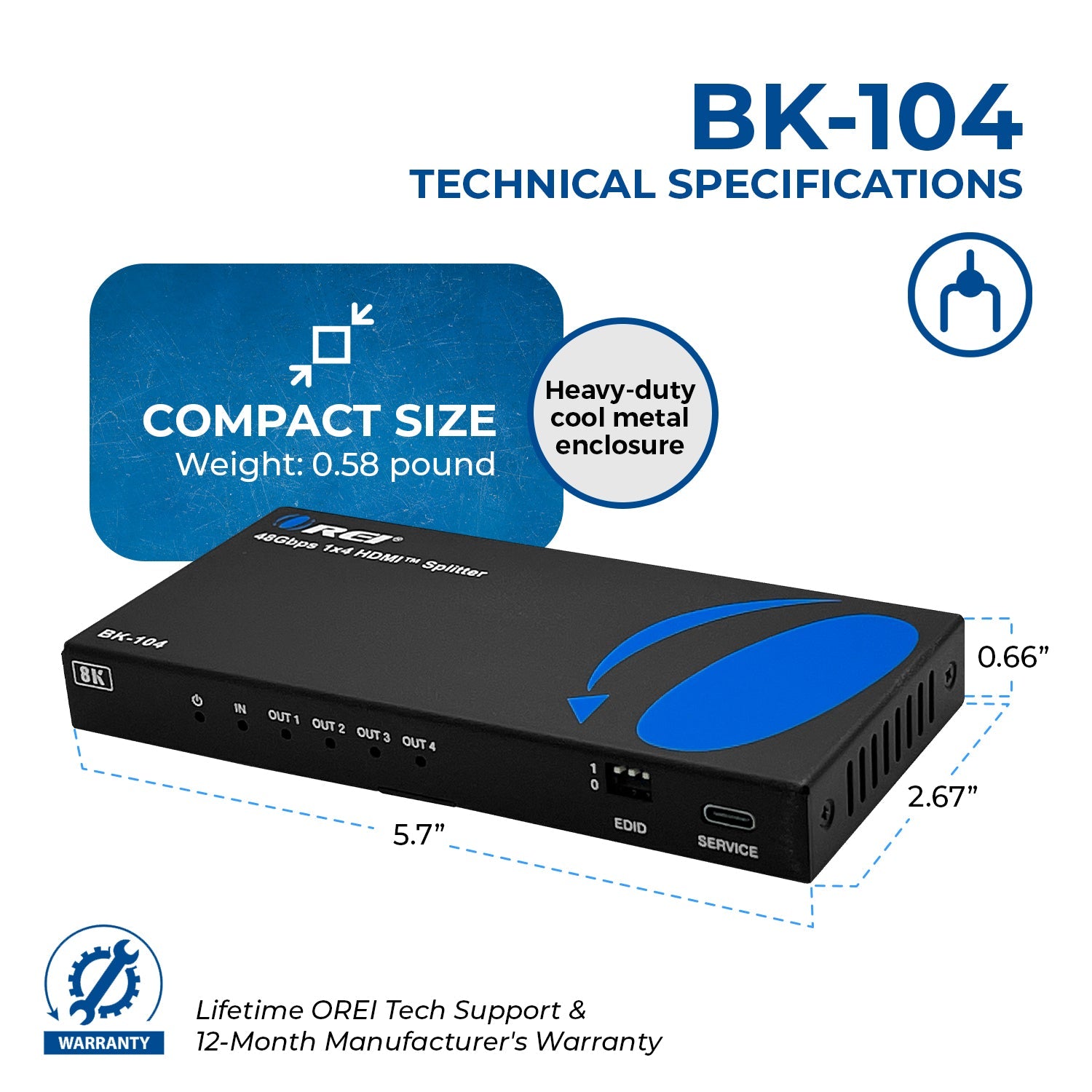

DIMENSIONS & WEIGHT
Length: | 145mm / 5.71in | |
Width: | 68mm / 2.68in | |
Height: | 17mm / 0.67in | |
Weight: | 263g / 9.28oz |
PROPERTIES
Color: | Black |
Housing: | Metal Enclosure |
WARRANTY
1-Year Manufacturer's Warranty |
[/tab]
[tab1]
FAQs
Our splitters will not work with capture cards due to the HDCP encryption on the output
Our HDMI splitter will duplicate or "mirror" a single HDMI source on two HDMI displays. Both displays will show the same video and audio simultaneously
Our splitter does not support extend mode. It only supports mirror/duplicate screen function, each screen will show the same picture
Yes, the power adapter does support 220V
You can use standard HDMI cables up to 15 feet and high quality cables up to 30 feet.
However, you can use fiber optic active HDMI cables up to 200 feet. If it's not a high-quality cable then you may lose the signal in some instances.
No, the HDMI splitters do not support CEC because most customers do not want all the TV's to turn ON as soon as the source is turned on.
[/tab1]
Specifications :
General Information
UPC | 850031132665 |
---|
