1x2 HDMI Splitter W/ Audio Out: 1-in 2-out, UltraHD 8K, EDID (BK-102A)
1x2 HDMI Splitter W/ Audio Out: 1-in 2-out, UltraHD 8K, EDID (BK-102A)
SKU:BK-102A
Couldn't load pickup availability
Description :
OREI BK-102A: 8K 1x2 HDMI Splitter With Audio Extraction, Downscaler & EDID management
Key Features:
-
HDMI 2.1 & HDCP 2.3 Compliant.
-
48Gbps FRL & 18Gbps TMDS video Bandwidth.
-
Video resolution up to 8K@60Hz 4:2:0 12bit and 4K@120hz 4:4:4 12bit.
-
HDR/10/10+, Dolby Vision, and HLG pass-through.
-
VRR, ALLM, QMS, QFT, SBTM support.
-
Audio Extraction through Optical and Analog Outputs.
-
8K to 4K or 8K/4K to 1080P auto downscaling on all outputs.
-
Automatic HDR to SDR Conversion on all outputs.
-

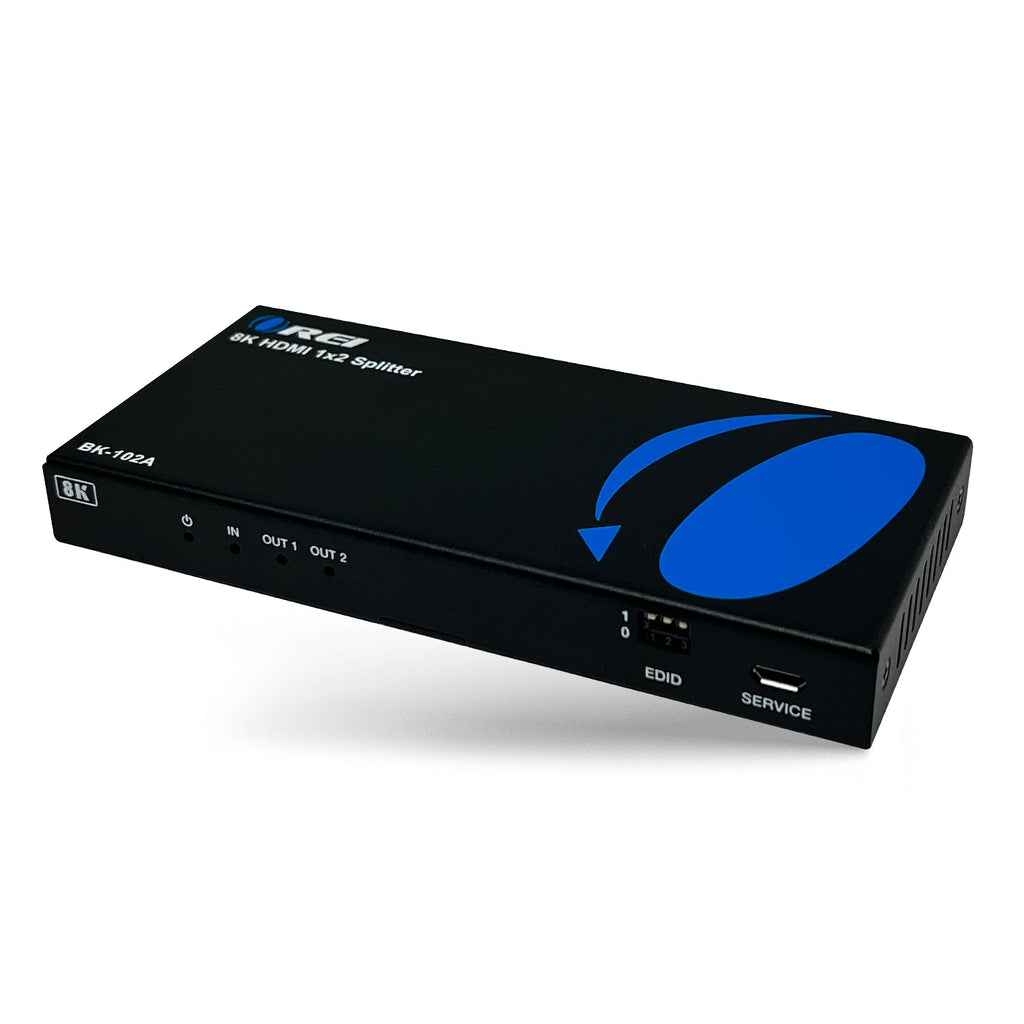

Advanced EDID management.
-
Compact and robust design

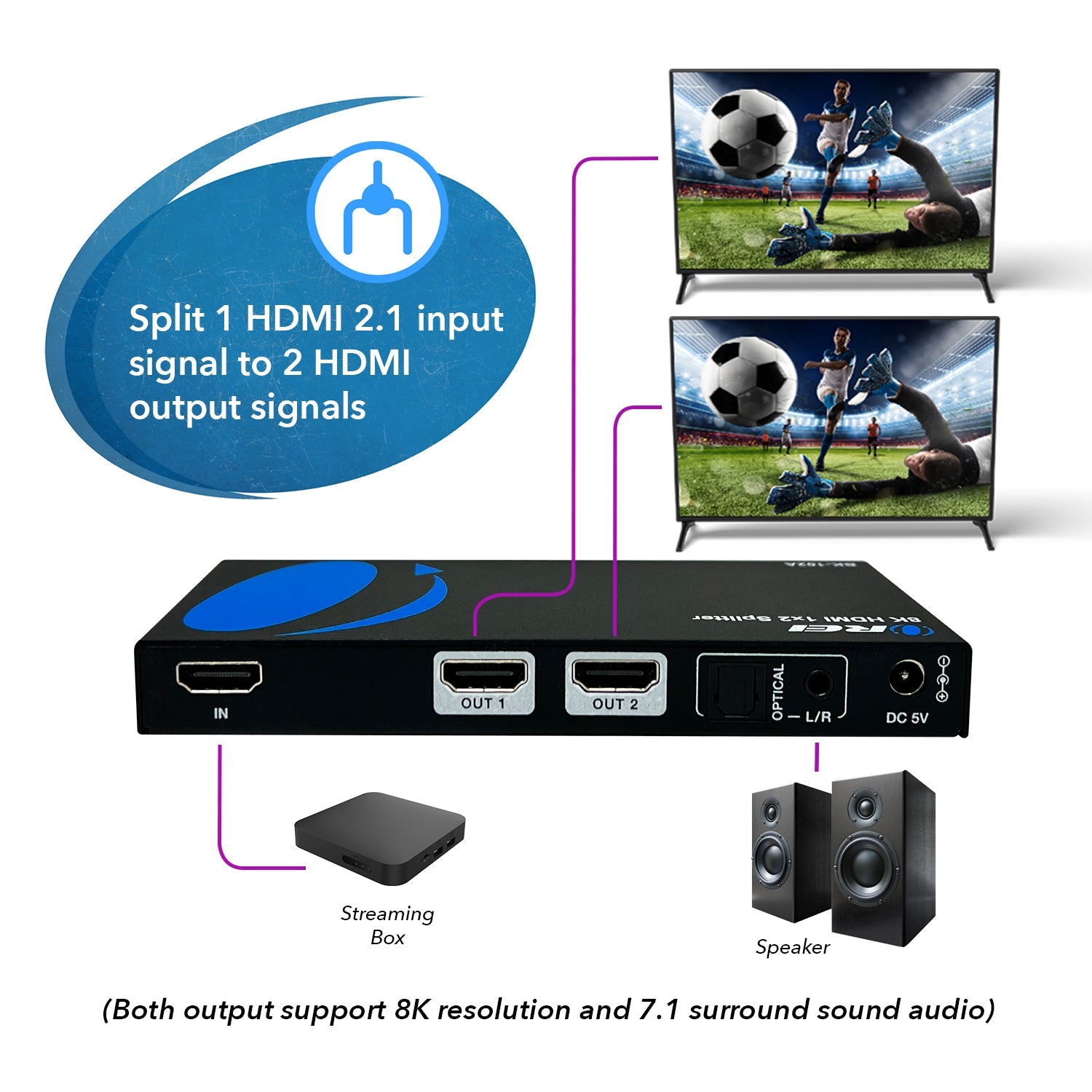

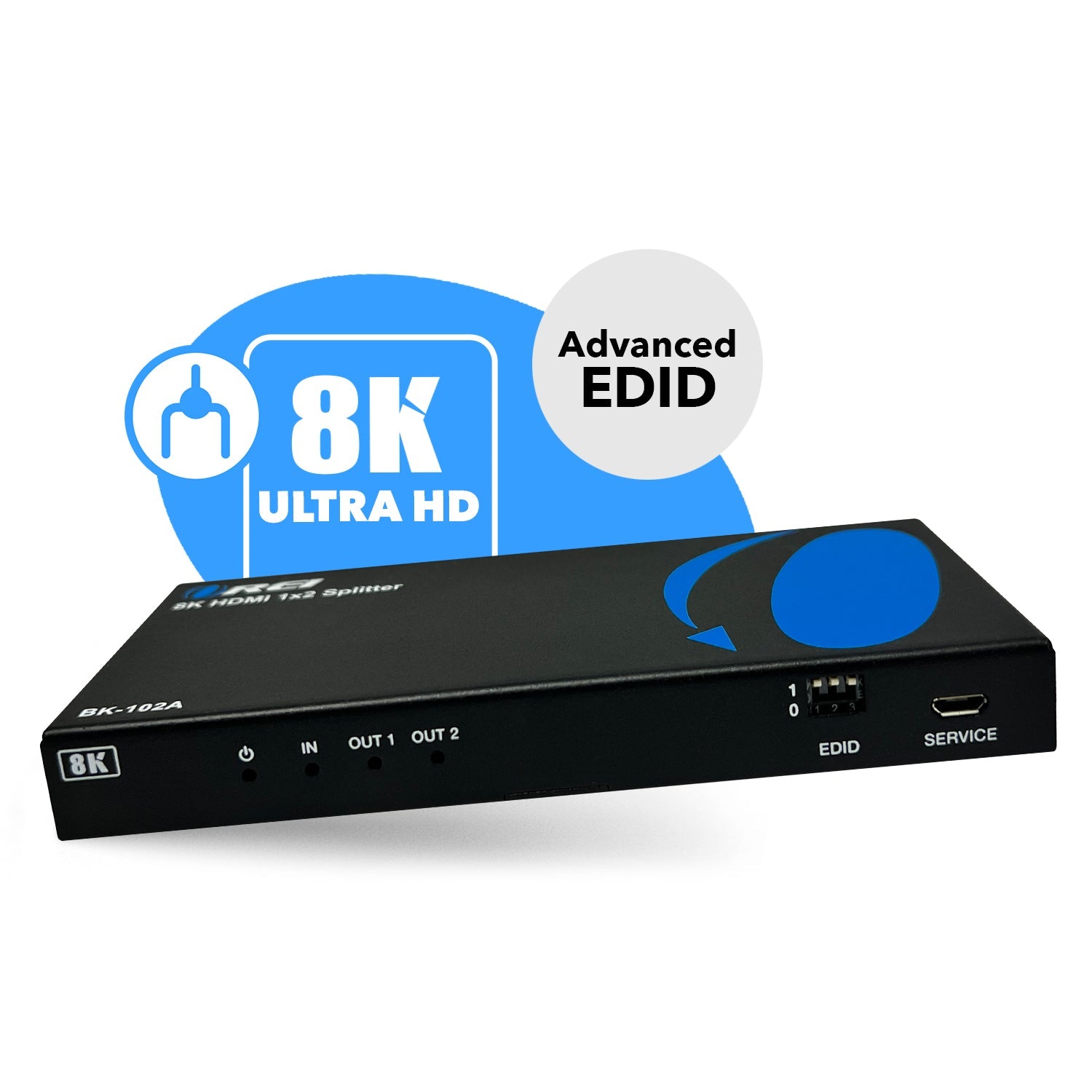

The BK-102A 8K 1x2 Splitter is an advanced solution for splitting a single media signal to 2 HDMI outputs synchronously, with video resolutions up to 8K@60Hz 4:2:0 12bit. It features audio extraction via optical and analog outputs, allowing you to separate audio for an immersive experience. It supports video bandwidth of up to 48Gbps FRL & 18Gbps TMDS, and complies with HDMI 2.1 and HDCP 2.3 standards. HDR/10/10+, Dolby Vision, and HLG pass through is supported. The device features advanced EDID management and can also downscale from 8K to 4K and from 8K/4K to 1080p. Moreover, it also features automatic HDR to SDR conversion for all outputs. It also features a compact design and plug & play setup.
[tab]

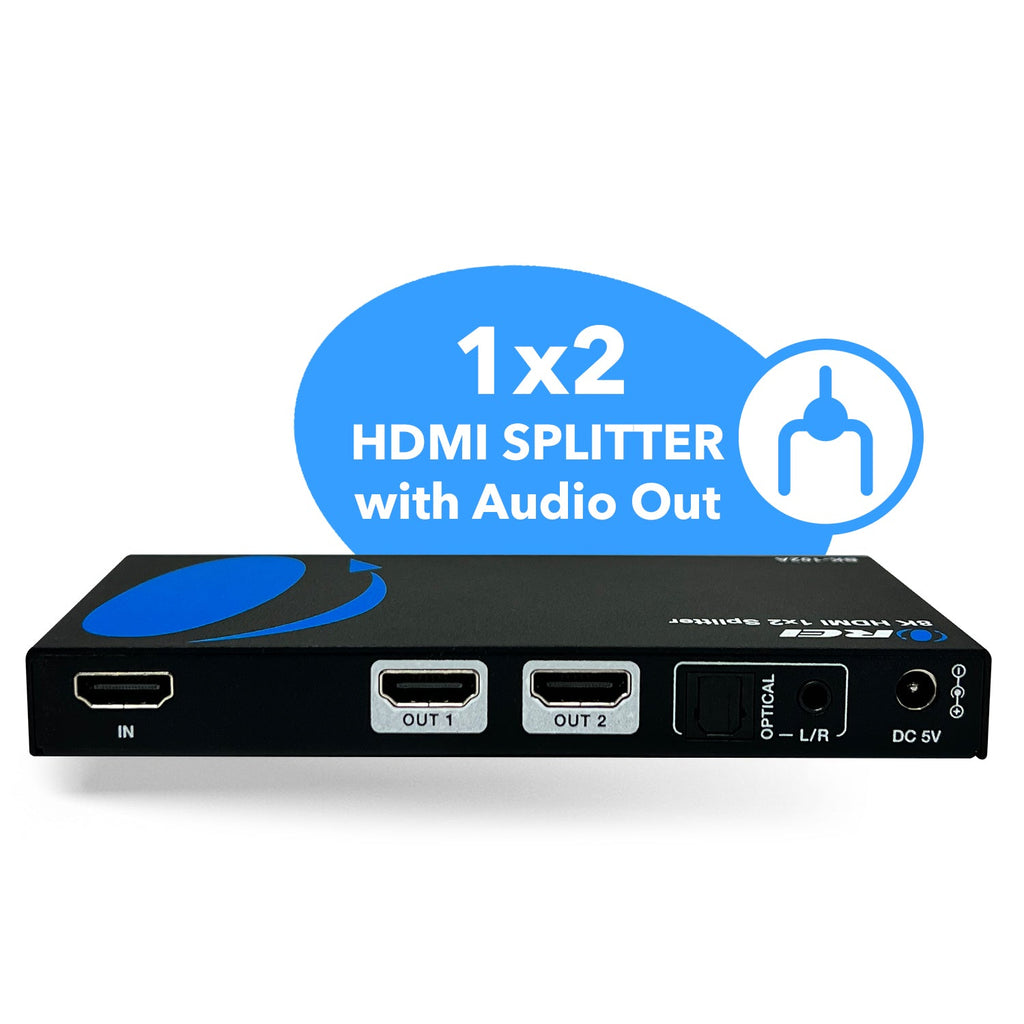

CONNECTIVITY
| INPUT: | 1 × HDMI [Type A, 19-pin female] | |
| OUTPUT: | 2 × HDMI [Type A, 19-pin female] | |
| 1 × L/R [3.5mm Stereo Mini-jack] | ||
| 1 × Optical [S/PDIF] | ||
| CONTROL: | 1× SERVICE [USB-C, Update port] |
PACKAGE CONTENTS
| 1x BK-102A HDMI Splitter |
| 1x Power Adapter |
| User Manual |
SUPPORTED HDMI CABLES
| HDMI 2.0/2.1 | We recommend using high-quality HDMI 2.0/2.1 cables under 30 feet for optimum performance |
EXTENDING DISTANCE
| 8K@60Hz: | 10 Feet | |
| 4K@60Hz: | 30 Feet |
VIDEO OUTPUT
| Video Bandwidth: | 48Gbps FRL & 18 Gbps TMDS |
| Video Resolutions: | Up to 8K@60Hz 4:2:0 or 4K@120Hz 4:4:4 |
ADDITIONAL FEATURES
| CEC: | No |
| ARC: | No |
| USB KVM: | No |
| PoC/PoE: | No |
| IR Control: | No |
| Downmix: | No |
| Downscale: | Yes |
| Over IP: | No |
| HDBaseT: | No |
| RS-232: | No |
AUDIO SUPPORT
| HDMI Audio Formats: |
LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
|
| Optical Audio Formats: |
LPCM/Dolby/DTS 5.1CH
|
| L/R Audio Formats: |
LPCM 2.0
|
COMPLIANCES
| HDMI Compliance | HDMI 2.1 |
| HDCP Compliance | HDCP 2.3 |
POWER
| Power Consumption: | 4.5W (Max) | |
| Power Supply: | Input: AC 100-240V 50/60Hz | |
| Output: DC 5V/2A |

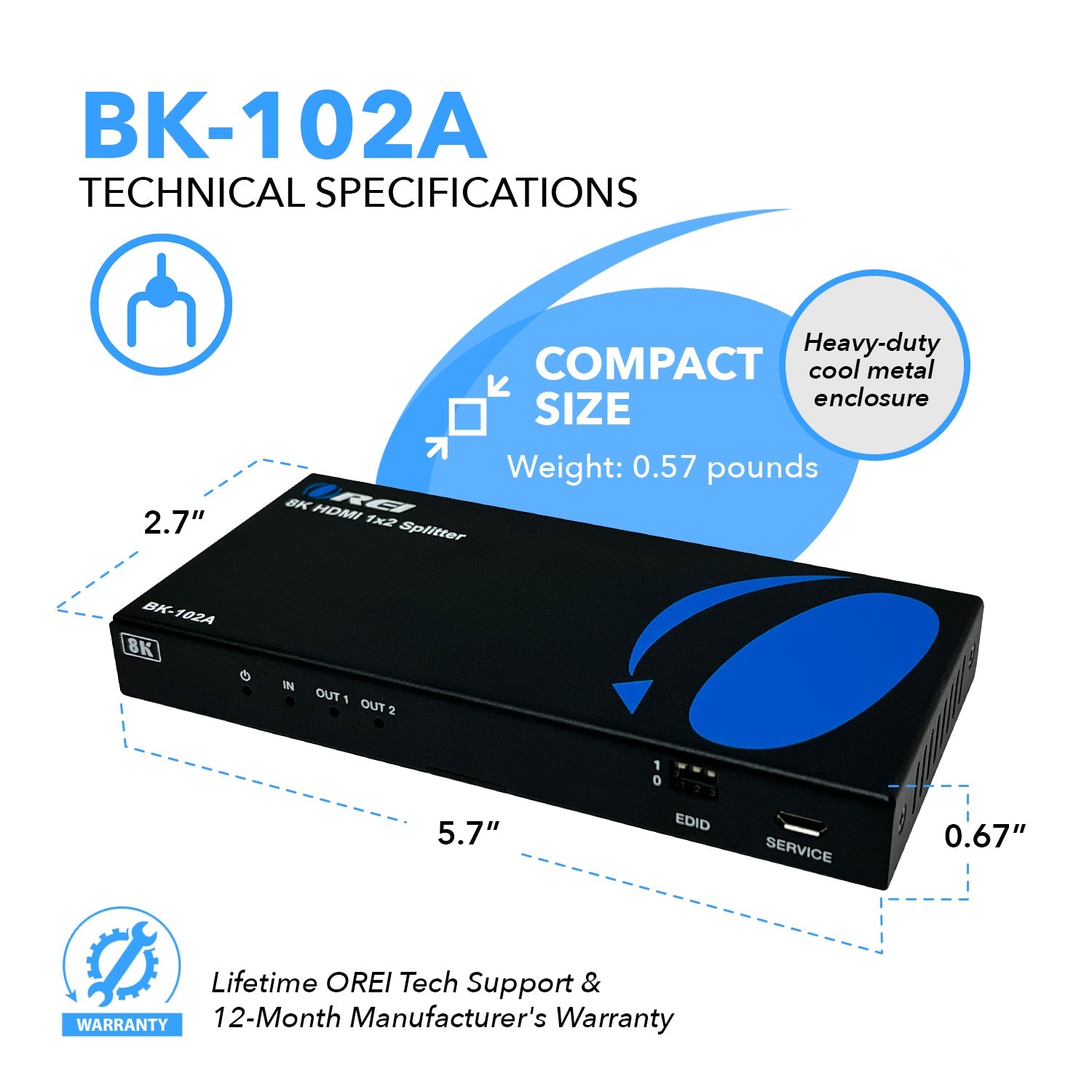

DIMENSIONS & WEIGHT
| Length: | 145mm / 5.71in | |
| Width: | 68mm / 2.68in | |
| Height: | 17mm / 0.67in | |
| Weight: | 260g / 9.17oz |
PROPERTIES
| Color: | Black |
| Housing: | Metal Enclosure |
WARRANTY
| 1-Year Manufacturer's Warranty |
[/tab]
[shortdes]
- 1 in 2 out 8K HDMI splitter With Audio Extraction
- Resolutions up to 8K@60Hz 4:2:0
- 8K to 4K and 8K/4K to 1080p Downscale
[/shortdes]
Specifications :
General Information
| UPC | 850031132337 |
|---|
