18Gbps 4x4 Seamless UHD Matrix (UHD-404VW)
18Gbps 4x4 Seamless UHD Matrix (UHD-404VW)
SKU:UHD-404VW
Regular price
$999.99
Regular price
$1,199.99
Sale price
$999.99
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Specifications
Description :

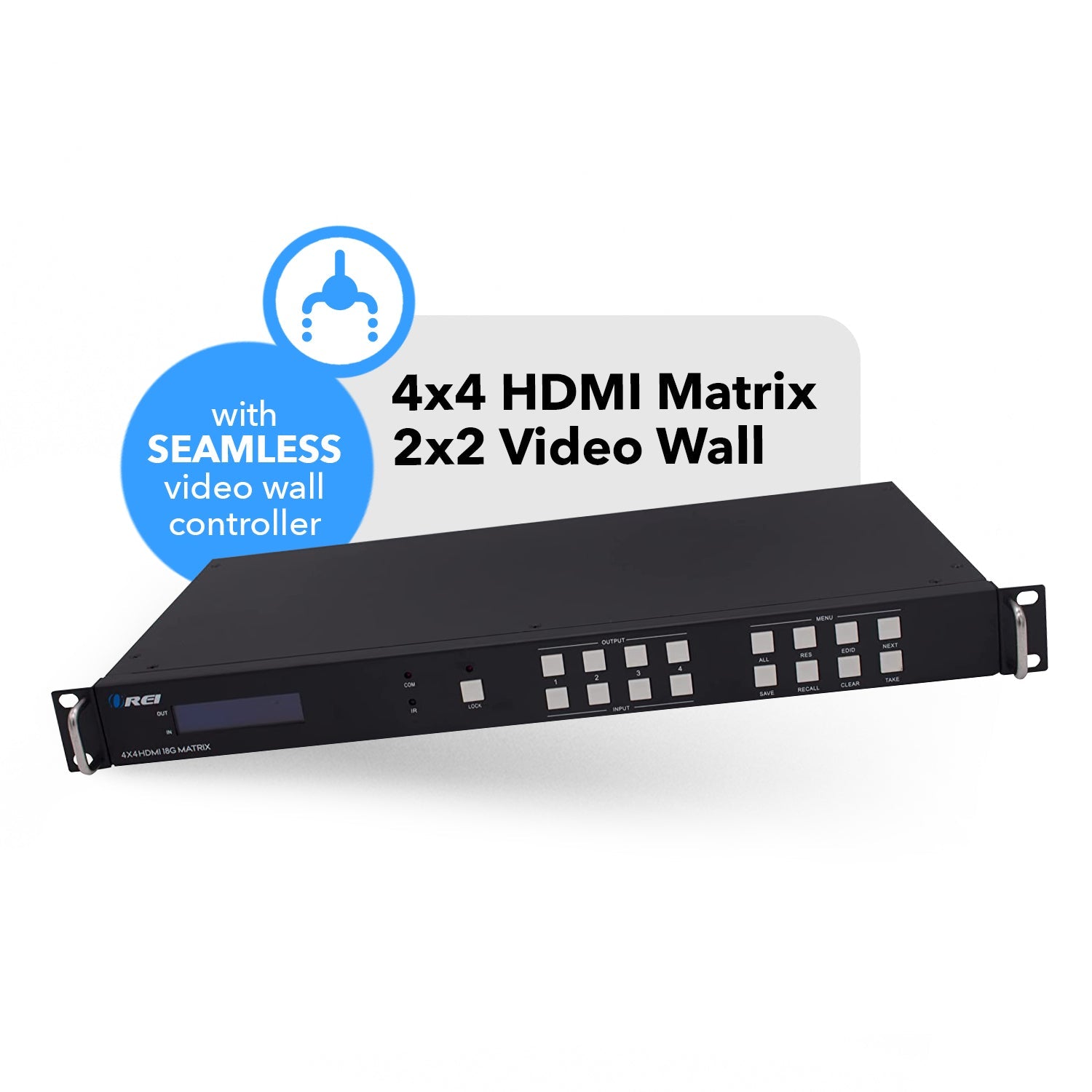

UHD-404VW: 4x4 Matrix with Video Wall controller

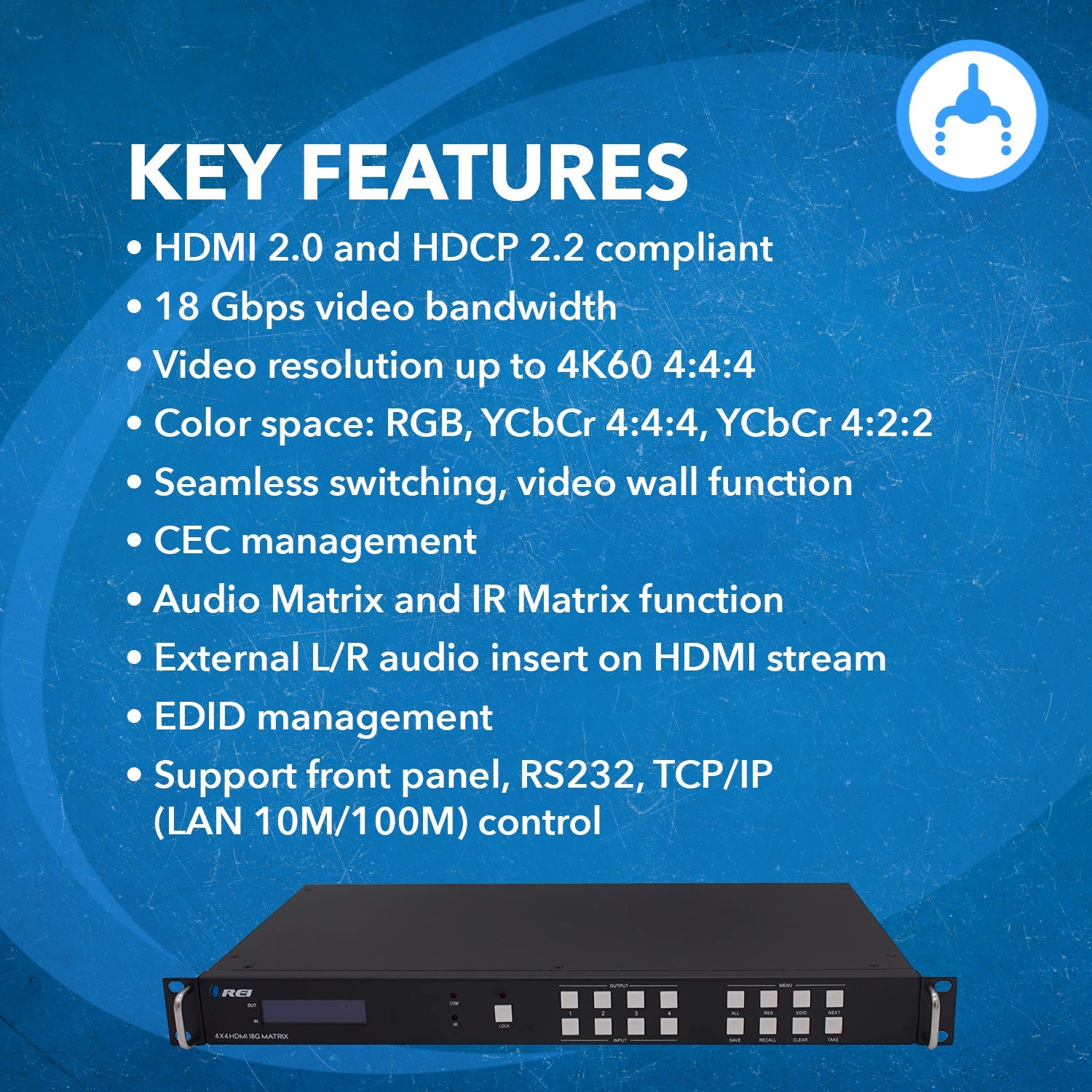

Key Features:
- HDMI 2.0 and HDCP 2.2 compliant
- Video resolutions up to 4K@60Hz and 2k@60Hz
- 18Gbps video bandwidth

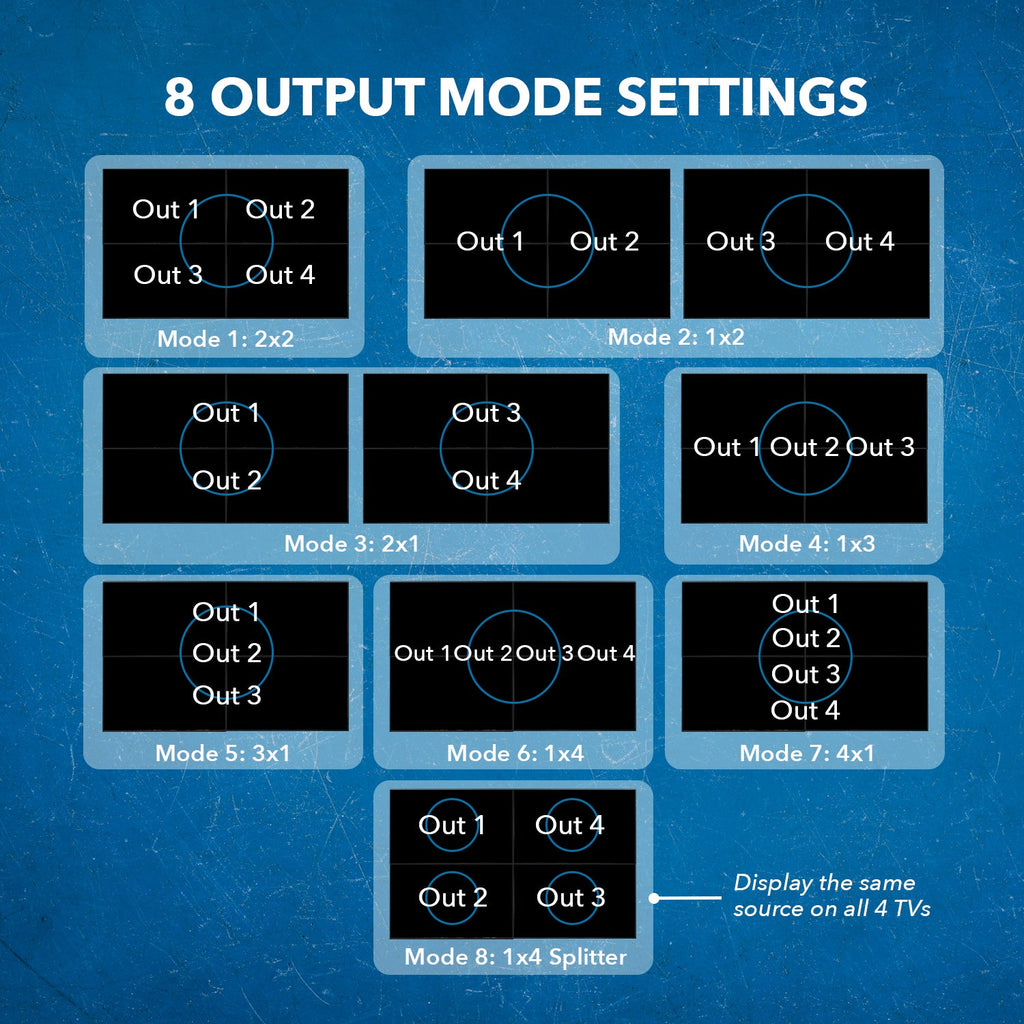

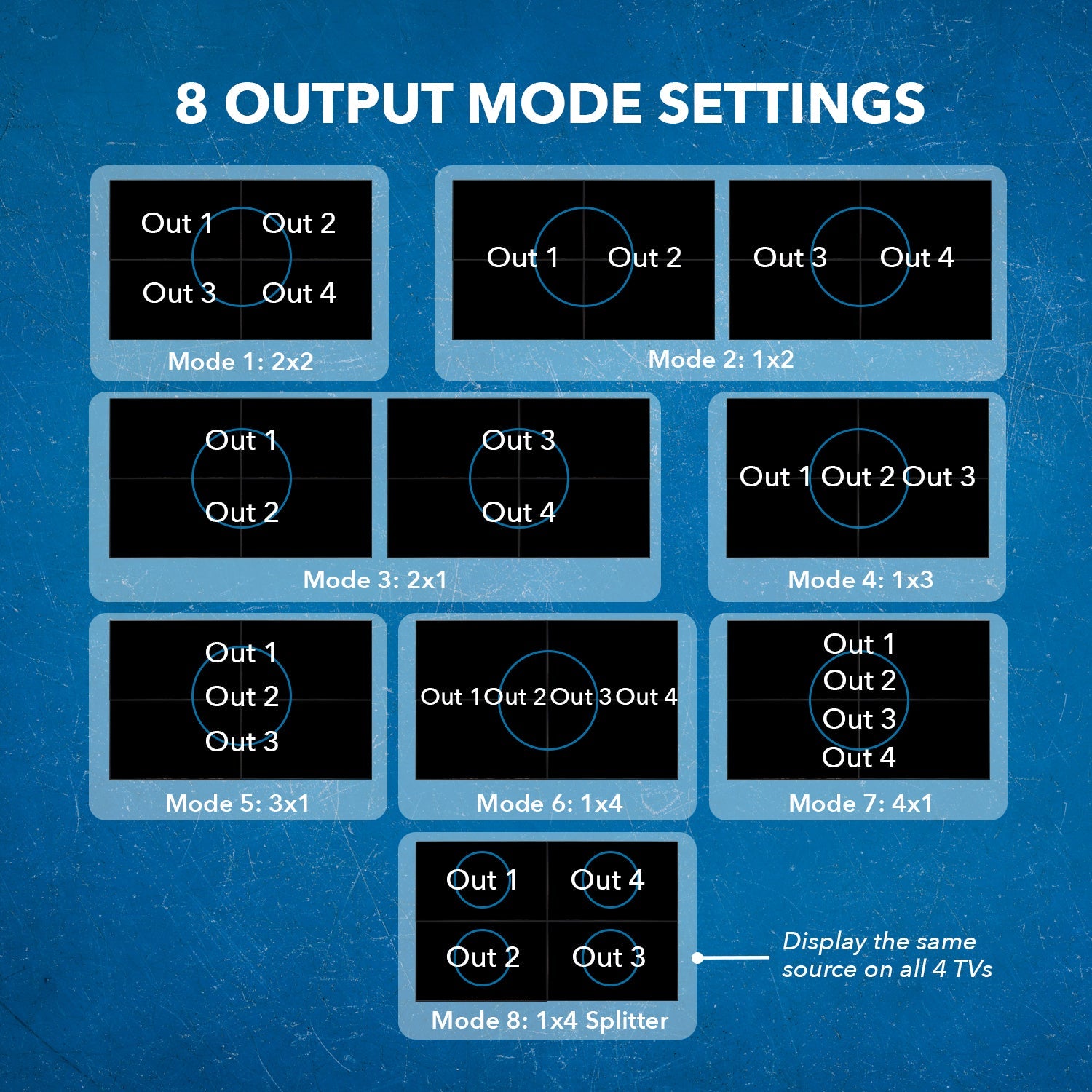

- Various display modes: 2x2, 1x2, 1x3, or 1x4
- Bezel adjustment and 180-degree rotation
- IR and Audio matrixing
- RS-232 & TCP/IP control
- Scene saving and recalling up to 8 scenes

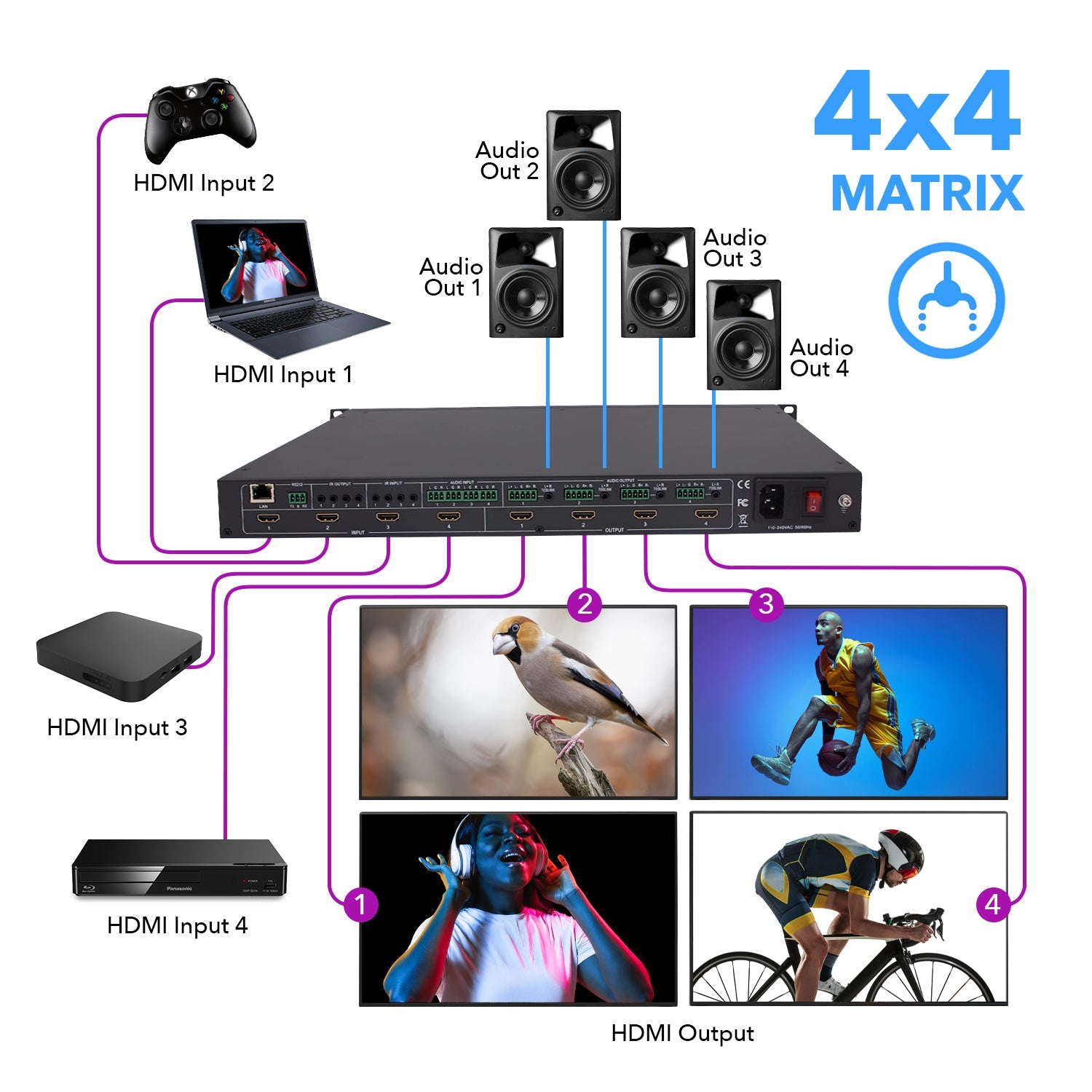

The UHD-404VW stands as a 4x4 Matrix with an embedded video wall feature. It supports video resolutions up to 4K@60hz and 2k@60Hz complies with HDMI 2.0 & HDCP 2.2 standards, boasting an 18Gbps video bandwidth. Doubling as both a conventional 4x4 matrix and a video wall controller, it incorporates IR and audio matrixing. Efficient control is ensured through RS-232 or TCP/IP connections using the provided software or WebGUI. Enjoy additional perks like 180-degree rotation for the top two displays in 2x2 mode and bezel adjustment. Perfectly suited for concerts, events, and a variety of commercial or home setups.
[shortdes]
-

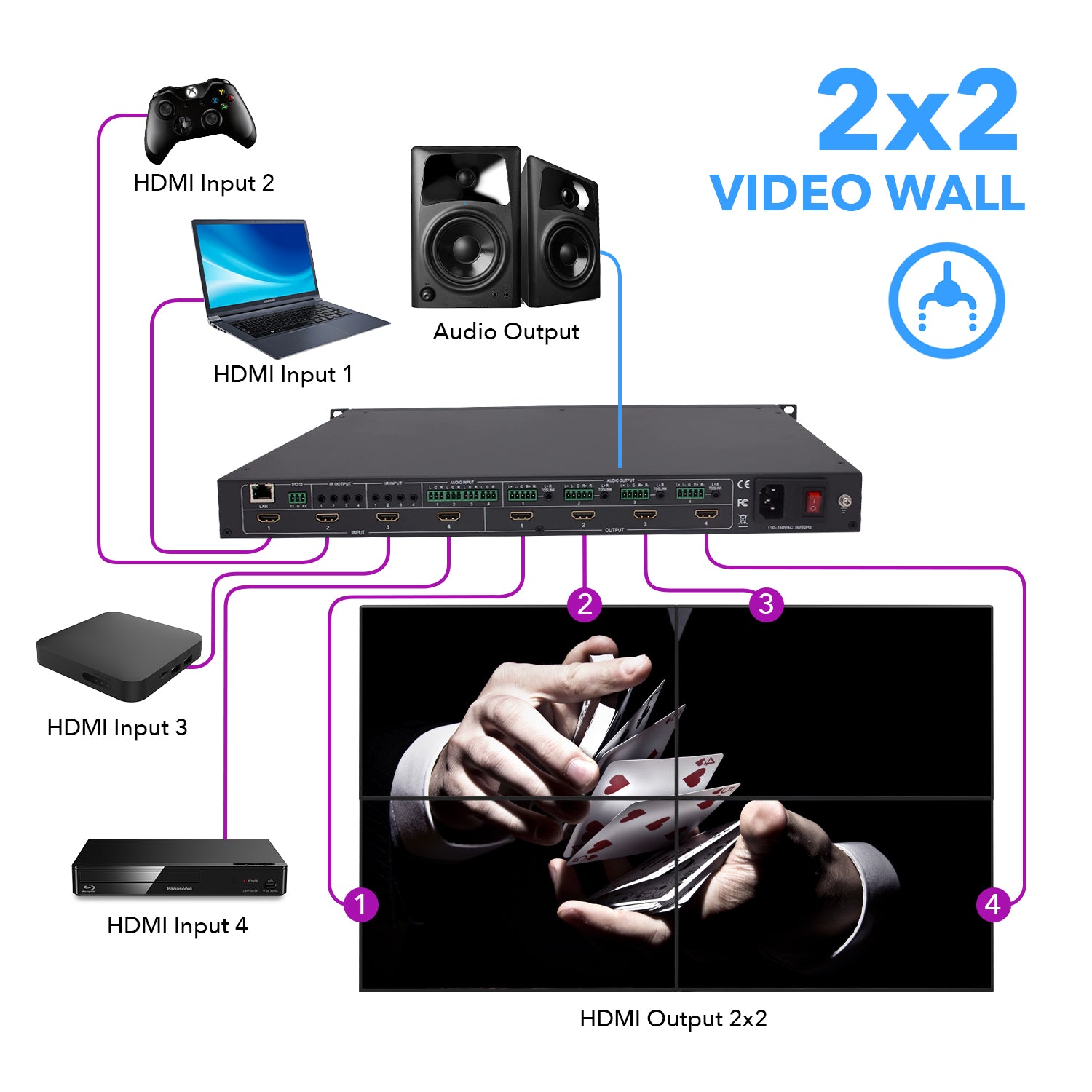

2x2 Video wall controller
-
Video resolutions up to 4K@60Hz and 2k@60Hz
-
IR matrixing and audio matrixing
[/shortdes]
[tab]

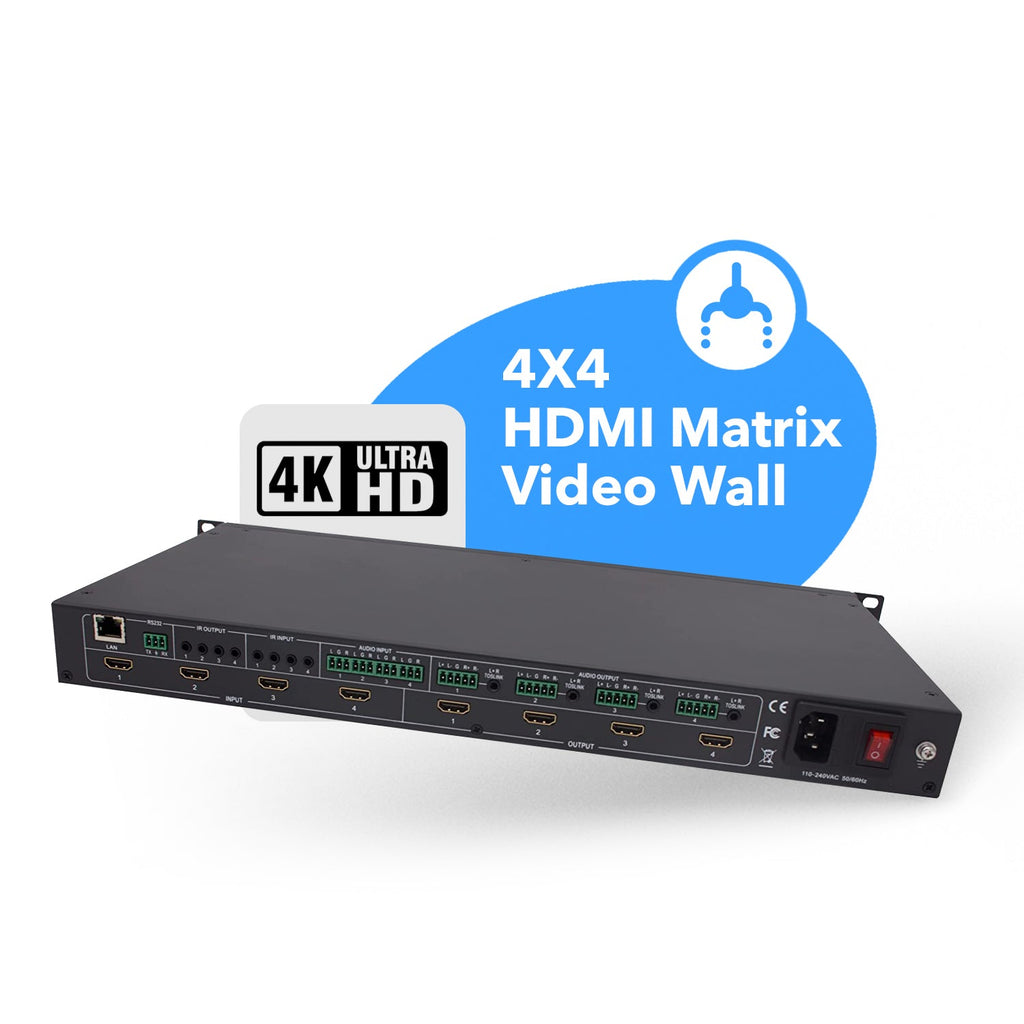

CONNECTIVITY
| INPUT: | 4 × HDMI [Type A, 19-pin female] | |
| 4 × L/R [3-pin phoenix] | ||
| OUTPUT: | 4 × HDMI [Type A, 19-pin female] | |
| 4 × L/R [5-pin phoenix] | ||
| 4 × L/R+Toslink [mini Toslink] | ||
| CONTROL: | 1 x LAN [RJ45, 8-pin, female] | |
| 4 × IR IN [3.5mm Stereo Mini-jack] | ||
| 4 × IR OUT [3.5mm Stereo Mini-jack] | ||
| 1 × RS-232 [3-pin Phoenix connector] |
PACKAGE CONTENTS
| 1x UHD-404VW |
| 4x IR Receiver Cable |
| 4x IR Blaster Cable |

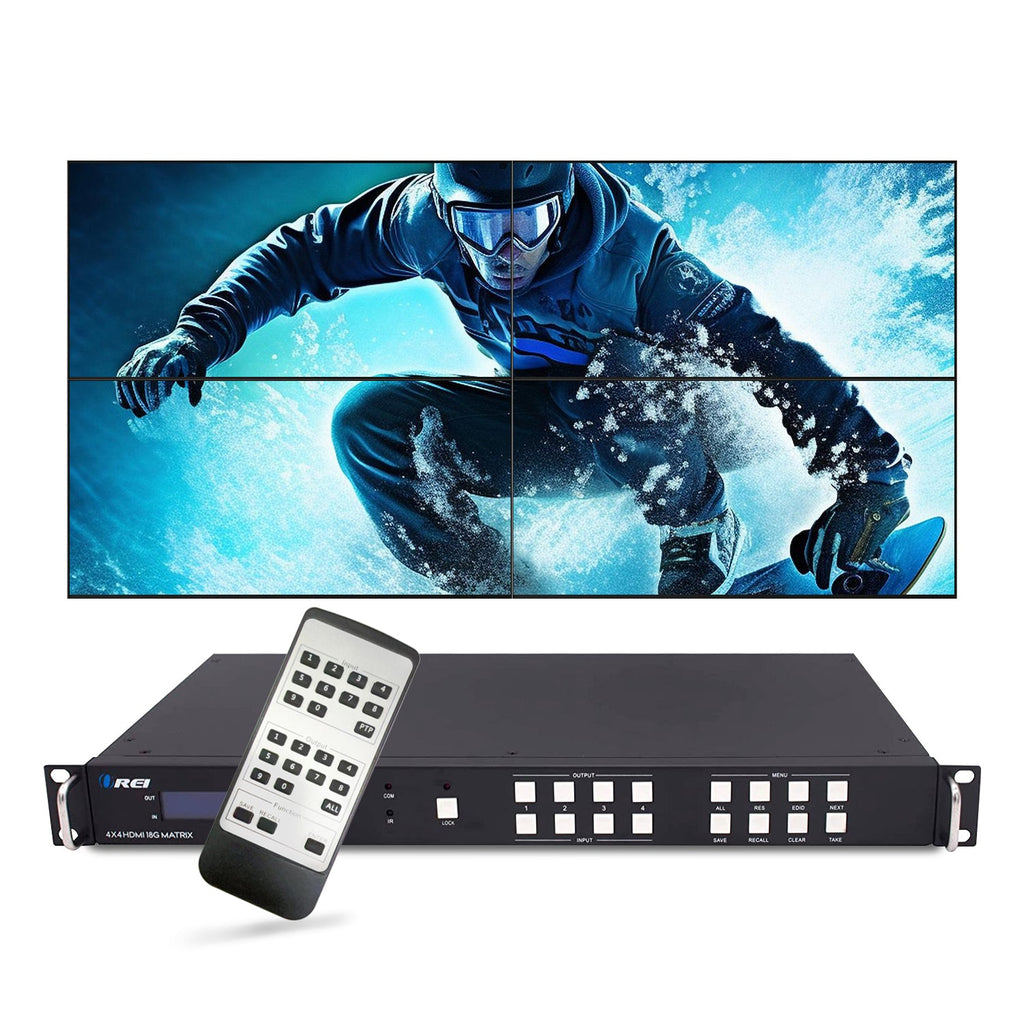

| 1x Remote |
| 1x 3-Pin Phoenix connector |
| 1x AC Power cord |
| User Manual |
SUPPORTED HDMI CABLES
| HDMI 2.0/ 2.1 | We recommend using high-quality HDMI 2.0/2.1 cables under 30 feet for optimum performance |
EXTENDING DISTANCE
| 4K@60Hz: | 30 Feet |
VIDEO OUTPUT
| Video Bandwidth: | 18 Gbps |
| Video Resolutions: | Up to 4K@60Hz, 2k@60Hz |
ADDITIONAL FEATURES
| CEC: | Yes |
| ARC: | No |
| USB KVM: | No |
| PoC/PoE: | No |
| IR Control: | Yes |
| Downmix: | No |
| Downscale: | No |
| Over IP: | No |
| HDBaseT: | No |
| RS-232: | Yes |
LOOP-OUT / LOCAL PORTS
| Has loop out port: | No |
| Number of Loop out ports: | 0 |
AUDIO SUPPORT
| HDMI Audio Formats: |
PCM 2.0 |
| 3.5mm Analog Audio Formats: | PCM 2.0 |
COMPLIANCES
| HDMI Compliance | HDMI 2.0 |
| HDCP Compliance | HDCP 2.2 |
POWER
| Power Consumption: | 60W (Max) | |
| Power Supply: | Input: AC 100-240V 50/60Hz |

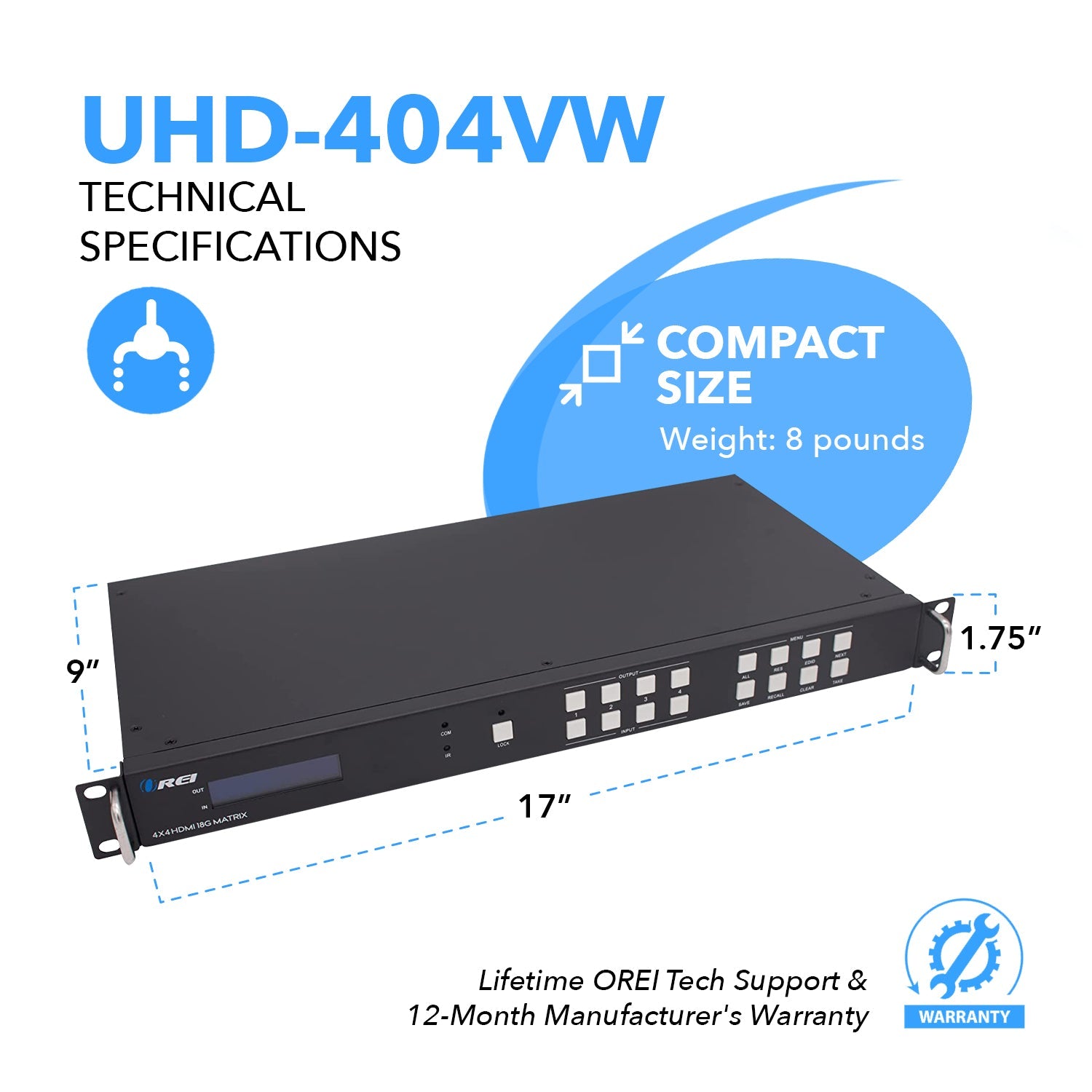

DIMENSIONS & WEIGHT
| Length: | 430mm / 16.93in | |
| Width: | 220mm / 8.66in | |
| Height: | 44mm / 1.73in | |
| Weight: | 5kg / 11.02lbs |
PROPERTIES
| Color: | Black |
| Housing: | Metal Enclosure |
WARRANTY
| 1-Year Manufacturer's Warranty |
[/tab]
Specifications :
General Information
| UPC | 850008956539 |
|---|
