18Gbps 1×8 HDMI Splitter (UHDS-108)
18Gbps 1×8 HDMI Splitter (UHDS-108)
SKU:UHDS-108
Couldn't load pickup availability
Description :

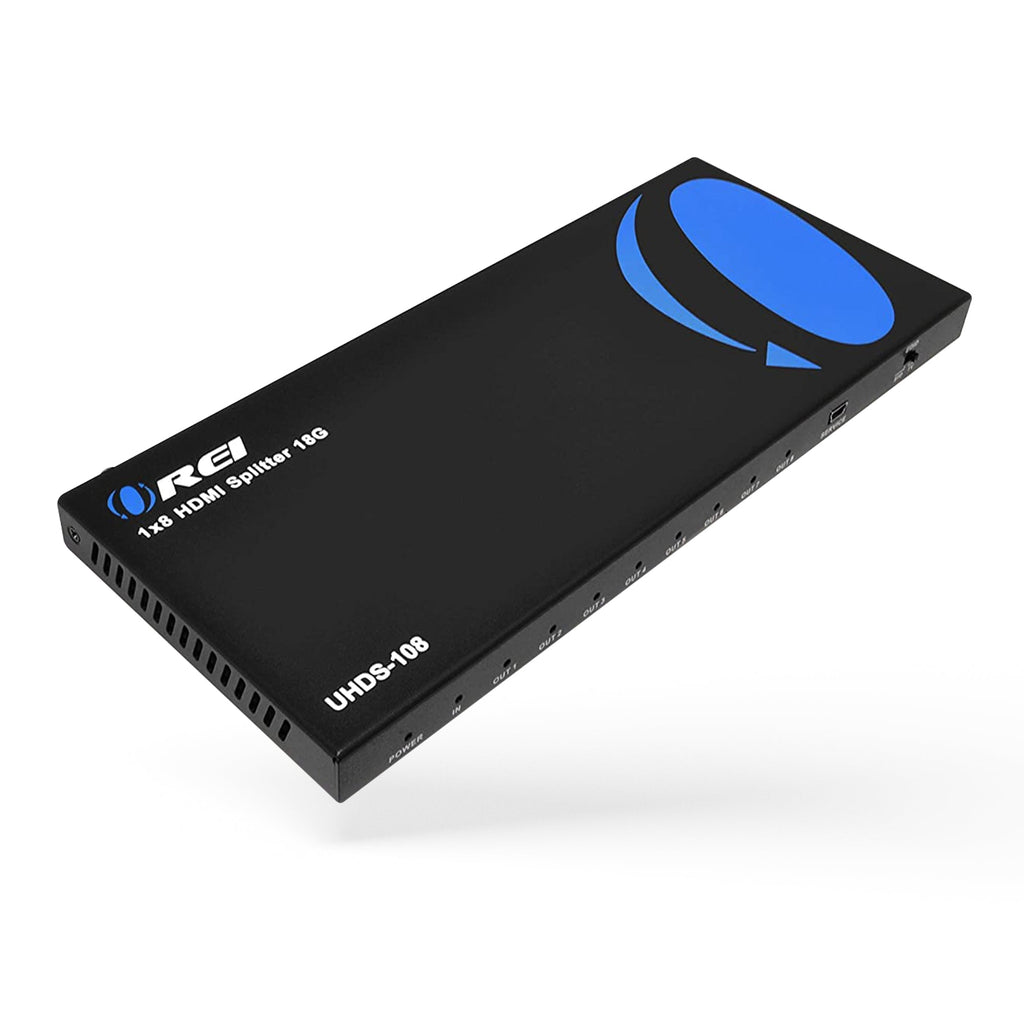

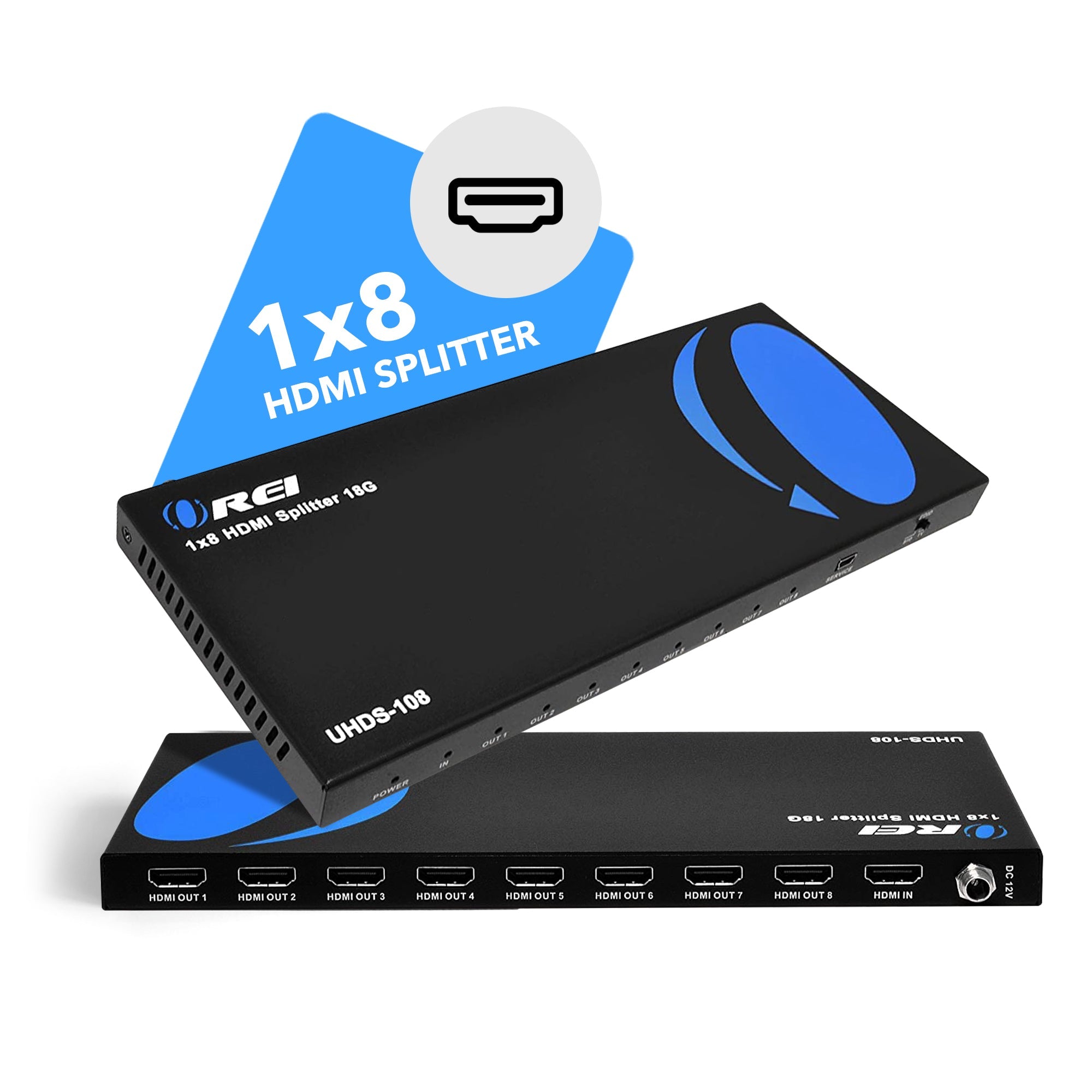

OREI UHDS-108: 1x8 18Gbps 4K HDMI Splitter
Key Features:
-
HDMI 2.0b and HDCP 2.2 compliant
-
Video resolutions up to 4K@60Hz and 2K@60Hz
-
18Gbps video bandwidth
-
LPCM 7.1, Dolby True HD, and DTS-HD Master Audio support
-
EDID dip switch to toggle between 2 presets:STD: Set the output to 1080p@60HzTV: Copy the EDID of the display connected to OUT1
-
Plug-and-play setup

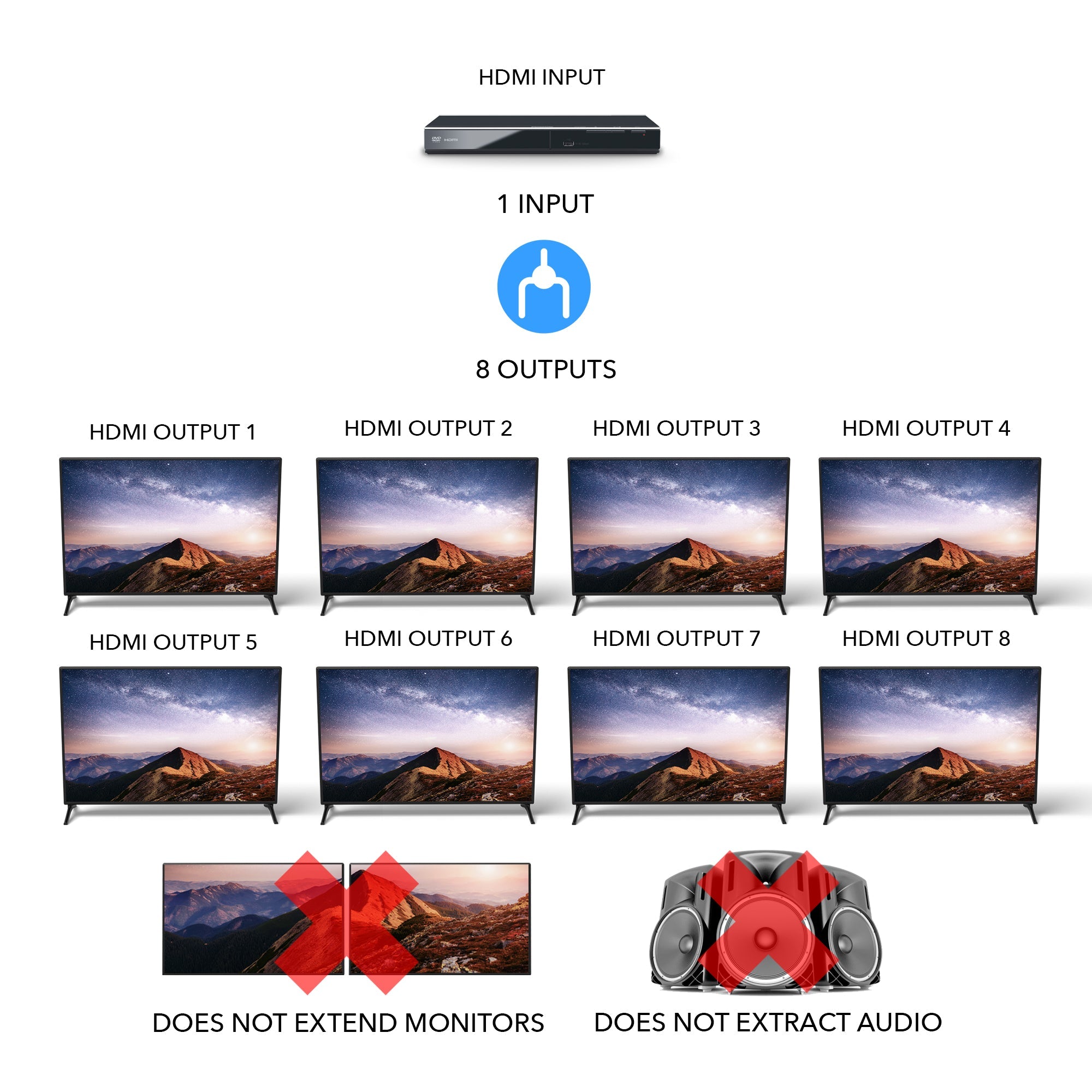

The UHDS-108 HDMI splitter can be used to display media content across 8 displays simultaneously. This splitter is HDMI 2.0b and HDCP 2.2 compliant with a video bandwidth of 18Gbps, and resolutions up to 4K@60Hz and 2K@60Hz. Features support for LPCM 7.1, Dolby TrueHD, and DTS-HD Master Audio. It features a toggle switch for EDID management. This HDMI Splitter makes it easy to mirror audio/video content from any media source to 8 displays simultaneously making it the best choice for any commercial or residential setups.
[shortdes]
- 1x8 4K HDMI splitter
- Resolutions up to 4K@60Hz and 2K@60Hz
-
EDID management
[/shortdes]
[tab]
CONNECTIVITY
| INPUT: | 1 × HDMI [Type A, 19-pin female] | |
| OUTPUT: | 8 × HDMI [Type A, 19-pin female] | |
| CONTROL: | 1× SERVICE [Mini-USB B, Update port] |
PACKAGE CONTENTS
| 1x UHDS-104 HDMI Splitter |

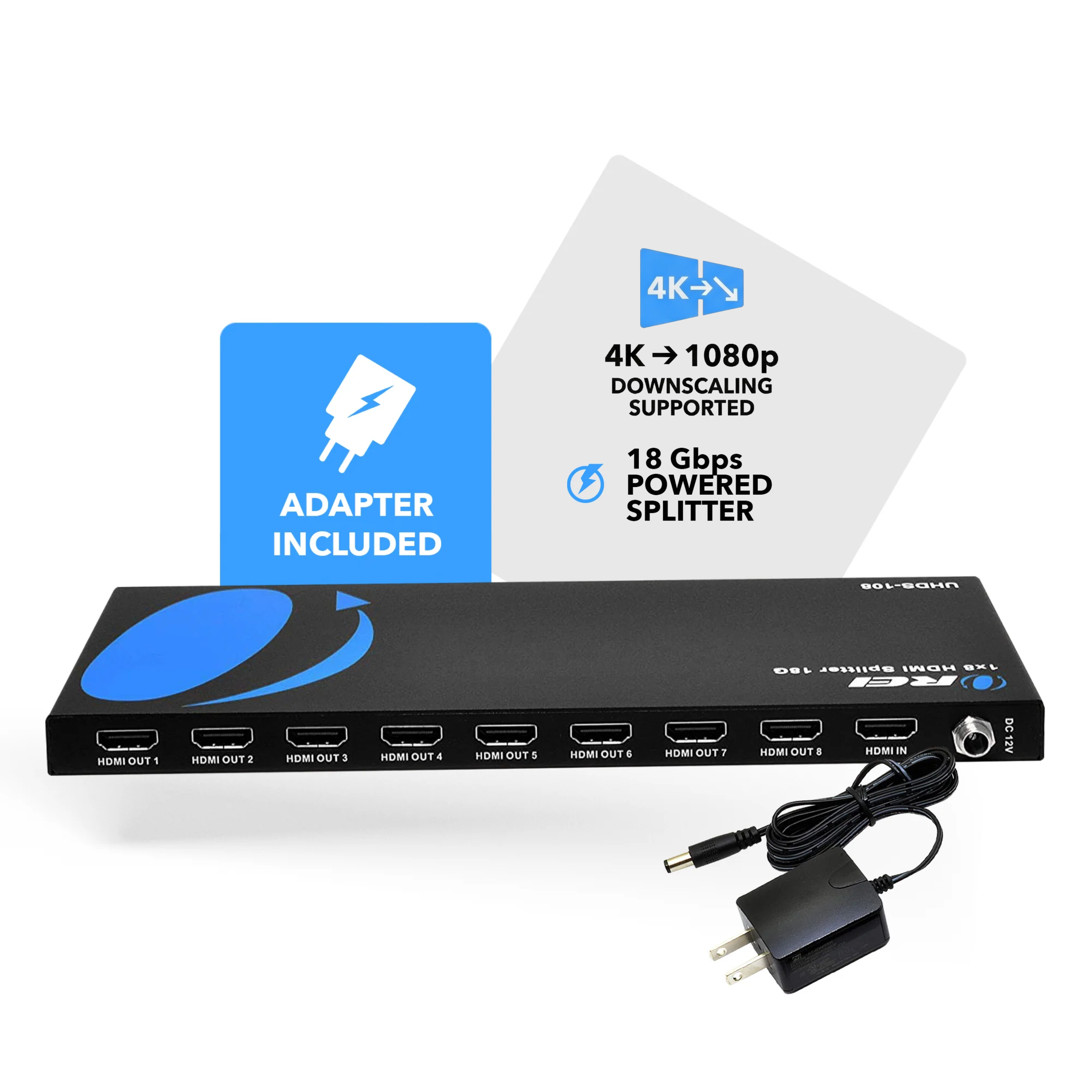

| 1x Power Adapter |
| User Manual |
SUPPORTED HDMI CABLES
| HDMI 2.0/2.1 | We recommend using high-quality HDMI 2.0/2.1 cables under 30 feet for optimum performance |
EXTENDING DISTANCE
| 4K@30Hz: | 30 Feet |
VIDEO OUTPUT
| Video Bandwidth: | 18Gbps |
| Video Resolutions: | Up to 4K@60Hz and 2K@60Hz |
ADDITIONAL FEATURES
| CEC: | No |
| ARC: | No |
| USB KVM: | No |
| PoC/PoE: | No |
| IR Control: | No |
| Downmix: | No |
| Downscale: | No |
| Over IP: | No |
| HDBaseT: | No |
| RS-232: | No |

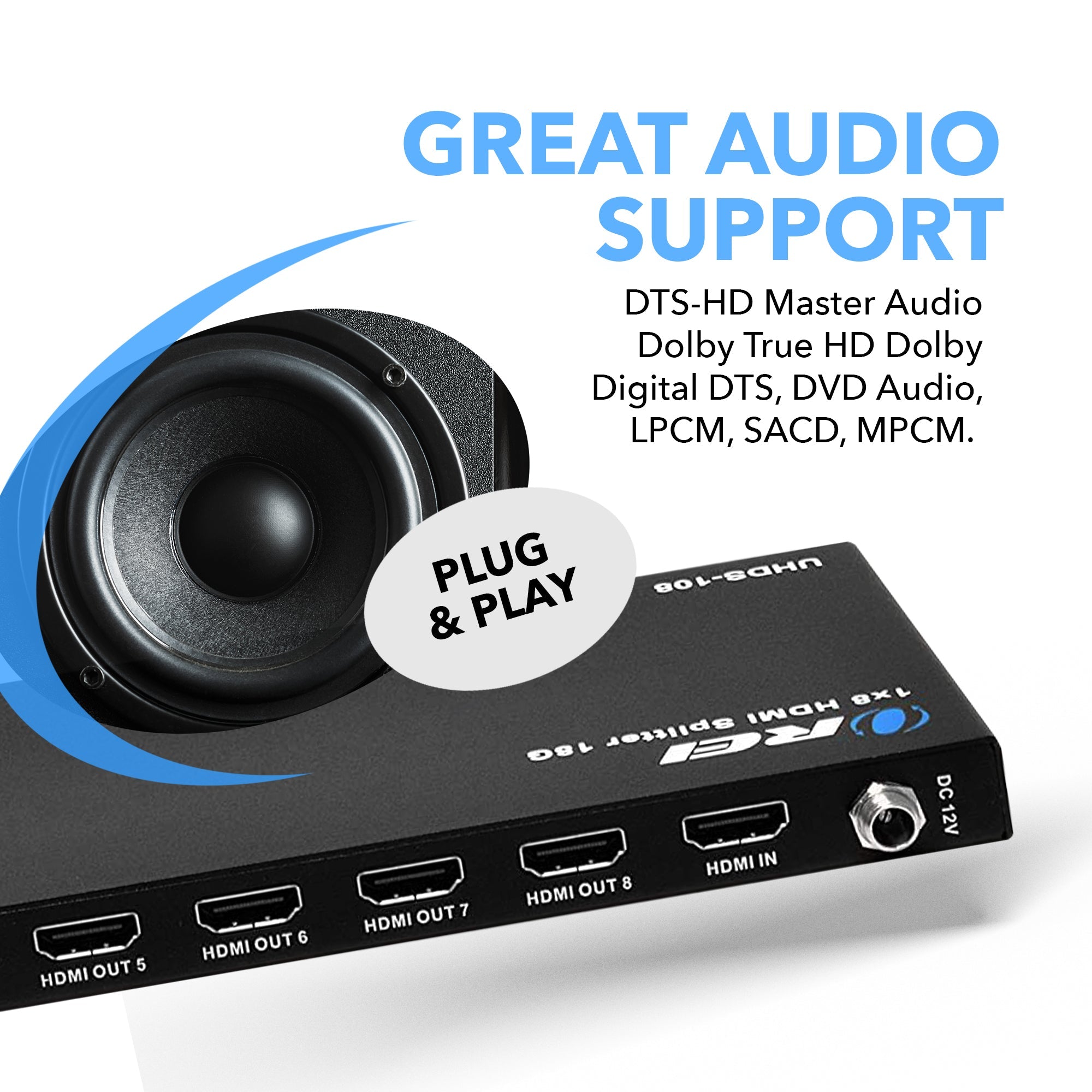

AUDIO SUPPORT
| HDMI Audio Formats: |
PCM 2CH, LPCM 7.1/5.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos and DTS:X
|
COMPLIANCES
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 |
POWER
| Power Consumption: | 6.15W (Max) | |
| Power Supply: | Input: AC 100-240V 50/60Hz | |
| Output: DC 12V/1A |
DIMENSIONS & WEIGHT
| Length: | 243mm / 9.57in | |
| Width: | 102mm / 4.01in | |
| Height: | 16mm / 0.63in | |
| Weight: | 572g / 1.26lbs |
PROPERTIES
| Color: | Black |

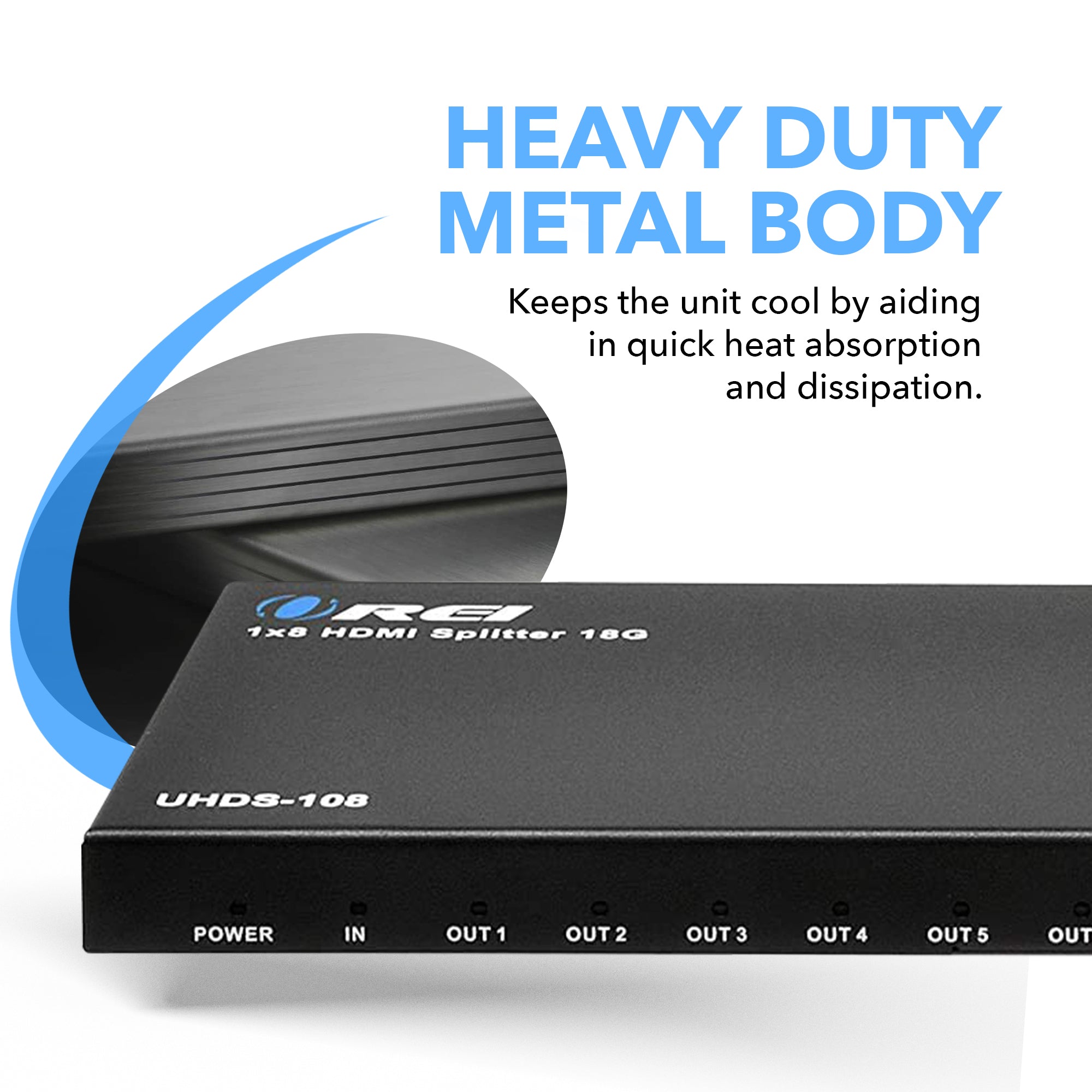

| Housing: | Metal Enclosure |
WARRANTY
| 1-Year Manufacturer's Warranty |
[/tab]
[tab1]
FAQs
Our splitters will not work with capture cards due to the HDCP encryption on the output
Our HDMI splitter will duplicate or "mirror" a single HDMI source on two HDMI displays. Both displays will show the same video and audio simultaneously
Our splitter does not support extend mode. It only supports mirror/duplicate screen function, each screen will show the same picture
Yes, the power adapter does support 220V
You can use standard HDMI cables up to 15 feet and high quality cables up to 30 feet.
However, you can use fiber optic active HDMI cables up to 200 feet. If its not a high quality cable then you may lose the signal in some instances.
No, the HDMI splitters do not support CEC because most customers do not want all the TV's to turn ON as soon as the source is turned ON.
The output resolution support up to 4K x 2K@30Hz,1080P@120Hz,and 1080P 3D@60Hz.
DTS-HD/Dolby-true-HD/LPCM 7.1/DTS/Dolby-AC3/DSD
It supports HDMI 1.4A
[/tab1]
Specifications :
General Information
| UPC | 850008956867 |
|---|
