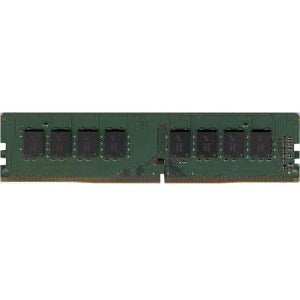

Dataram 16GB DDR4 SDRAM Memory Module DTI24U2T8W/16G

Description :

Dataram 16GB DDR4 SDRAM Memory Module
DTI24U2T8W/16G is an Unbuffered 2Gx64 memory module, which conforms to JEDEC's DDR4-2400, PC4-2400 standard. The assembly is Dual-Rank. Each rank is comprised of eight 1Gbx8 DDR4-2400 Industrial temp SDRAMs.

One EEPROM is used for Serial Presence Detect.

Both output driver strength and input termination impedance are programmable to maintain signal integrity on the I/O signals in a Fly-by topology.

A thermal sensor accurately monitors the DIMM module and can prevent exceeding the maximum operating temperature of 95C.

• DIMM 16 GB capacity is enough to execute all memory hungry programs simultaneously


• 288-pin-pin DDR4 SDRAM operates at an effective bus speed with minimal power consumption and as a result, you get optimal computer performance with an improved memory heat dissipation


• No matter how heavy and numerous the applications that you are using, 2400 MHz memory speed with Unbuffered signal will run them smoothly

Product Type: RAM Module
Environmentally Friendly: Yes
Environmental Certification: RoHS
Brand Name: Dataram
Form Factor: DIMM
Length: 5.3"
Manufacturer: Dataram Corporation
Product Name: 16GB DDR4 SDRAM Memory Module
Manufacturer Part Number: DTI24U2T8W/16G
Manufacturer Website Address: http://www.dataram.com
Number Of Pins: 288-pin
