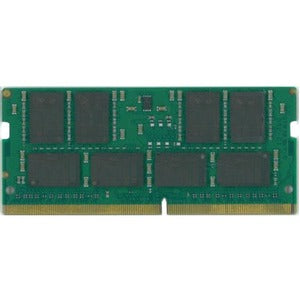

Dataram 16GB DDR4 SDRAM Memory Module DTM68607-H

Description :

Dataram 16GB DDR4 SDRAM Memory Module
DTM68607-H is a non-ECC Unbuffered small-outline 2Gx64 memory module, which conforms to JEDEC's DDR4-2400, PC4- 2400 standard. The assembly is Dual-Rank containing: sixteen SKHynix 1GbMx8 DDR4-2400 SDRAMs. One 4K-bit EEPROM is used for Serial Presence Detect.

Both output driver strength and input termination impedance are programmable to maintain signal integrity on the I/O signals in a Fly-by topology.

• 16 GB capacity is enough to execute all memory hungry programs simultaneously


• DDR4 SDRAM operates at an effective bus speed with minimal power consumption and as a result, you get optimal computer performance with an improved memory heat dissipation


• No matter how heavy and numerous the applications that you are using, 2400 MHz memory speed with Unbuffered signal and CL18 latency will run them smoothly

Product Type: RAM Module
Environmentally Friendly: Yes
Environmental Certification: REACH
Brand Name: Dataram
Form Factor: SoDIMM
Length: 2.7"
Manufacturer: Dataram Corporation
Product Name: 16GB DDR4 SDRAM Memory Module
Manufacturer Part Number: DTM68607-H
Manufacturer Website Address: http://www.dataram.com
Number Of Pins: 260-pin
Limited Warranty: Lifetime
Thickness: 145.7 mil
