Description :

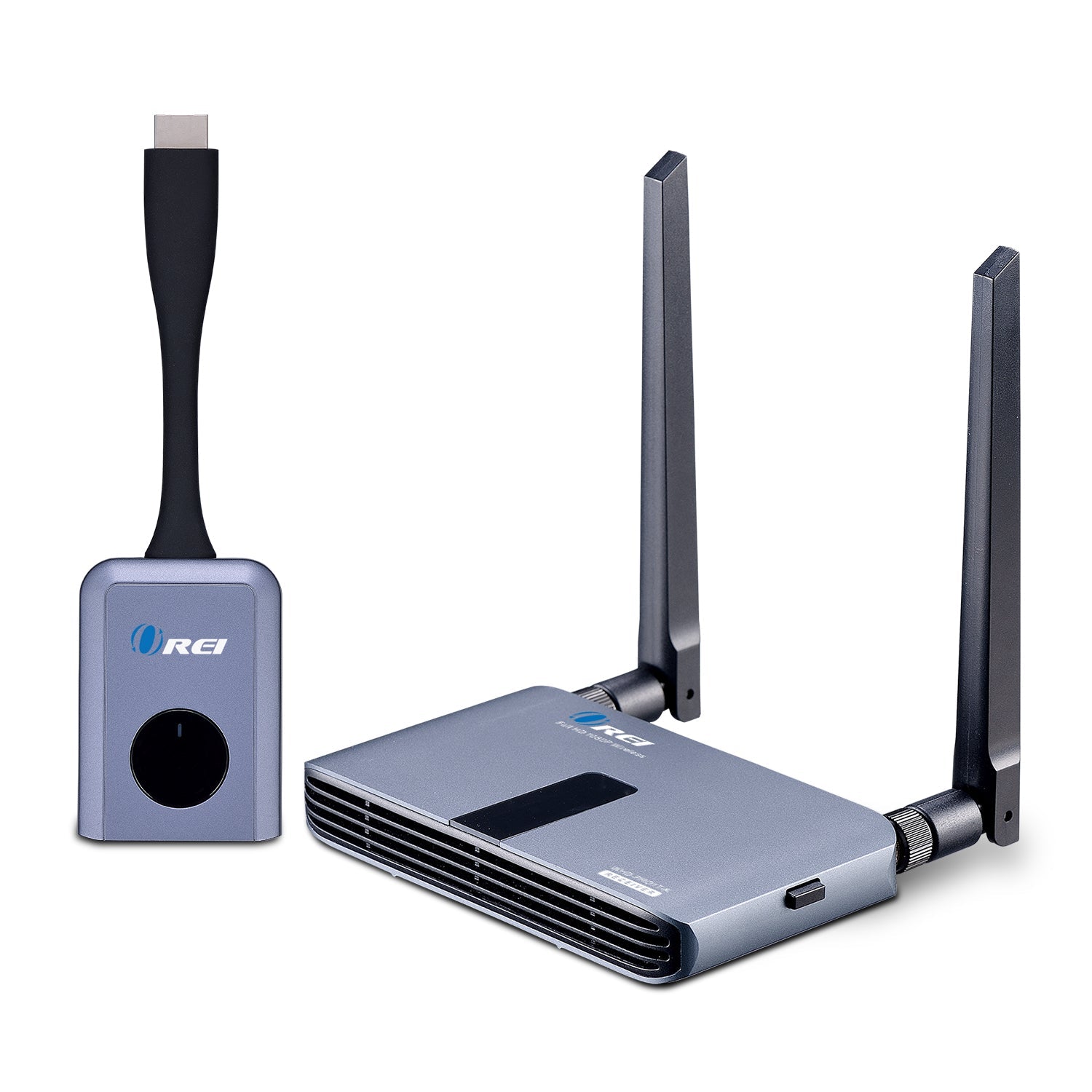

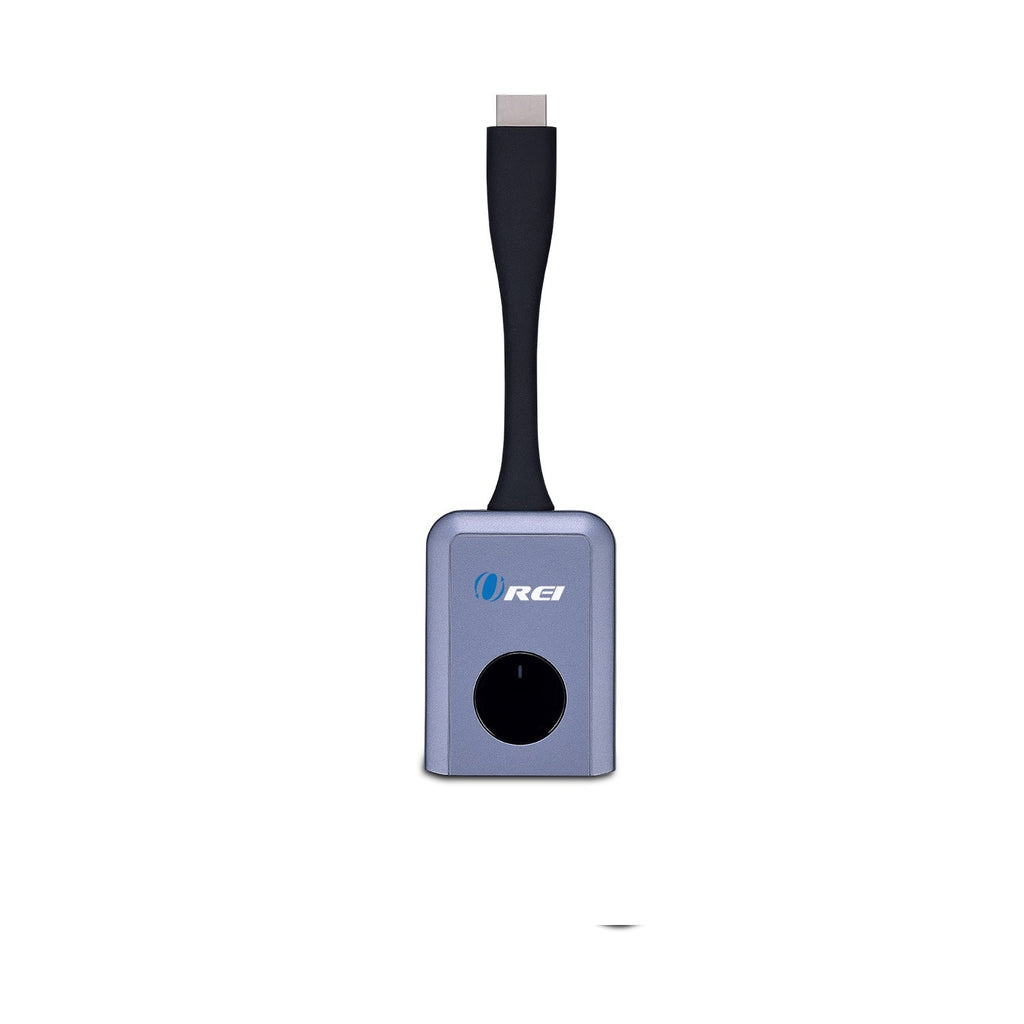

OREI WHD-PRO2T-K: 2x1 Wireless HDMI Switch
- Supports wireless HDMI transmission of signals up to 1080p
- 2 to 1 Split Screen Display
- WIFI display support
- Supported Channels are 128 & 132 on a 5 Ghz Wireless Band
- Wireless connectivity in up to 100ft (30 meters) (L.O.S)

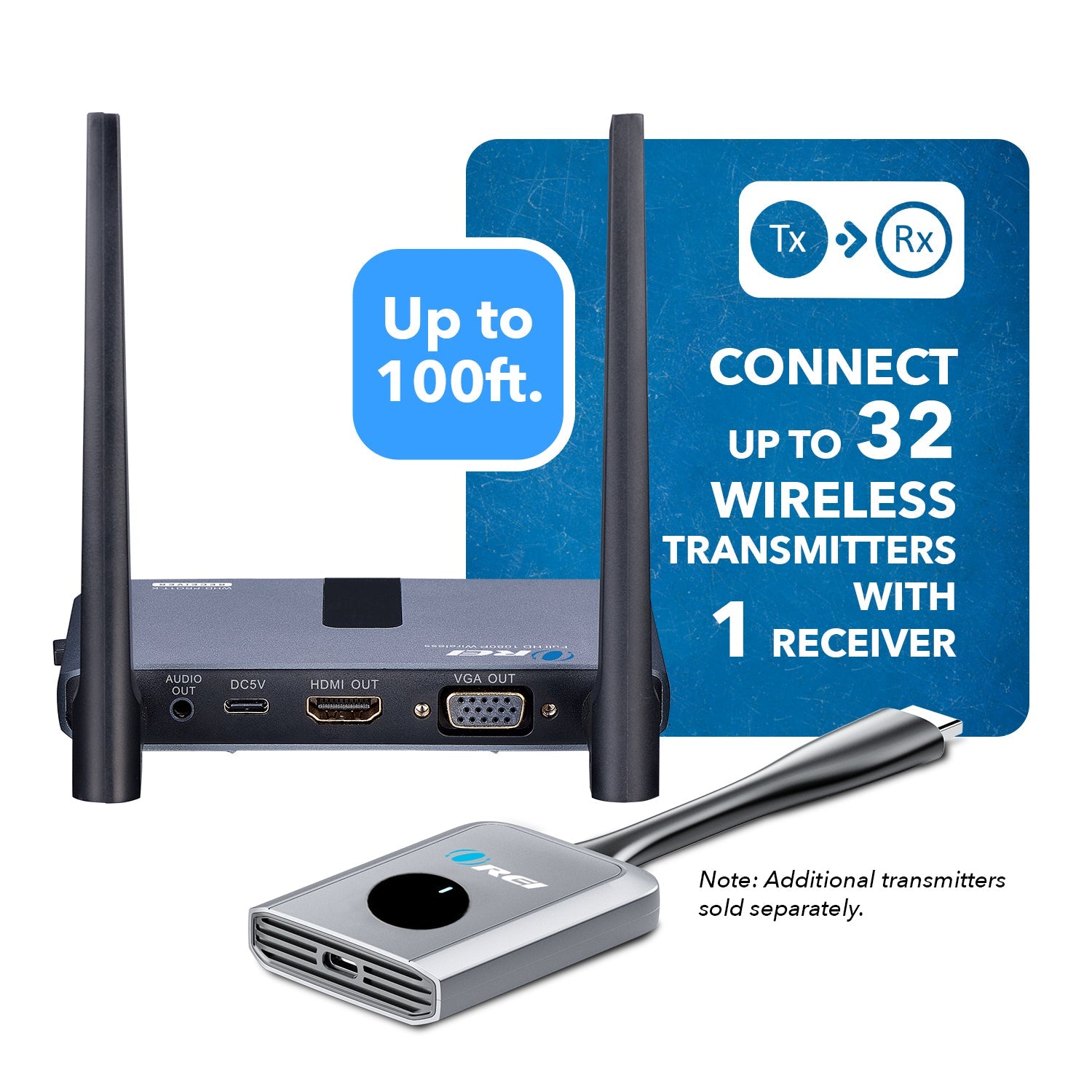

- Up to 32 wireless transmitters with one receiver (Additional Transmitters Sold Separately)
- Latency: 200ms max
- Quick click to cast wirelessly
- Supports iOS, Android, MAC, Windows system for notebooks, tablets and smart phones
- Plug and Play Setup, no app is required
Few sample applications:
WHD-PRO2T-K is an ideal solution for Bring Your Own Device (BYOD) meeting. It supports multiple platforms including iOS, Android, Mac, and Windows operating systems for productive and flexible presentations and collaboration from individual devices.
It also enables powerful 2-way split-screen sharing, making it useful and for ideas sharing and on-screen comparisons.
A wireless connection to a shared display from participants’ seats will also remove the need for complex configuring and cabling.

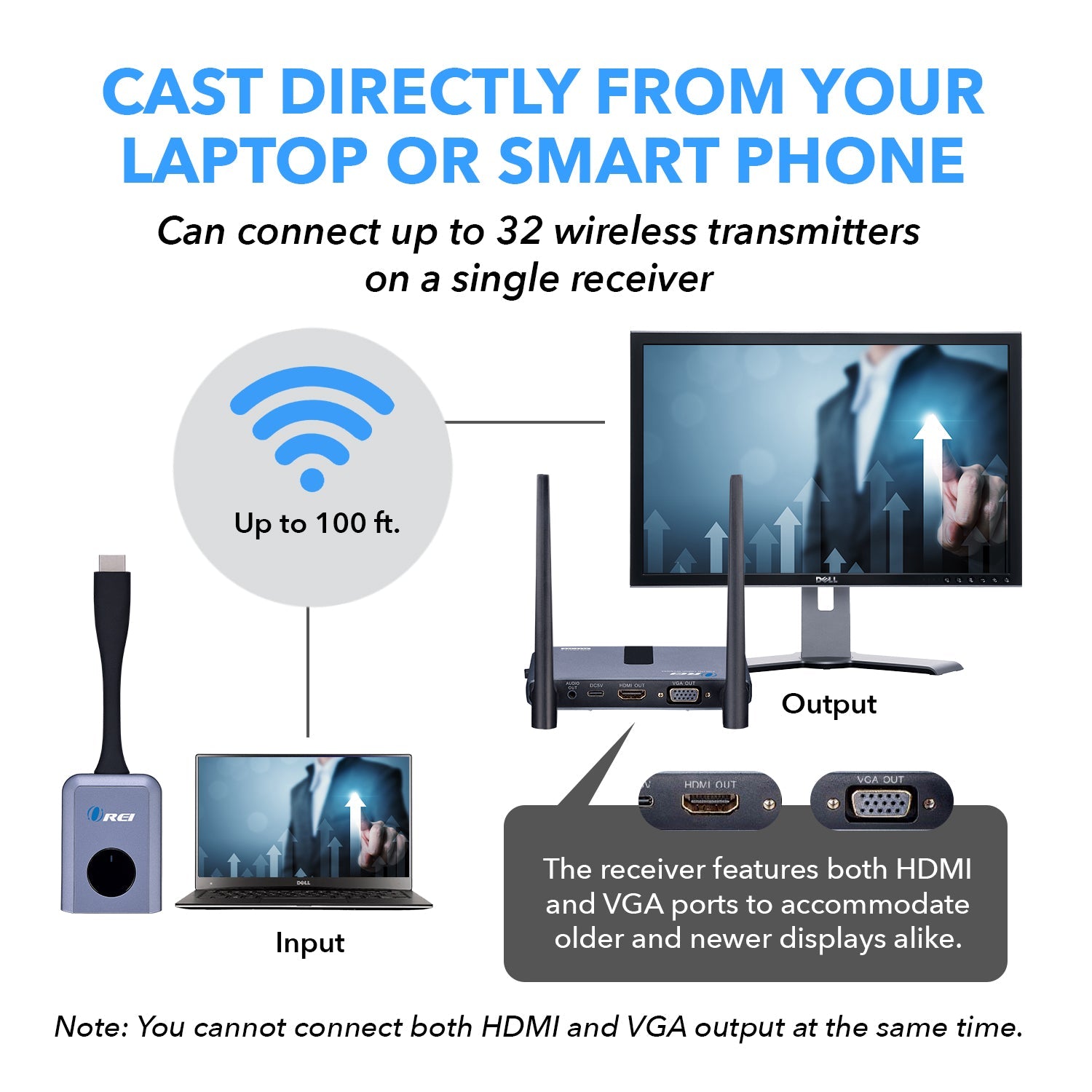

You can share BYOD content effortlessly with just one click in huddle rooms and many other types of meeting spaces. Connect the wireless HDMI transmitter to an HDMI camera and the receiver to an HDMI monitor. Power the transmitter with a Micro USB cable to the laptop or even a power bank.
Connect up to 32 Wireless Transmitters with one receiver (Additional Transmitters Sold Separately).
Plug & Play wireless HDMI setup without any Software Installation.
[tab]

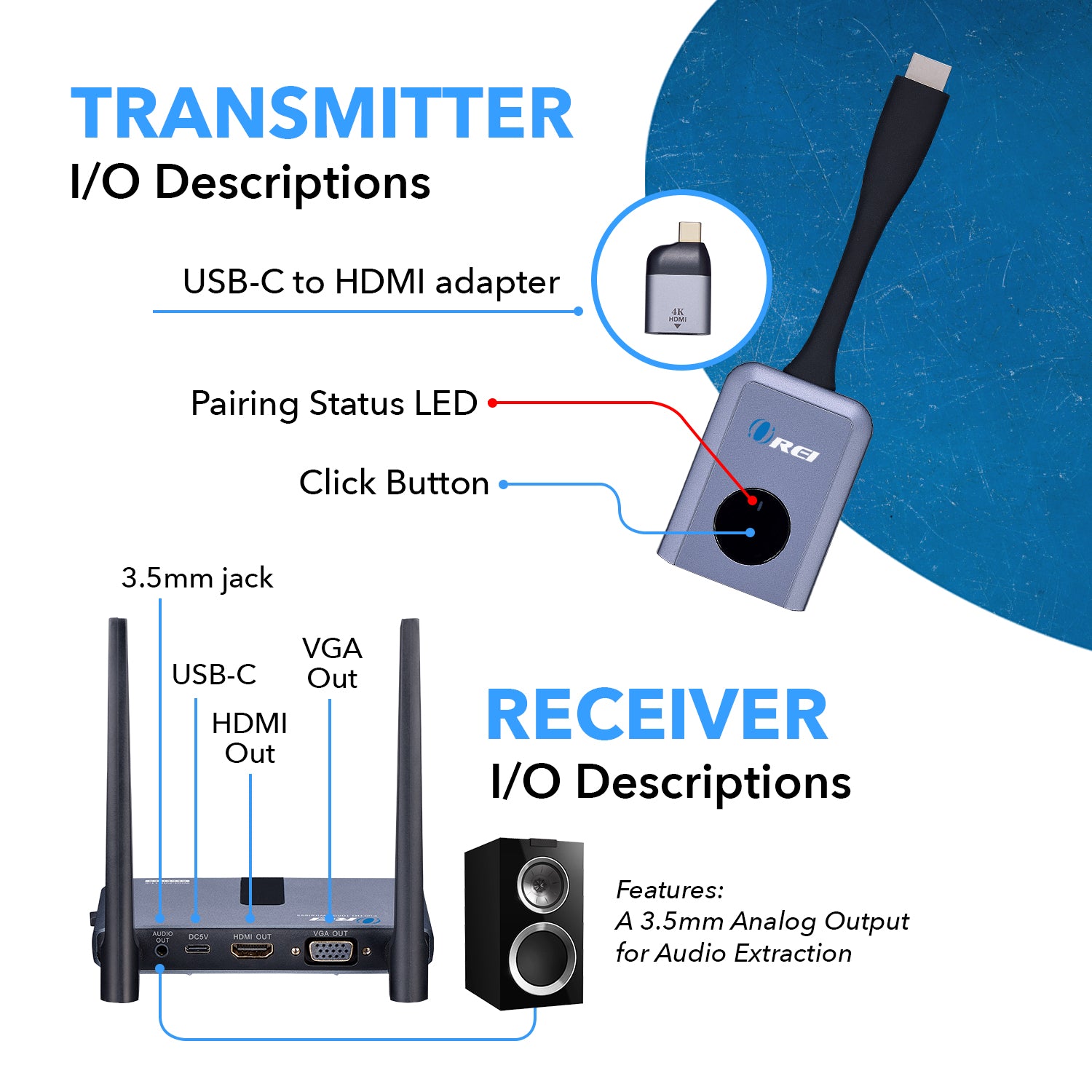

AUDIO AND VIDEO
Transmitter: | INPUT PORTS | 1x HDMI Type-A 19 Pin Female |
1x USB Type-A Male | ||
Receiver: | OUTPUT PORTS: | 1x HDMI Type-A 19 Pin Female |
1x USB Type-A Female | ||
1x Ethernet port |
COMPLIANCES
HDMI Compliance | HDMI 1.3a |
HDCP Compliance | HDCP 1.3 |
EXTENDING DISTANCE
1080p@60Hz: | 30M/ 100 feet (L.O.S) |
VIDEO OUTPUT
Video Bandwidth: | 165MHZ |
Video Resolutions: | 1080p/60Hz |
Color Space: | YCbCr 4:2:0 |
Color Depth: | 8bit |
AUDIO OUTPUT
HDMI Audio Formats: | PCM 2ch |
DIMENSIONS & WEIGHT
Transmitter: | Height: | 23mm |
Width: | 76.2mm | |
Depth: | 79.6mm | |
Weight: | 2x 71g | |
Receiver: | Height: | 25.4mm |
Width: | 118.8mm | |
Depth: | 80mm | |
Weight: | 120g |
PROTECTION
Operation Temperature: | 0~45℃ |
Storage temperature: | -10~60℃ |
Relative Humidity: | 10%~80% |
POWER
Power Consumption (Max): | Transmitter: | 4.5W (5V/0.9A) max. |
Receiver: | 10W (5V/2.0A) max. | |
Receiver: | Input: | AC 100~240V |
Output: | 5V/2A For RX |
PHYSICAL PROPERTIES
Color: | Black & Gray |
Housing: | Plastic |

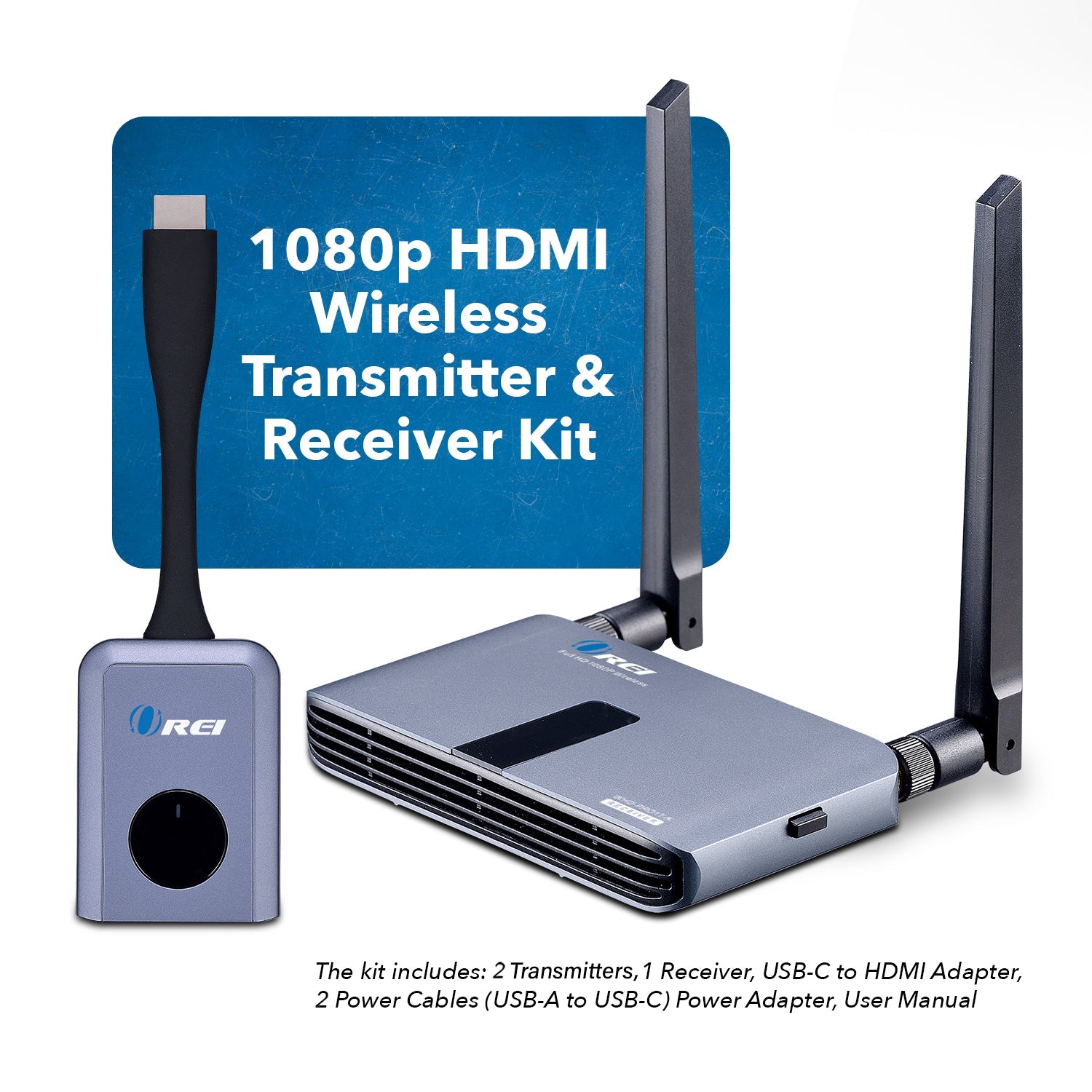

PACKAGE CONTENTS

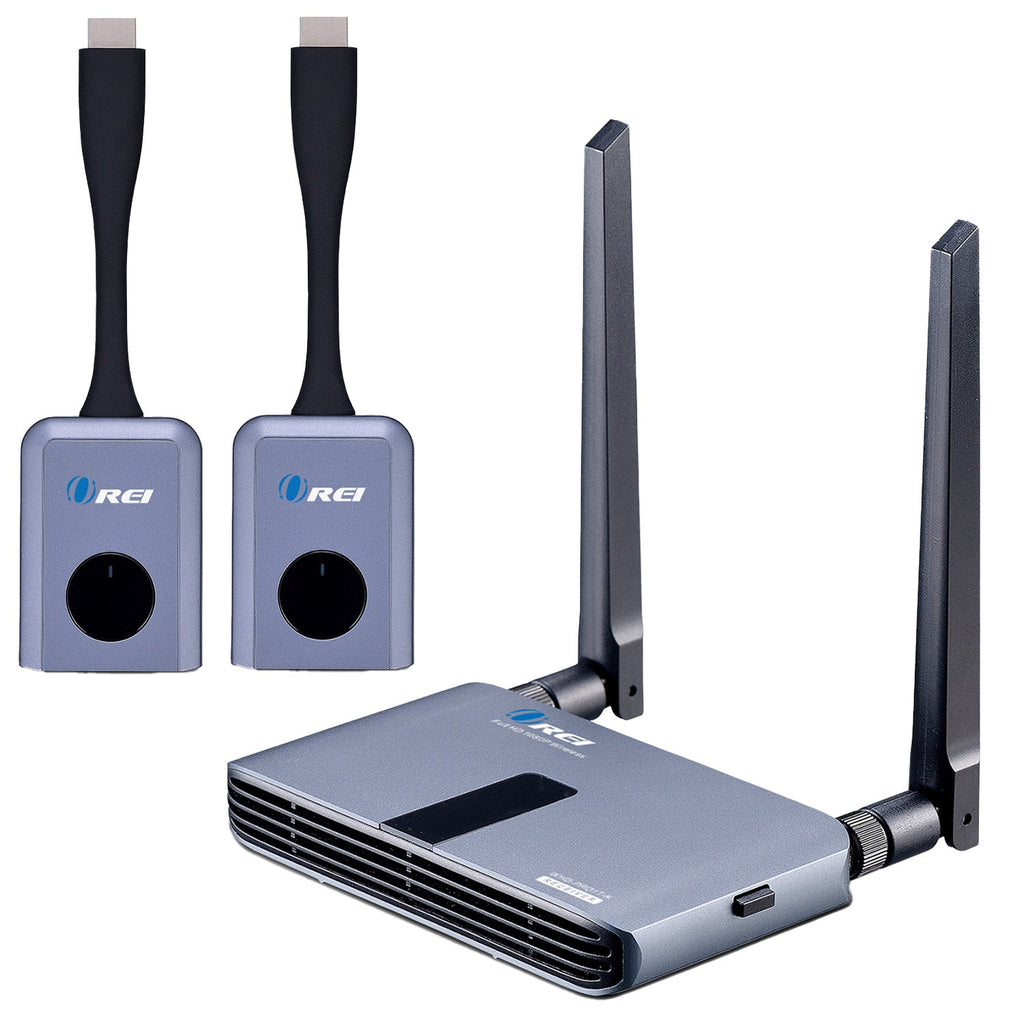

2x Transmitter |
1x Receiver |
2x HDMI A-A cable |
1x DC 5V/2A Power Adaptor |
1x User Manual |
WARRANTY
1-Year Manufacturer's Warranty |
[/tab]
[shortdes]
- Wireless 2x1 HDMI Presentation System - 1080p up to 100 feet
- Latency: 200ms max
- Plug and Play Setup - No App required, quick click to cast wirelessly
[/shortdes]
[tab1]
FAQs
Please try the following steps to resolve your pixelating issue:
Please try replacing your current HDMI cables with High-Quality HDMI cables.Please make sure that you dont have any other wireless devices such as wifi router nearby this extender.If you have a wifi router, then please try moving the router away as the wireless signals interfears with each other & causing this issue.Yes, you can purchase these things directly from us. Please contact us & we will assist you further.
Yes, you can implement the daisy chain method.
We recommend you to use High-Quality HDMI cables.
Yes, you can purchase the additional transmitter from us. Please contact us & we will let you know the price.
Yes, you can purchase the additional receiver from us. Please contact us & we will let you know the price.
[/tab1]
