Server Technology PRO2 C2WG24SN-EPJN5D6 24-Outlets PDU

Description :

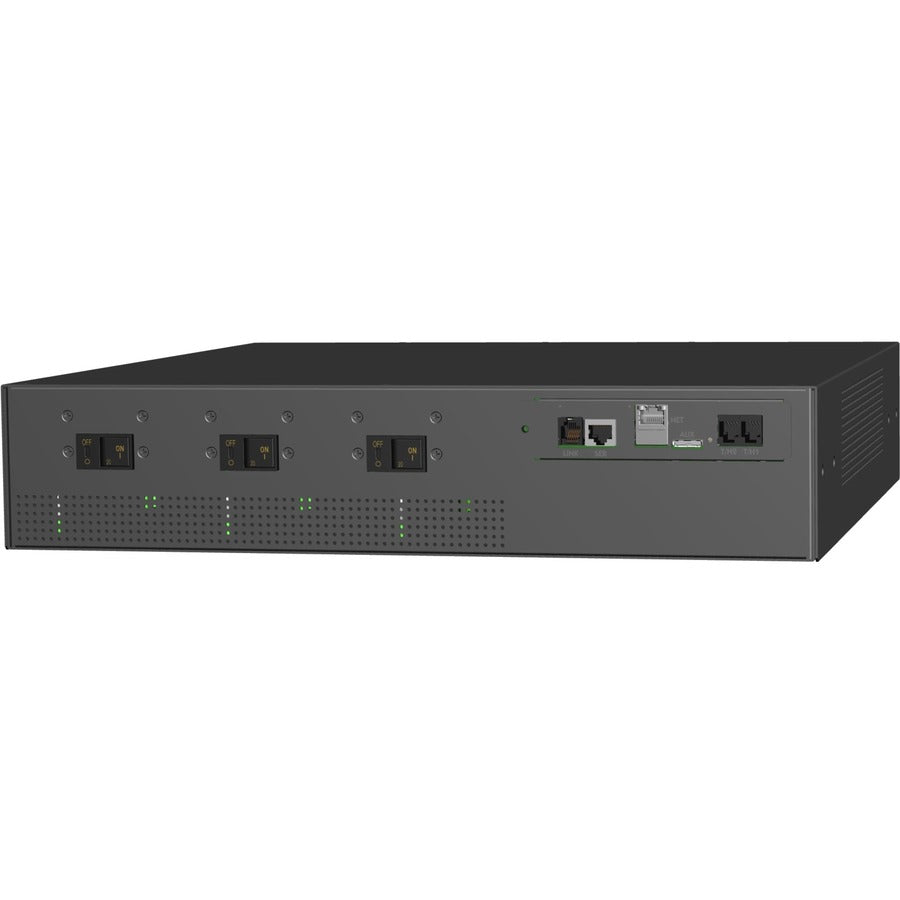

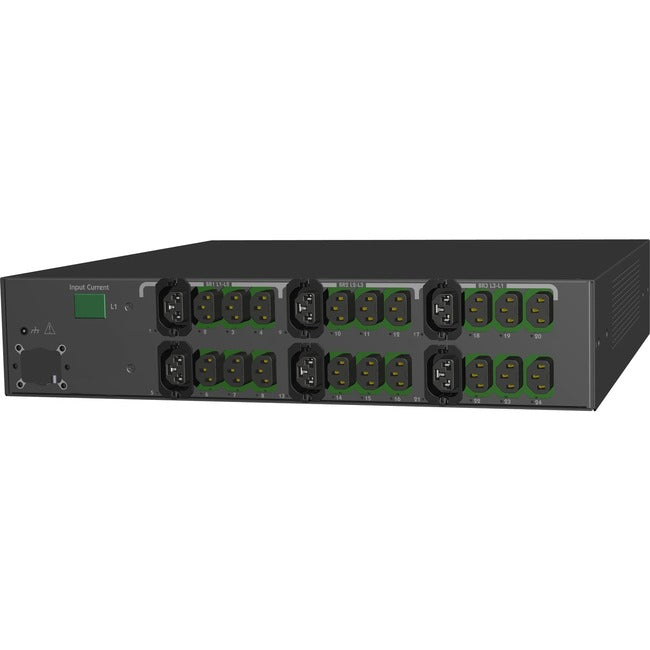

Server Technology PRO2 C2WG24SN-EPJN5D6 24-Outlets PDU

The Server Technology® PRO2 Switched POPS PDU provides control of outlet power and local LED input current monitoring, allowing IT personnel to determine safe levels of loading on a per-phase basis while installing equipment into the rack/cabinet. The integral PIPS® and POPS® technology provides billing-grade accurate measurement of current, voltage, active power, apparent power, power factor, crest factor, and accumulated energy at the input and at each output. These power data points, along with temperature and humidity measurements (provided via optional probes), are accessible through the built-in Web and CLI interfaces as well as through SNMP. The PRO2 Switched POPS "Master" PDU can be connected to as many as three (with optional module) PRO2 Switched POPS "Link" PDUs to extend the network access to the redundant or secondary power feed without the risks of a daisy chain linking configuration.

• Network Monitoring


• Temperature/ Humidity Monitoring


• Branch Current Monitoring


• High-Density Outlet Technology


• Hot-Swap Network Card


• Per-Inlet Power Sensing


• Branch Circuit Protection


• High Retention Locking Outlets


• Star Multi-Linking


• Per-Outlet Power Sensing

Product Type: PDU
Environmentally Friendly: Yes
Environmental Certification: WEEE
Mounting Orientation: Horizontal
Product Series: PRO2
Rack Height: 2U
Brand Name: Server Technology
Manufacturer: Server Technology, Inc
Product Model: C2WG24SN-EPJN5D6
Product Name: PRO2 C2WG24SN-EPJN5D6 24-Outlets PDU
Mount Type: Rack-mountable
Manufacturer Part Number: C2WG24SN-EPJN5D6
Manufacturer Website Address: http://www.servertech.com
Package Contents:

• PRO2 C2WG24SN-EPJN5D6 24-Outlets PDU
• Mounting Brackets
