SIIG HDMI 2.0 Audio Extractor / Embedder CE-H23M11-S1

Description :

SIIG HDMI 2.0 Audio Extractor / Embedder

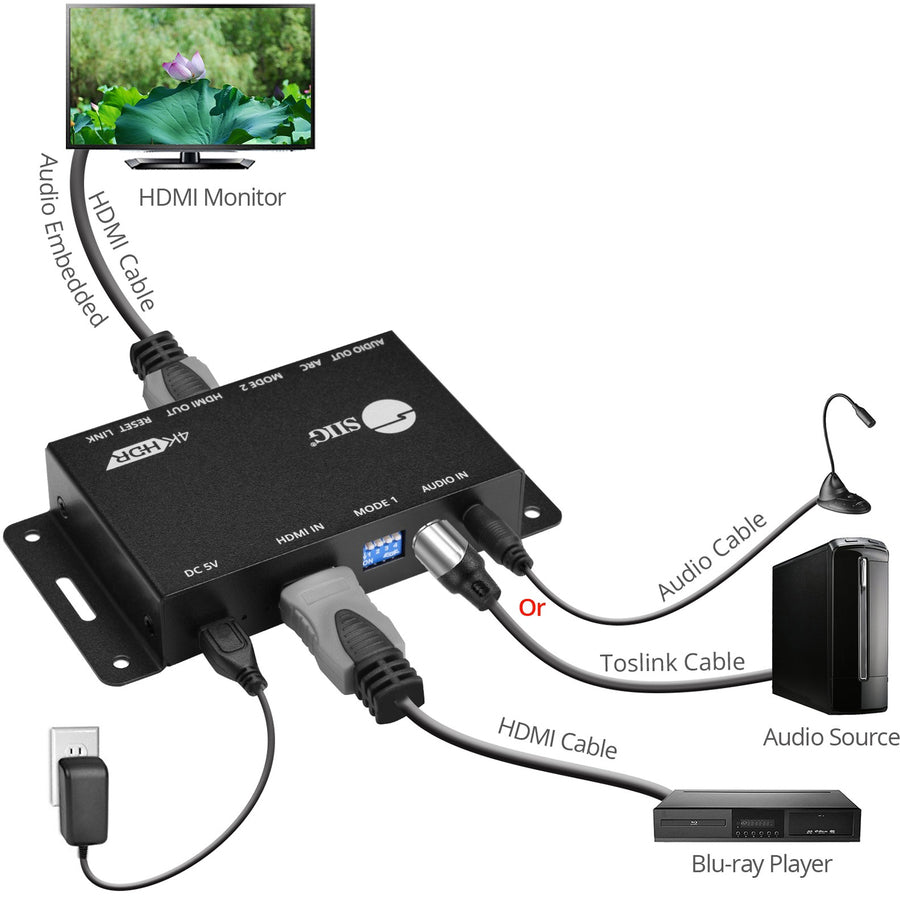

Separates the high quality analog stereo audio and digital S/PDIF (Toslink) audio from the incoming HDMI signal or embeds external stereo analog audio or digital S/PDIF (Toslink) audio to the outgoing HDMI signal without losing any active audio channels

• Extracts high quality Stereo Analog audio and Digital Toslink S/PDIF audio from the incoming HDMI signal without losing any active audio channels
• Embeds external Stereo Analog audio or Digital S/PDIF (Toslink) audio to the outgoing HDMI signal
• Supports HDMI Input and Output up to 4K @60Hz (YUV 4:4:4 8-bit), HDR 4K @60Hz (YUV 4:2:0 10-bit)
• Compatible with HDMI 2.0a and HDCP 2.2
• Video bandwidth up to 18Gbps
• Supports CEC bypass and Audio Return Channel (ARC) audio extraction via Toslink

• Works incredibly well with home theater system or any professional sound amplifier


• To fulfill your needs, this audio de-embedding function is a perfect choice


• Mountable to a wall, saves you floor space and yet easy-to-reach

Product Type: Signal Extractor
Environmentally Friendly: Yes
Environmental Certification: RoHS
Taa Compliant: Yes
Country Of Origin: Taiwan
Brand Name: SIIG
Form Factor: Wall Mountable
Manufacturer: SIIG, Inc
Product Name: HDMI 2.0 Audio Extractor/Embedder
Manufacturer Part Number: CE-H23M11-S1
Manufacturer Website Address: http://www.siig.com

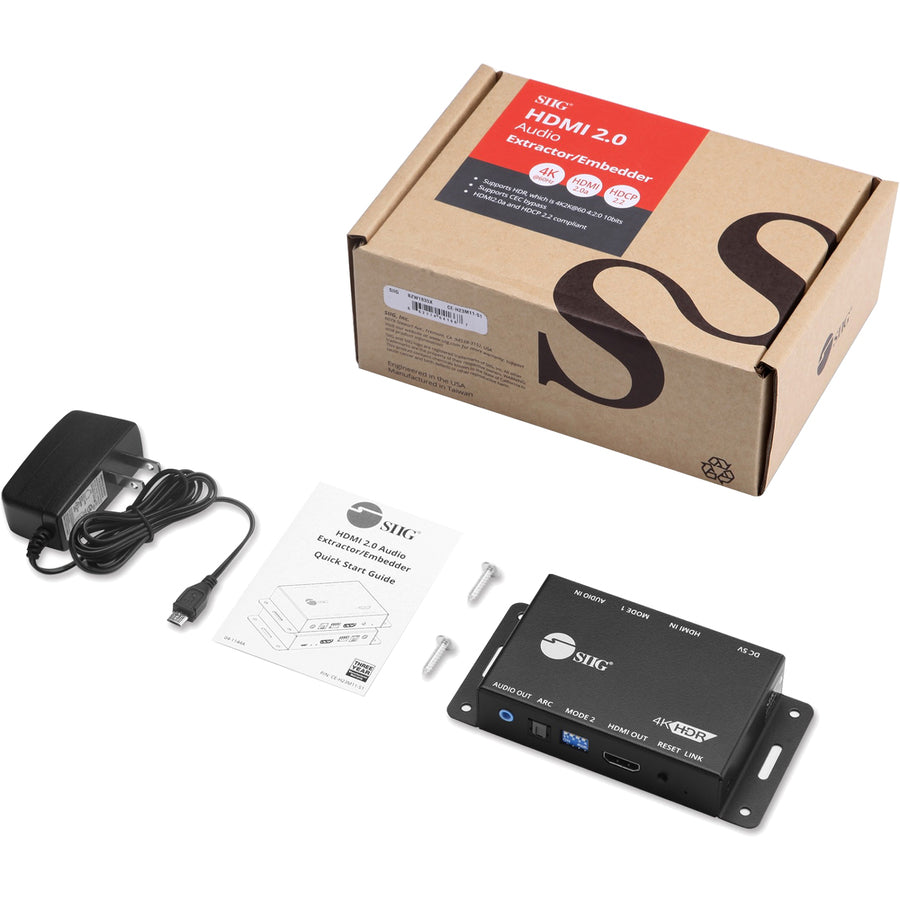

Package Contents:

• HDMI 2.0 Audio Extractor/Embedder
• Power Adapter 5V/2A
• Screw Kit
• Quick Start Guide
