Description :

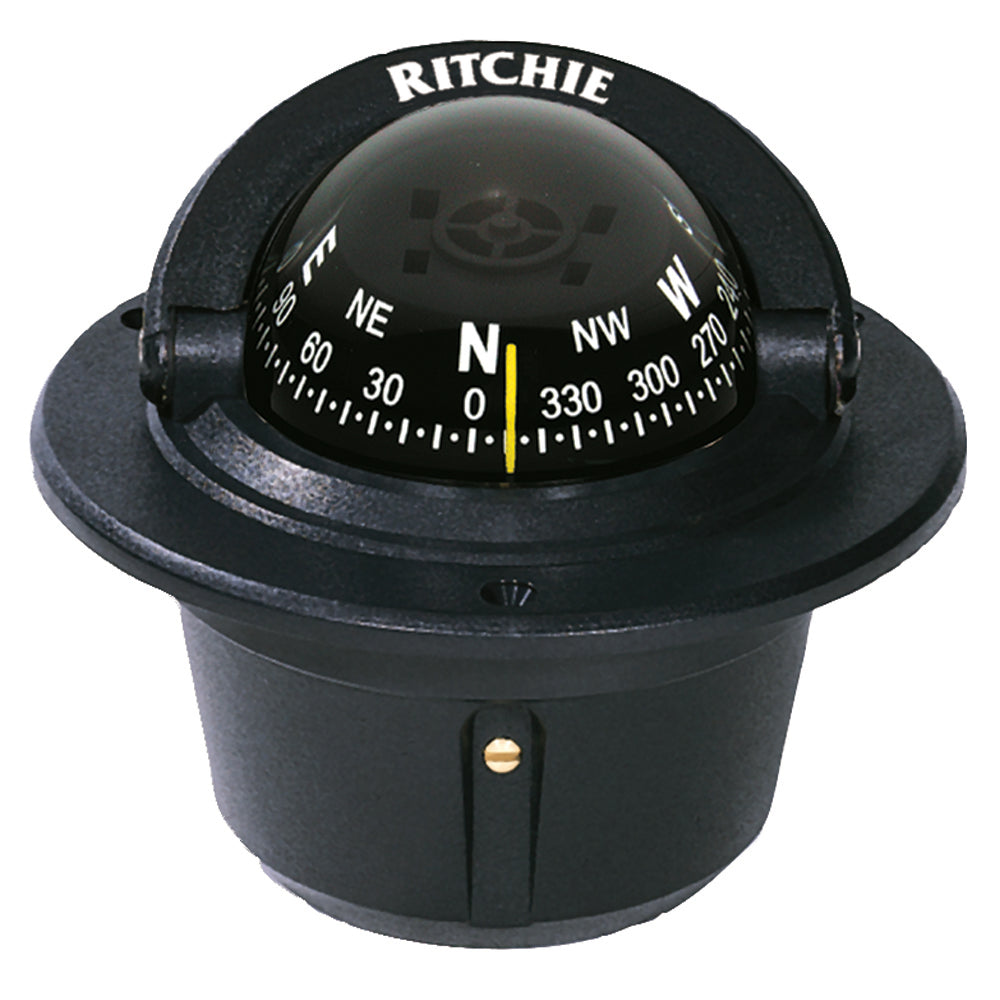

Explorer Compass
Features:
- 2 3/4″ (70 mm) Easy to Read Direct Reading Dial
- Easily Installed, Fits 3.75″ (9.53 cm) Mounting Hole
- Internal Green Night Illumination
- Built-in Compensators to Easily Adjust for Deviation
- Scientifically Matched Sapphire Jewel & Hardened Steel Pivot Dial Movement
- Powerful DirectiveForce Magnets for Fast Heading Lock-on
- Movable Sun Shield
- High Temperature Composite Construction for Extended Operating Range
- 100% Repairable
- Exclusive 5-Year Ritchie Warranty
Approx. Shipping Weight: 1lb (454g)
Notes:
Comes standard with 12v lighting. 6 & 24v lighting options are available.
Some custom built OEM models may have different lighting.
Quick Guide | View (pdf) |
Owners Manual | View (pdf) |
Installation Guide | View (pdf) |
Specifications :
General Information
Manufacturer | Ritchie |
---|---|
Manufacturer Part Number | F-50 |
Product Type | Marine Navigation & Instruments | Compasses |
UPC | 010342160003 |
