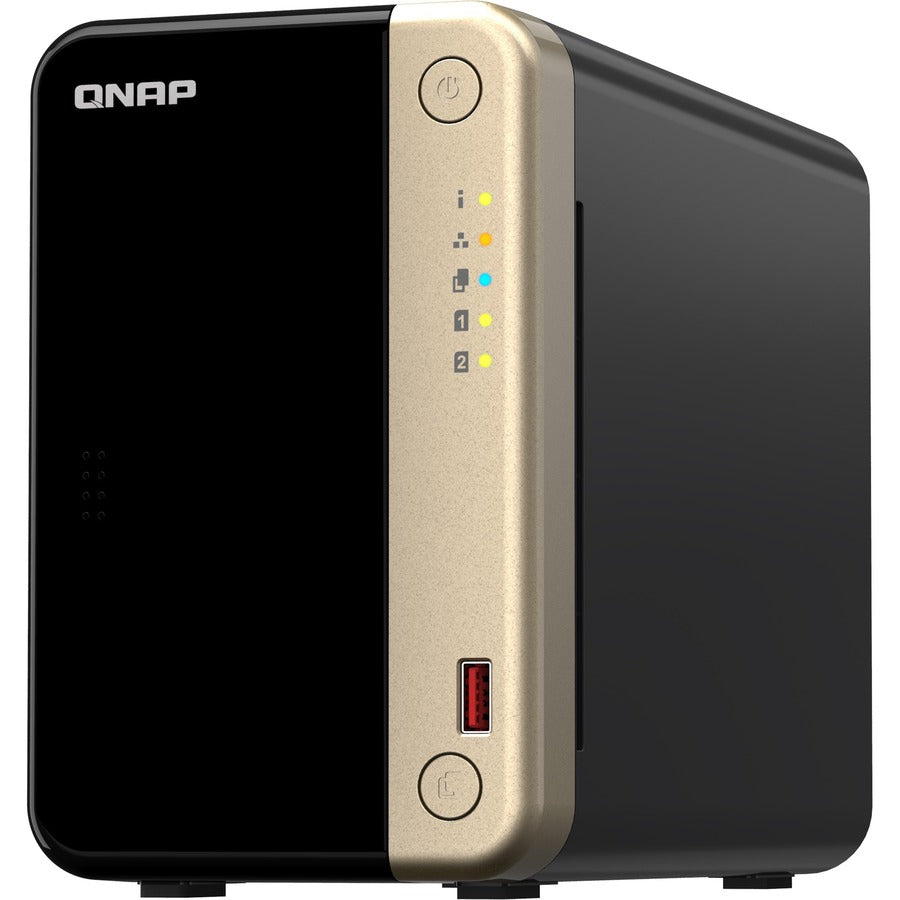

QNAP Turbo NAS TS-264-8G SAN/NAS Storage System - 1 x Intel Celeron N5095 Quad-core (4 Core) - 2 x HDD Supported - 0 x HDD Installed - 2 x SSD Supported - 0 x SSD Installed - 8 GB RAM DDR4 SDRAM - Serial ATA/600 Controller - RAID Supported 0, 1, JBOD - 2 x Total Bays - 2 x 2.5"/3.5" Bay - 1 x Total Slot(s) - 2.5 Gigabit Ethernet - HDMI - 4 USB Port(s) - 2 USB 2.0 Port(s) - Network (RJ-45) - QTS 5.0.1 - IPv4, IPv6, DHCP, CIFS/SMB, AFP, NFSv3, FTP, FTPS, SFTP, TFTP, HTTP, ... - 4 GB Flash Mem
TS-264|Intel quad-core dual-port 2.5GbE NAS supports M.2 SSD caching and PCIe expandability for high-speed transmission and virtualization applications
Powered by an Intel® Celeron® N5095, quad-core processor (burst up to 2.9GHz), the TS-264 features two 2.5GbE RJ45 ports and Port Trunking for up to 5Gbps combined bandwidth. With M.2 PCIe Gen3 and PCIe Gen 3 slots, the TS-264 provides flexibility in extending NAS functionality, allowing you to install a QM2 card for M.2 SSD caching, or Edge TPU for AI image recognition and various 10GbE/5GbE network cards. The TS-264 comes with 8 GB RAM for running light VMs and Containers, and supports multi-cloud backup, cloud storage gateways, 4K HDMI output and real-time transcoding, alongside expandable storage capacity and feature-rich apps to perform as a cost-efficient, reliable 2.5GbE NAS. 2.5GbE port
Up to 5 Gbps transfer speeds can be achieved by setting port trunking with the two built-in 2.5G
General Information
Manufacturer
QNAP Systems
Manufacturer Part Number
TS-264-8G-US
Manufacturer Website Address
http://www.qnap.com
Brand Name
QNAP
Product Line
Turbo NAS
Product Series
TS-x62
Product Model
TS-264-8G
Product Name
Turbo NAS TS-264-8G SAN/NAS Storage System
Product Type
SAN/NAS Storage System
UPC
0885022024681
Processor
Processor Manufacturer
Intel
Processor Type
Celeron
Processor Model
N5095
Processor Core
Quad-core (4 Core)
Ethernet Technology
2.5 Gigabit Ethernet
Interfaces/Ports
HDMI
Yes
Total Number of USB Ports
4
Network (RJ-45)
Yes
Operating System
QTS 5.0.1
Power Description
Maximum Power Supply Wattage
65 W
Height
6.6"
Width
4.1"
Depth
8.9"
Weight (Approximate)
3.42 lb
Miscellaneous
Package Contents
Turbo NAS TS-264-8G SAN/NAS Storage System
1 x Ethernet Cable
1 x Power Cord
36 x Flat head screw (for 3.5" HDD)
36 x Flat head screw (for 2.5" HDD)
AC Adapter
Warranty
Limited Warranty
3 Year
Additional Warranty Information
The TS-264 is backed by a 3-year warranty at no additional cost.
