Promise Vtrak E5800Fd San Storage System

Description :

Promise VTrak E5800FD SAN Storage System

High Performance, High Availability

The VTrak E5000 Series delivers an affordable high-performance Fibre Channel to SAS storage solution with advanced enterprise level reliability and functionality. With four 16Gb Fibre Channel ports and two 12Gb SAS ports per controller connecting host and storage expansion, the E5000 is perfect for applications requiring huge bandwidth. The E5000 can output 542,100 read IOPs and up to 111,686 write IOPs. It can deliver 12 Gigabyte read and 5.3 Gigabyte write sequential throughput. Fully redundant components such as Active-Active controllers, power supplies, and cooling units provide optimal data availability even during unforeseen circumstances. The VTrak E5000 is truly a full featured enterprise level storage system that can accommodate any size of business environment.

IT/Data Center Ready

Fully compatible with 6 Gb/s SAS/SATA devices, the VTrak E5000 gives users the ability to deploy 6 Gb/s and 12 Gb/s SAS/SATA HDDS and SSDs. Efficient power supplies provide up to 90% improved power efficiency, improving TCO by conserving power, reducing heat output and lower cooling costs. The E5000's flash arrays enable optimized speed for key enterprise applications that need high-speed transfer rates and reduced latency and thanks to its Intel multi-core Broadwell-DE based architecture providing ample processing power to achieve transfer speeds at line rate on both 16Gb Fibre Channel front-end interfaces and 12Gb SAS backend interfaces.

Virtualization Ready

Ready to confront any challenge in today's virtualized IT environment, the VTrak E5000 Series is certified with VMware vSphere, Citrix XenServer, Microsoft Hyper-V, Veeam, and DataCore SANsymphony.

Virtualization enables dynamic storage allocations such that physical layers of storage can be utilized most effectively. As virtual machines continue to increase with more virtualized deployments, 16Gb Fibre Channel performance delivers the faster bandwidth needed for growing infrastructures.

• VTrak E5000 Series 16 Gb/s Fibre Channel to SAS subsystems deliver a high performance SAS solution with advanced enterprise level reliability and functionality

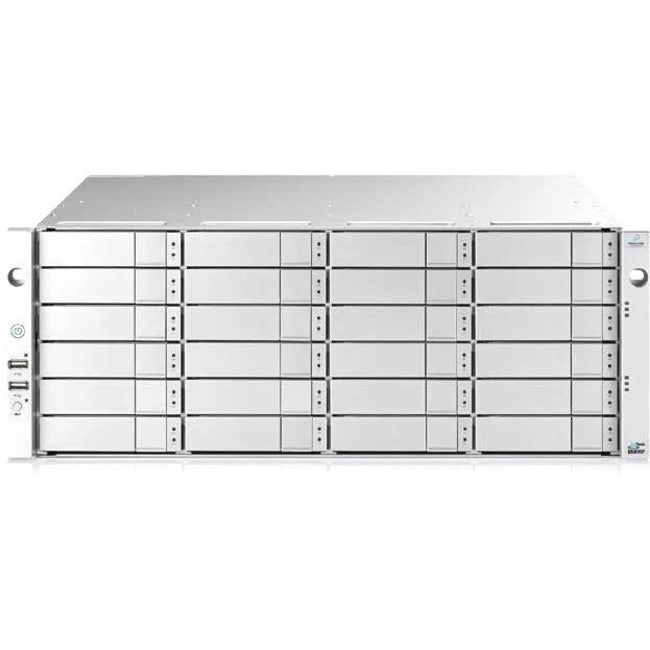

• 24 hot-swappable 3.5" (LFF) drive bays in a 4U chassis


• Supports SAS and SATA drives simultaneously and is compatible with leading SAS & SATA drives, HBAs, and RAID controllers


• Dual active/active controllers with ALUA for performance and access flexibility

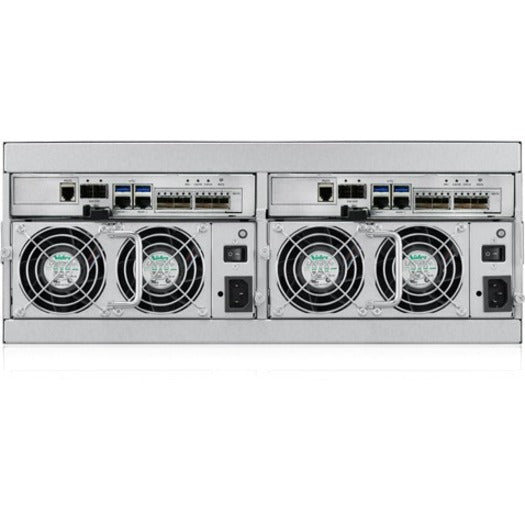

• Quad 16Gb FC ports and dual 12Gb SAS ports per controller for connecting host and storage expansion

Product Type: SAN Storage System
Environmentally Friendly: Yes
Environmental Certification: RoHS
Product Series: E5000
Rack Height: 4U
Brand Name: Promise
Form Factor: Rack-mountable
Manufacturer: Promise Technology
Product Model: E5800FD
Product Name: VTrak E5800FD SAN Storage System
Product Line: VTrak
Manufacturer Part Number: E5800FDQS10
Manufacturer Website Address: http://www.promise.com
Limited Warranty: 3 Year
Weight (Approximate): 109.35 lb
